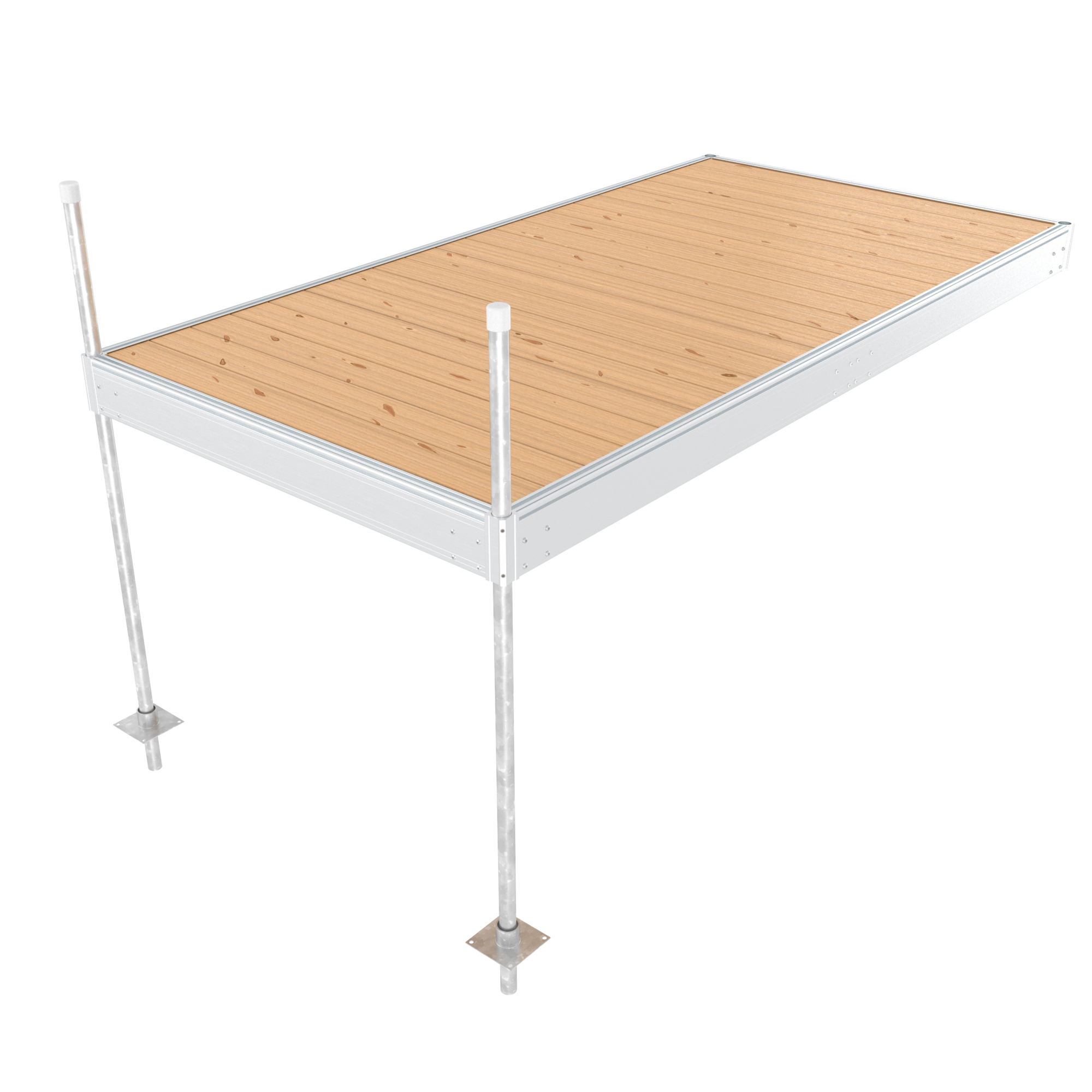

Multinautic, QPF-495 Aluminum Stationary Dock Kit w/Cedar Decking, Length 116 in, Width 60 in, Model# 21577

Item# 6117023
1 Pieces
Multinautic, QPF-495 Aluminum Stationary Dock Kit w/Cedar Decking, Length 116 in, Width 60 in, Model# 21577

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Multinautic, QPF-495 Aluminum Stationary Dock Kit w/Cedar Decking, Length 116 in, Width 60 in, Model# 21577

Click or Tap image to Zoom

$999.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Modular dock system – can be combined with any QPF-495 stationary or floating dock kit
  • Use to build a robust stationary dock system perfect for water up to 4 ft. deep – Sturdy enough to moor a light watercraft, e.g., canoe, kayak
  • Can be used to anchor and steady to the shore a floating dock system of three sections or more for heavy residential use – Ideal for mooring a boat up to approximately 25 ft. in length or 4,000 lb.
  • Lightweight, durable and maintenance-free 5/4 in. nominal (1 in. actual) thick pre-cut planks of cedar, naturally resistant to weather, mildew and insects
  • Quick and easy to assemble – Aluminum structure 30 min.; Cedar decking 30 min. (each 5 ft. x 10 ft. section)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Multinautic® QPF-495 Modular Stationary Dock Kit with Cedar Decking offers great stability in shallow water up to 4ft. deep with its broad 5ft. x 10ft. structure and 6ft. long galvanized steel posts. Each 5ft. x 10ft. stationary dock section will handle a charge up to 1,200 lb.

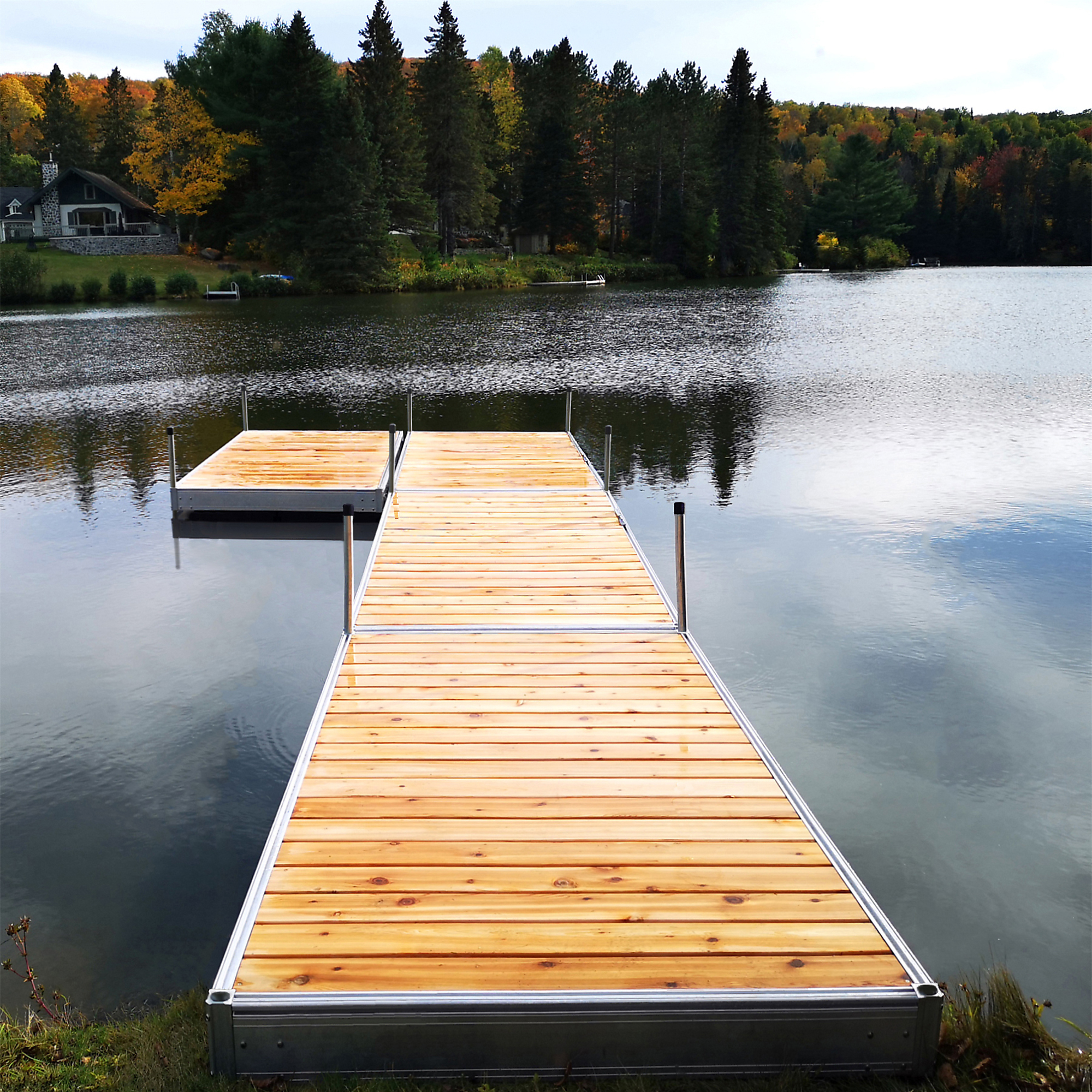

Purchase as many QPF-495 stationary and floating dock kits as needed to obtain your desired configuration. Use a series of stationary dock kits to create a stationary dock system perfect for use in shallow waters and sturdy enough to moor a light watercraft, e.g., canoe, kayak. Use one or a few stationary dock kits to anchor and steady a ramp and floating dock (see Model# 21569) to the shore. A QPF-495 floating dock system with three sections or more will allow you to extend your dock in deeper waters and to moor all types of small and medium crafts up to approximately 25ft. in length or 4,000 lb.

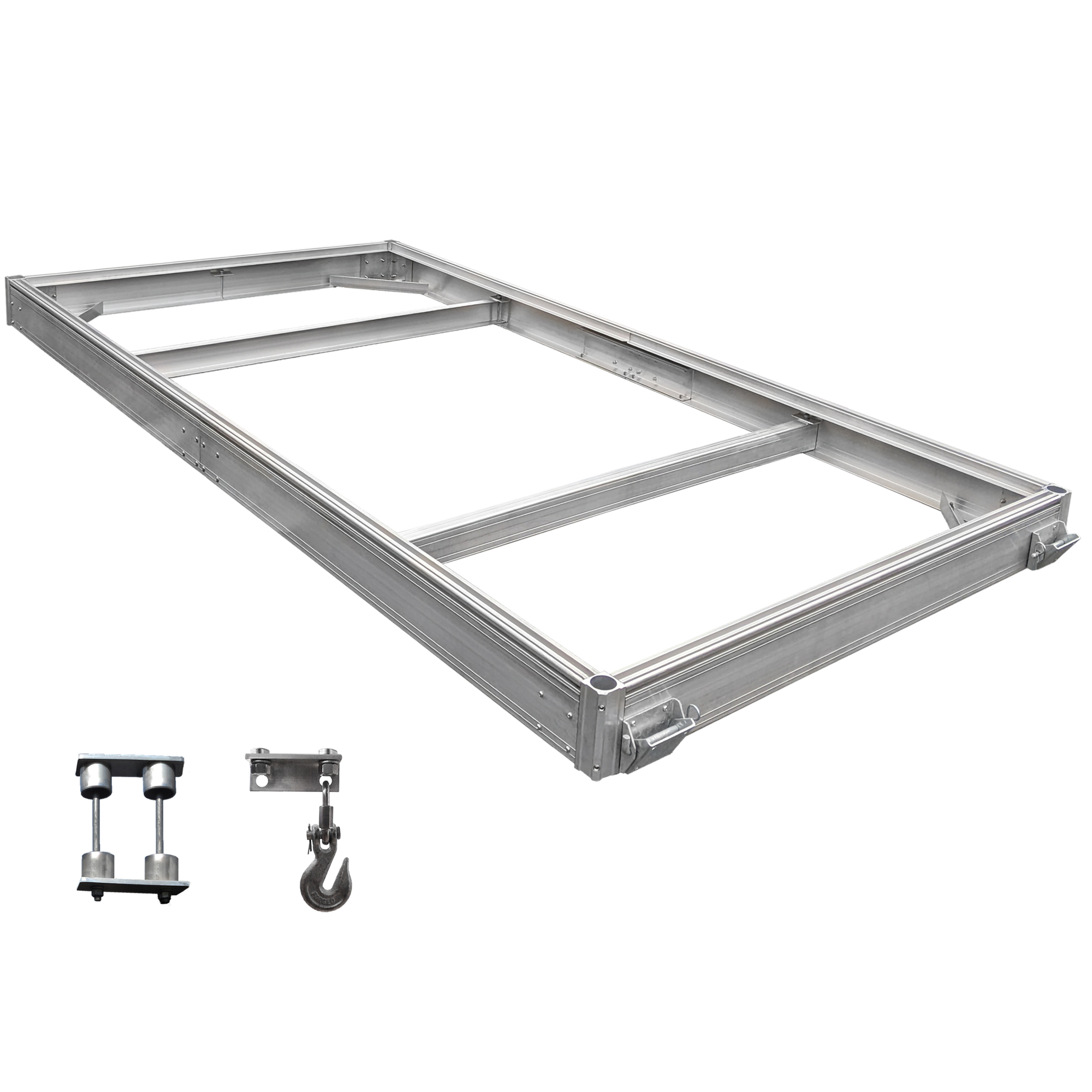

Sturdy, durable and lightweight, its all-aluminum structure is quick to assemble with the included stainless-steel and hot dip galvanized hardware and is easy to install and remove for winter storage if required. The integrated leg holders within the rectangular structure create smooth, straight edges that minimize the risk of hull damage. The exclusive top track system allows for easy installation and repositioning of cleats and accessories to the sides of the dock.

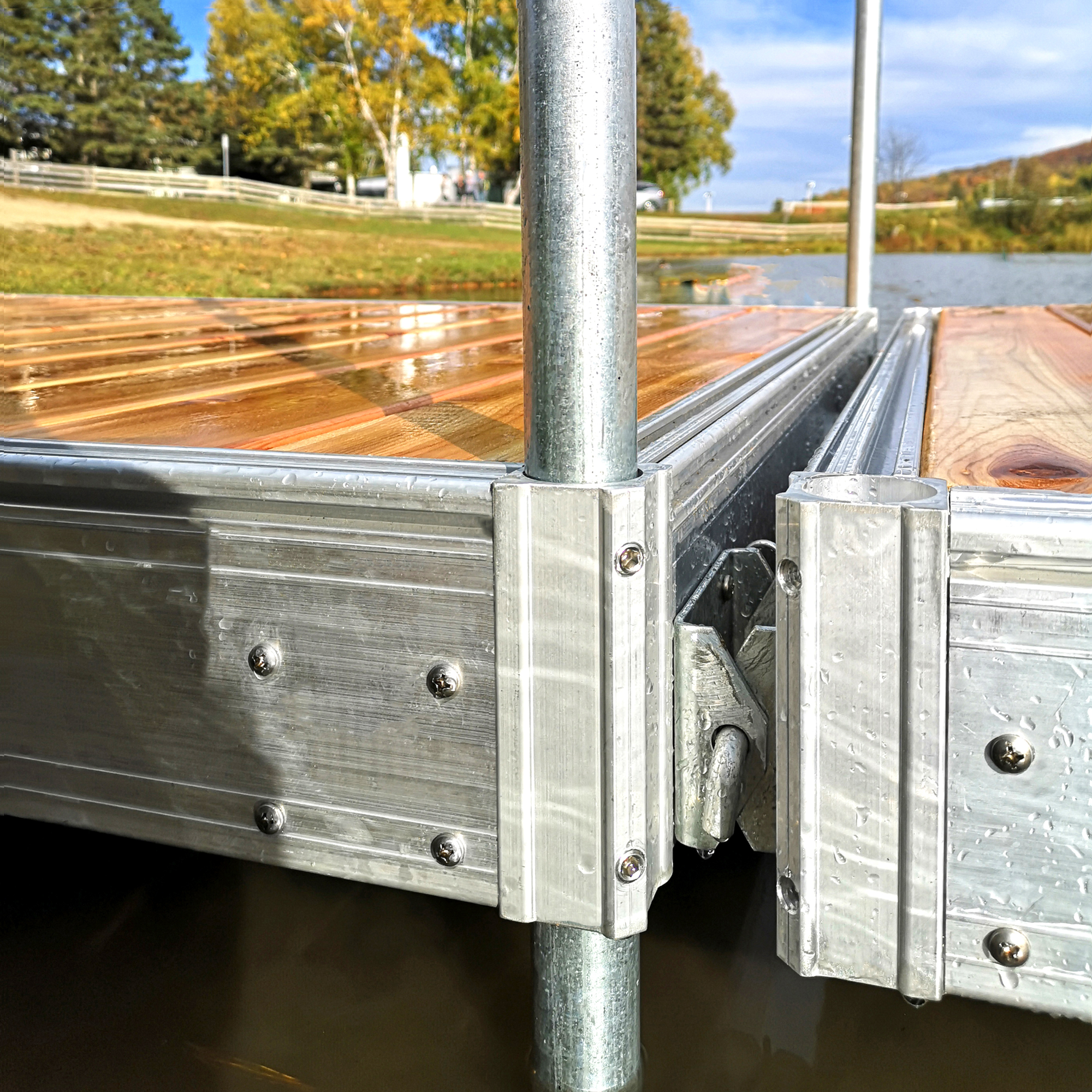

One stationary dock kit comes with an anchor chain hook and all necessary hardware to assemble the frame and includes a pair of hinges and a junction stabilizer to join 2 docks end to end, side by side or in an "L" or "T" shape. Slide and secure the 6ft. long posts in the leg holders for a convenient height-adjustment as water fluctuates throughout the season.

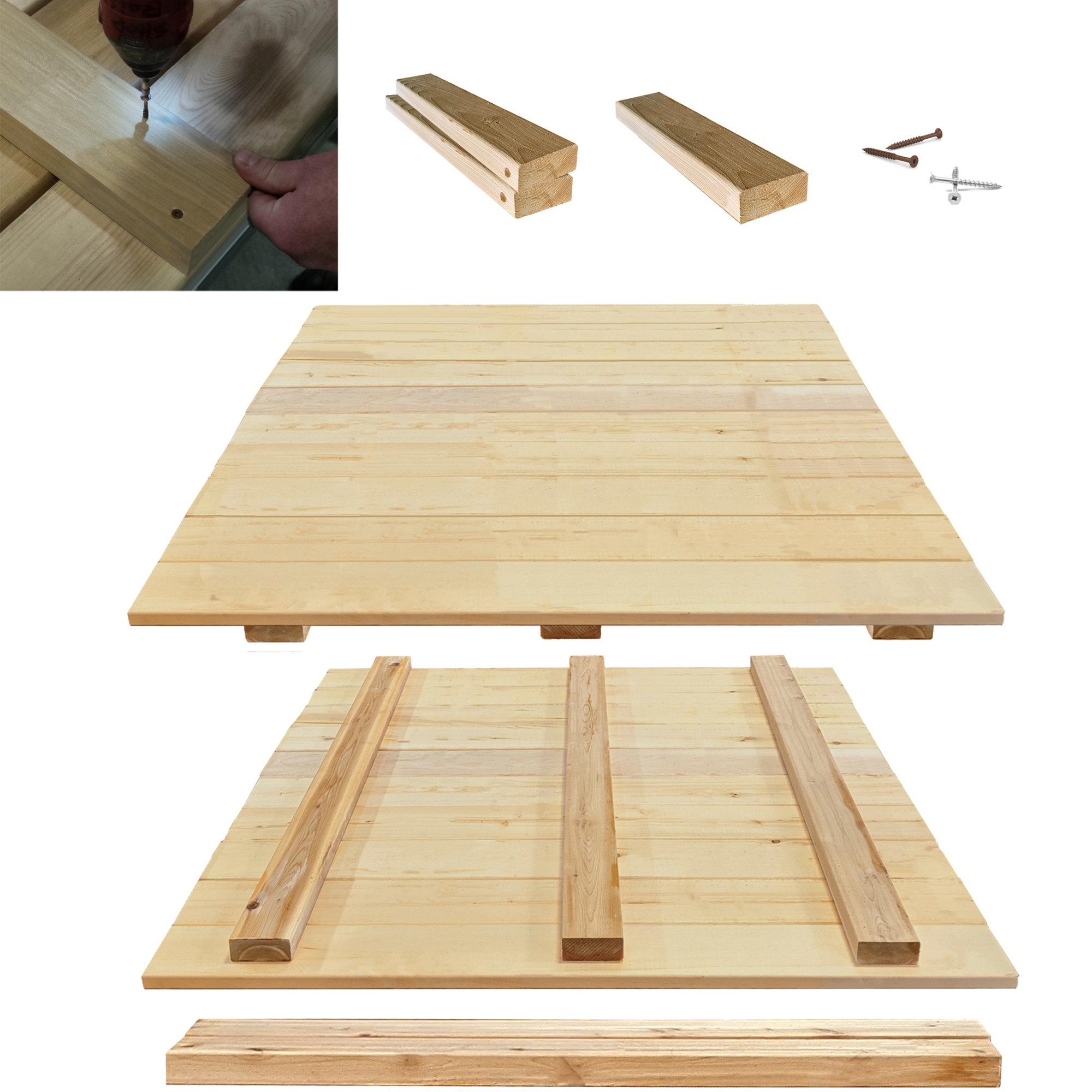

The included top-quality kiln-dried cedar planks are lighter than pressure-treated wood and composite and are ready to assemble into 2 removable 66 lb. 5ft. x 5ft. panels for easier handling. Cedar is the best choice for decking as it is maintenance-free and naturally resistant to weather, mildew, and insects. Soft to the touch, it will also remain cool under the sun, perfect for bare feet!

What's Included

    (6) Aluminum Side Beams (2) Aluminum Cross Members (4) Aluminum Corner Leg Holders (2) Dock Hinges (2) Fusion Plates (4) Corner Braces (6) Connector Keys (1) Anchor Chain Hooks (1) Fusion Connector (22) Hex Bolt and Nut Kits (48) Round Head Bolt and Nut Kits (8) Set Screws (2) 6 ft. Long HDG Steel Posts w/PVC Caps (2) HDG Steel Base Plates (2) Cedar Decking Girts (1) Cedar Decking Central Support (6) Cedar Decking Supports (20) Cedar Decking Planks (16) Stainless Steel Screws (160) Treated Wood Screws

Downloads

Product Manual Product Manual2

Features + Benefits

  • Modular dock system – can be combined with any QPF-495 stationary or floating dock kit
  • Use to build a robust stationary dock system perfect for water up to 4 ft. deep – Sturdy enough to moor a light watercraft, e.g., canoe, kayak
  • Can be used to anchor and steady to the shore a floating dock system of three sections or more for heavy residential use – Ideal for mooring a boat up to approximately 25 ft. in length or 4,000 lb.
  • Lightweight, durable and maintenance-free 5/4 in. nominal (1 in. actual) thick pre-cut planks of cedar, naturally resistant to weather, mildew and insects
  • Quick and easy to assemble – Aluminum structure 30 min.; Cedar decking 30 min. (each 5 ft. x 10 ft. section)
  • Broad and stable 116 in. L x 60 in. W x 6.5 in. H lightweight aluminum frame weighs only 90 lb.
  • Maintenance-free and durable aluminum frame that will never rust
  • Straight rectangular structure with integrated leg holders reduces the risk of hull damage
  • Track system allows for easy installation and repositioning of cleats and accessories
  • Cedar decking boards are ready to assemble into 2 removable 66 lb. 5 ft. x 5 ft. panels for easier handling
  • Simple to install
  • For use in fresh water only

Key Specs

AttributeSpecification

item#

6117023

Brand

Multinautic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

273.0 LB

Product Type

Dock

Pieces (qty.)

1

Length

116 in
AttributeSpecification

Width

60 in

Height

72 in

Material Type

Aluminum

Capacity

1,200 lb

Weather Resistant

Yes

Product Weight

273.0000 lb

Dimensions L x W x H (in.)

116.0 x 60.0 x 6.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
