Multinautic, QPF-495 Aluminum Floating Dock Kit, Length 116 in, Width 60 in, Model# 21568

Item# 6117015
1 Pieces
Multinautic, QPF-495 Aluminum Floating Dock Kit, Length 116 in, Width 60 in, Model# 21568

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Multinautic, QPF-495 Aluminum Floating Dock Kit, Length 116 in, Width 60 in, Model# 21568

Click or Tap image to Zoom

$1229.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Modular dock system – can be combined with any QPF-495 stationary or floating dock kit
  • Sturdy structure for heavy residential use – ideal for mooring a boat up to approximately 25 ft. in length or 4,000 lb. with a basic floating dock system of three sections or more
  • Medium freeboard sits approximately 16 in. above water – perfect to board and disembark from most small and medium watercraft types
  • Quick and easy to assemble – Aluminum structure with floats 45 min. (each 5 ft. x 10 ft. section)
  • Eagle Floats closed-cell expanded polystyrene (EPS) floats covered with a 15-year warranty

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Multinautic® QPF-495 Modular Floating Dock Kit offers great stability in water with its broad 5ft. x 10ft. structure and robust foam-filled floats. The medium freeboard sits roughly 16in. above water and is ideal for boarding, disembarking and mooring all types of small and medium crafts up to approximately 25ft. in length or 4,000 lb with a basic layout of three dock sections or more.

Purchase as many QPF-495 stationary and floating dock kits as needed to obtain your desired configuration. For a steady floating dock system, anchor it to the shore using a stationary dock (see Model# 21577) and join the floating and stationary sections together with a semi-floating ramp. The semi-floating ramp reduces wave motion and keeps the floating dock level at the junction. It is easily created using this floating dock kit with only 2 of the 3 supplied floats. Install the leftover float to the next floating section for added stability.

Sturdy, durable and lightweight, its all-aluminum structure is quick to assemble with the included stainless-steel and hot dip galvanized hardware and is easy to install and remove for winter storage if required. The integrated leg holders within the rectangular structure create smooth, straight edges that minimize the risk of hull damage. The exclusive top track system allows for easy installation and repositioning of cleats and accessories to the sides of the dock.

One floating dock kit comes with an anchor chain hook and all necessary hardware to assemble the frame and includes a pair of hinges and a junction stabilizer to join 2 docks end to end, side by side or in an "L" or "T" shape. The extra sturdy Eagle floats are manufactured in the USA and covered with a 15-year warranty against manufacturer’s defects. They are filled with closed cell expanded polystyrene (EPS) and each has a buoyancy of 500 lb.

Add your choice of 5/4in. nominal (1in. actual) thick cedar, treated wood or composite decking to complete the dock.

What's Included

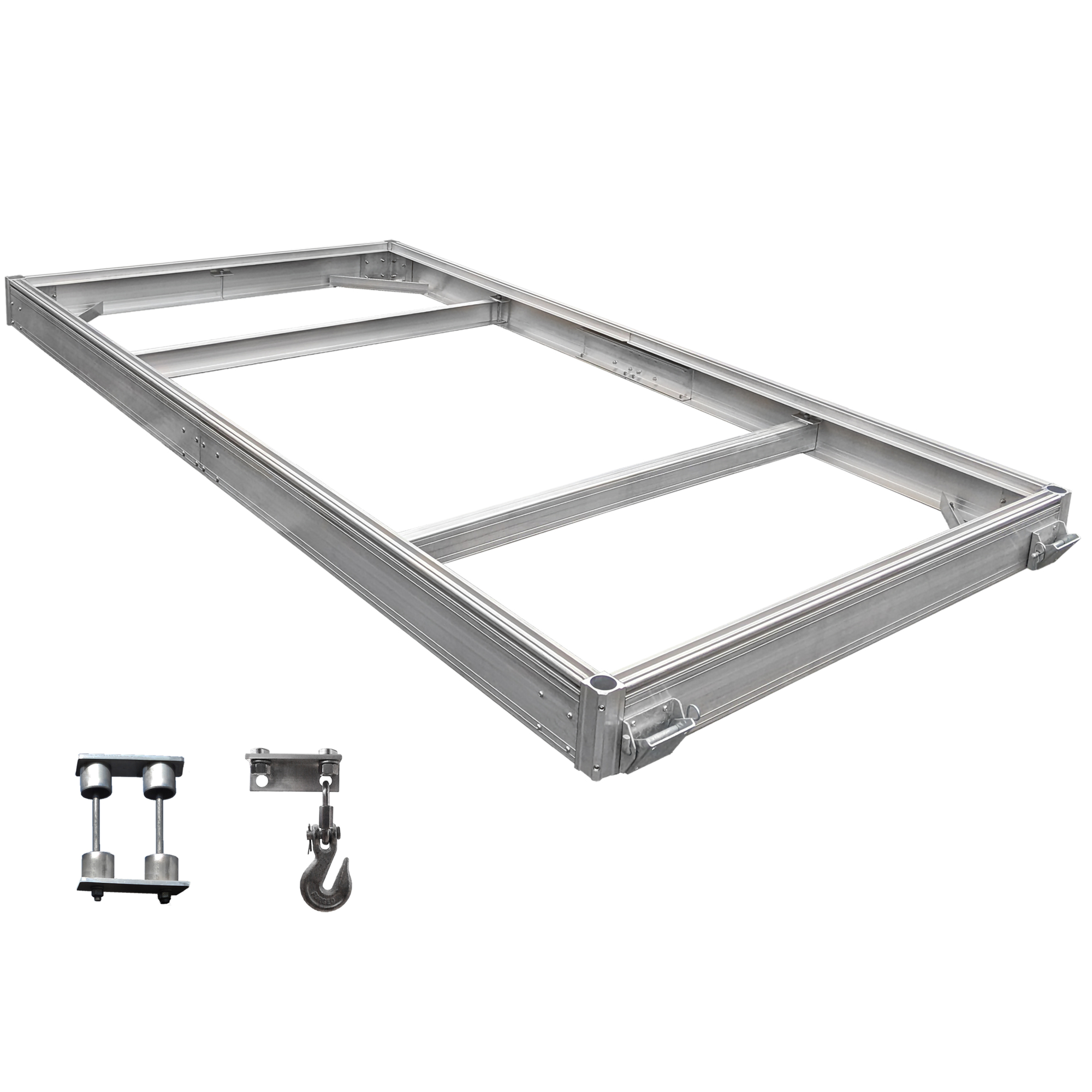

    (6) Aluminum Side Beams (2) Aluminum Cross Members (4) Aluminum Corner Leg Holders (2) Dock Hinges (2) Fusion Plates (4) Corner Braces (6) Connector Keys (1) Anchor Chain Hooks (1) Fusion Connector (22) Hex Bolt and Nut Kits (48) Round Head Bolt and Nut Kits (8) Set Screws (3) Floats (12) Bolt Kits with Large Flat Washers for Floats

Downloads

Product Manual Product Manual2

Features + Benefits

  • Modular dock system – can be combined with any QPF-495 stationary or floating dock kit
  • Sturdy structure for heavy residential use – ideal for mooring a boat up to approximately 25 ft. in length or 4,000 lb. with a basic floating dock system of three sections or more
  • Medium freeboard sits approximately 16 in. above water – perfect to board and disembark from most small and medium watercraft types
  • Quick and easy to assemble – Aluminum structure with floats 45 min. (each 5 ft. x 10 ft. section)
  • Eagle Floats closed-cell expanded polystyrene (EPS) floats covered with a 15-year warranty
  • 60 in. L x 24 in. W x 12 in. H floats with a buoyancy of 500 lb. each
  • Manufactured in the United States by Hendren Plastics, Eagle Floats exceed all the Marine Industry standards for encapsulated dock flotation using cutting edge technology: Infrared telemetry-computer controlled steaming
  • Broad and stable 116 in. L x 60 in. W x 6.5 in. H lightweight aluminum frame weighs 215 lb. with the 3 included foam-filled floats
  • Maintenance-free and durable aluminum frame that will never rust
  • Straight rectangular structure with integrated leg holders reduces the risk of hull damage
  • Track system allows for easy installation and repositioning of cleats and accessories
  • Simple to install
  • 5/4 in. nominal (1 in. actual) thick decking not included – can be assembled into 2 removable 5 ft. x 5 ft. panels for easier handling
  • For use in fresh water only

Key Specs

AttributeSpecification

item#

6117015

Brand

Multinautic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

214.0 LB

Product Type

Floating Dock System

Pieces (qty.)

1

Length

116 in
AttributeSpecification

Width

60 in

Height

18.5 in

Material Type

Aluminum

Capacity

3,000 lb

Weather Resistant

Yes

Product Weight

214.0000 lb

Dimensions L x W x H (in.)

116.0 x 60.0 x 18.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
