Product Summary

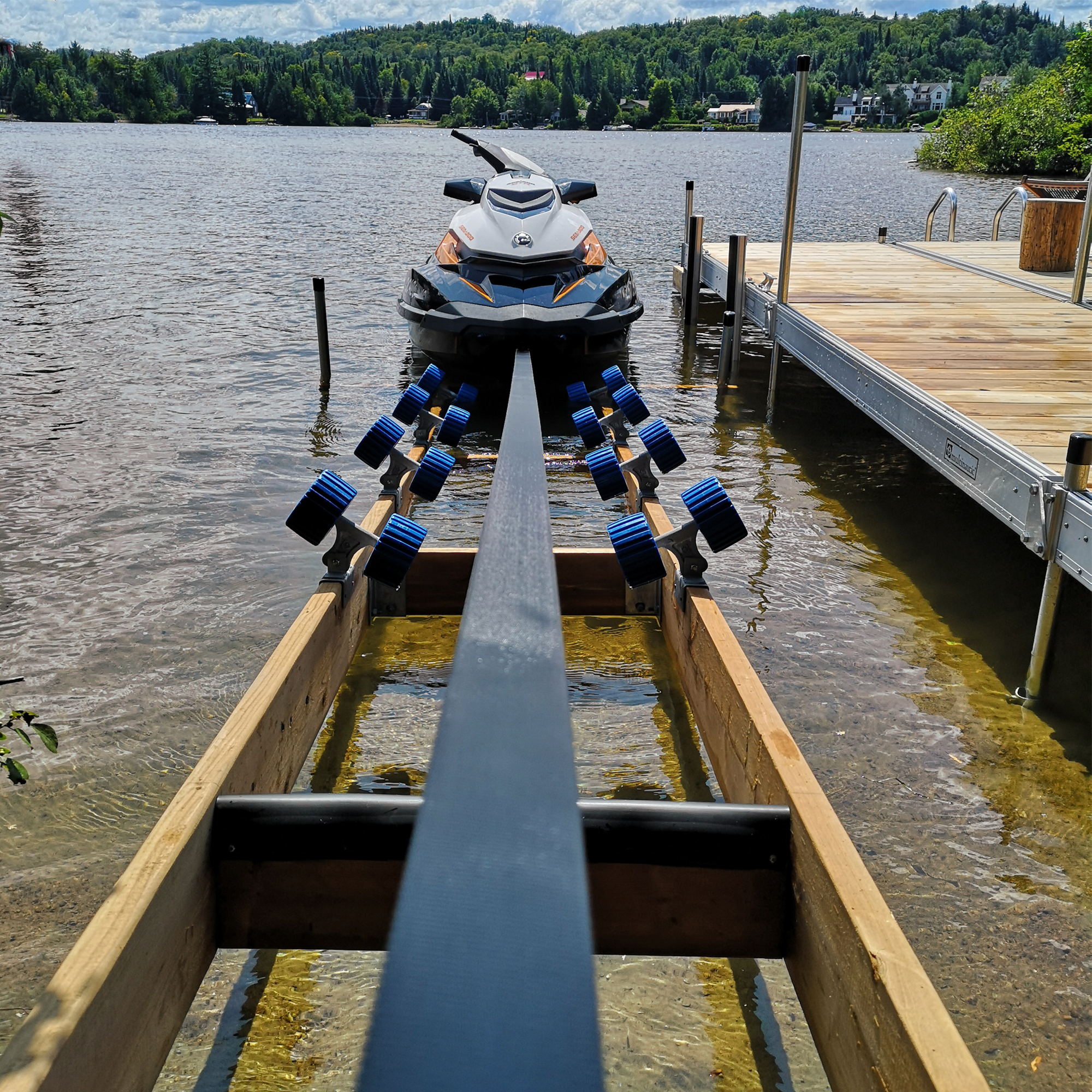

Build your own ramp for a small boat or personal watercraft of up to 2,500 lb. with this Multinautic mooring ramp hardware kit. Use it to store your boat away from waves, preventing any water accumulation, or use it to simply beach or launch your craft and prevent sand and rocks from damaging the hull or propeller. The added stability of the ramp is convenient for refuelling boats without spillage, therefore contributing to a cleaner environment. Peace of mind for a small investment.

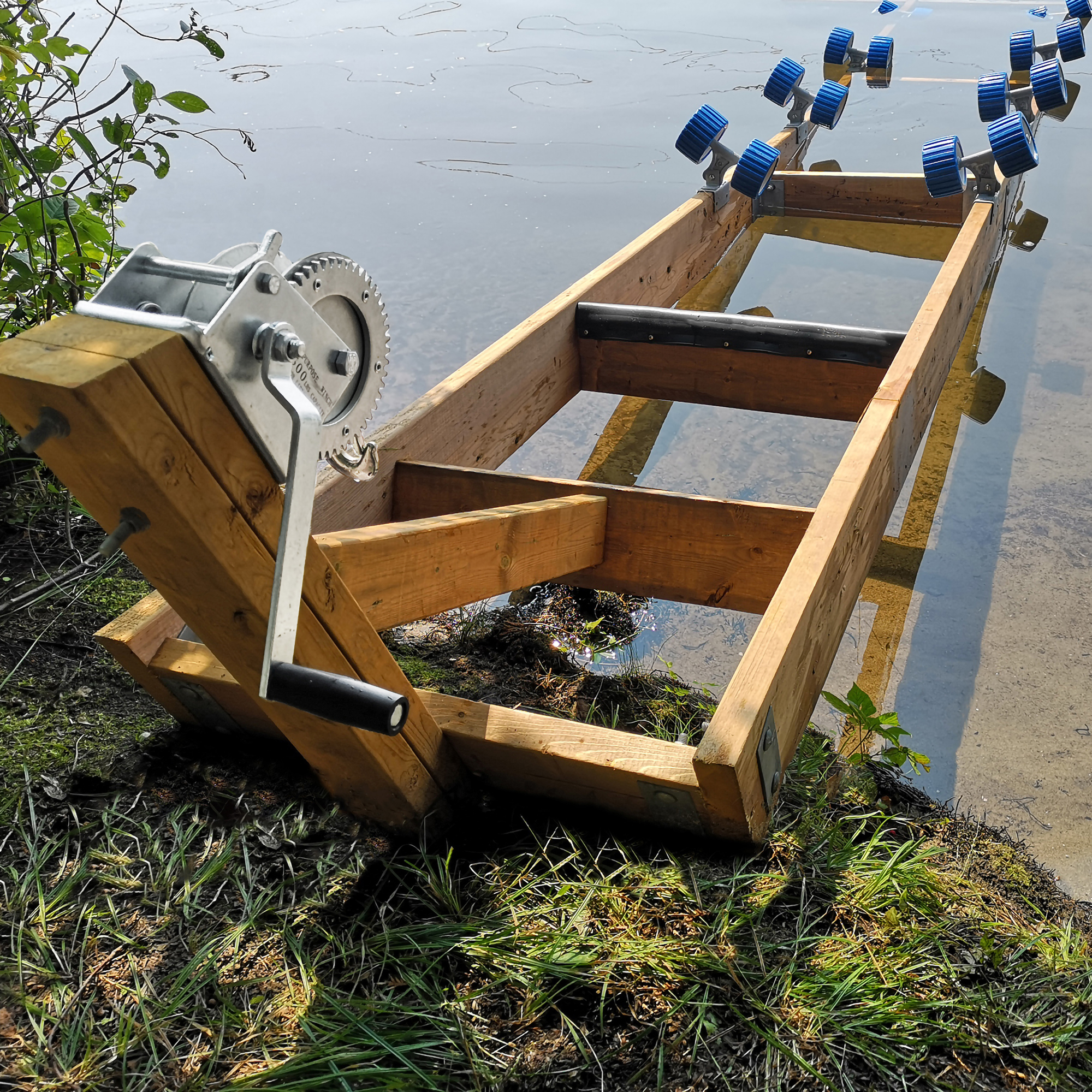

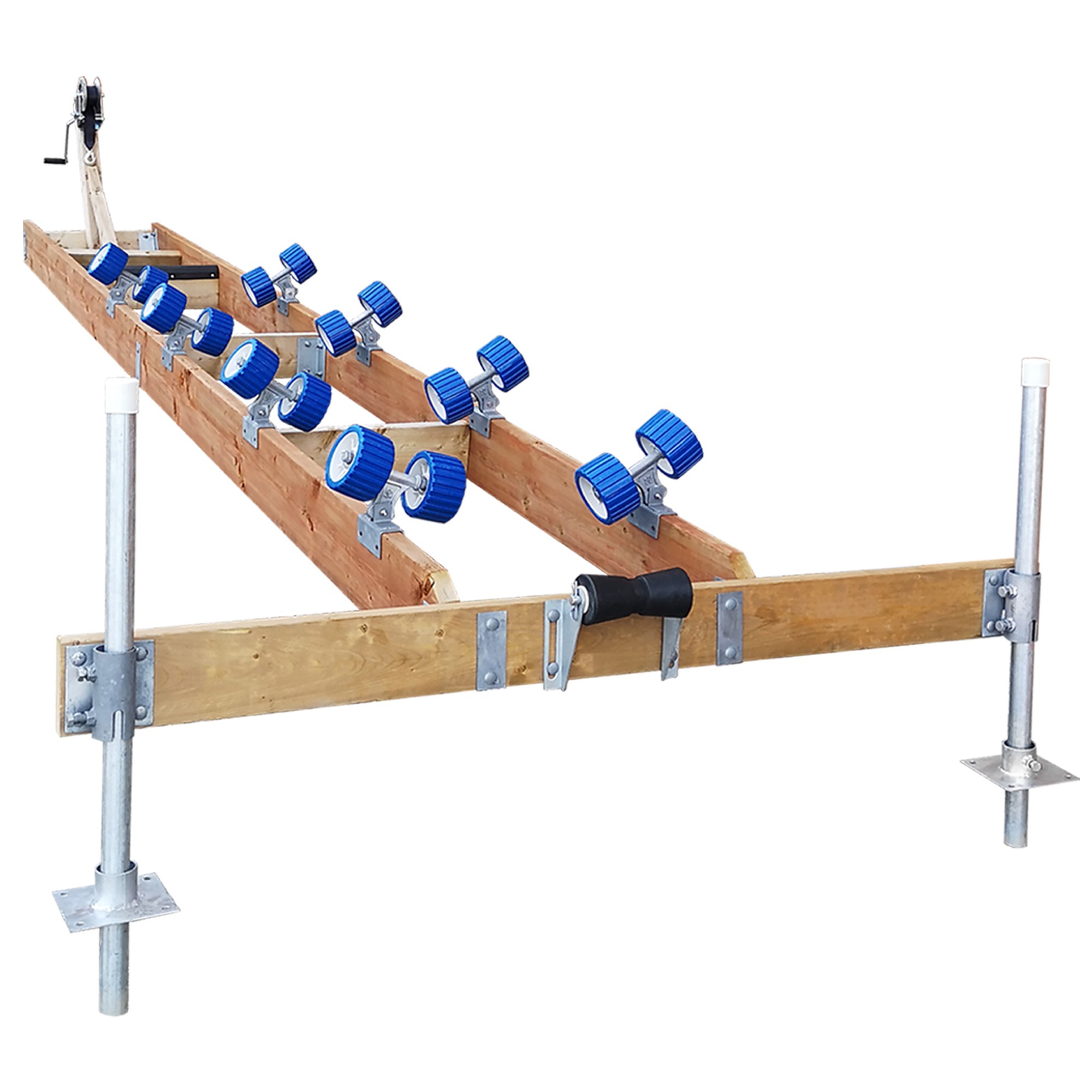

This mooring ramp kit works for different lengths of small boats and personal watercrafts with the recommended wood frame length of 16ft. The kit includes 4 pairs of high-quality double rollers, a sturdy winch with a 20ft. webbing strap with hook, a protection bumper and keel roller, and hot dipped galvanized steel posts, base plates, reinforcement corners, leg holders and all the required fasteners.

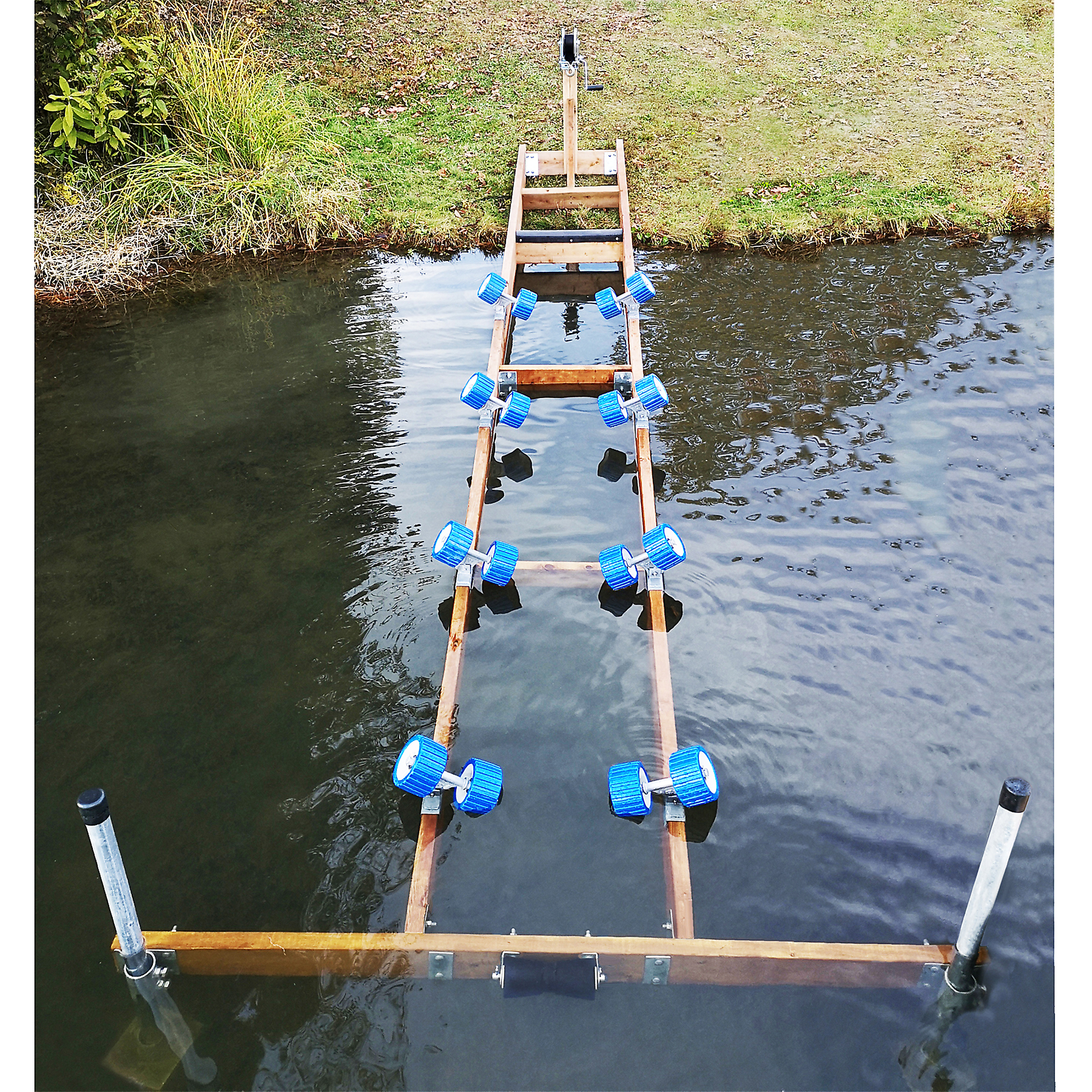

The posts and leg holders will anchor your ramp properly near the shoreline while allowing you to easily adjust its inclination and height as water fluctuates throughout the season. The rubber keel roller will guide your boat centered to the ramp, raising it smoothly onto the frame. The self-adjusting tilting axles and the 5in. ribbed wheels will nest different hull shapes, providing a safe grip without marking them. These axles feature an exclusive design that prevents the wheels from wobbling outward of the structure, keeping them aligned with the keel roller.

Pressure treated wood must be purchased separately to complete this ramp kit. Please see the assembly guide for all details.

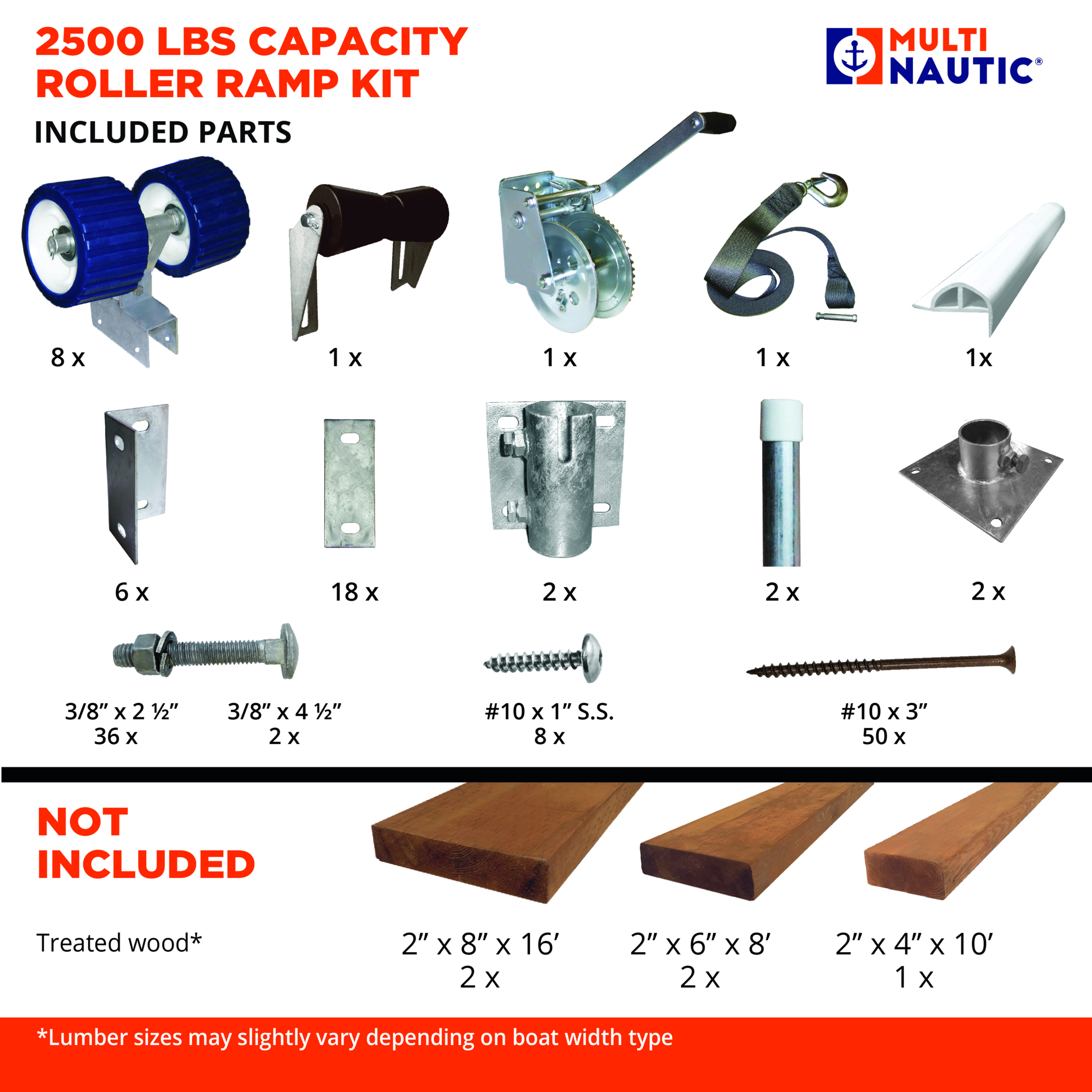

What's Included

    (8) Double Roller Units (1) Keel Roller (1) Winch (1) Winch Strap (1) Bumper (6) Inside Corners (18) Back Plates (2) Leg Holders (2) 3 ft. Long HDG Steel Posts w/PVC Caps (2) HDG Steel Base Plates (38) Screws and Nut Kits (6) Stainless Steel Screws (50) Wood Screws

Features + Benefits

  • Smoothly lifts boats and small watercrafts away from waves
  • Supports a charge up to 2,500 lb.
  • Tilting axles and large double roller wheels self-adjust to different hull shapes
  • Non-marking durable blue polyurethane ribbed 5 in. wheels
  • Easy to build with the included plans and instructions
  • Easy to install and adjust on most shorelines – see assembly guide for compatibility
  • Lumber not included – see instruction guide for all details
  • Please add 15% on the specified dry weight of your boat to calculate its total weight
  • Please ensure your boat conforms to this type of ramp

Key Specs

AttributeSpecification

item#

6116995

Brand

Multinautic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

97.0 LB

Product Type

Shore Ramp Kit

Pieces (qty.)

1

Length

192 in
AttributeSpecification

Width

72 in

Height

36 in

Material Type

Galvanized Steel

Capacity

2,500 lb

Weather Resistant

Yes

Product Weight

120.0000 lb

Dimensions L x W x H (in.)

192.0 x 72.0 x 3.0 in

Warranty

Manufacturer's Warranty

1 year limited warranty
