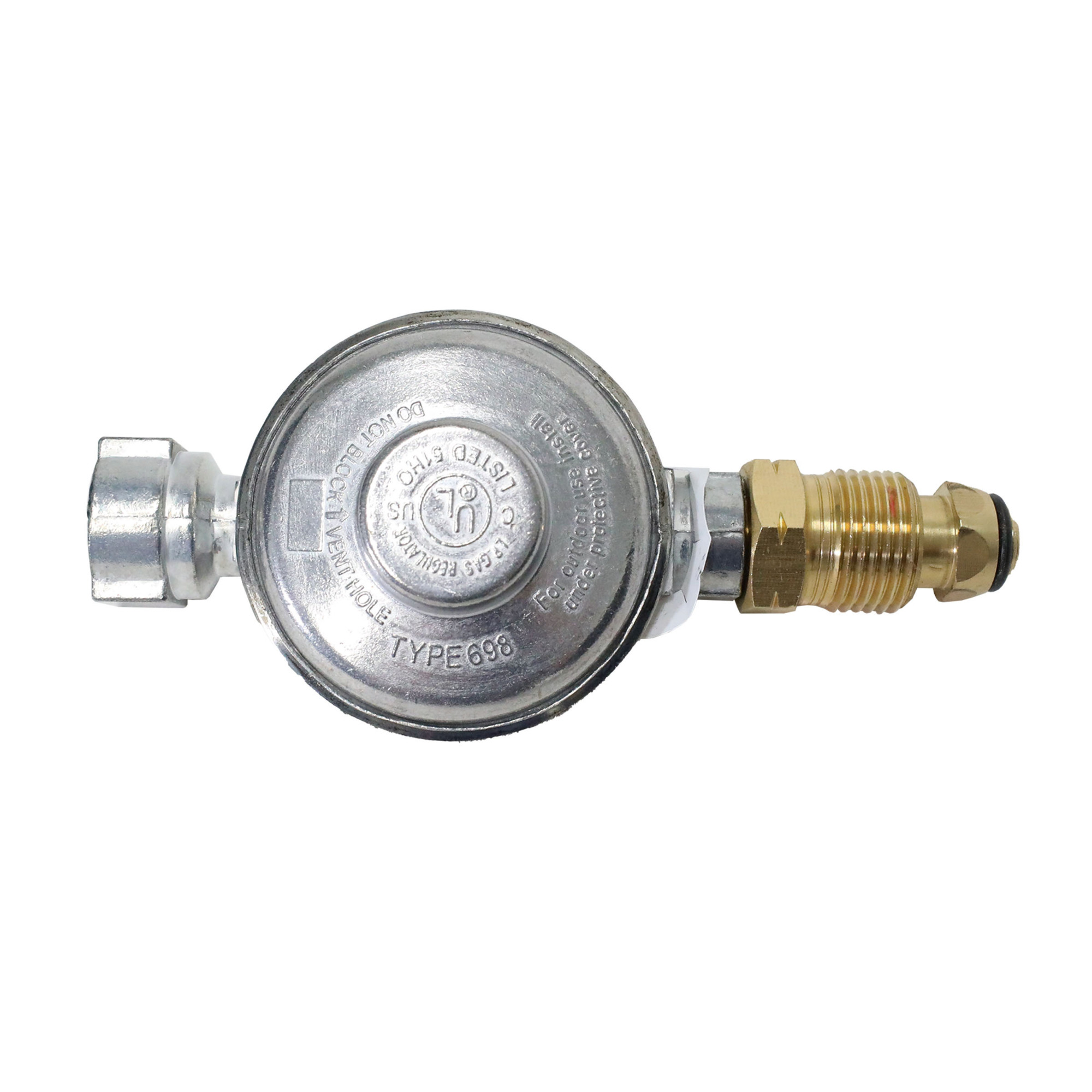

Mr. Heater Low Pressure Propane Regulator, Model# F276136

Item# 172697
1 Included
Mr. Heater Low Pressure Propane Regulator, Model# F276136

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Mr. Heater Low Pressure Propane Regulator, Model# F276136

Click or Tap image to Zoom

$19.99

  • Shipping:

    Available now

  • Store Pickup:

    Call Store for Availability

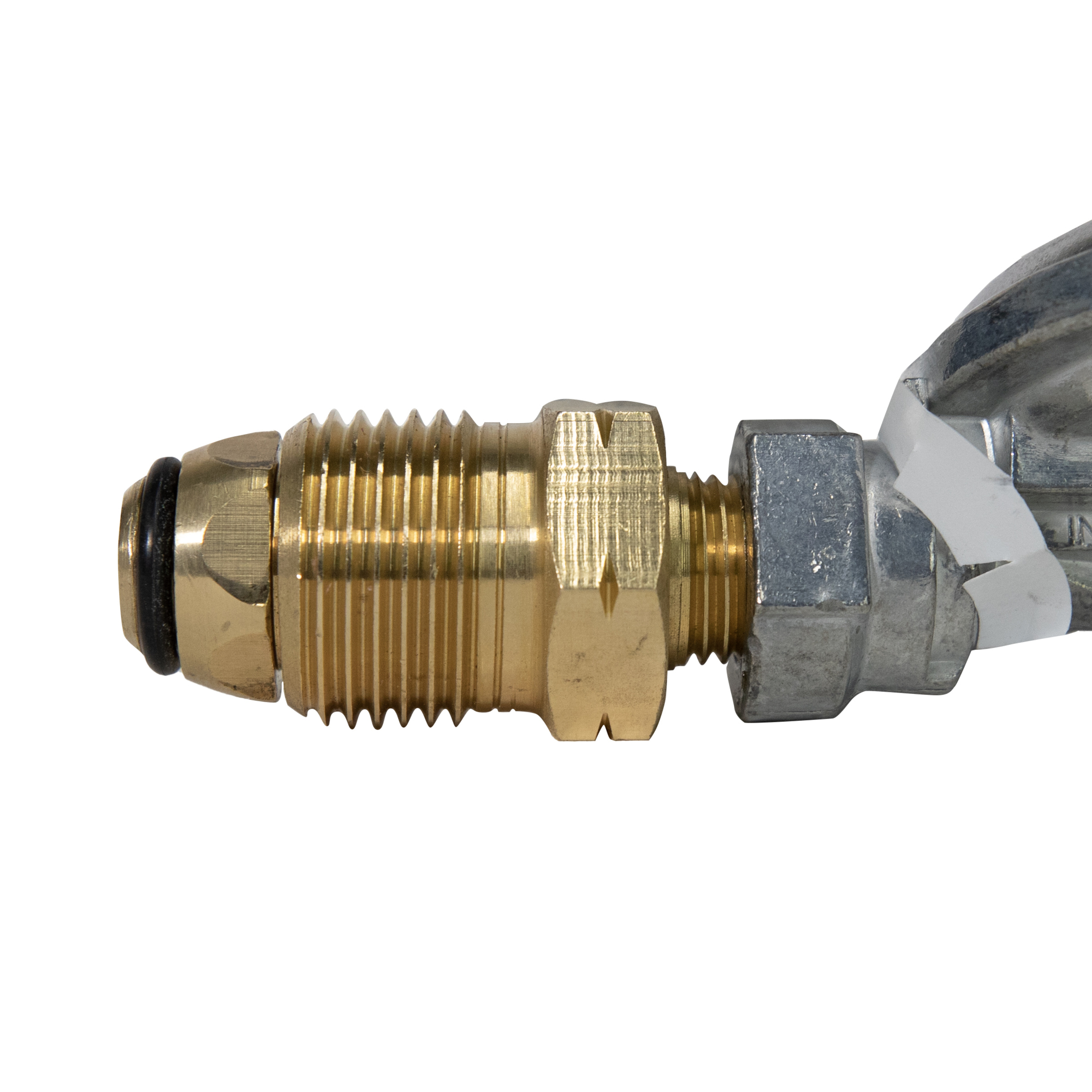

  • 3/8in. female pipe thread x restricted flow soft nose P.O.L.
  • 75,000 BTU max. flow
  • Brass nipple to open safety valve in male throwaway cylinders
  • Rubber gasket for sealing

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Mr. Heater Low Pressure Propane Regulator is perfect for propane barbecue grills and low pressure appliancesThis propane low pressure regulator comes with a 3/8in. female pipe thread and soft nose pol for connection directly to a propane tank. The size, shape, and flow characteristics of this regulator make it ideal for use on portable heaters, hot plates, camp stoves and other propane appliances that require 75,000 BTU or less.

What's Included

    (1) Low pressure regulator

Downloads

Product Manual

Features + Benefits

  • 3/8in. female pipe thread x restricted flow soft nose P.O.L.
  • 75,000 BTU max. flow
  • Brass nipple to open safety valve in male throwaway cylinders
  • Rubber gasket for sealing

Key Specs

AttributeSpecification

item#

172697

Brand

Mr. Heater

Manufacturer's Warranty

wear item, no warranty
AttributeSpecification

Ship Weight

0.63 LB

Included (qty.)

1

Compatible With

Propane Gas Grills and Low Pressure Appliances

Reviews

Questions & Answers

Questions

1–9 of 9 Questions
Sort by:

  1. What input pressures can this handle and still be able to reduce to 0.5 PSI?

    1 answer

    1. The regulator is rated to handle input pressures for 25 PSI up to 250 PSI and reduce them to a consistent outlet pressure of 11 inches water column, which is approximately 0.4 to 0.5 PSI.

      Helpful?

  2. What is the water column

    1 answer

    1. The water column for the Mr. Heater Low Pressure Propane Regulator, Model# F276136, is 11 inches of water column (11" WC).

      Helpful?

  3. I would be using this adapted for low pressure CO2 on demand to cask ale. I'd want to put in 3/8" NPT to MFL. If I remove the existing fitting - this "soft nose POL" - does that affect the low pressure delivery? Would it still be around .3-.5 psi?

    1 answer

    1. It would not be recommended to remove the existing fitting.

      Helpful?

  4. Will this work for a 100 lb. propane tank for a propane gas fireplace? The manual says the fireplace needs 12-14.5 inches water column pressure at the gas inlet. This regulator is 11 inches water column. The fireplace runs from 8k BTU to 18K BTU

    1 answer

    1. This is a low pressure regulator and would not be the correct one for a 100 pound cylinder. You would want the 2-stage regulator, item #25819.

      Helpful?

  5. What is the inlet and outlet fitting sizes?

    1 answer

    1. The regulator would have 3/8" inlet and outlet fittings.

      Helpful?

  6. What is the WC “and the PSI out put

    1 answer

    1. This regulator will have an 11" WC and 0.39 PSI output.

      Helpful?

  7. Can this be used for a 30,000 btu propane heater

    1 answer

    1. This regulator is designed for a 75,000 BTU maximum flow so it would work with a 30,000 BTU heater.

      Helpful?

  8. What size tanks can this be used on

    1 answer

    1. This has a P.O.L. fitting to be used on any size LP tank.

      Helpful?

  9. Will this fit a 20lb. propane cylinder?

    1 answer

    1. Yes, this can be used with a 20 lb LP cylinder.

      Helpful?

Warranty

Manufacturer's Warranty

wear item, no warranty
