Milwaukee, M18 FUEL 1-1/2in. Lineman Magnetic Drill Kit, Chuck Size 1-1/2 in, Max. Speed 690 rpm, Model# 2788-22HD

Item# 5278466
On Sale
Milwaukee, M18 FUEL 1-1/2in. Lineman Magnetic Drill Kit, Chuck Size 1-1/2 in, Max. Speed 690 rpm, Model# 2788-22HD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milwaukee, M18 FUEL 1-1/2in. Lineman Magnetic Drill Kit, Chuck Size 1-1/2 in, Max. Speed 690 rpm, Model# 2788-22HD

Click or Tap image to Zoom

$1999.00
Reg $2999.00Save $1000.00

Order today to get this price.

  • Shipping:

    Available now

  • Store Pickup:

    Not available - online only

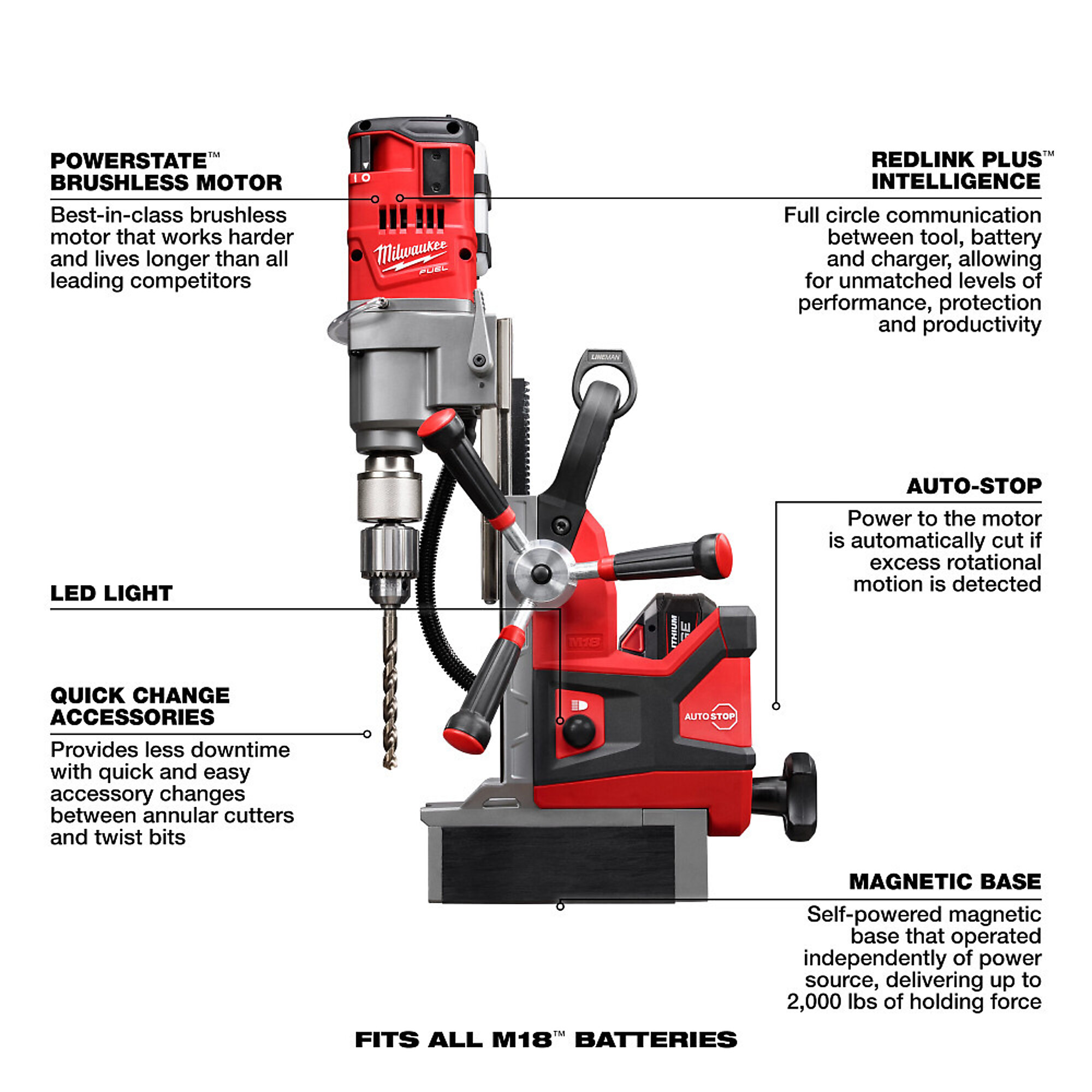

  • Auto-Stop Lift Off Detection
  • POWERSTATE Brushless Motor delivers longer life and higher performance
  • REDLINK PLUS intelligence: provides optimized performance and overload protection using total system communication between tool, battery and charger
  • 1-1/2" Annular Cutter Capacity1/2" Twist Bit Capacity
  • 2 Speed Gear Box: 400/690 RPM

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

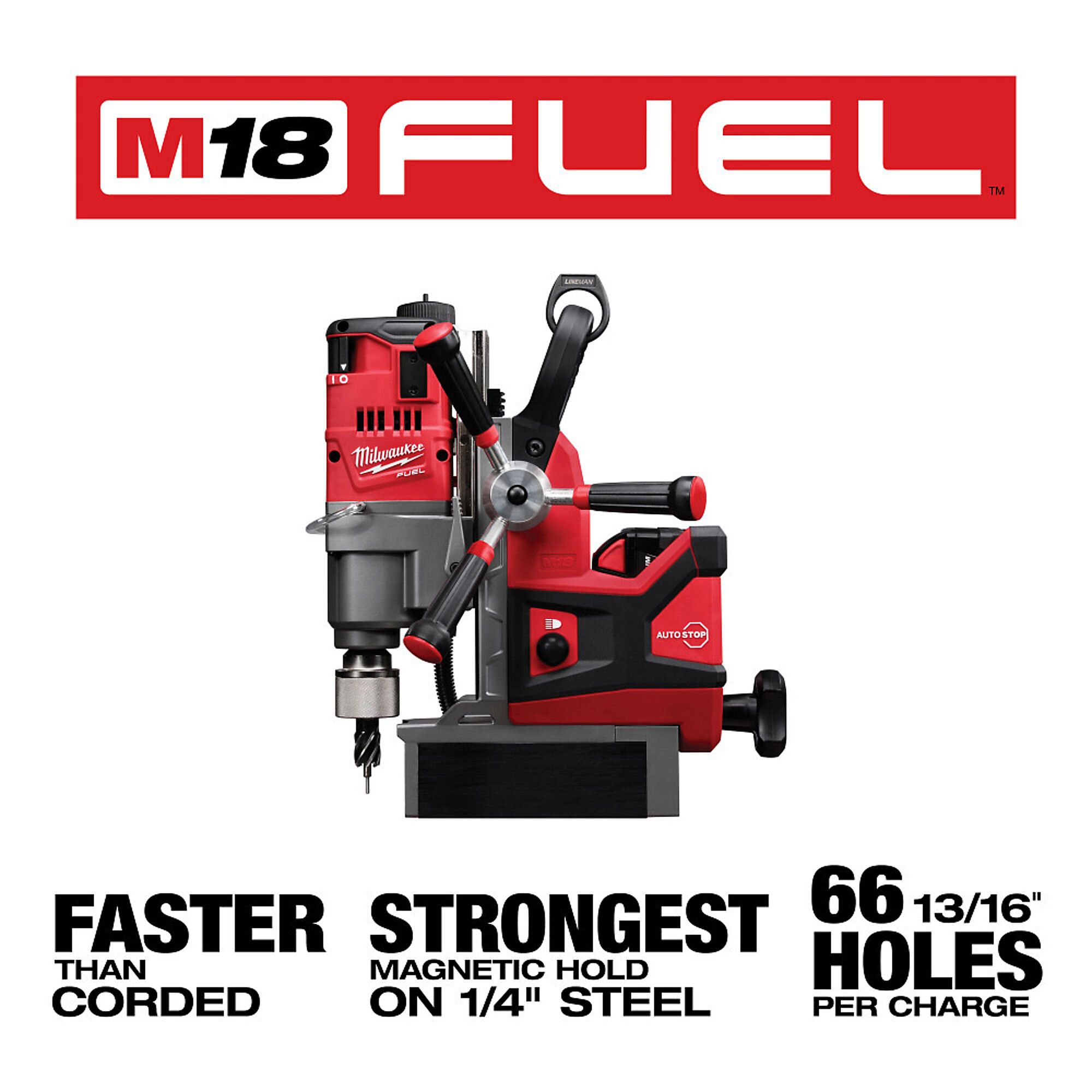

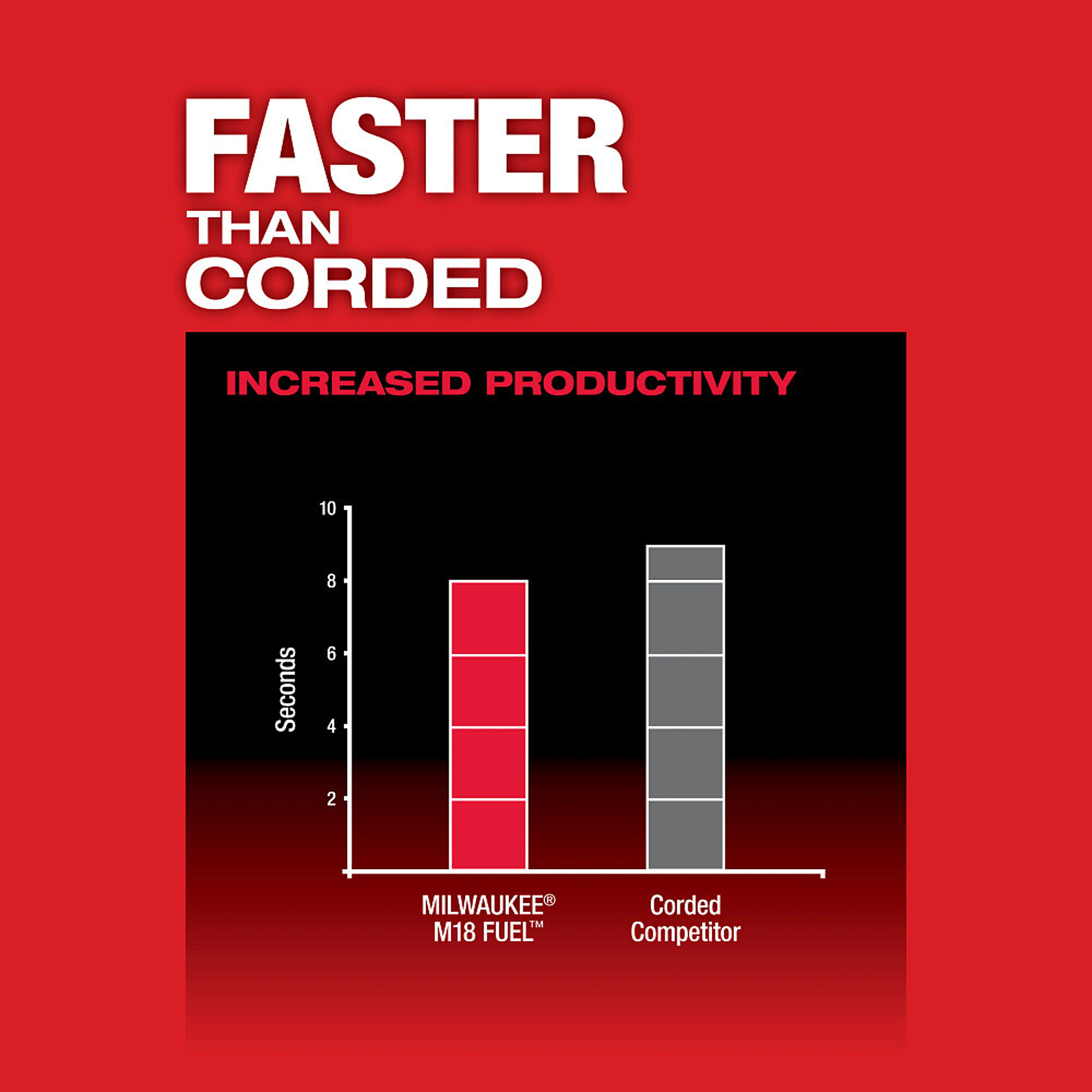

The M18 FUEL 1-1/2in. magnetic drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4in. steel providing a safer drilling environment in this material, and drills over (75) 13/16in. holes per charge. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with auto-stop lift-off detection, power to the motor is automatically cut if excess rotational motion is detected while drilling. Powered by a Milwaukee POWERSTATE brushless motor, both drills are faster than their corded counterparts, and deliver the same 1-1/2in. annular cutter capacity. REDLINK Plus intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. The M18 REDLITHIUM HIGH DEMAND 9.0 battery pack delivers up to 5X more run time, 35% more power, and runs 60% cooler than standard 18 V lithium-ion batteries. It maintains full power and runs substantially cooler through heavy applications, allowing users to push their cordless tools harder and longer than ever before. The M18 REDLITHIUM HIGH DEMAND 9.0 battery is fully compatible with 150+ M18 tools.

What's Included

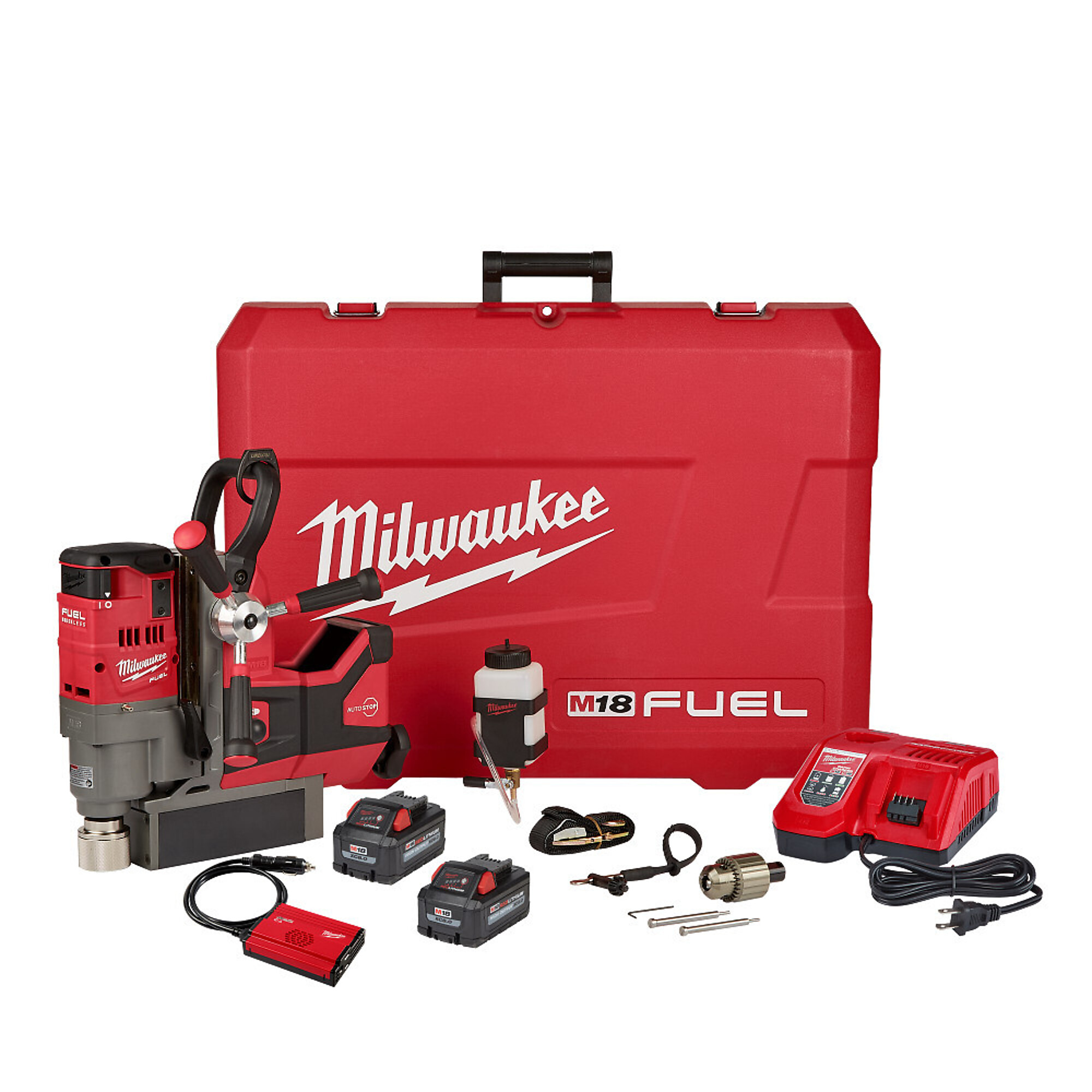

    (1) (1) M18™ 1-1/2" Lineman Magnetic Drill Kit (2788-22); (2) M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 Battery Packs (48-11-1880); (1)M18™ & M12™ Charger; (1) 150W DC Inverter, (1) 3/4" Weldon to 1/2" Chuck adapter; (1) Chuck Key; (1) Magnetic Lubrication Tank; (1

Features + Benefits

  • Auto-Stop Lift Off Detection
  • POWERSTATE Brushless Motor delivers longer life and higher performance
  • REDLINK PLUS intelligence: provides optimized performance and overload protection using total system communication between tool, battery and charger
  • 1-1/2" Annular Cutter Capacity1/2" Twist Bit Capacity
  • 2 Speed Gear Box: 400/690 RPM
  • Stroke Length: 5-3/4"
  • Motor Head Adjustment: 5-1/8"

Key Specs

AttributeSpecification

item#

5278466

Brand

Milwaukee

Manufacturer's Warranty

5 year limited warranty

Ship Weight

61.2 LB

Chuck Size

1-1/2 in

Max. Speed

690 rpm

Cordless

Yes

Tool Only

No

Motor Type

Brushless

Chuck Type

Keyed

Clutch Settings (qty.)

2

Side Handle

No
AttributeSpecification

Trigger Lock

No

Amps

9

Power Cord Length

0 ft

Battery Type

Lithium-ion

Battery Amp Hours

9

Volts

18

Batteries Included

2

Batteries (qty.)

2

Charger Included

Yes

Storage Type

Case

Product Weight

31.0000 lb

Dimensions L x W x H (in.)

15.5 x 7.5 x 13.8 in

Reviews

Questions & Answers

25 Reviews This action will navigate to reviews.

Questions

  1. Does this drill have reversing capabilities for tapping?

    1 answer

    1. This drill does not have a reverse function.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
