Milwaukee, M18 Compact Brushless 2 Tool Combo with Acessory Kits, Chuck Size 1/2 in, Drive Size 1/4 in, Tools Included (qty.) 2 Model# 3692-22CTSE24

Item# 6103908
On Sale
Milwaukee, M18 Compact Brushless 2 Tool Combo with Acessory Kits, Chuck Size 1/2 in, Drive Size 1/4 in, Tools Included (qty.) 2 Model# 3692-22CTSE24

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milwaukee, M18 Compact Brushless 2 Tool Combo with Acessory Kits, Chuck Size 1/2 in, Drive Size 1/4 in, Tools Included (qty.) 2 Model# 3692-22CTSE24

Click or Tap image to Zoom

  • Compact design - provides excellent balance and control, ideal for overhead applications or work in tight spaces
  • Only 5.7" in length
  • 0-550 RPM low and 0-1700 RPM high
  • all metal gear case and 1/2" metal chuck
  • Brushless motor delivers power to quickly complete most comon applications

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

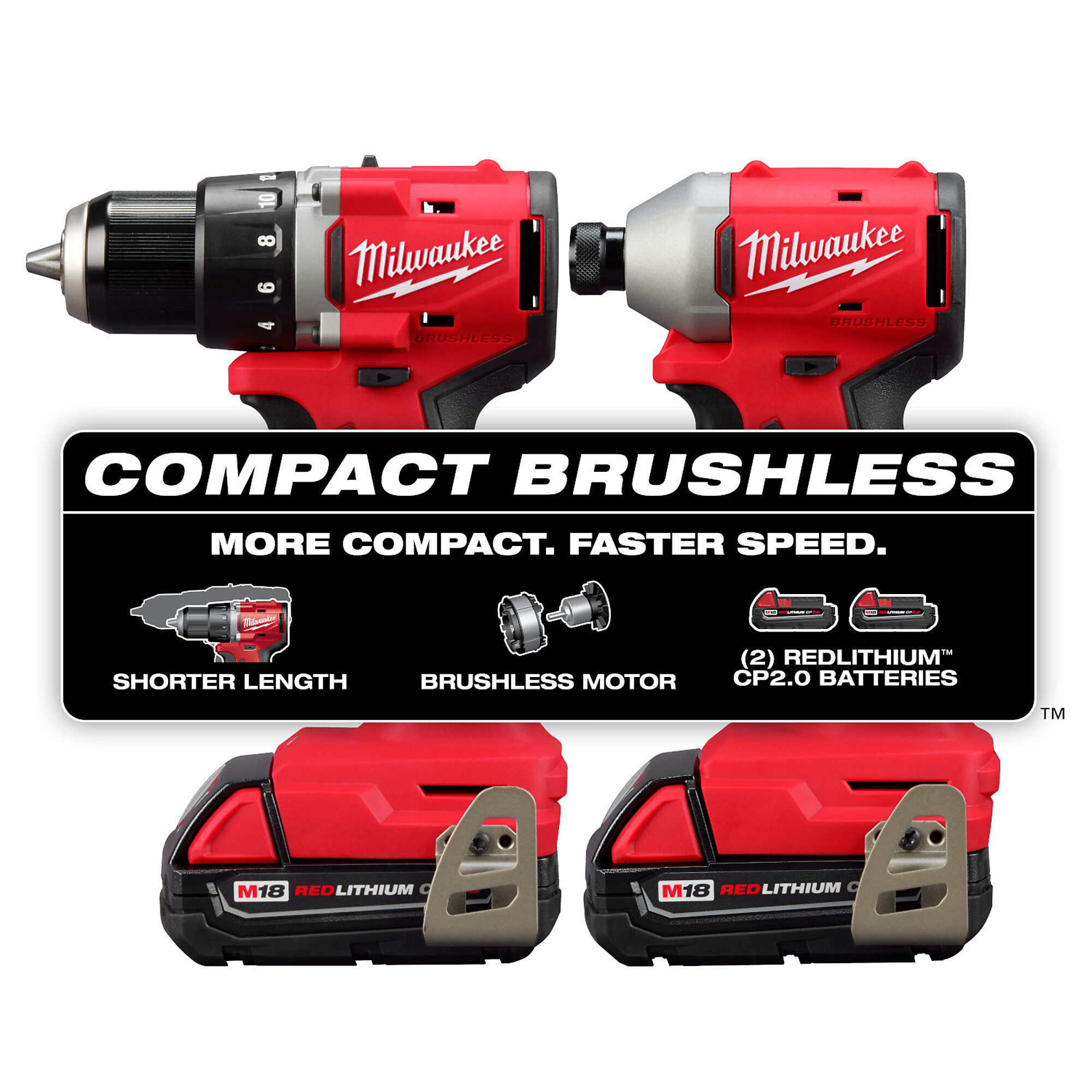

M18™ Compact Brushless 2-Tool Combo Kit is more compact with faster speeds in the application. Includes the M18™ Compact Brushless 1/2” Drill Driver, M18™ Compact Brushless 1/4” Hex Impact Driver, (2) M18™ REDLITHIUM™ CP2.0 Battery Packs, M18™/M12™ Multi-volt Charger and Contractor Bag. The compact drill is 5.7” in length and lightweight at 2.3 lbs without a battery allowing for excellent control, especially while working in overhead or tight spaces. The brushless motor was built to ensure optimal tool performance delivering 550in.-lbs of torque and 0-1,700 RPM, able to tackle a wide range of drilling and fastening applications. Our cordless impact driver measures only 4.4in. in length and 2.1in. in width, allowing for better access in tight spaces while being lightweight and portable. The brushless motor technology provides 1,700in.-lbs of torque and 3600 RPMs for faster speed and increased productivity. The REDLINK™ Intelligence optimizes the way our M18™ REDLITHIUM™ batteries work with the tools for best-in-class performance. These cordless tools have premium components, including an all-metal gear case and 1/2” metal chuck providing the durability that professionals require.

What's Included

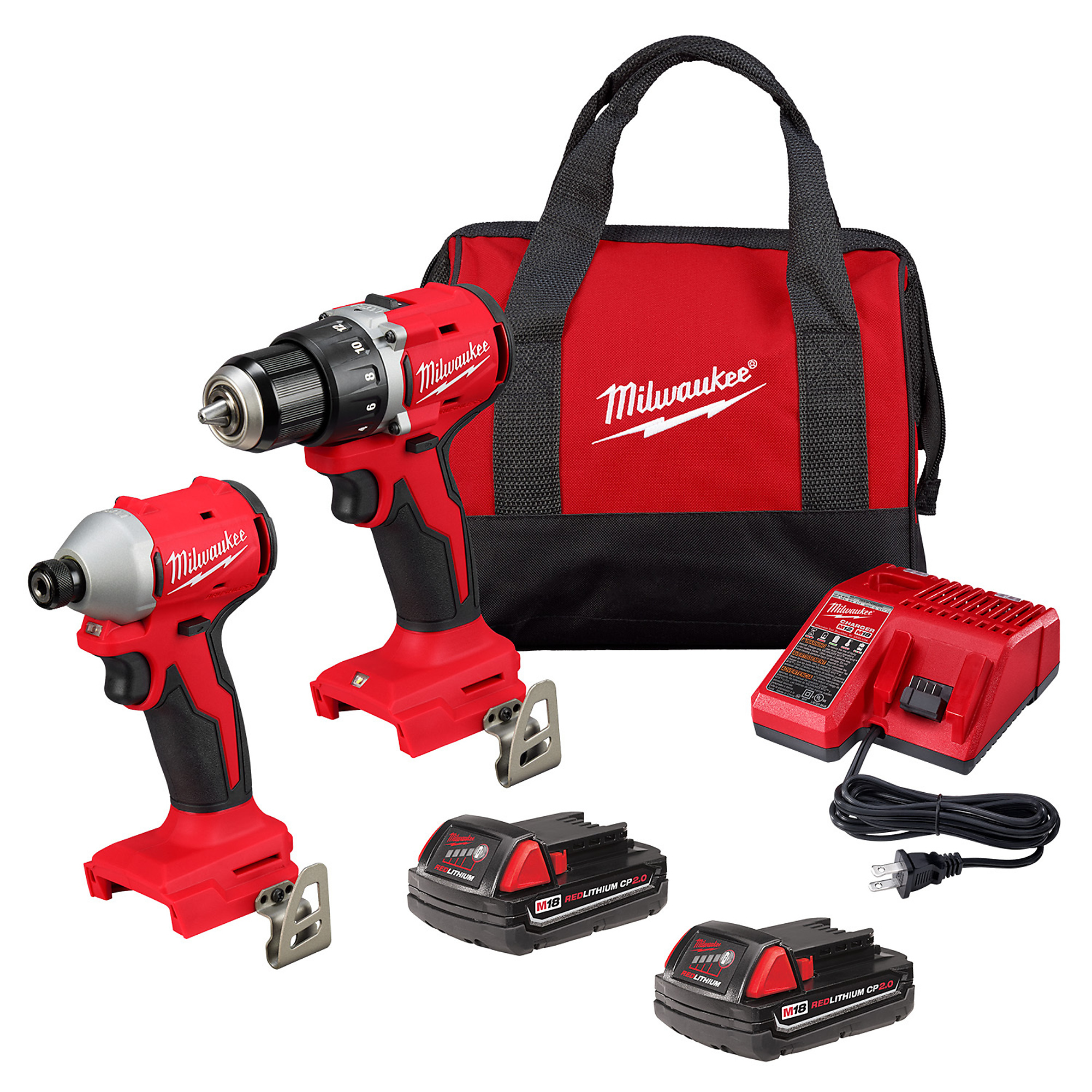

    (1) M18 Compact Brushless 1/2" Drill/Driver (3601-20) (1) M18 Compact Brushless 1/4" Hex Impact Driver (3650-20) (2) M18 Redlithium CP2.0 Battery (48-11-1820) (1) M18 & M12 Multi-Voltage Charger (48-59-1812) (1) Shockwave Impact Duty Driver Bit Set - 80 piece (48-32-4094) (1) Shockwave Impact Duty Red Helix Titanium Drill Bit Set 15 piece (48-59-4670) (1) Contractor Bag

Downloads

Safety Data Sheet

Features + Benefits

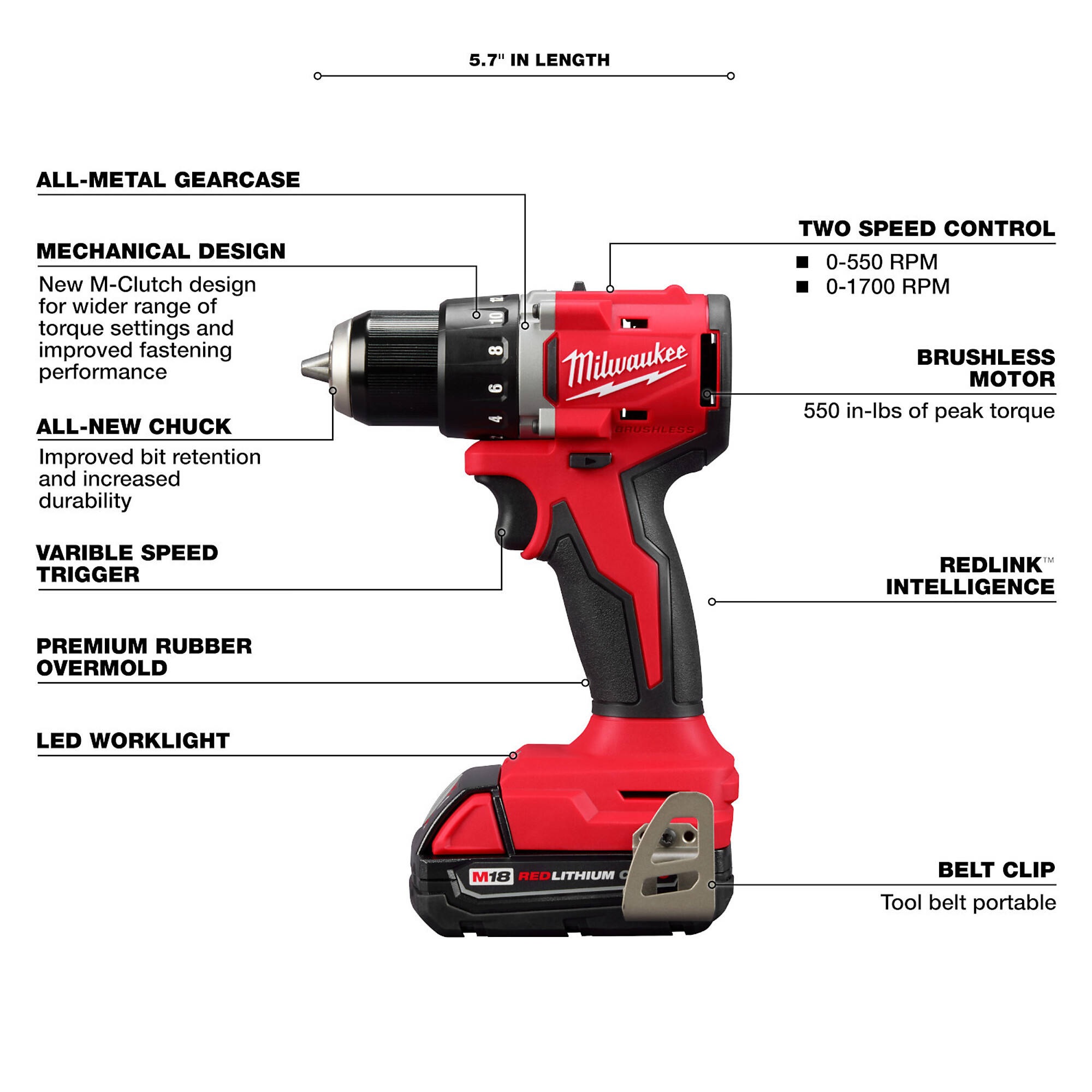

  • Compact design - provides excellent balance and control, ideal for overhead applications or work in tight spaces
  • Only 5.7" in length
  • 0-550 RPM low and 0-1700 RPM high
  • all metal gear case and 1/2" metal chuck
  • Brushless motor delivers power to quickly complete most comon applications
  • 550 in/lbs of torque
  • 2.3 lbs
  • 5 year warranty

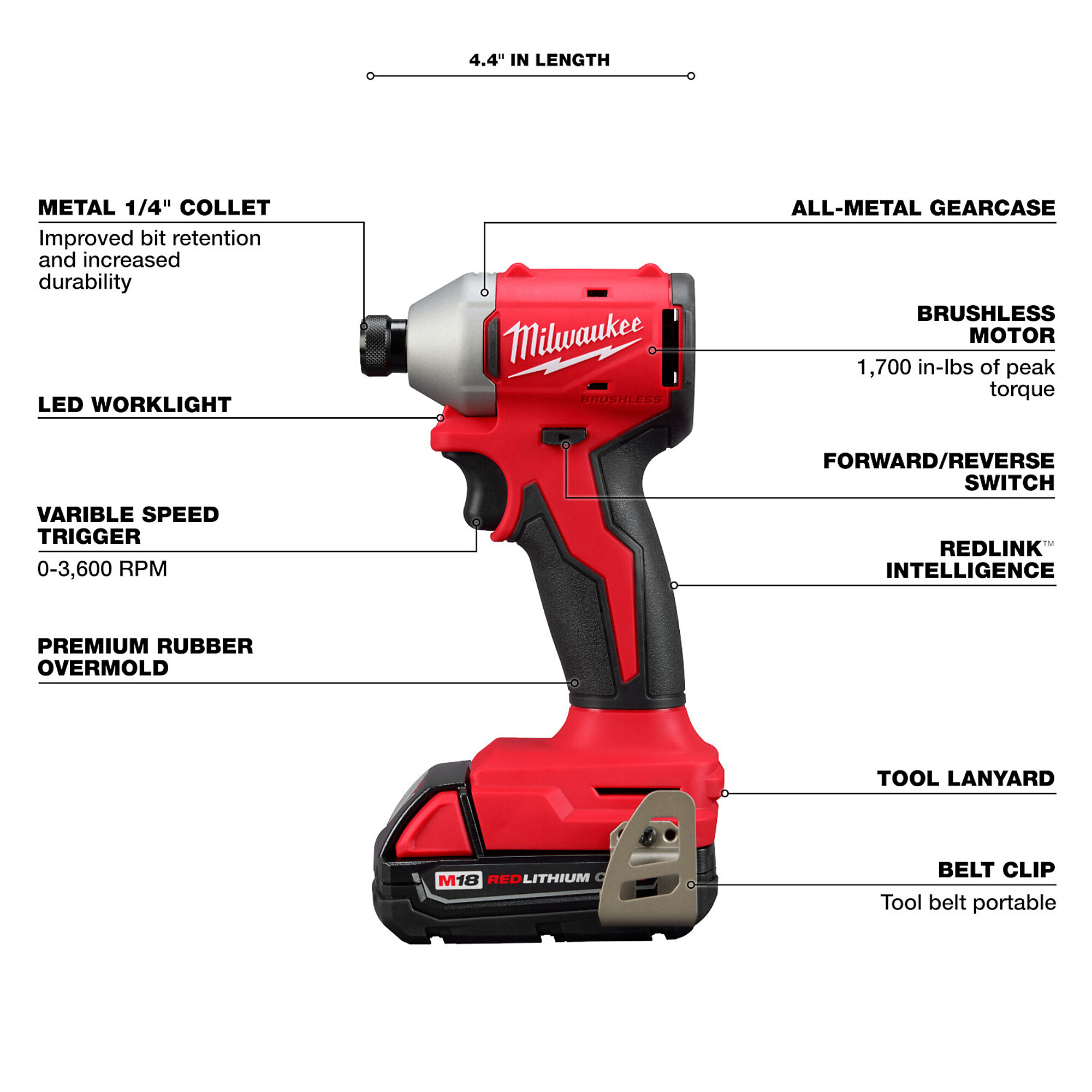

  • Imapct - 0-3600 RPM
  • Impact - 4.4" in length and 2.1" width
  • Impact - 1,700 in-lbs of peak torque

Key Specs

AttributeSpecification

item#

6103908

Brand

Milwaukee

Manufacturer's Warranty

5 year limited warranty

Ship Weight

13.75 LB

Product Type

Combination Kit

Drive Size

1/4 in

Chuck Size

1/2 in

Tools Included (qty.)

2

Max. Torque

550 ft-lbs.

Max. Speed

1,700 rpm
AttributeSpecification

Motor Type

Brushless

Chuck Type

Keyless

Side Handle

No

Trigger Lock

Yes

Volts

18

Battery Type

Lithium-ion

Battery Amp Hours

2

Batteries Included

Yes

Charger Included

Yes

Storage Type

Bag

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. This kit photo shows two accessory tool items where the description only describes one. Which is correct?

    1 answer

    1. This set will include: (1) M18 Compact Brushless 1/2" Drill/Driver (3601-20), (1) M18 Compact Brushless 1/4" Hex Impact Driver (3650-20), (2) M18 Redlithium CP2.0 Battery (48-11-1820), (1) M18 & M12 Multi-Voltage Charger (48-59-1812), (1) Shockwave Impact Duty Driver Bit Set - 80 p.

      Helpful?

  2. Will these tools work with the larger amp-hr. M18 battery packs (5.0 / 6.0)?

    1 answer

    1. The kit will work with all of the Milwaukee M18 batteries in multiple Ah capacities.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
