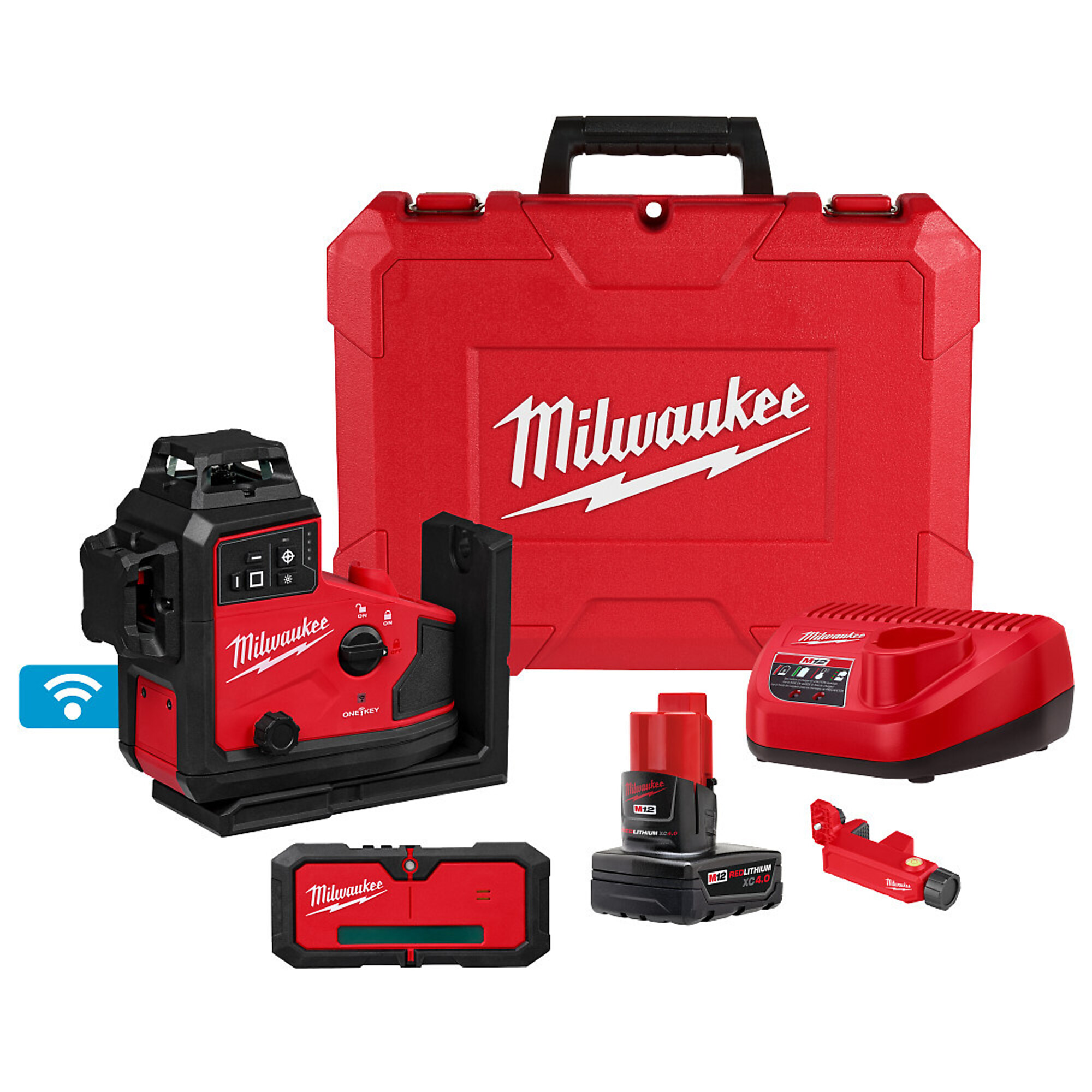

Milwaukee M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver, Model# 3642-21

Item# 6654267
Milwaukee M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver, Model# 3642-21

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milwaukee M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver, Model# 3642-21

Click or Tap image to Zoom

$1399.00

  • Shipping:

    Available now

  • Store Pickup:

    Not available - online only
  • Automatic Alignment Up-To 125'
  • 70% Brighter, when in the Boosted Mode and compared to the 3632 M12™ Green 3-Plane Laser
  • 10+ Hours of Runtime
  • Remote Brightness Adjustment - Standard, Boost & Off
  • Micro Control - Pivots on Point

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

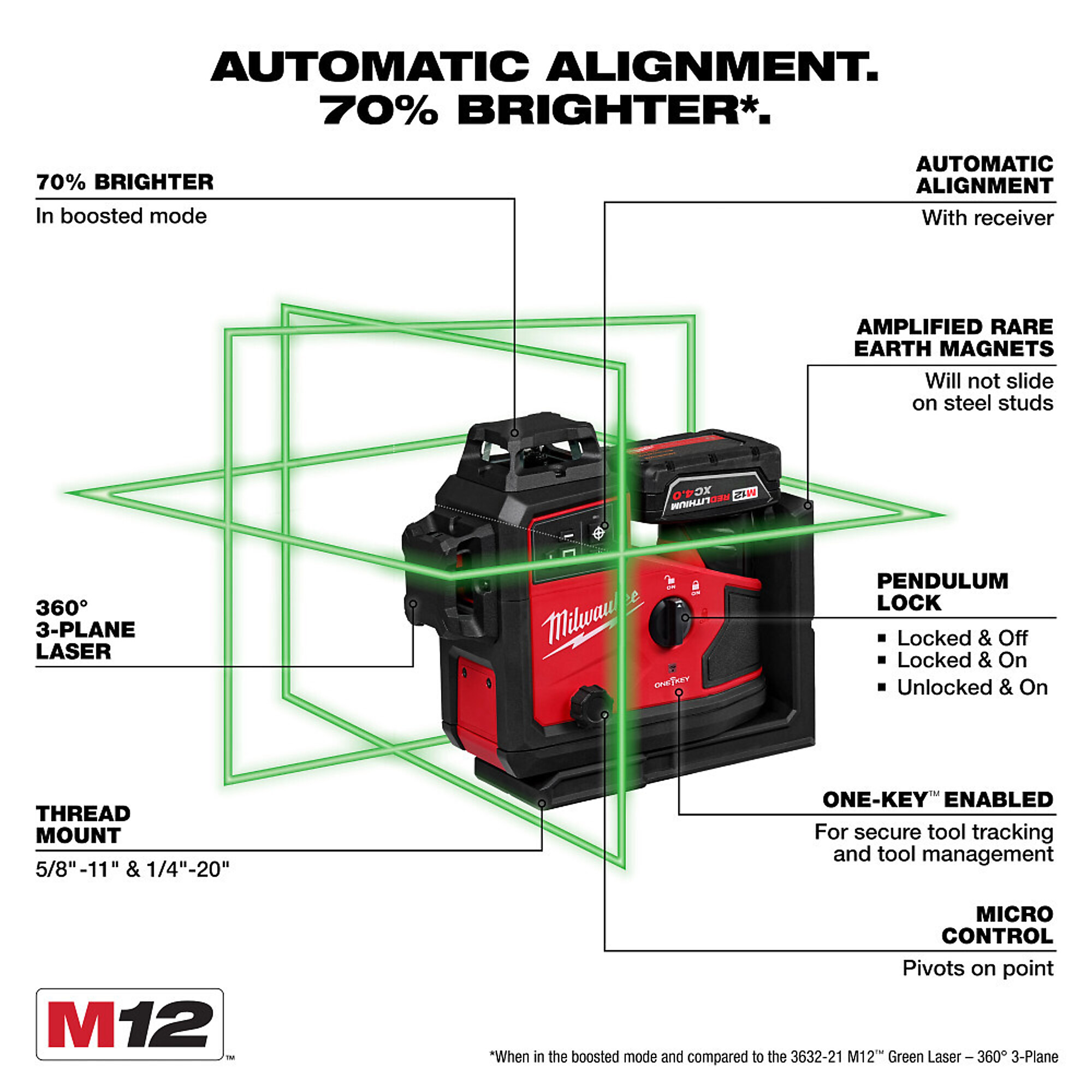

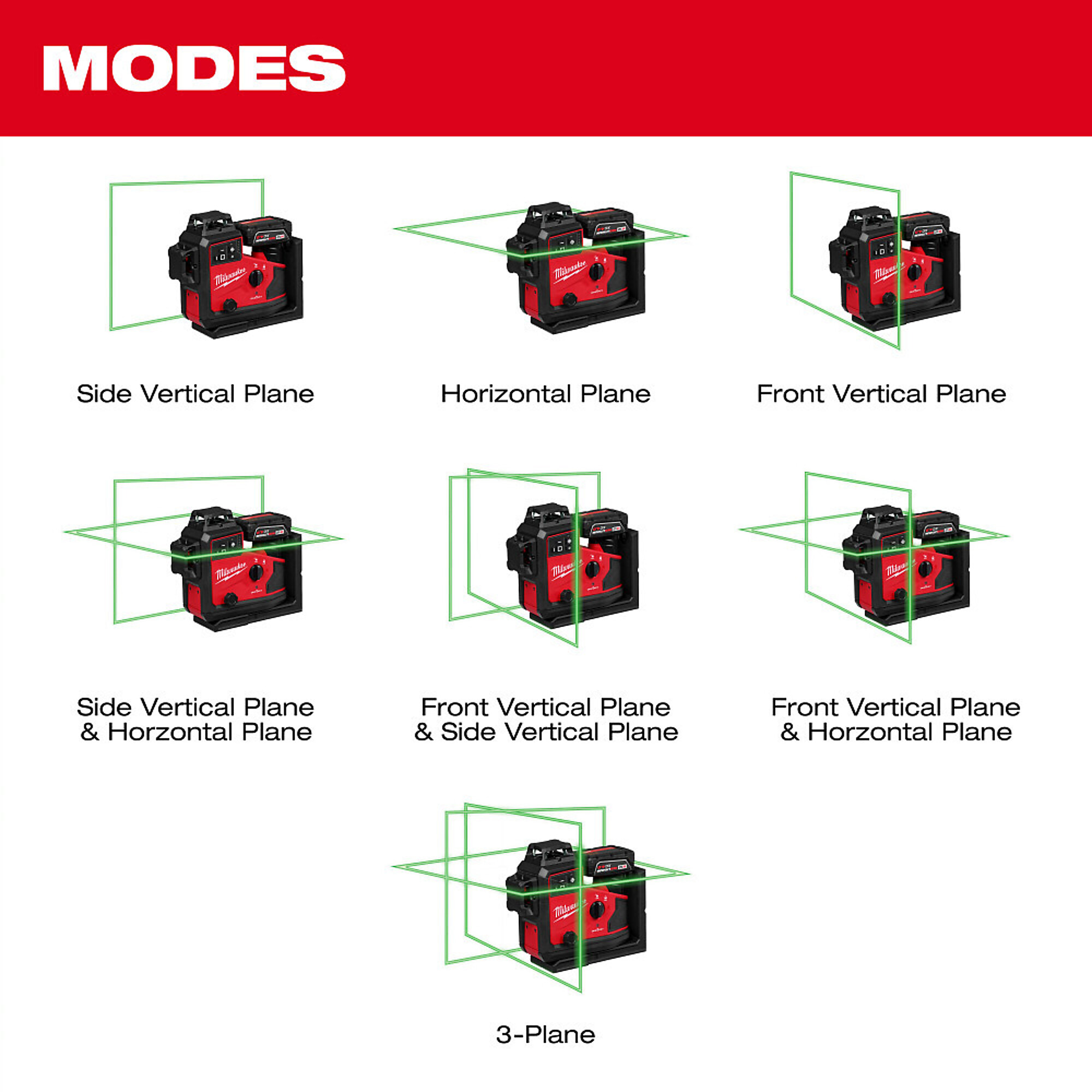

The MILWAUKEE® M12™ Green 360? 3-Plane Laser w/Automatic Alignment Receiver Kit provides Automatic Alignment 70% Brighter Lines* for a faster, more accurate layout onsite. With the kitted Receiver, you can Automatically Align your Laser up to 125’, making the layout of long runs more efficient.  In boosted mode, the 3642-21 is 70% Brighter than our current 3632-21 providing better visibility when it's needed. You will get 10+ Hours of Runtime in Standard Brightness, and 6+ Hours of Runtime in Boosted mode when paired with the 4.0 XC battery pack. You can adjust the brightness and put the laser to sleep from the receiver which is ideal for saving power during breaks. The three 360° planes include horizontal and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool. The integrated bracket features amplified rare earth magnets that provide a strong hold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. As a part of the industry-leading Milwaukee® M12™ System, this 360? laser level is compatible with all M12™ Batteries.

What's Included

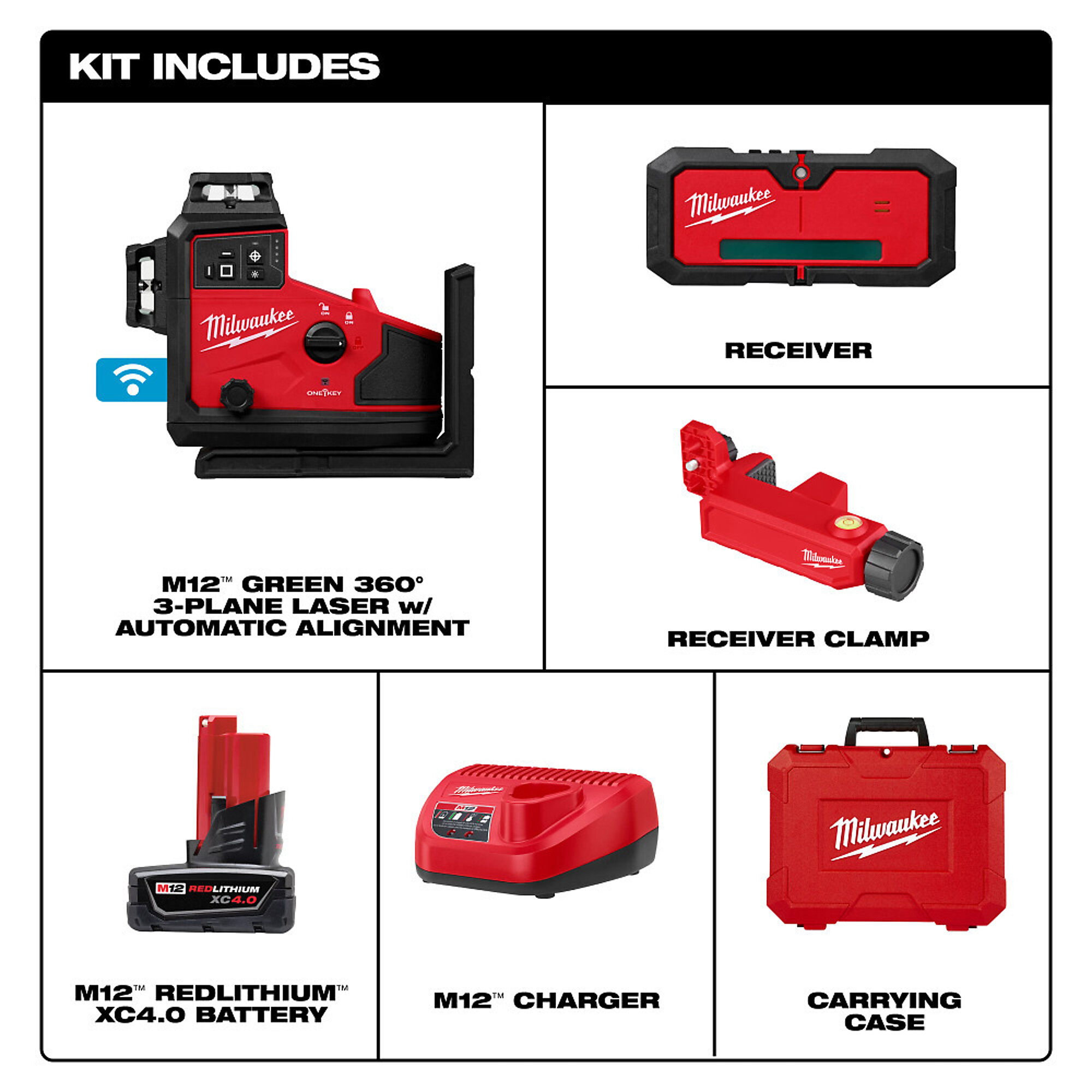

    (1) Laser (1) Receiver (1) Battery (1) Charger (2) AA Batteries

Downloads

Safety Data Sheet

Features + Benefits

  • Automatic Alignment Up-To 125'
  • 70% Brighter, when in the Boosted Mode and compared to the 3632 M12™ Green 3-Plane Laser
  • 10+ Hours of Runtime
  • Remote Brightness Adjustment - Standard, Boost & Off
  • Micro Control - Pivots on Point
  • 125 ft. Working Range
  • 165 ft. Range with Detector
  • Accuracy: +/- 1/8" @ 33 ft
  • Automatic Alignment Accuracy: +/- 1/8" @ 125 ft
  • Amplified Rare Earth Magnets - Will Not Slide on Steel Studs
  • Self Leveling: +/- 4° Tilt
  • IP54 Rated: Water and Dust Resistant
  • 1m Impact Resistance
  • ONE-KEY™ Tracking and Tool Management
  • 1/4-20 & 5/8-11 Thread Mount

Key Specs

AttributeSpecification

item#

6654267

Brand

Milwaukee

Manufacturer's Warranty

3 year limited warranty

Ship Weight

13.2 LB

Level Type

Line

Accuracy

0.125 in

Laser Distance

33 ft

Frame Material

Molded Plastic
AttributeSpecification

Level Indicators (qty.)

3

Display Type

Indicator Lights

Storage Type

Case

Self-Leveling

Yes

Multi-Plane Leveling

Yes

Indicator Included

Yes

Product Weight

3.7800 lb

Dimensions L x W x H (in.)

8.4 x 4.6 x 7.39 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. I long of a distance is visible

    1 answer

    1. The laser has detectable range up to 125 feet without the detector and up to 165 feet with the detector.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
