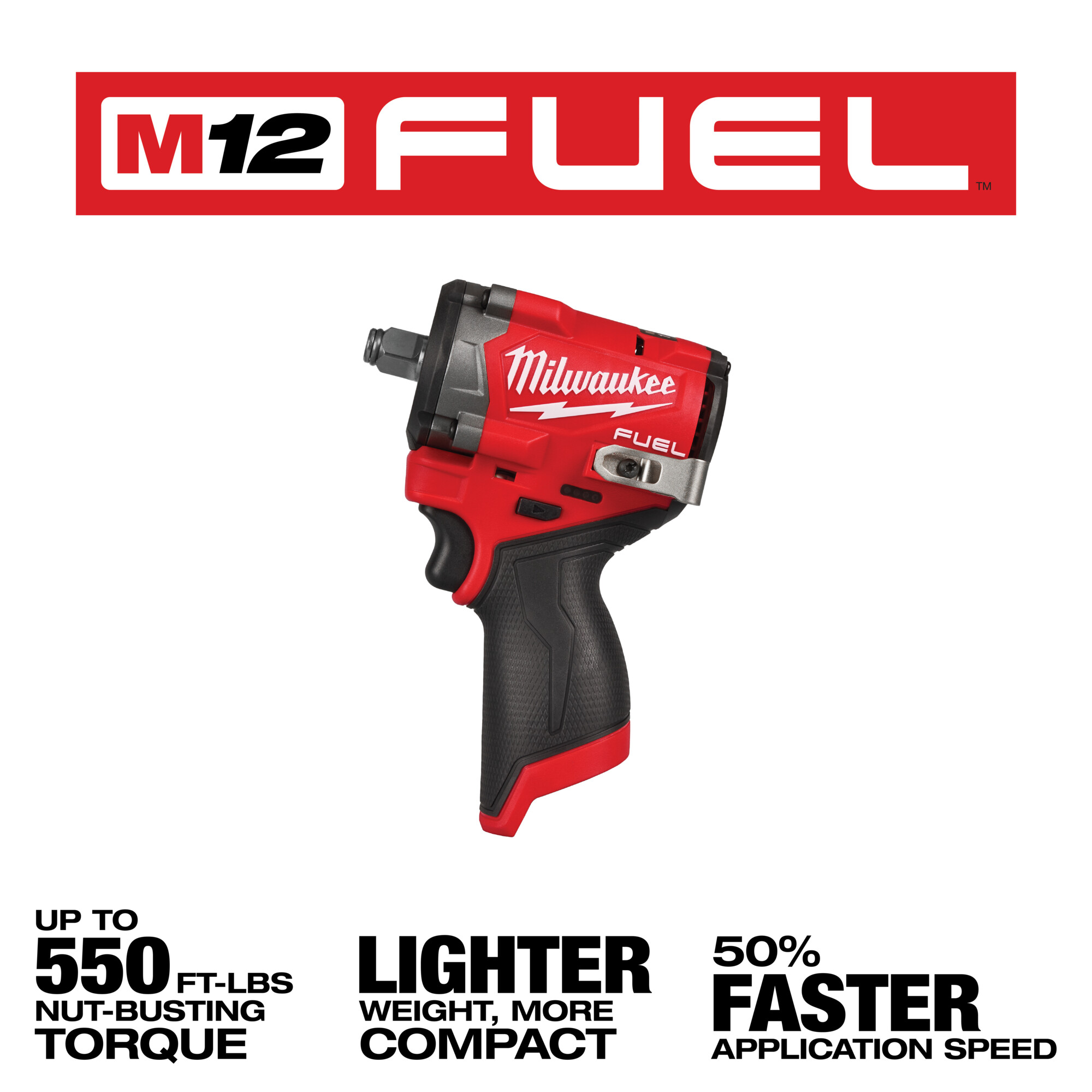

Milwaukee M12 FUEL Stubby Impact Wrench, 1/2in. Drive, 12V, Model# 2563-20

Item# 6051870
"Milwaukee M12 FUEL Stubby Impact Wrench, 1/2in. Drive, 12V, Model# 2563-20"
Milwaukee M12 FUEL Stubby Impact Wrench, 1/2in. Drive, 12V, Model# 2563-20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milwaukee M12 FUEL Stubby Impact Wrench, 1/2in. Drive, 12V, Model# 2563-20

Click or Tap image to Zoom

$249.00

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

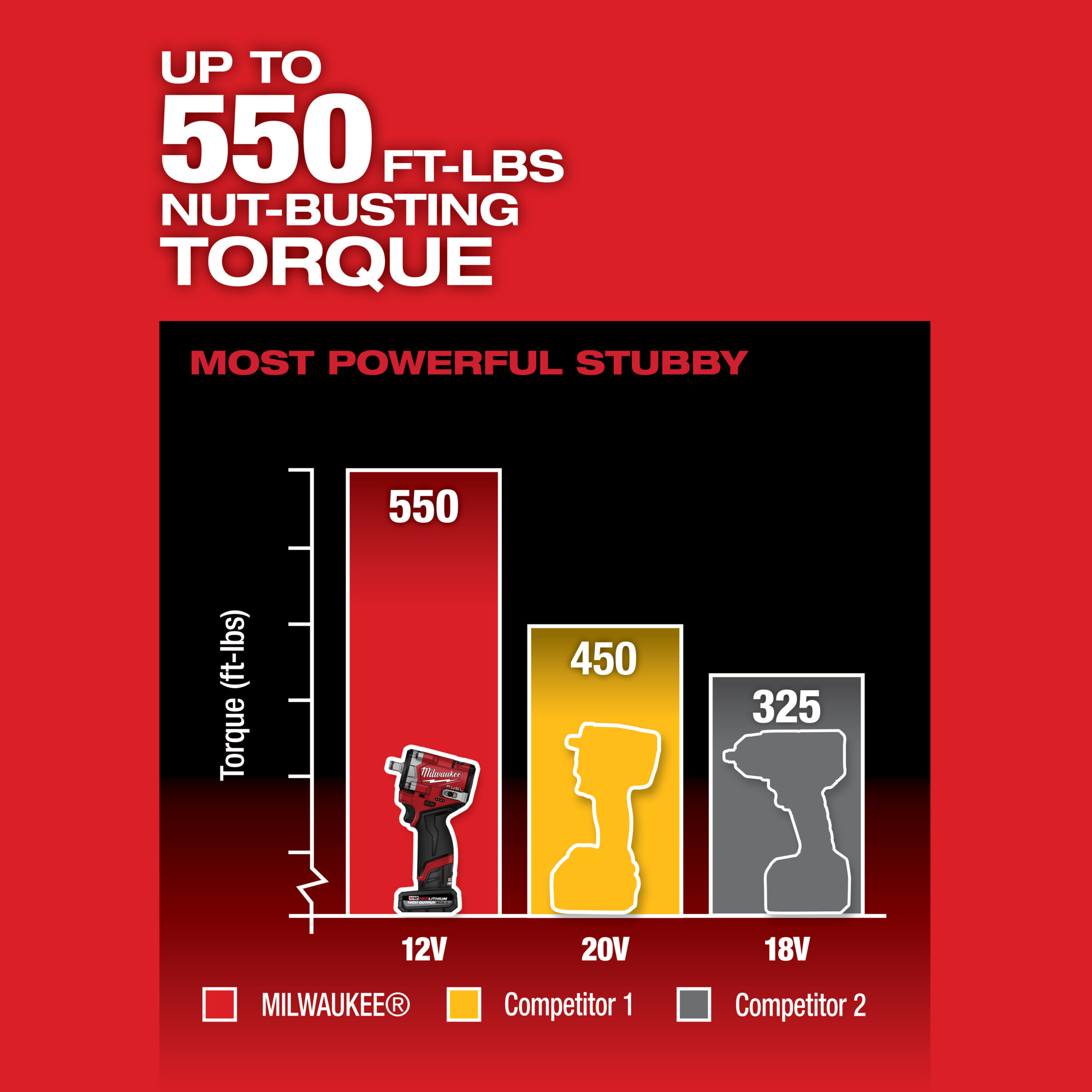

  • Up to 550 ft-lbs of Nut-Busting Torque
  • Lightest Weight & More Compact
  • 50% Faster Application Speeds
  • Mode 1 RPM: 0-930; Mode 2 RPM: 0-2,100; Mode 3 RPM: 0-3,000; Mode 4 RPM: 0-3,000
  • Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The new MILWAUKEE® 1/2” Stubby Impact Wrench delivers the Most Power, Is Lighter Weight More Compact while delivering 50% Faster Application speeds. Leveraging POWERSTATE™ Brushless Motor, The Stubby Delivers 0-3,000 RPM with up to 550ft.-lbs of Nut Busting Torque, allowing the removal of the most corroded and stubborn applications. This Milwaukee® solution delivers on performance and size, at only 2.2 lbs bare tool. Users will experience less fatigue throughout their work week while fitting into tight spaces and allowing access where larger impacts can't fit without using additional accessories or disassembling components to reach the desired fastener. Equipped with Tri LED work lights to illuminate your work area without the frustration of shadows. 4-Mode DRIVE CONTROL™ for greater precision and customization to your desired power output, including AUTO SHUT-OFF™ that applies no more than 15ft.-lbs of torque for hand-tight applications that prevent overtightening when in forward. In reverse, bolt removal mode will slow down the RPM once the bolt is free to prevent bolts from flying around your work area. To change the modes, it is a single-handed operation. By shifting the forward-reverse shuttle into neutral and double-tapping the trigger, you will be able to change modes effortlessly.

What's Included

    (1) M12 FUEL 1/2" Impact Wrench (2563-20) (1) Belt Clip

Downloads

Product Manual Product Manual2
Play Item Video

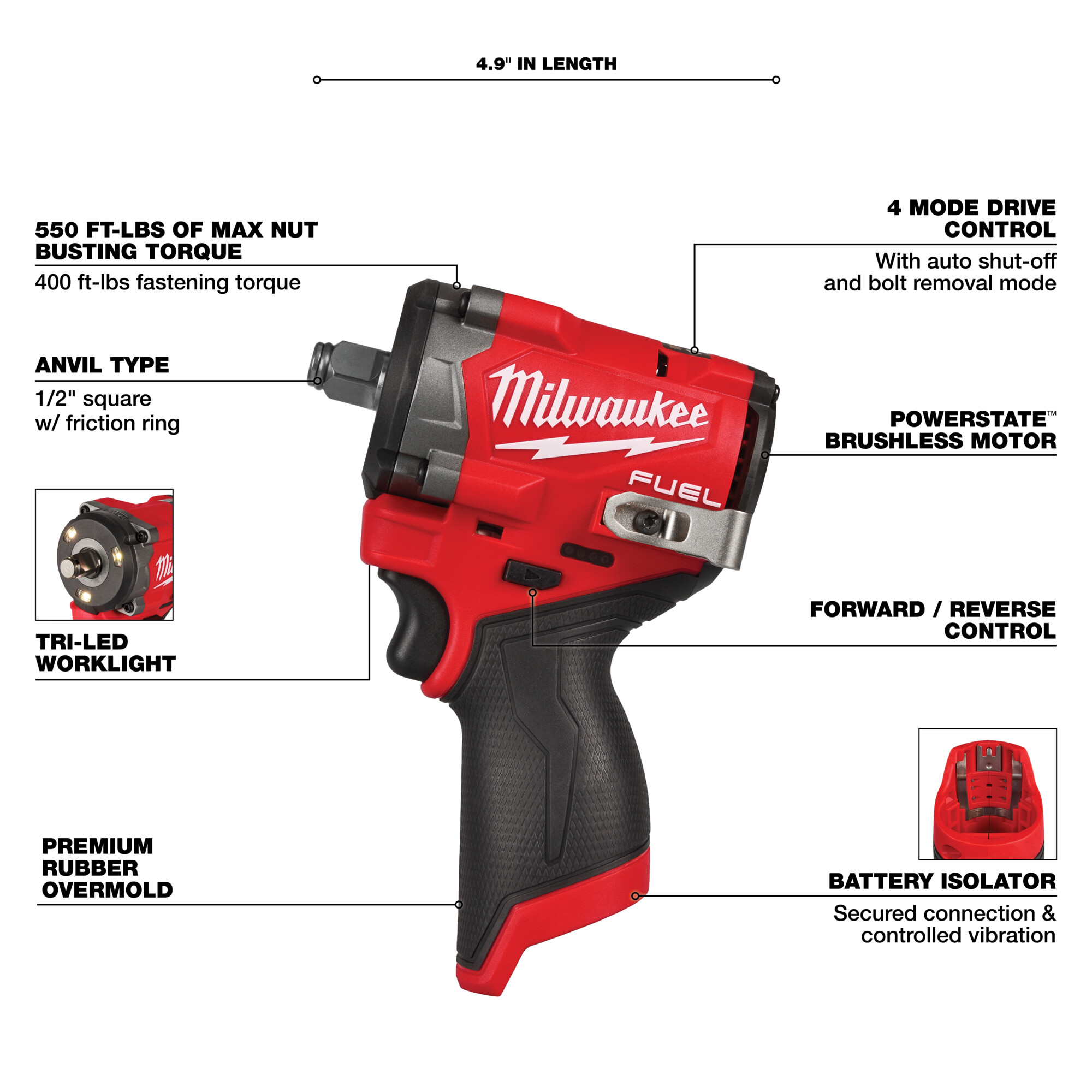

Features + Benefits

  • Up to 550 ft-lbs of Nut-Busting Torque
  • Lightest Weight & More Compact
  • 50% Faster Application Speeds
  • Mode 1 RPM: 0-930; Mode 2 RPM: 0-2,100; Mode 3 RPM: 0-3,000; Mode 4 RPM: 0-3,000
  • Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
  • 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
  • Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.
  • New Battery Isolation System for secured battery connection and reduced vibration transmitted to the pack
  • Compatible with all M12™ batteries & Chargers
  • Friction ring socket retention system: Reduces downtime on applications involving frequent changing of accessories
  • Single handed mode changes for increased productivity

Key Specs

AttributeSpecification

item#

6051870

Brand

Milwaukee

Manufacturer's Warranty

5 year limited warranty

Ship Weight

2.4 LB

Drive Size

1/2 in

Volts

12

Impacts Per Minute (IPM)

3,300
AttributeSpecification

Retainer Type

Friction/Hog Ring

Cordless

Yes

Motor Type

Brushless

Max. Forward Torque

400 ft-lbs.

Max. Speed (RPM)

3,000

Storage Type

None

Reviews

Questions & Answers

68 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Does this come with a battery and will it loosen lugnuts?

    1 answer

    1. This is the tool only. The battery and charger are sold separately. The impact will have nut busting torque of 550 foot pounds.

      Helpful?

  2. Do they make a carrying case for this impact wrench?

    1 answer

    1. You would contact the manufacturer for a carrying case for this impact wrench.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
