Milwaukee M12 FUEL INSIDER Extended Reach Box Ratchet Kit, Model# 3050-21

Item# 6545984
Milwaukee M12 FUEL INSIDER Extended Reach Box Ratchet Kit, Model# 3050-21

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milwaukee M12 FUEL INSIDER Extended Reach Box Ratchet Kit, Model# 3050-21

Click or Tap image to Zoom

$399.00

  • Offer: FREE Milwaukee M12 Ratchet with Purchase of a Qualifying M12 Tool See Details

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 07/31/26

  • Store Pickup:

    Not available - online only
  • Unrivaled Access with INSIDER™ Box Ratchet Sockets
  • Ultimate Versatility to get more jobs done with one tool
  • Best combination of speed (350 RPM) & torque (60 ft-lbs) with worlds smallest head size
  • Includes 13PC Metric INSIDER™ Box Ratchet Sockets: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21

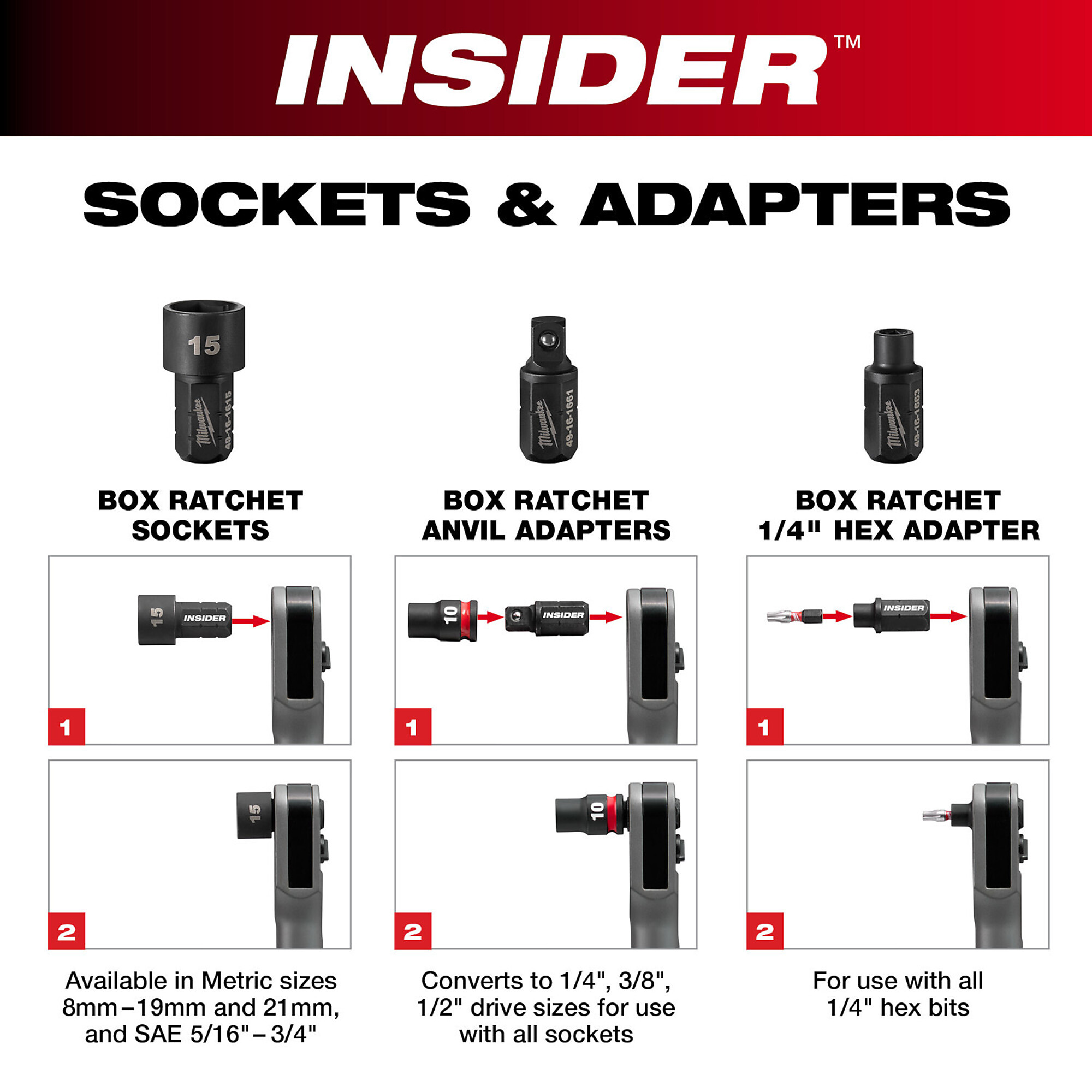

  • Includes 3 INSIDER™ Box Ratchet Adapters: 1/4" Hex, 1/4" Anvil, 3/8" Anvil

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The MILWAUKEE® M12 FUEL™ INSIDER™ Extended Reach Box Ratchet is a new-to-world solution that reinvents the traditional ratchet. The low-profile head design allows sockets adapters to be inserted directly into the tool. The M12 FUEL™ INSIDER™ delivers UNRIVALED ACCESS and over 3/4” shorter head profile size with the socket to reach deep into the engine bay and fit into the tightest spaces. The INSIDER™ delivers the combination of 60ft.-LBS OF MAX TORQUE and 350 RPMs to remove stubborn fasteners and complete more work faster. Mechanics will experience the ULTIMATE VERSATILITY with our provided INSIDER™ Box Ratchet Sockets (8-19, 21mm), 1/4” Hex Bit, 1/4” anvil adapter, 3/8” anvil adapter to tackle any job in the shop. The Box Ratchet 6 Point Sockets are pass through up to 15mm 9/16” to run nuts on threaded rod and eliminate the frustration of sockets bottoming out. The included M12 REDLITHIUM™ HIGH OUTPUT™ CP2.5 Battery is built with a resistant housing, providing increased protection against exposure to common oils, greases, and solvents found in automotive and manufacturing environments. The M12 FUEL™ INSIDER™ Extended Reach Box Ratchet and the M12 REDLITHIUM™ HIGH OUTPUT™ CP2.5 Battery are part of the M12™ System, which is fully compatible with over 150 solutions.

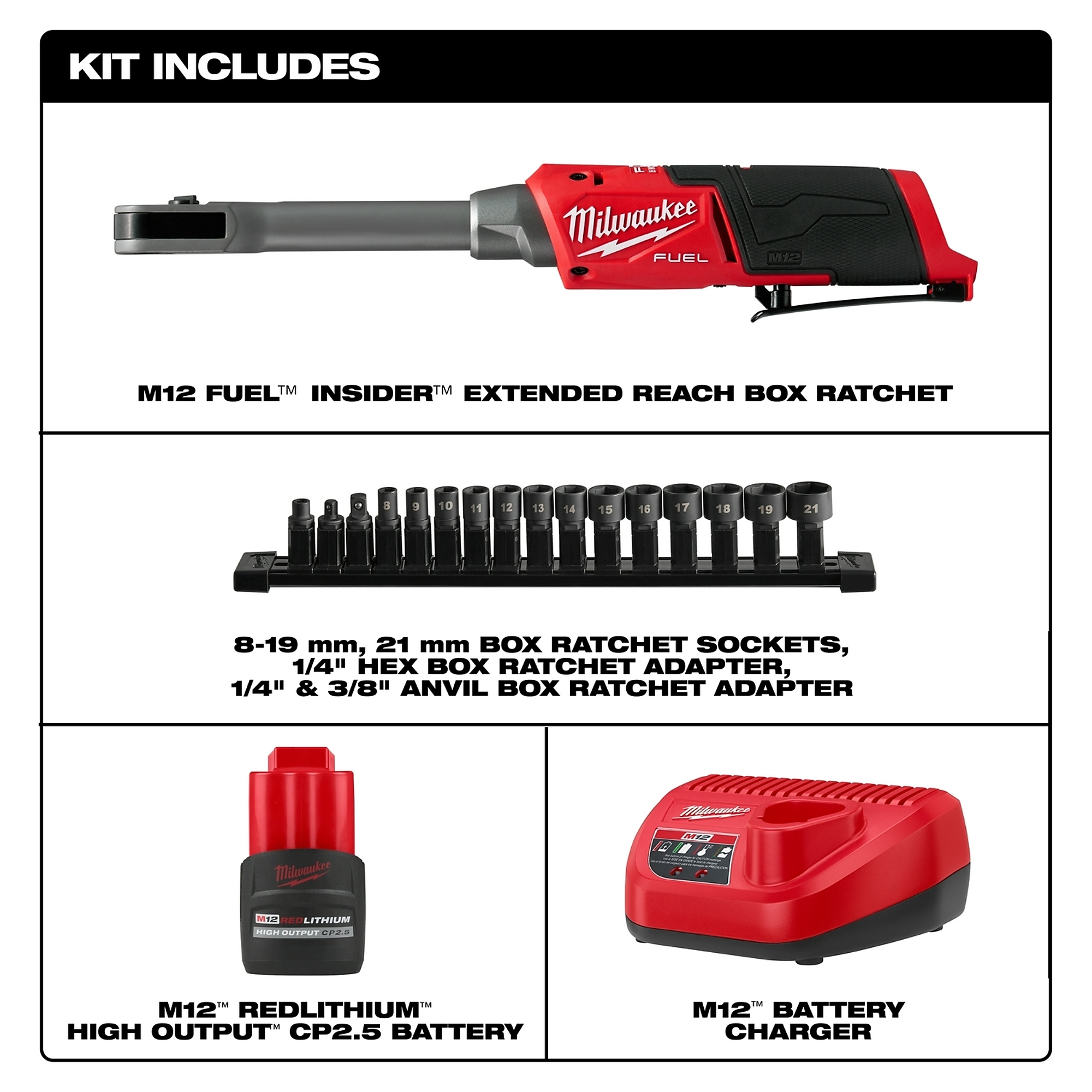

What's Included

    (1) Extended Reach Box Ratchet (1) Battery and Charger

Downloads

Safety Data Sheet

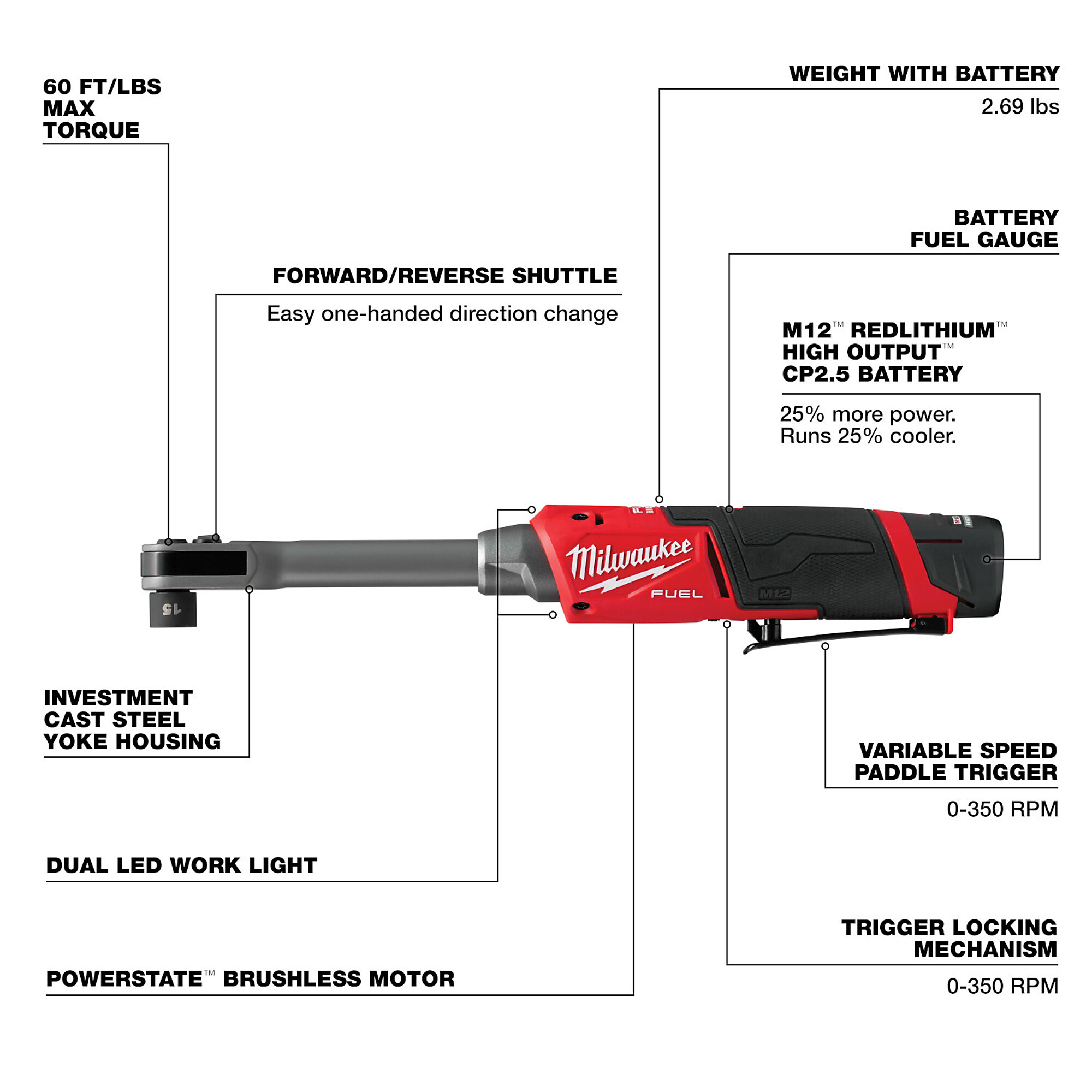

Features + Benefits

  • Unrivaled Access with INSIDER™ Box Ratchet Sockets
  • Ultimate Versatility to get more jobs done with one tool
  • Best combination of speed (350 RPM) & torque (60 ft-lbs) with worlds smallest head size
  • Includes 13PC Metric INSIDER™ Box Ratchet Sockets: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21
  • Includes 3 INSIDER™ Box Ratchet Adapters: 1/4" Hex, 1/4" Anvil, 3/8" Anvil
  • POWERSTATE™ brushless motor delivers maximum power and long motor life
  • Can be used manually without engaging the tool’s motor
  • Dual LED lights to illuminate work areas
  • Extended reach neck for ultimate access and reduce knuckle busting
  • Includes (1) M12™ High Output™ 2.5 Ah battery for optimized performance
  • On-board battery fuel gauge displays remaining run time
  • Extended paddle switch for multiple grip positions
  • Sockets can be inserted into both sides of the tool to eliminate the trigger from impeding access

Key Specs

AttributeSpecification

item#

6545984

Brand

Milwaukee

Manufacturer's Warranty

5 year limited warranty

Ship Weight

6.8 LB

Drive Size

Multiple in

Max. Speed

350 rpm

Volts

12

Tool Only

No
AttributeSpecification

Cordless

Yes

Battery Type

Lithium-ion

Batteries Included

Yes

Charger Included

Yes

Storage Type

None

Product Weight

2.7000 lb

Dimensions L x W x H (in.)

16.0 x 2.0 x 2.74 in

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

  1. How much torque can you use manually without engaging the motor and not abusing the tool?

    1 answer

    1. Model 3050 has a maximum torque rating of 60 ft-lbs. Exceeding this limit may result in tool damage.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
