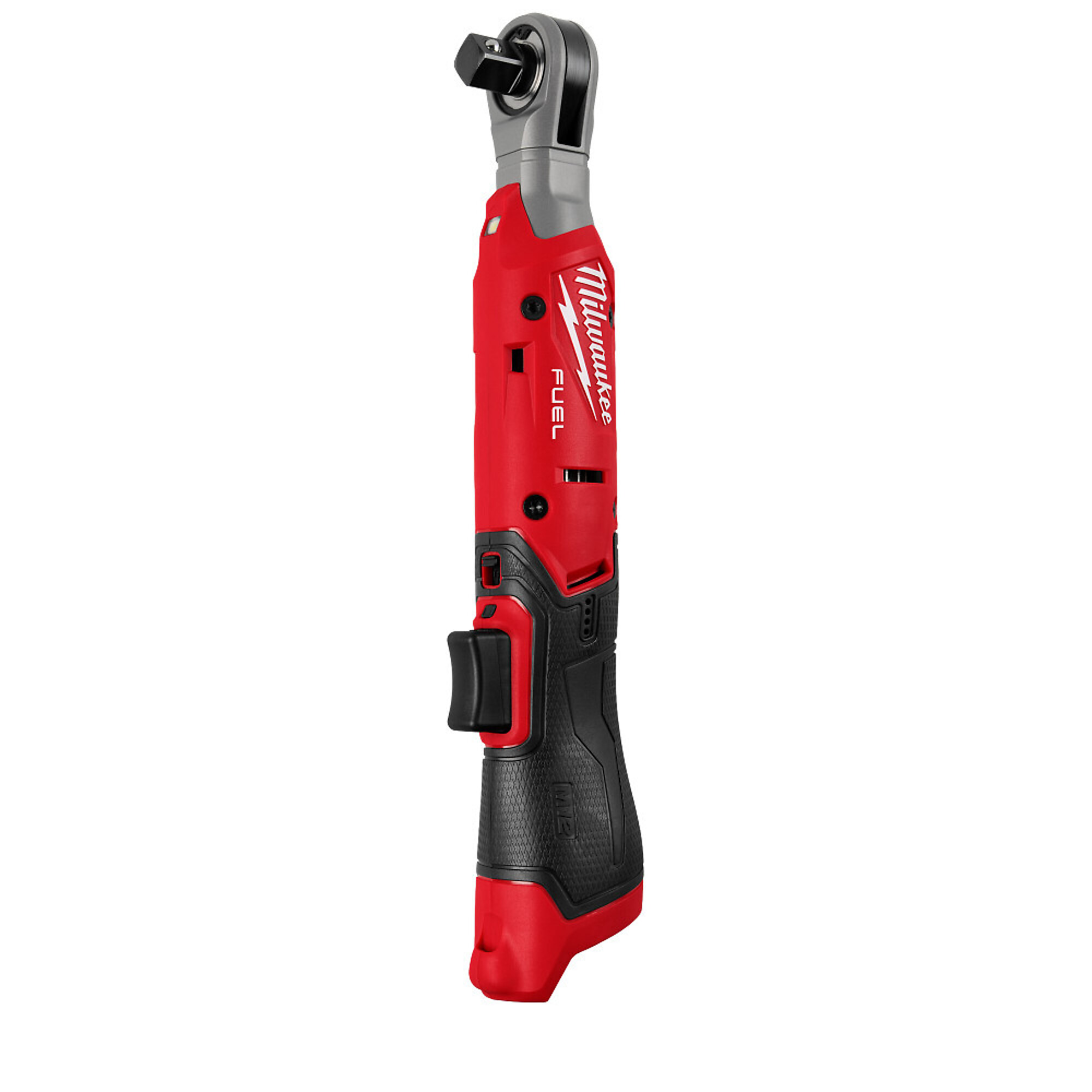

Milwaukee M12 FUEL™ 12-Volt Lithium-Ion Brushless Cordless 1/2" Ratchet, Model# 3054-20

Item# 7013470
Milwaukee M12 FUEL™ 12-Volt Lithium-Ion Brushless Cordless 1/2" Ratchet, Model# 3054-20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milwaukee M12 FUEL™ 12-Volt Lithium-Ion Brushless Cordless 1/2" Ratchet, Model# 3054-20

Click or Tap image to Zoom

$229.00

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 08/13/26

  • Store Pickup:

    Not available - online only

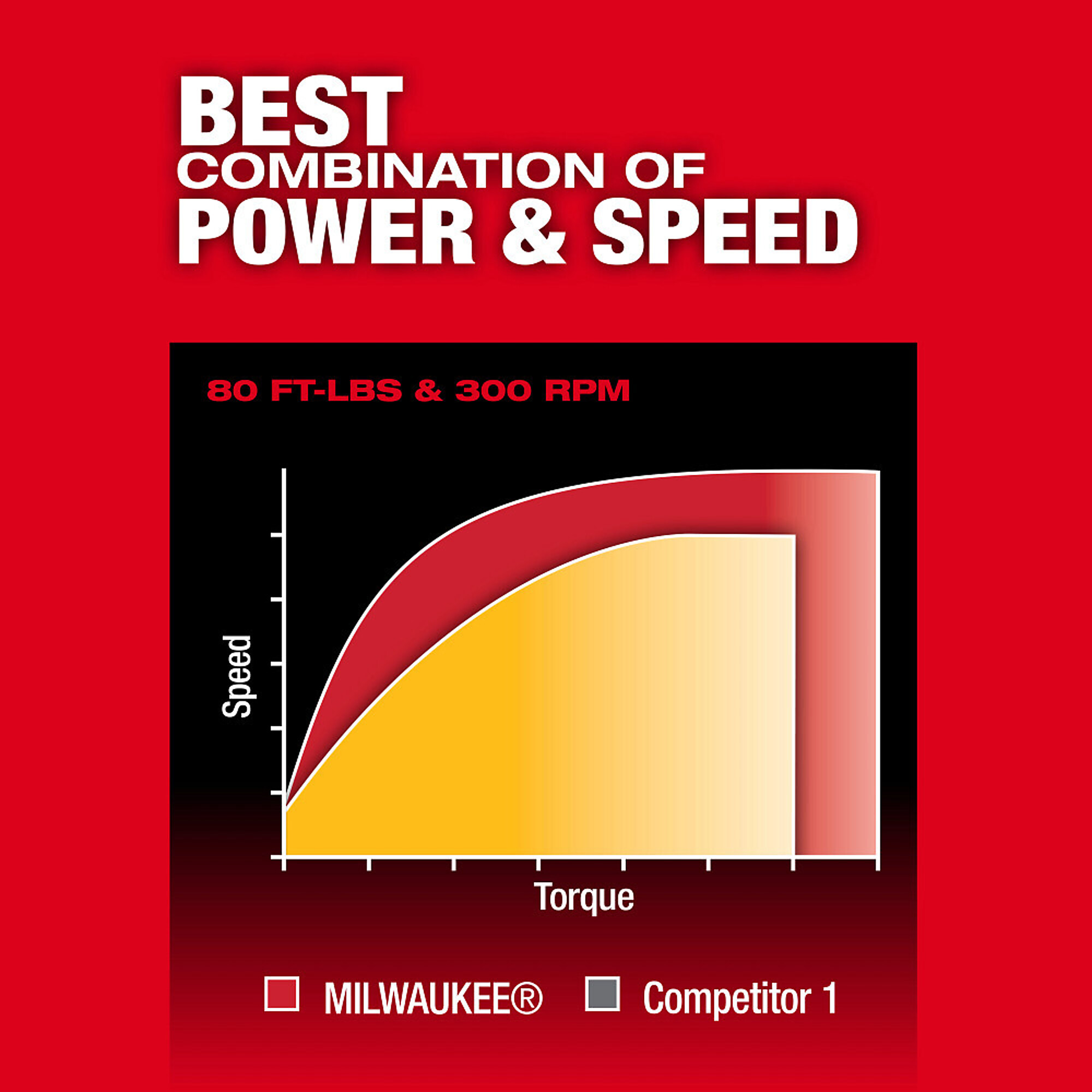

  • Up to 80 ft-lbs of max torque
  • 300 RPM for faster application speeds
  • Most Compact head & body size for increased access to tight spaces
  • Contoured Grip for Unmatched comfort
  • Modular trigger for personalized grip point - button & paddle cap included

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

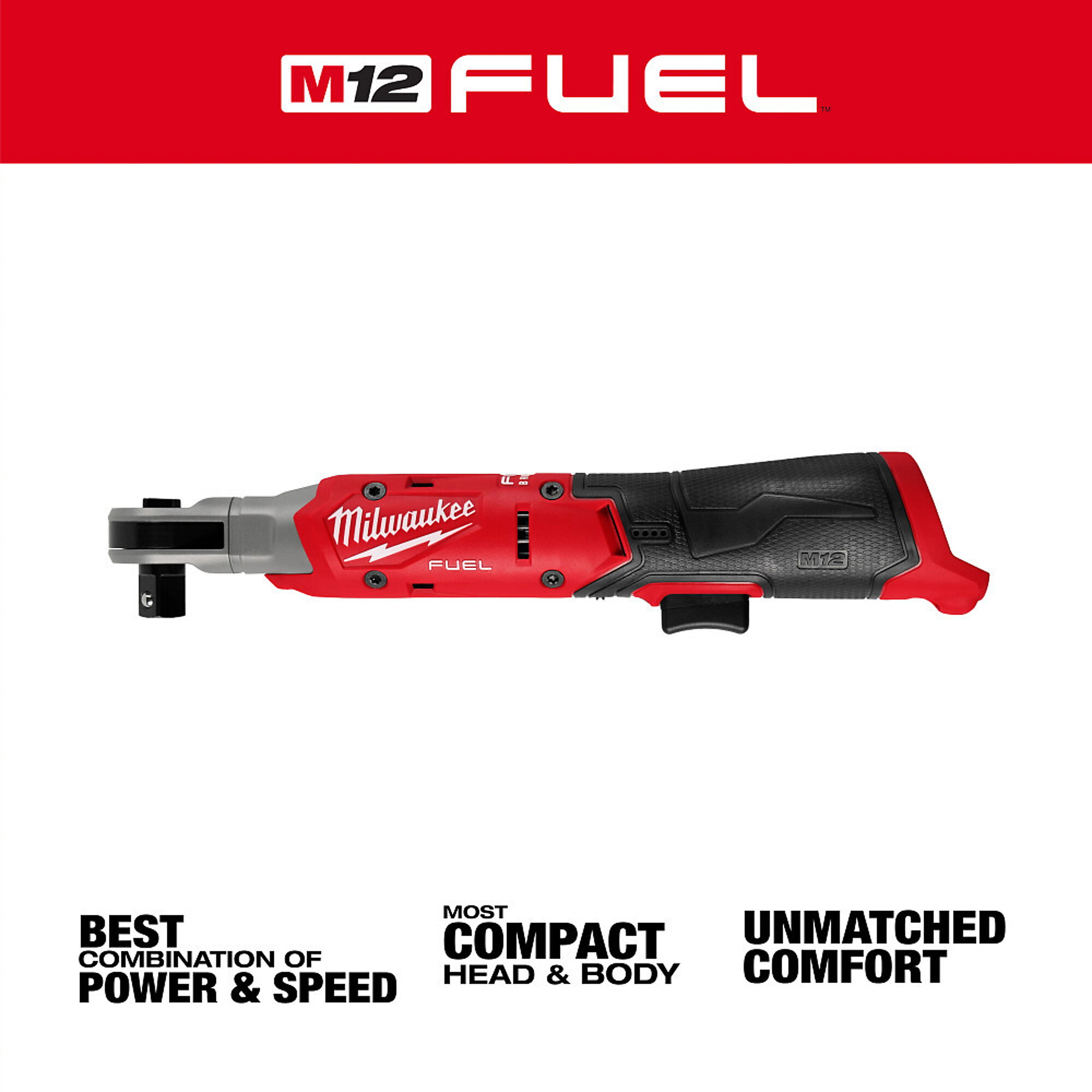

The MILWAUKEE® M12 FUEL™ 1/2in. Ratchet redefines productivity, capability, comfort for users looking for the ultimate cordless ratchet to tackle any job. Our new POWERSTATE™ Brushless outer rotor motor delivers the BEST COMBINATION OF POWER AND SPEED with 80ft.-lbs of torque to breakaway stubborn fasteners, 300 RPM to remove and install fasteners at higher rates of speed. This solution also delivers the MOST COMPACT HEAD BODY SIZE to allow users full body access into tight spaces, maintaining a 3/4in. head profile at only 1.7 lbs bare tool, without sacrificing durability. The M12 FUEL™ Ratchet provides users UNMATCHED COMFORT with a dedicated contoured grip reduces fatigue during a full day of wrenching. Also featuring a new to world modular trigger cap, this will allow users to switch between various button or paddle trigger configurations for customizable comfort. Equipped with a targeted LED work light, battery isolation system, and optimized forward reverse shuttle – this ratchet tackles core user frustrations and delivers uncompromising performance.

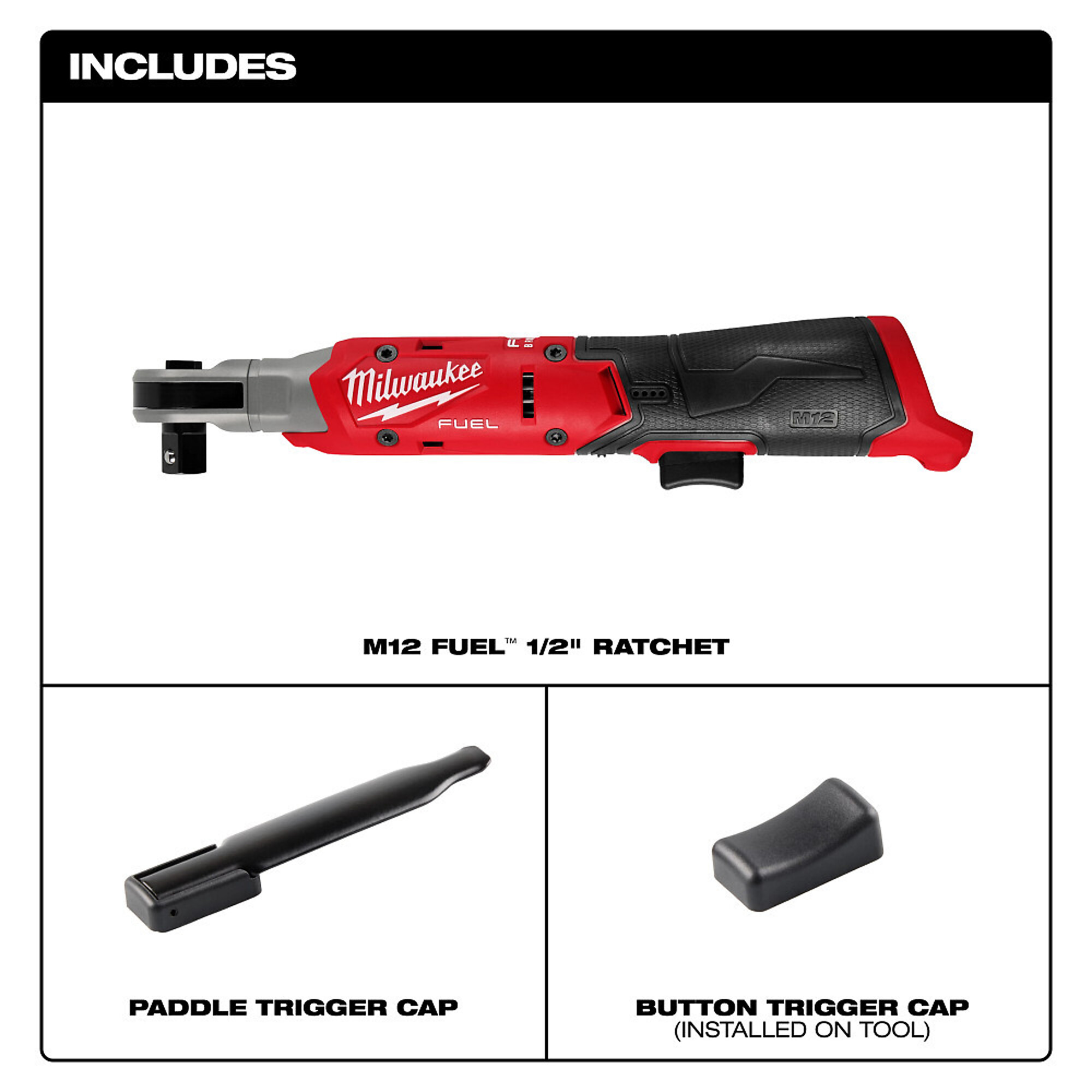

What's Included

    (1) M12 FUEL 1/2" Ratchet (3054-20) (1) Modular Button Cap (1) Modular Paddle Cap

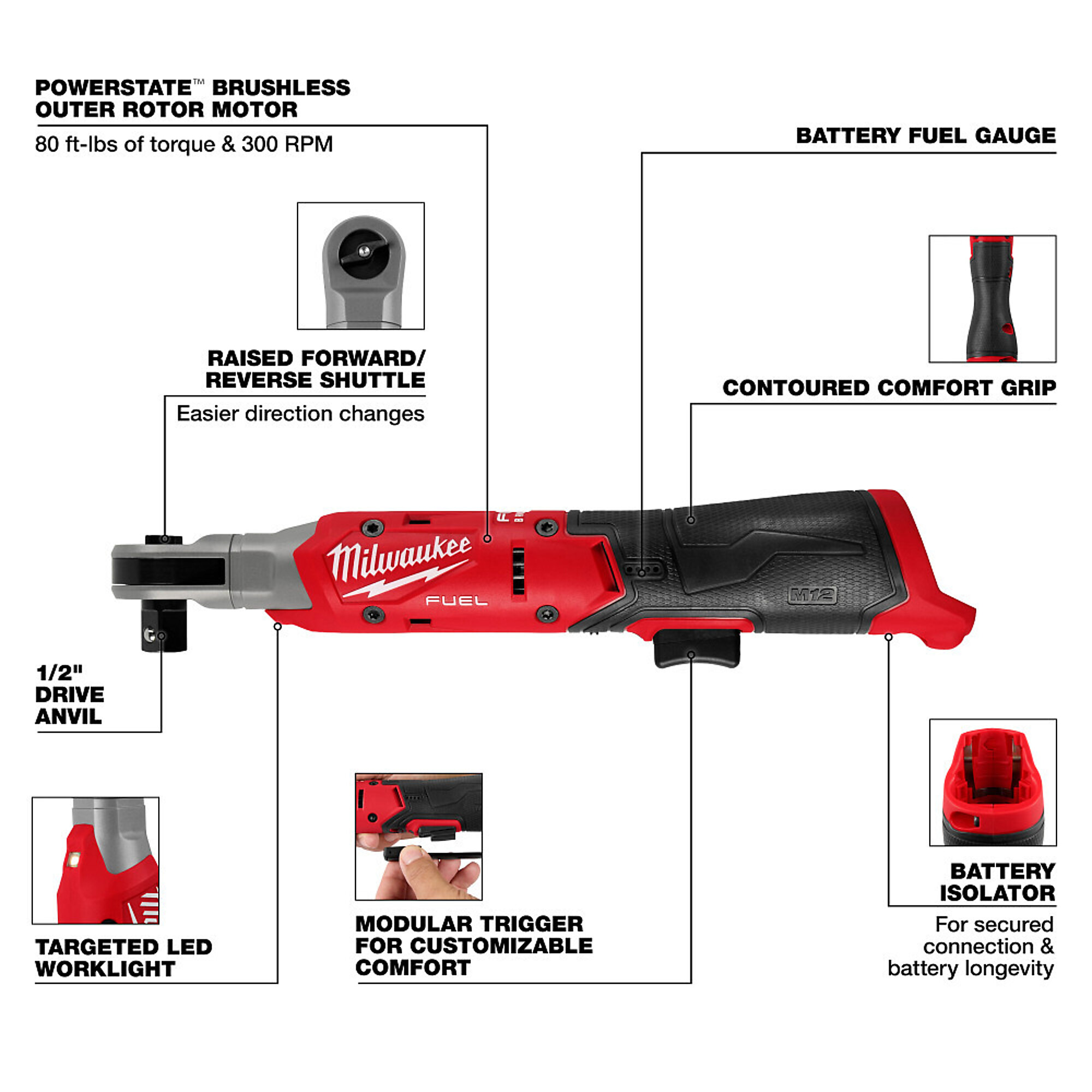

Features + Benefits

  • Up to 80 ft-lbs of max torque
  • 300 RPM for faster application speeds
  • Most Compact head & body size for increased access to tight spaces
  • Contoured Grip for Unmatched comfort
  • Modular trigger for personalized grip point - button & paddle cap included
  • Raised F/R shuttle for easier direction changes
  • Integrated Grease Port for Self Lubrication
  • Metal reinforced housing for increased durability
  • POWERSTATE™ Brushless Outer Rotor Motor for greatest performance
  • REDLINK PLUS™ intelligence prevents damage to the tool & battery due to overloading or overheating
  • Bi-Directional Motor Firmware for consistent breakaway torque
  • Targeted LED light for greater illumination
  • Part of the M12™ System featuring 150+ Tools

Key Specs

AttributeSpecification

item#

7013470

Brand

Milwaukee

Manufacturer's Warranty

5 year limited warranty

Ship Weight

2.0 LB

Drive Size

1/2 in

Volts

12

Tool Only

Yes
AttributeSpecification

Cordless

Yes

Battery Type

Lithium-ion

Batteries Included

No

Charger Included

No

Storage Type

None

Product Weight

1.7000 lb

Dimensions L x W x H (in.)

2.2 x 1.6 x 12.2 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
