Milwaukee M12 FUEL Stubby 3/8in. Impact Wrench Kit, Drive Size 3/8in., 12V, Model# 2562-22

Item# 6102201
"Milwaukee M12 FUEL Stubby 3/8in. Impact Wrench Kit, Drive Size 3/8in., 12V, Model# 2562-22"
Milwaukee M12 FUEL Stubby 3/8in. Impact Wrench Kit, Drive Size 3/8in., 12V, Model# 2562-22

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milwaukee M12 FUEL Stubby 3/8in. Impact Wrench Kit, Drive Size 3/8in., 12V, Model# 2562-22

Click or Tap image to Zoom

$399.00

  • Offer: FREE Milwaukee M12 Ratchet with Purchase of a Qualifying M12 Tool See Details

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Lighter Weight & More Compact
  • Up to 550 ft-lbs of Nut-Busting Torque
  • 50% Faster Application Speeds
  • Mode 1 RPM: 0-930; Mode 2 RPM: 0-2,100; Mode 3 RPM: 0-3,000; Mode 4 RPM: 0-1,300
  • Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

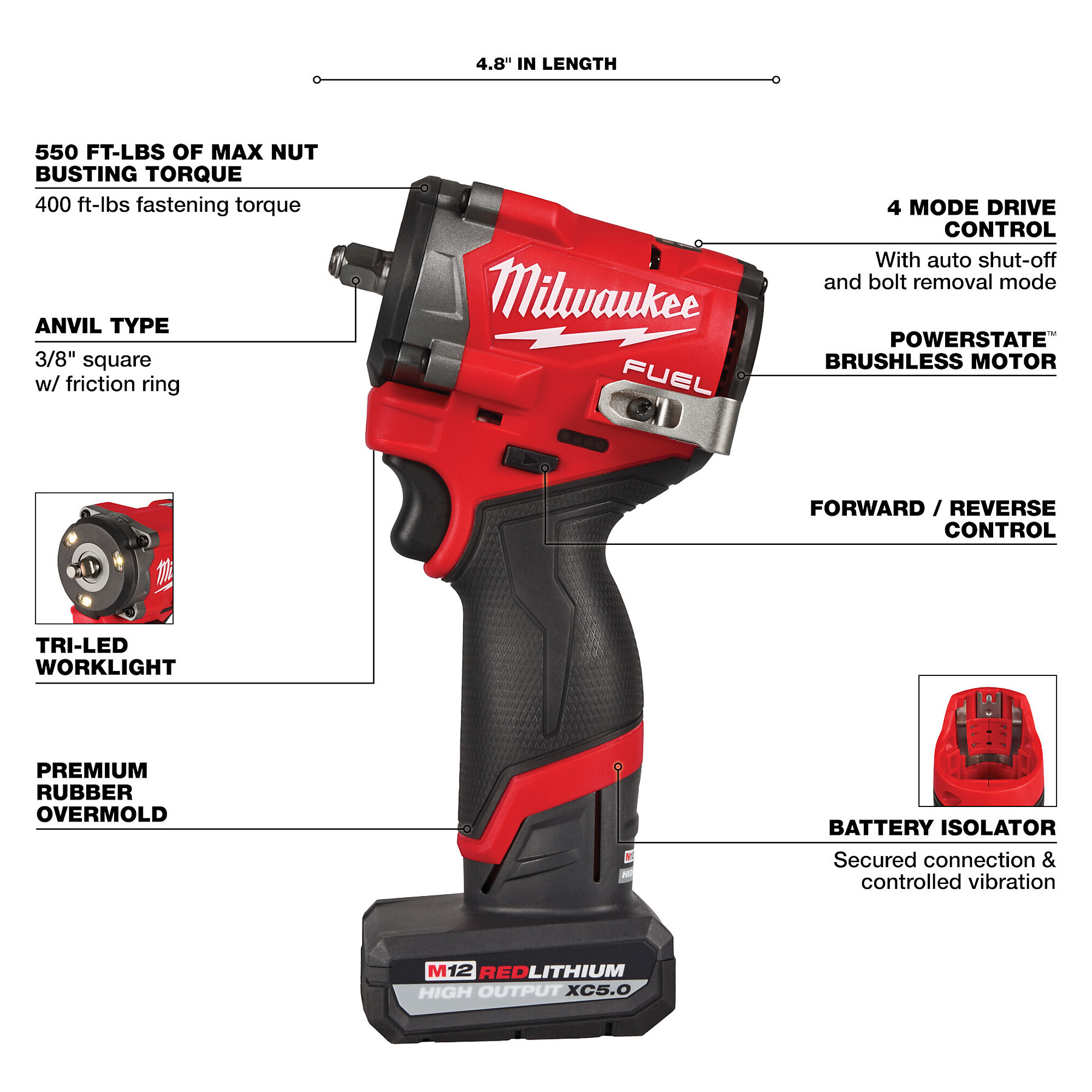

The new MILWAUKEE® 3/8” Stubby Impact Wrench delivers the Most Power, Is Lighter Weight  More Compact while delivering 50% Faster Application speeds. The POWERSTATE™ Brushless Motor Delivers 0-3,000 RPM with up to 550ft.-lbs of Nut Busting Torque, allowing the removal of the most corroded and stubborn applications. This solution delivers on performance and size, at only 2.2 lbs bare tool. Users will experience less fatigue throughout their work week while fitting into tight spaces and allowing access where larger impacts can't fit without using additional accessories or disassembling components to reach the desired fastener. Equipped with Tri LED work lights to illuminate your work area without the frustration of shadows. 4-Mode DRIVE CONTROL™ for greater precision and customization to your desired power output, including AUTO SHUT-OFF™ that applies no more than 15ft.-lbs of torque for hand-tight applications that prevent overtightening when in forward. In reverse, bolt removal mode will slow down the RPM once the bolt is free to prevent bolts from flying around your work area. To change the modes, it is a single-handed operation. By shifting the forward-reverse shuttle into neutral and double-tapping the trigger, you will be able to change modes effortlessly. Kitted with the M12™ REDLITHIUM™ HIGH OUTPUT™ XC5.0 CP2.0 Battery Pack that delivers 25% more power, runs 25% cooler, and is chemical resistant to protect against exposure to common oils, greases, and solvents.

What's Included

    (1) M12 FUEL™ Stubby 3/8" Impact Wrench (2562-20) (1) M12™ REDLITHIUM™ HIGH OUTPUT™ XC5.0 Battery Pack (48-11-2450) (1) M12™ REDLITHIUM™ HIGH OUTPUT™ CP2.5 Battery Pack (48-11-2425) (1) M12™ Lithium-ion Battery Charger (48-59-2401) (1) Contractor Bag

Downloads

Safety Data Sheet
Play Item Video

Features + Benefits

  • Lighter Weight & More Compact
  • Up to 550 ft-lbs of Nut-Busting Torque
  • 50% Faster Application Speeds
  • Mode 1 RPM: 0-930; Mode 2 RPM: 0-2,100; Mode 3 RPM: 0-3,000; Mode 4 RPM: 0-1,300
  • Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
  • 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
  • Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.
  • New Battery Isolation System for secured battery connection and reduced vibration transmitted to the pack
  • Compatible with all M12™ batteries & Chargers
  • Friction ring socket retention system: Reduces downtime on applications involving frequent changing of accessories
  • Single handed mode changes for increased productivity
  • Mode 1 IPM: 0 - 1,500; Mode 2 IPM: 0 - 3,000; Mode 3 IPM: 0 - 3,300; Mode 4 IPM: 0 - 3,300

Key Specs

AttributeSpecification

item#

6102201

Brand

Milwaukee

Manufacturer's Warranty

5 year limited warranty

Ship Weight

6.06 LB

Drive Size

3/8 in

Volts

12

Impacts Per Minute (IPM)

3,300

Retainer Type

Friction/Hog Ring
AttributeSpecification

Cordless

Yes

Motor Type

Brushless

Max. Forward Torque

550 ft-lbs.

Max. Speed (RPM)

3,000

Batteries (qty.)

2

Storage Type

Bag

Product Weight

2.2000 lb

Dimensions L x W x H (in.)

4.8 x 2.4 x 7.2 in

Reviews

Questions & Answers

23 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
