Any of the M12 high output batteries will supply enough power for the 550 ft. lbs. of breakaway torque. The Ah would determine how long it would run the tool.

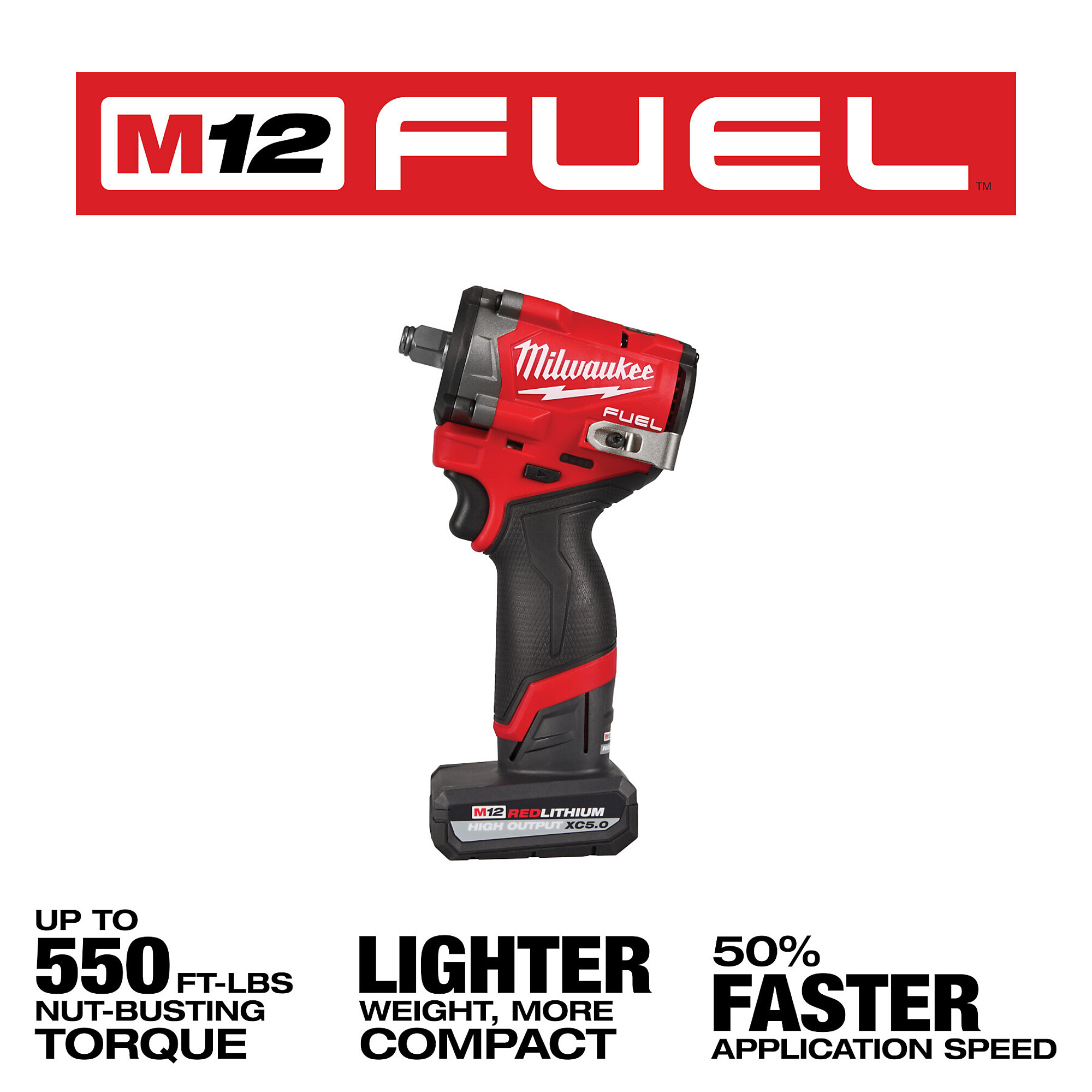

Milwaukee M12 FUEL Stubby 1/2in. Impact Wrench Kit, 12V, Model# 2563-22
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$399.00
- Lighter Weight & More Compact
- Up to 550 ft-lbs of Nut-Busting Torque
- 50% Faster Application Speeds
- Mode 1 RPM: 0-930; Mode 2 RPM: 0-2,100; Mode 3 RPM: 0-3,000; Mode 4 RPM: 0-1,300
- Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
See full description
What's Included
- (1) M12 FUEL 1/2" Impact Wrench (1) M12 High Output 5.0ah Battery (1) M12 High Output 2.5ah Battery (1) (1) M12 Charger
Downloads
Features + Benefits
- Lighter Weight & More Compact
- Up to 550 ft-lbs of Nut-Busting Torque
- 50% Faster Application Speeds
- Mode 1 RPM: 0-930; Mode 2 RPM: 0-2,100; Mode 3 RPM: 0-3,000; Mode 4 RPM: 0-1,300
- Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
- 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
- Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.
- New Battery Isolation System for secured battery connection and reduced vibration transmitted to the pack
- Compatible with all M12™ batteries & Chargers
- Friction ring socket retention system: Reduces downtime on applications involving frequent changing of accessories
- Single handed mode changes for increased productivity
- Mode 1 IPM: 0 - 1,500; Mode 2 IPM: 0 - 3,000; Mode 3 IPM: 0 - 3,300; Mode 4 IPM: 0 - 3,300
See All Impact Wrenches
See All Milwaukee Impact Wrenches
Currently Viewing This Product
Specifications
Specifications
Milwaukee M12 FUEL Stubby 1/2in. Impact Wrench Kit, 12V, Model# 2563-22
Milwaukee M18 FUEL ONE-KEY High Torque Impact Wrench with Friction Ring Kit, 3/4in. Drive, 1500 Ft./Lbs. Torque, 2 Batteries, Model# 2864-22R
Milwaukee M18 FUEL Mid-Torque Impact Wrench with Friction Ring Kit, 3/8in. Drive, 600 Ft./Lbs. Torque, Model# 2960-22R
Milwaukee M18 FUEL Cordless Mid-Torque Impact Wrench with Pin Detent Kit, 1/2in. Drive, 650 Ft./Lbs. Max Torque, 2 Batteries, Model# 2962P-22R
Drive Size
Same
1/2 in
3/4 in
3/8 in
1/2 in
Volts
Same
12
18
18
18
Impacts Per Minute (IPM)
Same
3,300
750
3,100
2,575
Retainer Type
Same
Friction/Hog Ring
Friction/Hog Ring
Friction/Hog Ring
Friction/Hog Ring
Cordless
Same
Yes
Yes
Yes
Yes
Motor Type
Same
Brushless
Brushless
Brushless
Brushless
Max. Forward Torque
Same
550 ft-lbs.
1,500 ft-lbs.
600 ft-lbs.
650 ft-lbs.
Max. Speed (RPM)
Same
3,000
1,800
2,575
3,100
Storage Type
Same
Bag
Plastic Case
Plastic Case
Plastic Case
Product Weight
Same
2.2000 lb
lb
5.0000 lb
5.0000 lb
Dimensions L x W x H (in.)
Same
4.9 x 2.4 x 7.2 in
10.75 x 8.6 x 3.15 in
10.1 x 6.0 x 2.74 in
10.12 x 6.0 x 2.74 in
Battery Type
Same
-
Lithium-ion
Lithium-ion
Lithium-ion
Battery Amp Hours
Same
-
5
5.0
5
Batteries (qty.)
Same
-
2
2
2
Battery Included
Same
-
Yes
Yes
Yes
Charger Included
Same
-
Yes
Yes
Yes
Tool Weight
Same
-
8 lb
5 lb
5 lb
