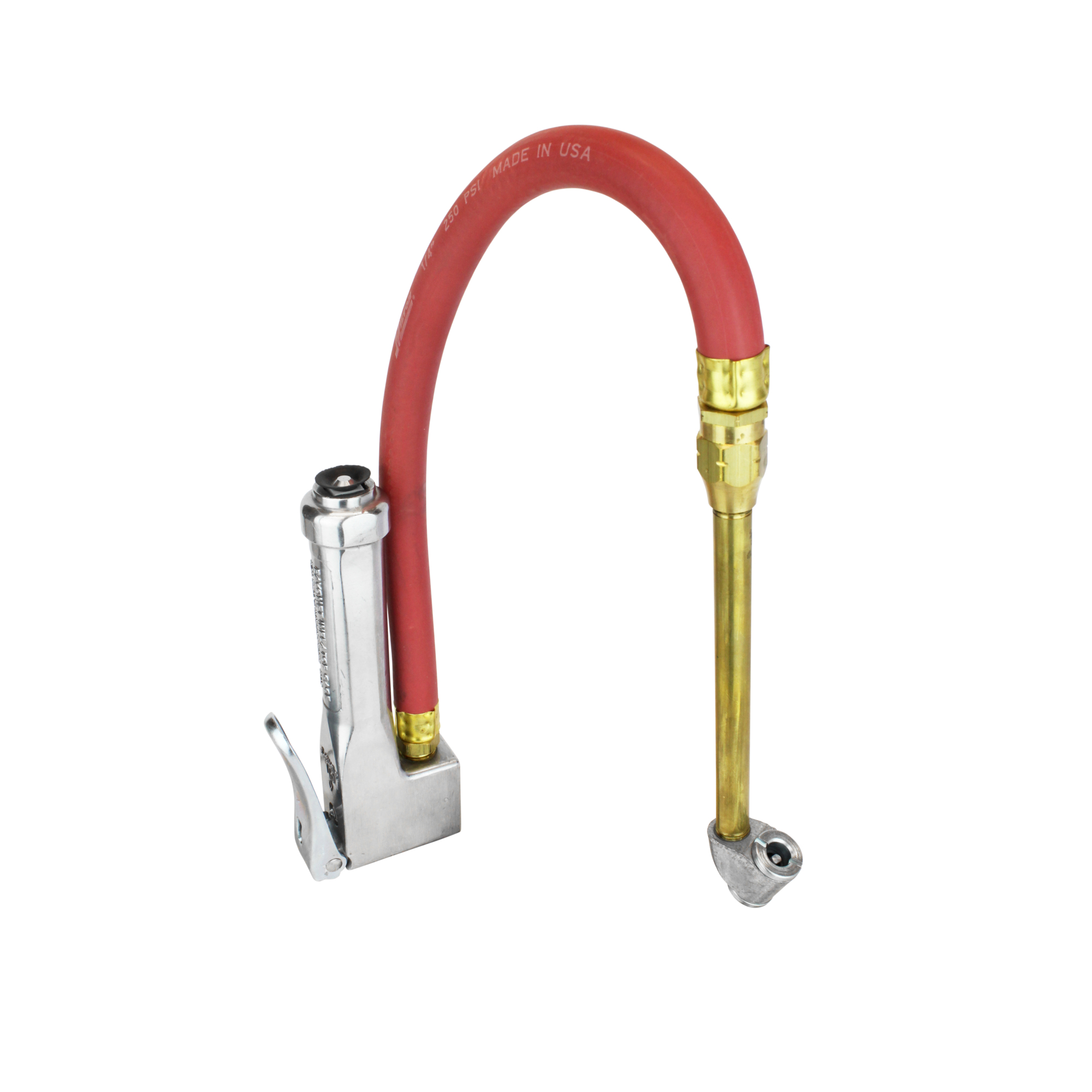

Milton, Bayonet Air Gauge, Dual Head Air Chuck, Model# s-522

Item# 4706166
Milton, Bayonet Air Gauge, Dual Head Air Chuck, Model# s-522

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milton, Bayonet Air Gauge, Dual Head Air Chuck, Model# s-522

Click or Tap image to Zoom

$89.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not Available
  • Includes: Bayonet-style inflator gauge, Dual head air chuck, and 12" Hose.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Milton (S-522) Bayonet Tire Inflator GaugeMilton (S-522) Bayonet Tire Inflator Gauge - Dual Truck Tire Chuck Head, 120 Max PSI. Milton’s #522 Dual head chuck bayonet gauge specializes in reaching dual truck tires. It has lever action and is made with heavy-duty construction, providing long service life even with constant use. Valve and gauge cartridges are replaceable and combined in one easy unit. Includes a 12in. hose with a pressure range that offers 10-120 PSI (2-lb. increments) or 80-840 kPa (20 kPa increments). The air chuck has 1/8”-27 NPT threads. Complete with a jumbo white nylon indicator bar for easy reading. With 1/4” NPT threads, all Milton hose whips are compatible for use and have interchangeable connections with any of the 4 Milton Bayonet Inflator Gauge bodies: #520 (straight chuck head), #521 (single chuck head), #522, and #523 (grip chuck head to lock onto valve). Recommended Replacement Parts: S-522’s replacement air hose whip: Milton #527 (12in. hose whip w/dual truck tire chuck head). S-522’s replacement air chuck: Milton #500-4. Replacement cartridge for #520-523: Milton #525. INSTRUCTIONS FOR USE: If using a dual head type tire chuck with an inflator gauge and notice air is escaping through the off-side once connected to the tire’s Schrader valve, simply release the trigger and remove the inflator from the Schrader/tire valve. Point the straight side of the outlet up into the air (make sure it’s not pointed at someone). Squeeze trigger, allow air to flow (gravity will cause the sealing valve to drop), and place the chuck end onto the Schrader/tire valve while air is still flowing. Air will start to flow into the tire. Dual head type tire chucks are unable to inflate a completely flat (zero air pressure) tire. Tire air pressure would normally cause the sealing valve to move and seal the unused side of the chuck. However, if a tire has 0 air pressure, the self-sealing valve has no pressure to react to. This hose whip is free-flowing and cannot be used without the Bayonet Inflator Gauge- Air is turned on/off by the bayonet controller. If connected directly to an air source, air will constantly flow out.

What's Included

    (1) Inflator Gauge

Features + Benefits

  • Includes: Bayonet-style inflator gauge, Dual head air chuck, and 12" Hose.

Key Specs

AttributeSpecification

item#

4706166

Brand

Milton Industries

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.0 LB

Product Type

Inflation Gauge
AttributeSpecification

Head Type

Dual

Material

Diecast Aluminum

Product Weight

0.9500 lb

Dimensions L x W x H (in.)

19.5 x 2.75 x 1.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
