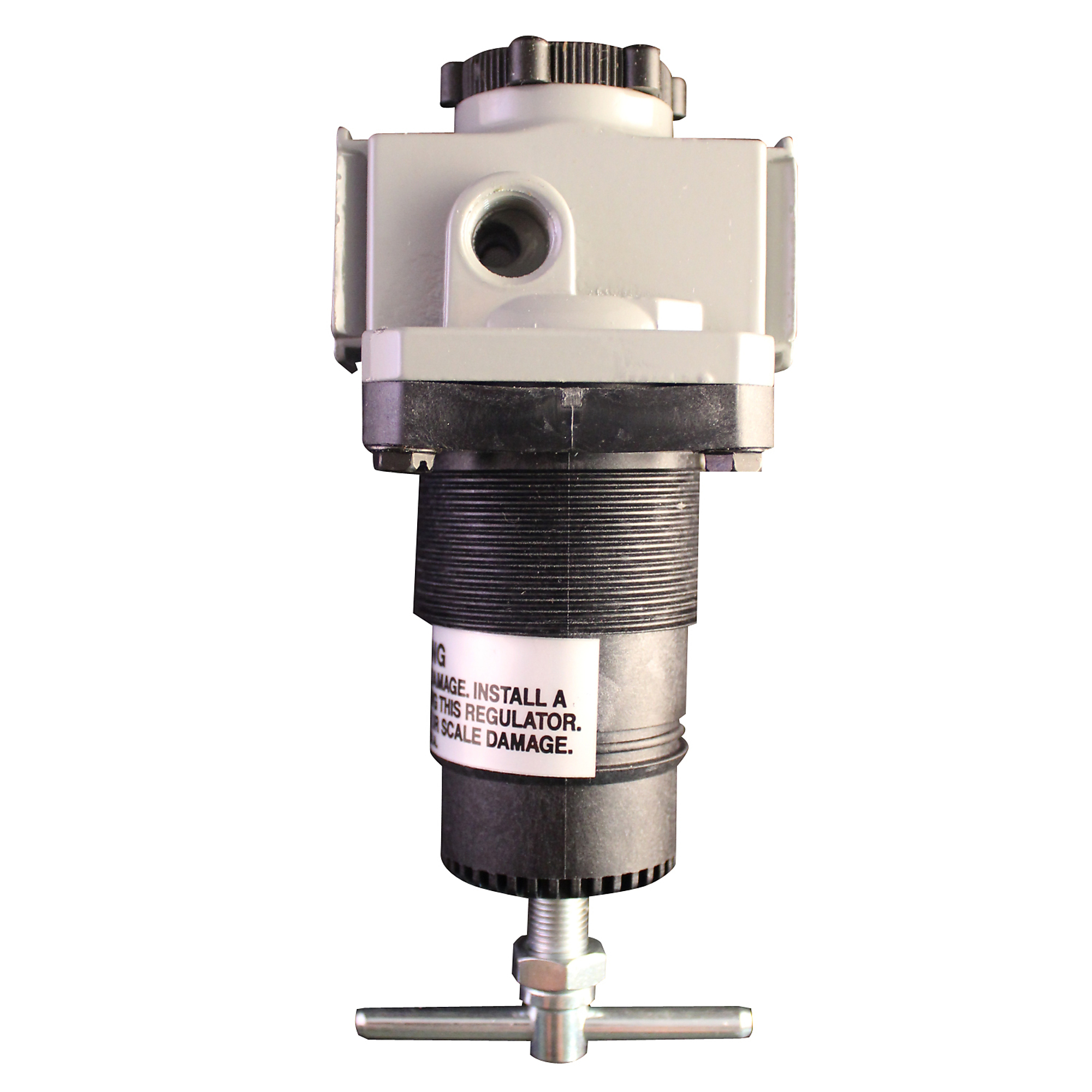

Milton 3/8" NPT Standard Pressure Air Regulator, 5-125psi

Item# 6639083
Milton 3/8" NPT Standard Pressure Air Regulator, 5-125psi

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milton 3/8" NPT Standard Pressure Air Regulator, 5-125psi

Click or Tap image to Zoom

$74.99

  • Shipping:

  • Store Pickup:

    Call Store for Availability
  • Accurate Pressure Control: The Milton 3/8" NPT Standard Pressure Regulator provides accurate control of downstream air pressure, ensuring a stable and consistent output even with varying air flows. This feature is essential for maintaining precision in your compressed air applications.
  • ast Response Time: Benefit from a regulator that responds swiftly to changes in air pressure demands. The fast response time of this regulator enhances the efficiency of your compressed air system, allowing for quick adjustments to meet specific operational requirements.
  • Versatile Offset Gauge Ports: The regulator is equipped with offset gauge ports that can double as two 3/8" supply lines. This versatility provides flexibility in the installation process, allowing you to optimize your compressed air setup according to your needs.
  • Durable Construction: Crafted with an aluminum die-cast body, balanced piston, and molded rubber seat, this regulator is built to withstand the rigors of industrial environments. The robust construction ensures longevity and reliability in regulating air pressure for your applications.
  • Wide Operating Range: With a regulated pressure range of 5-125 PSI and a maximum inlet pressure of 250 PSI, this regulator accommodates a variety of pressure requirements. The operating temperature range of 40 to 120 degrees Fahrenheit adds further versatility, making it suitable for different working conditions.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Milton's 3/8in. NPT Standard Pressure Regulator offers stable downstream air pressure over a wide range of air flows with accurate control, fast response and minimal pressure drop. Regulators should always be preceded by a filter to eliminate damage to the unit or inaccurate air flow. The aluminum die cast body comes with a balanced piston, molded rubber seat, Buna-N diaphragm and O rings. This regulator also has two offset 3/8in. gauge ports which can serve as two 3/8in. supply lines. As a standard pressure regulator, the 3/8in. NPT Mid-Size Standard Regulator has a maximum inlet pressure of 250 PSI with a regulated pressure range of 5-125 PSI. Made in the USA!

What's Included

    (1) Mini Regulator

Features + Benefits

  • Accurate Pressure Control: The Milton 3/8" NPT Standard Pressure Regulator provides accurate control of downstream air pressure, ensuring a stable and consistent output even with varying air flows. This feature is essential for maintaining precision in your compressed air applications.
  • ast Response Time: Benefit from a regulator that responds swiftly to changes in air pressure demands. The fast response time of this regulator enhances the efficiency of your compressed air system, allowing for quick adjustments to meet specific operational requirements.
  • Versatile Offset Gauge Ports: The regulator is equipped with offset gauge ports that can double as two 3/8" supply lines. This versatility provides flexibility in the installation process, allowing you to optimize your compressed air setup according to your needs.
  • Durable Construction: Crafted with an aluminum die-cast body, balanced piston, and molded rubber seat, this regulator is built to withstand the rigors of industrial environments. The robust construction ensures longevity and reliability in regulating air pressure for your applications.
  • Wide Operating Range: With a regulated pressure range of 5-125 PSI and a maximum inlet pressure of 250 PSI, this regulator accommodates a variety of pressure requirements. The operating temperature range of 40 to 120 degrees Fahrenheit adds further versatility, making it suitable for different working conditions.

Key Specs

AttributeSpecification

item#

6639083

Brand

Milton

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.0 LB

Diameter

0.375 in

CFM

80 cfm

Accuracy

0.01

Min. Temperature

40 °F

Max. Temperature

120 °F

Capacity

0 oz

Inlet Diameter

0.375 in
AttributeSpecification

Outlet Diameter

0.375 in

Material

Aluminum

Stage

0

Max. Horsepower

0

SCFM

1

Compatible With

1

Drain Type

1

Recommended Use

1

Max. PSI

250

Product Weight

1.1000 lb

Dimensions L x W x H (in.)

2.7 x 7.75 x 2.8 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
