Milescraft Shelf Jig — Creates 1/4in. and 5mm Shelf Pin Holes, 32mm Spacing, Includes Drill Bits and Index Pins, Clear Polycarbonate Base, Model# 13430003

Item# 7027724
1 Pieces
Milescraft Shelf Jig — Creates 1/4in. and 5mm Shelf Pin Holes, 32mm Spacing, Includes Drill Bits and Index Pins, Clear Polycarbonate Base, Model# 13430003

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milescraft Shelf Jig — Creates 1/4in. and 5mm Shelf Pin Holes, 32mm Spacing, Includes Drill Bits and Index Pins, Clear Polycarbonate Base, Model# 13430003

Click or Tap image to Zoom

$39.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Included drill bits create both 1/4 in. and 5mm shelf pin holes
  • Clear body construction helps reduce errors and provide a clear working environment

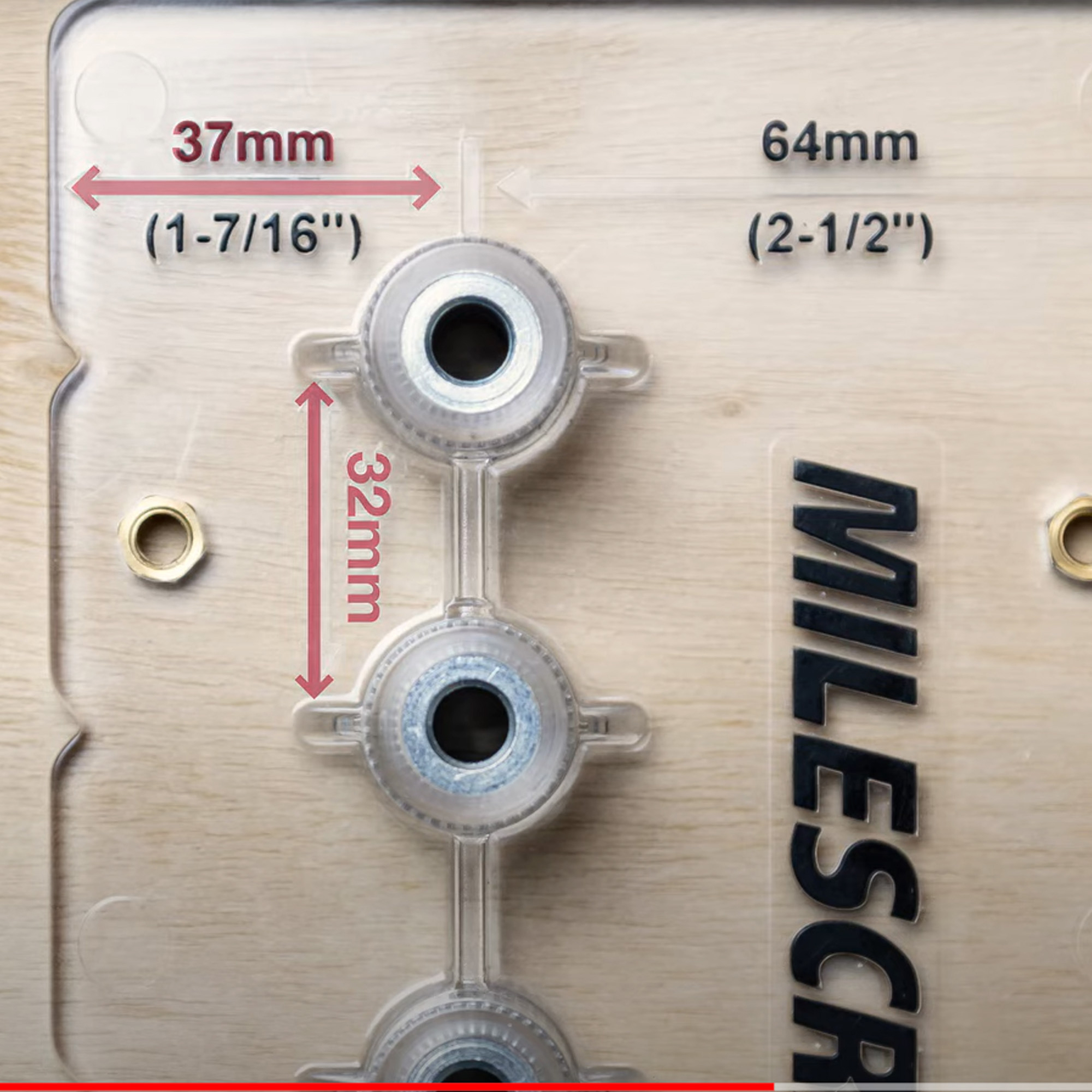

  • Standard 32mm spacing between each hardened metal guide bushing
  • Detachable fence can be changed to provide either 37mm or 64mm offsets
  • Convenient centering notches allow for easy alignment

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

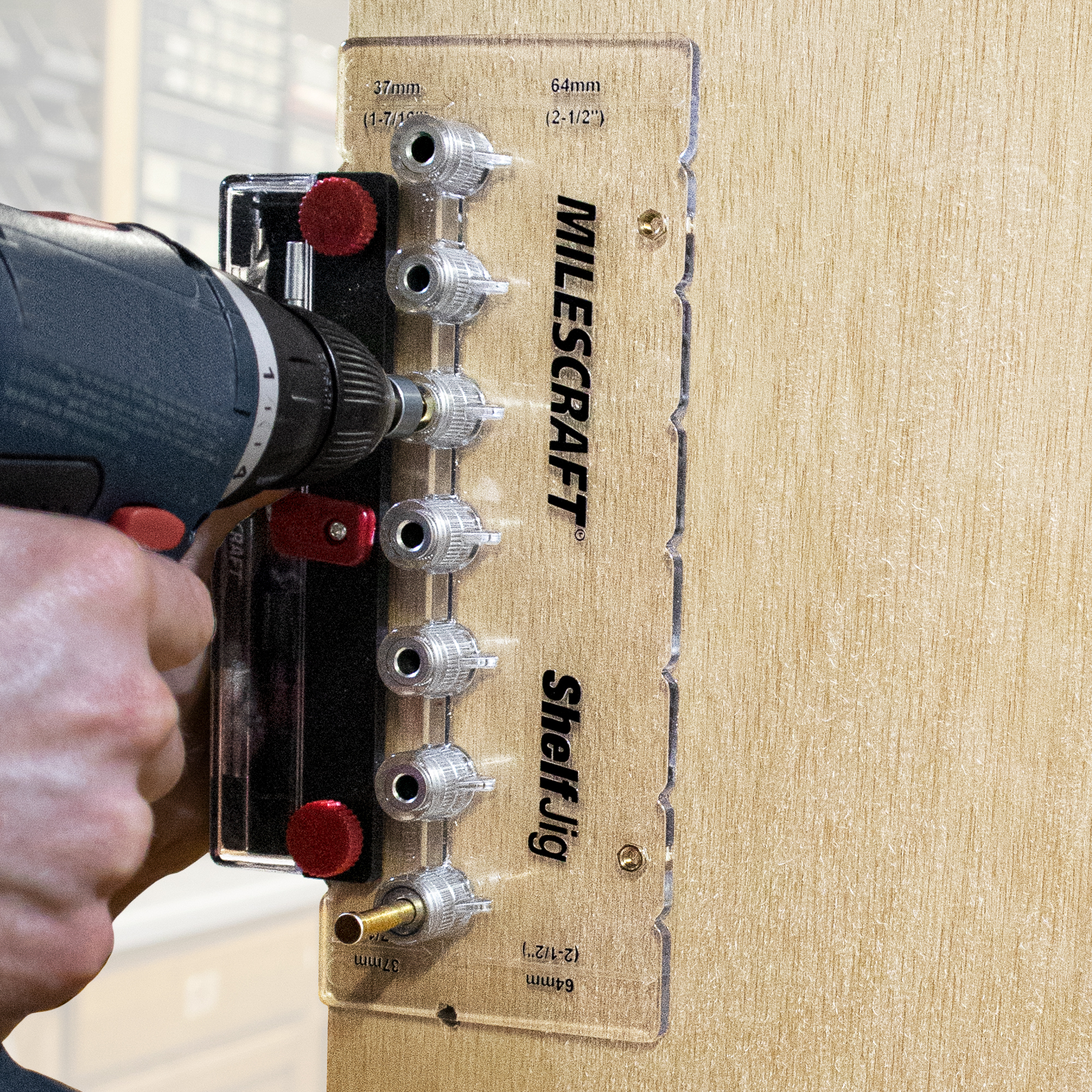

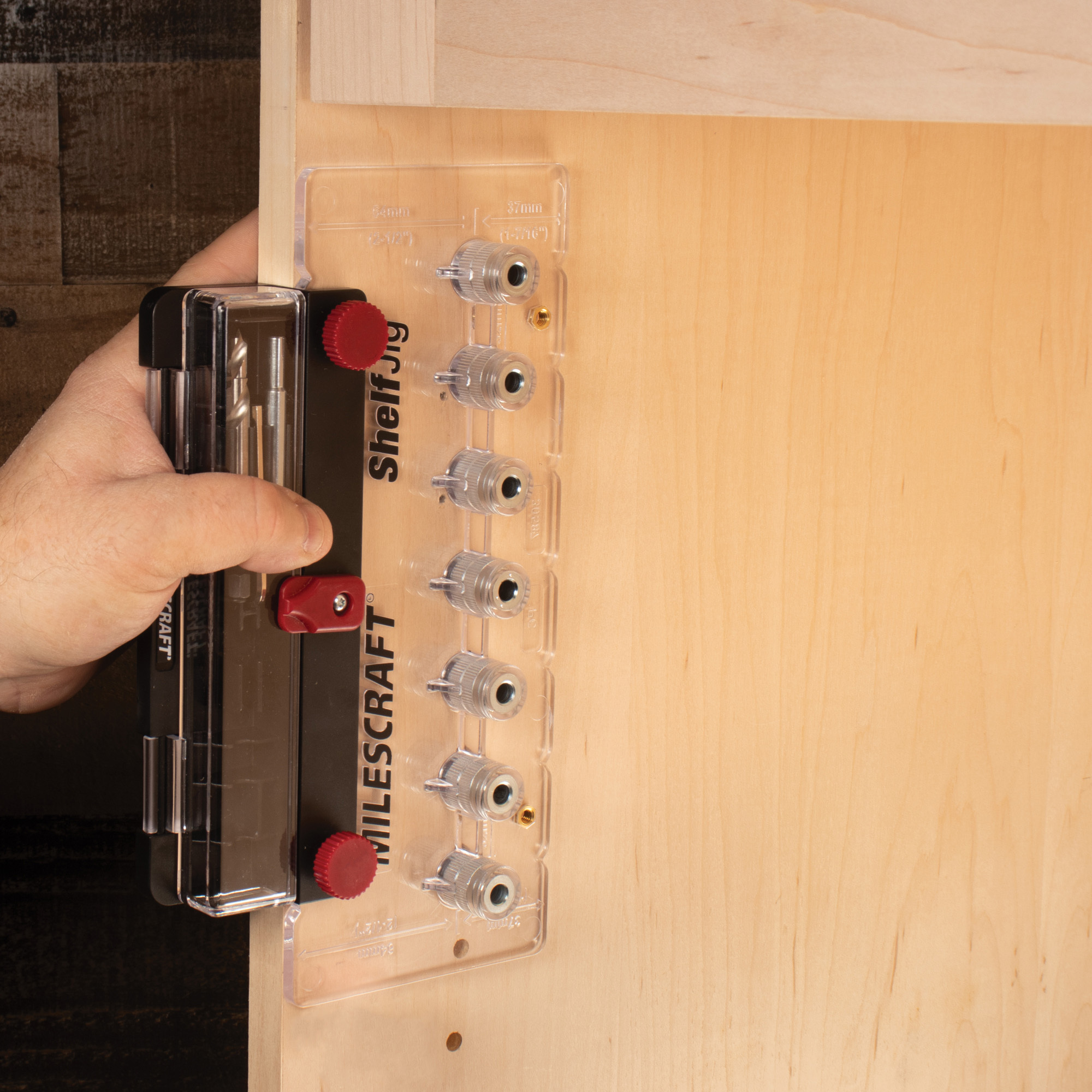

Create custom cabinet shelving like a Pro with the Milescraft ShelfJig. You can drill up to 7 holes at once with the error reducing, see-through body. The centering notches built into the jig make setting it in place a snap. The ShelfJig features standard 32mm spacing between holes, and the guide fence can be repositioned to give you 37mm or 64mm setbacks. Removing the guide fence allows for easy access to the back of the cabinet box.

What's Included

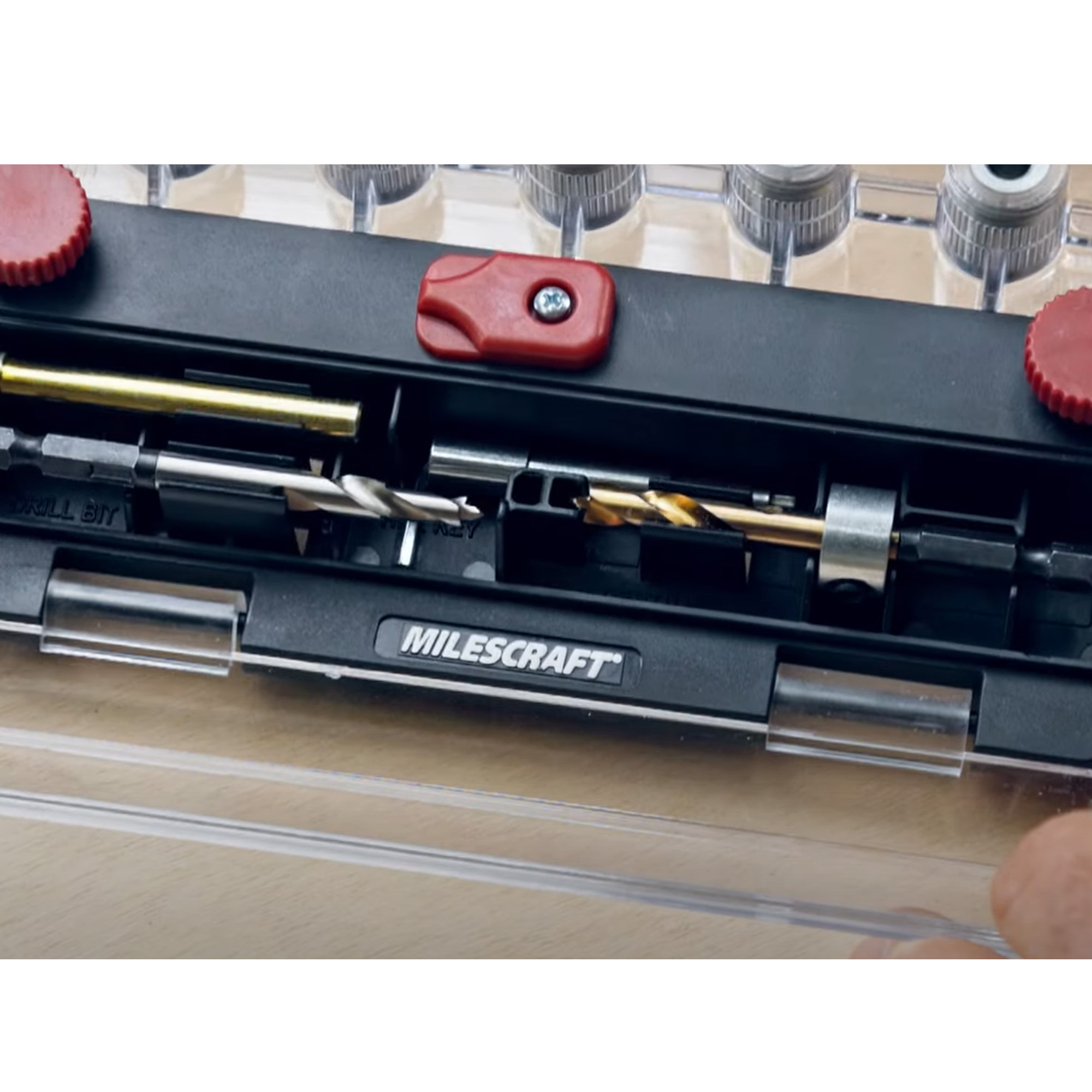

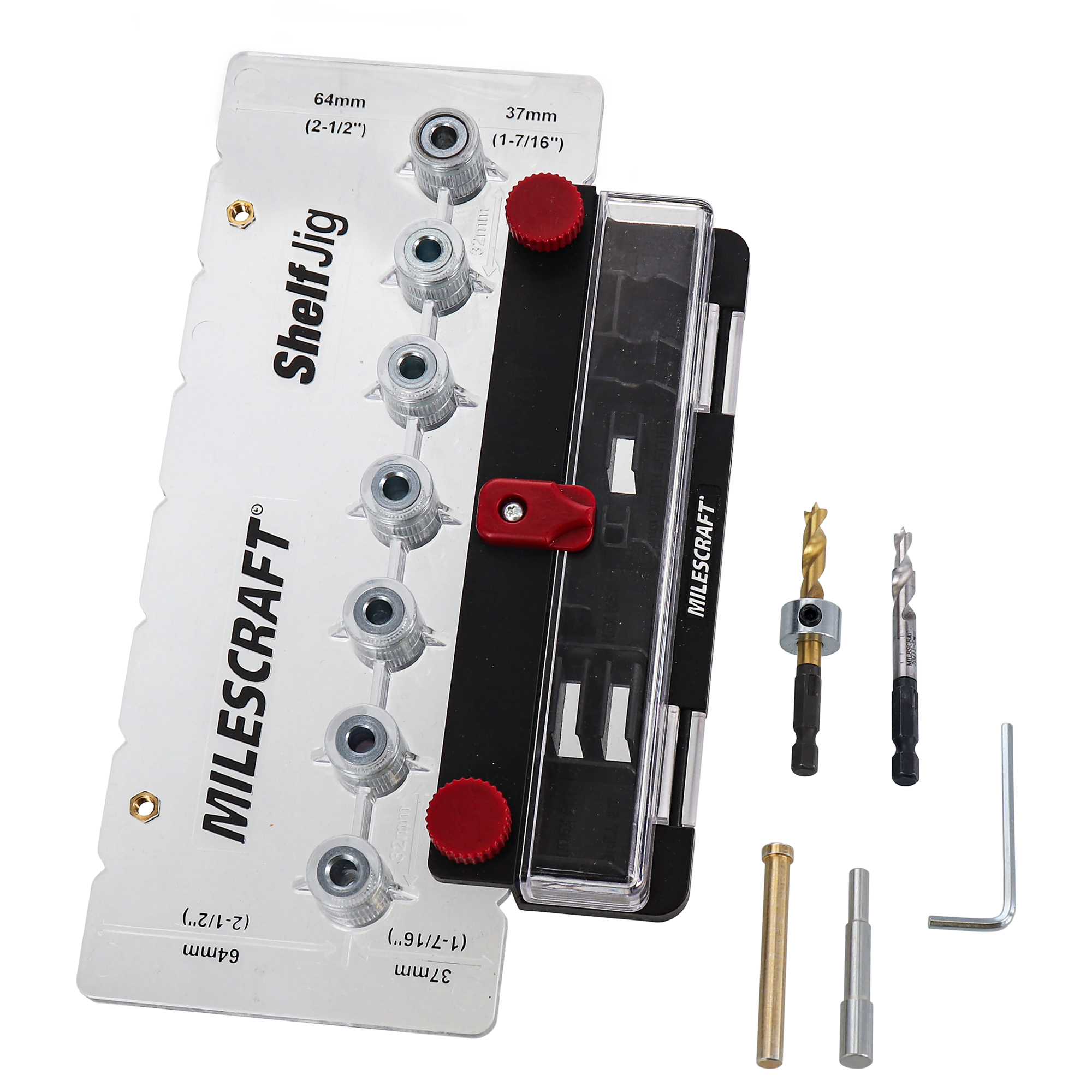

    (1) Jig Body (1) Detachable Fence with Storage (1) ¼” Drill Bit (1) 5mm Step Drill Bit (1) Depth Stop (1) ¼” Indexing Pin (1) 5mm Indexing Pin (1) 3mm Hex Key

Features + Benefits

  • Included drill bits create both 1/4 in. and 5mm shelf pin holes
  • Clear body construction helps reduce errors and provide a clear working environment
  • Standard 32mm spacing between each hardened metal guide bushing
  • Detachable fence can be changed to provide either 37mm or 64mm offsets
  • Convenient centering notches allow for easy alignment

Key Specs

AttributeSpecification

item#

7027724

Brand

Milescraft

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1.5 LB

Pieces (qty.)

1
AttributeSpecification

Product Type

Other

Mounting Type

Temporary

Product Weight

1.5000 lb

Dimensions L x W x H (in.)

15.25 x 2.0 x 6.875 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
