Milescraft Euro Hinge Jig — Concealed Hinge Jig and Drilling Guide, 35mm Forstner Bit Included, Model# 13420003

Item# 7027628
1 Pieces
Milescraft Euro Hinge Jig — Concealed Hinge Jig and Drilling Guide, 35mm Forstner Bit Included, Model# 13420003

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milescraft Euro Hinge Jig — Concealed Hinge Jig and Drilling Guide, 35mm Forstner Bit Included, Model# 13420003

Click or Tap image to Zoom

$27.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

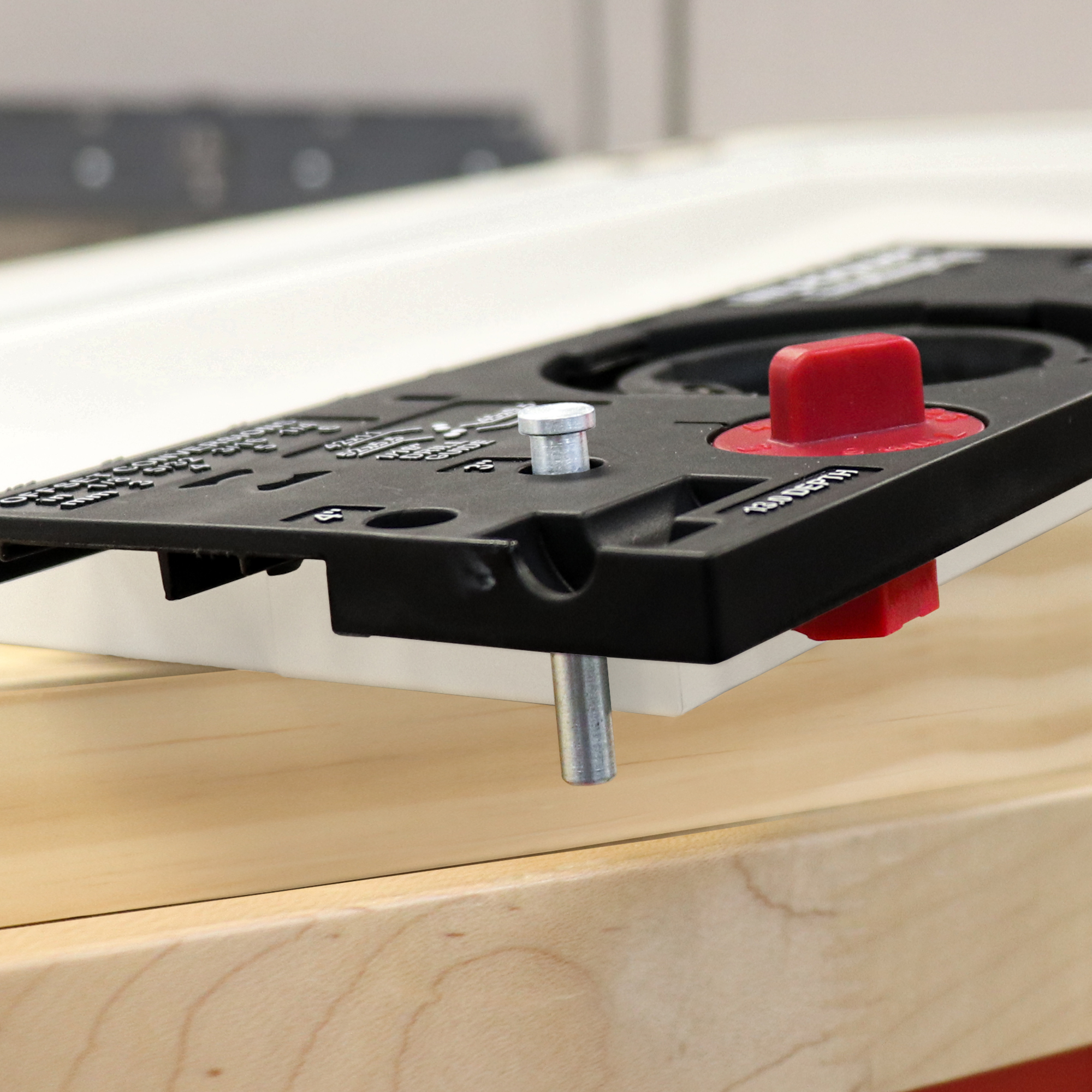

  • Two edge alignment knobs position the cup hole from the edge of the door, while the edge locator pin sets the distance from the top/bottom
  • The drill guide with metal bushing locks into the jig and creates a perfectly straight hinge cup hole
  • Guide bushings built into the body of the jig let you pre-drill pilot holes in four common locations, making sure hinges are straight and the door closes true

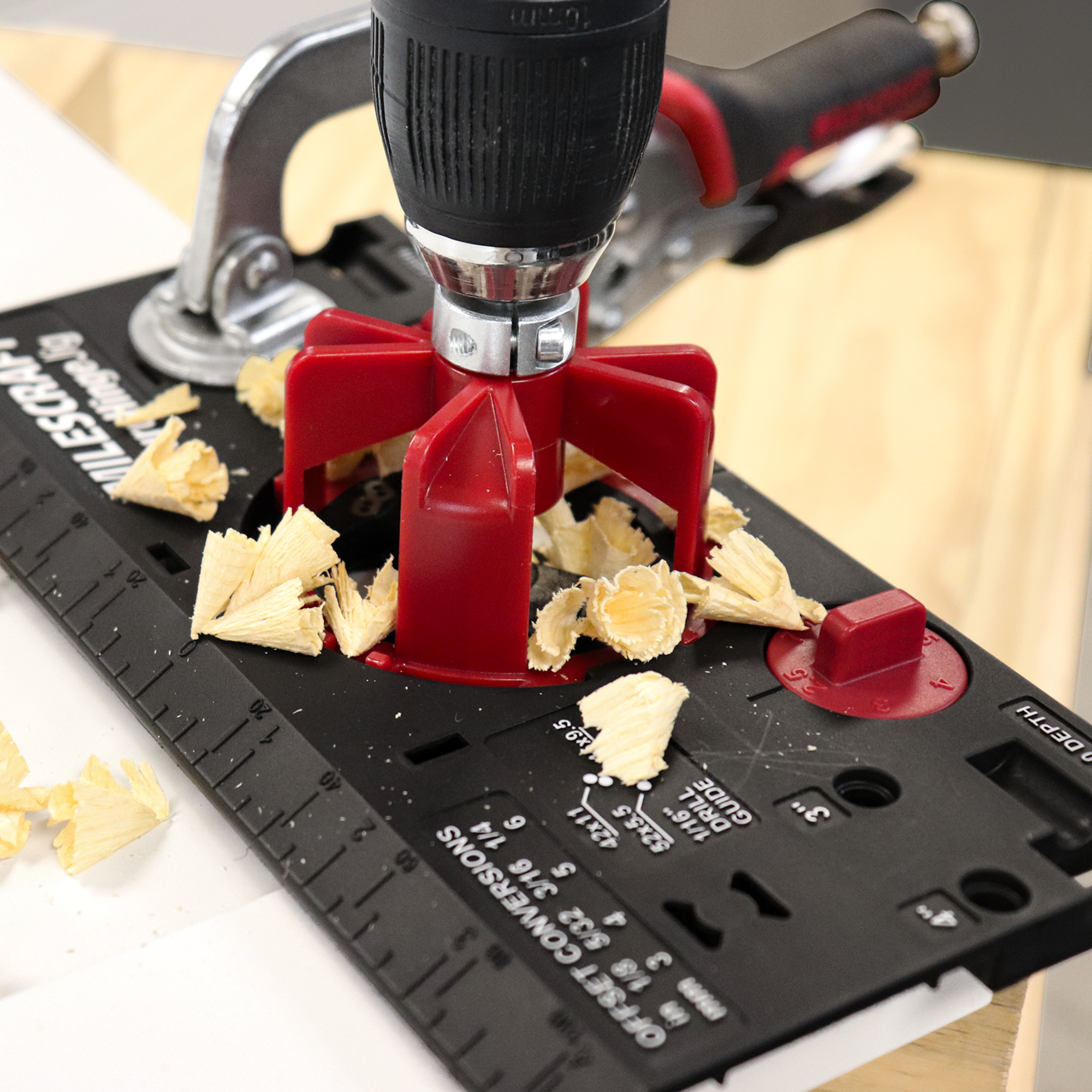

  • Easily set your cup hole depth on the included 35mm high-speed steel bit using the built-in depth setting fixtures

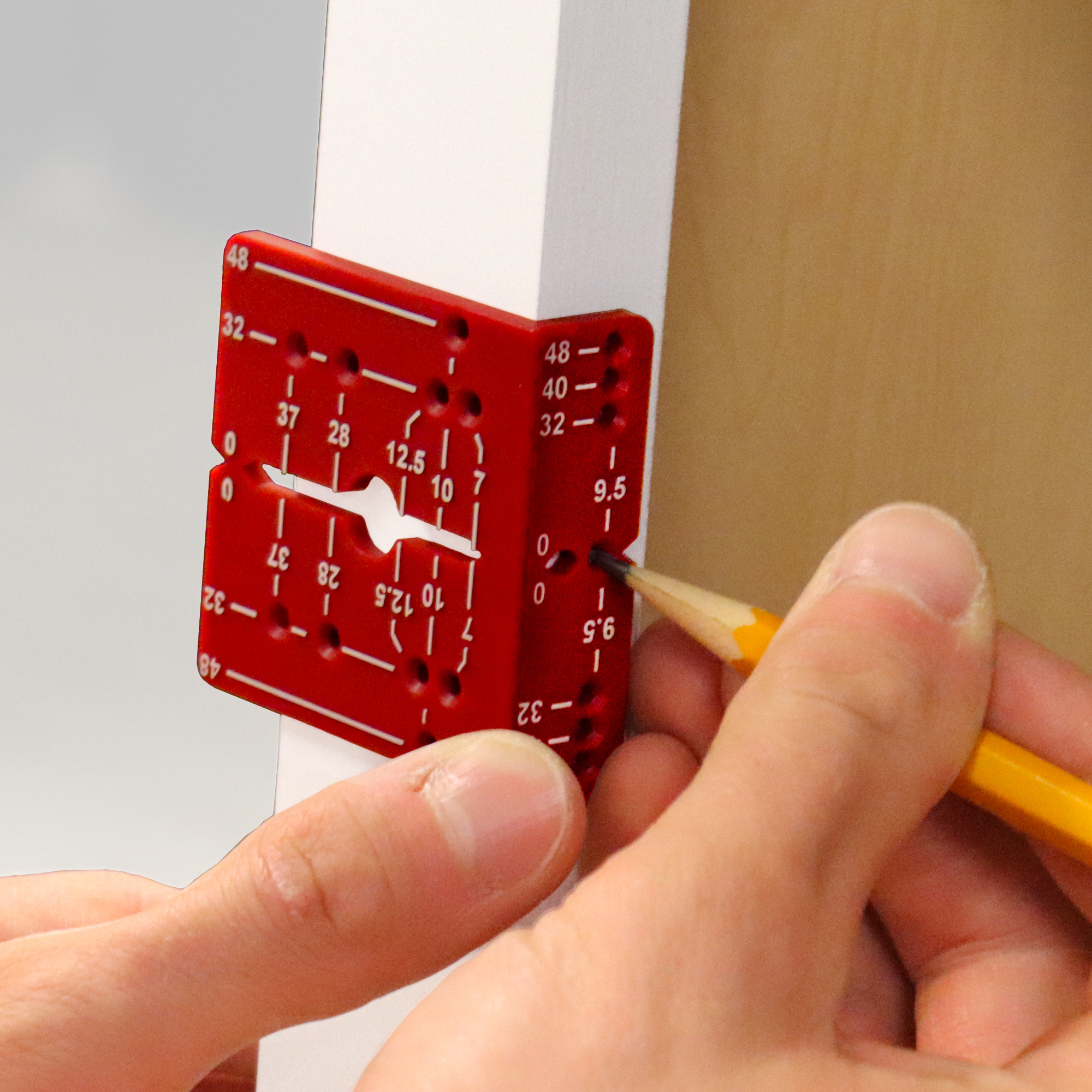

  • The hinge marking guide detaches from the bottom of the jig and allows you to transfer and mark centerlines and hinge location to cabinet wall or frame

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

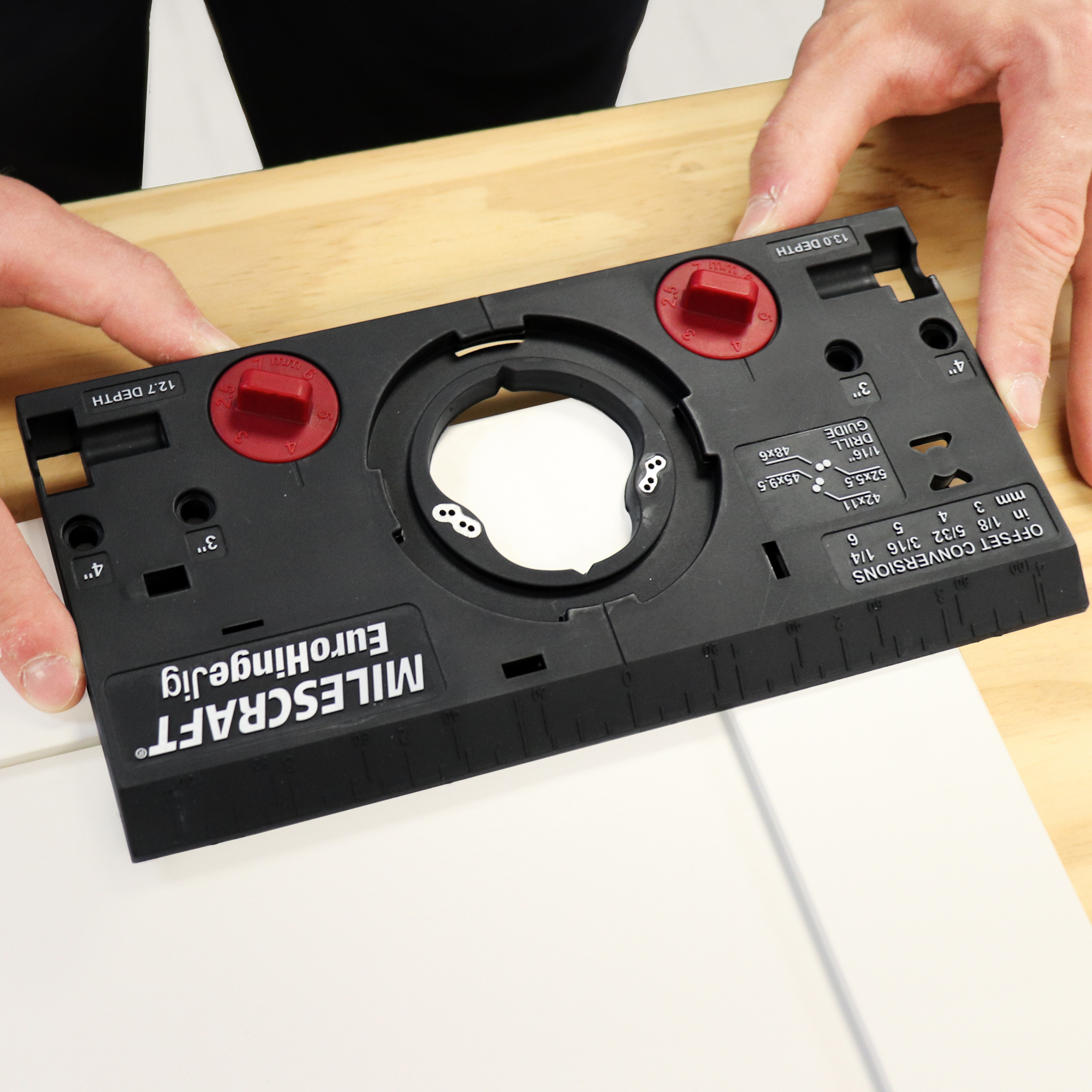

The Milescraft EuroHingeJig takes the guesswork out of installing European-style concealed hinges. The self-aligning jig works with frameless and face frame cabinets and has settings for all of the most popular hinge styles and cup locations. It even has a feature to help position and mount your door to the cabinet.

What's Included

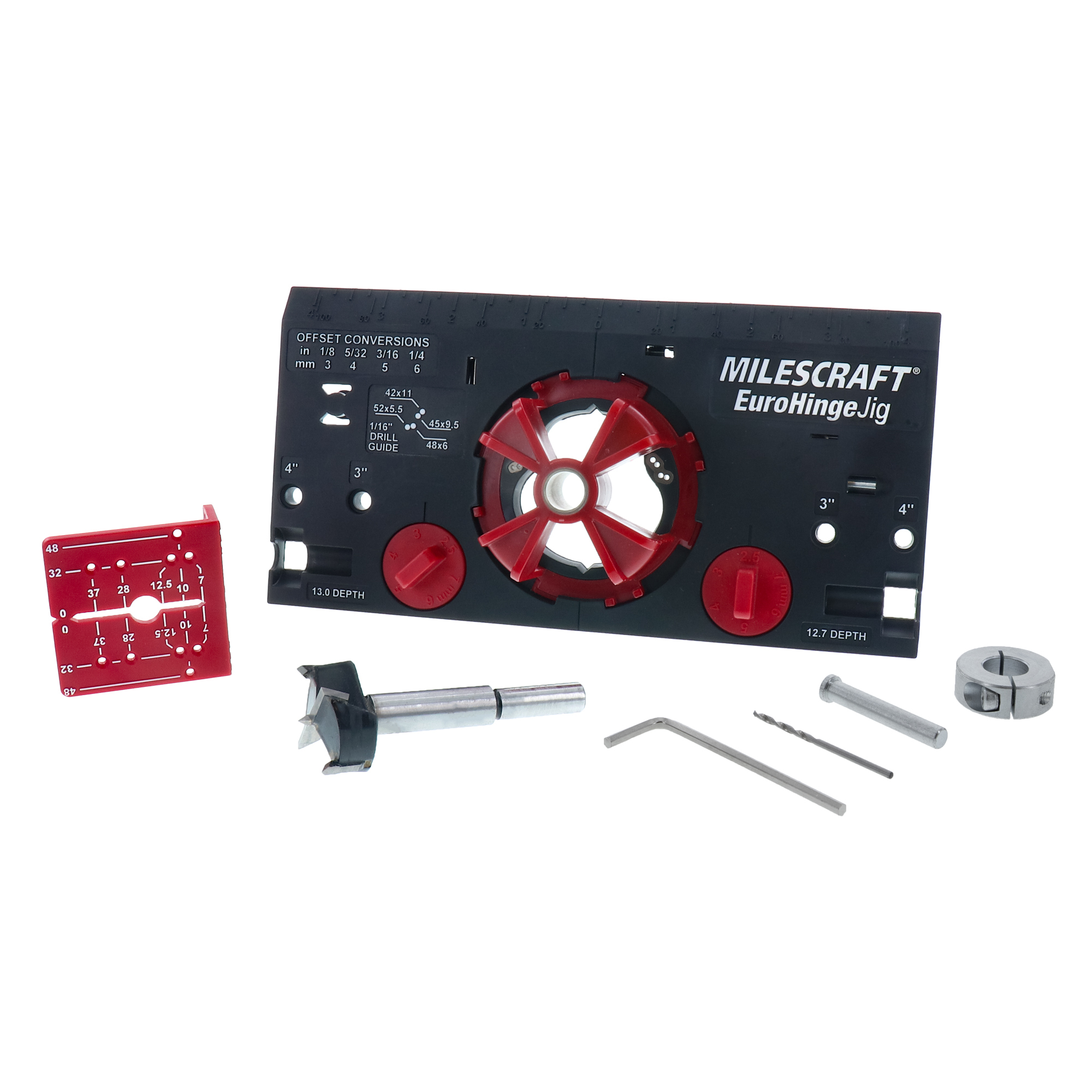

    (1) Hinge Marking Guide (1) 1/16” Pilot bit (1) 3mm Allen Wrench

Features + Benefits

  • Two edge alignment knobs position the cup hole from the edge of the door, while the edge locator pin sets the distance from the top/bottom
  • The drill guide with metal bushing locks into the jig and creates a perfectly straight hinge cup hole
  • Guide bushings built into the body of the jig let you pre-drill pilot holes in four common locations, making sure hinges are straight and the door closes true
  • Easily set your cup hole depth on the included 35mm high-speed steel bit using the built-in depth setting fixtures
  • The hinge marking guide detaches from the bottom of the jig and allows you to transfer and mark centerlines and hinge location to cabinet wall or frame

Key Specs

AttributeSpecification

item#

7027628

Brand

Milescraft

Manufacturer's Warranty

5 year limited warranty

Ship Weight

0.95 LB

Pieces (qty.)

1
AttributeSpecification

Product Type

Other

Mounting Type

Temporary

Product Weight

0.9500 lb

Dimensions L x W x H (in.)

14.0 x 2.5 x 5.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
