Milescraft Hinge Jig Plus — Dual Clamping, Complete Hinge Installation Kit, 2.5in. to 4.5in. Mortises, Strike and Latch Plates Included, Model# 12290003

Item# 7027505
1 Pieces
Milescraft Hinge Jig Plus — Dual Clamping, Complete Hinge Installation Kit, 2.5in. to 4.5in. Mortises, Strike and Latch Plates Included, Model# 12290003

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milescraft Hinge Jig Plus — Dual Clamping, Complete Hinge Installation Kit, 2.5in. to 4.5in. Mortises, Strike and Latch Plates Included, Model# 12290003

Click or Tap image to Zoom

$49.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Padded self-clamping design of door hinge installation jig sets up quickly and prevents damages to doors caused by mounting screws or nails
  • Adjustable settings allow door hinge jig to be used on all standard size 1-3/8” and 1-3/4” thick doors.
  • Cut professional hinge mortises with ¼”, 5/8”, or square corners. (Chisel Required)
  • Unique design of door hinge installation jig eliminates need for multiple inserts to rout different corner radiuses
  •  Door hinge installation kit routs hinge mortises for 2-1/2” to 4-1/2” door hinges

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

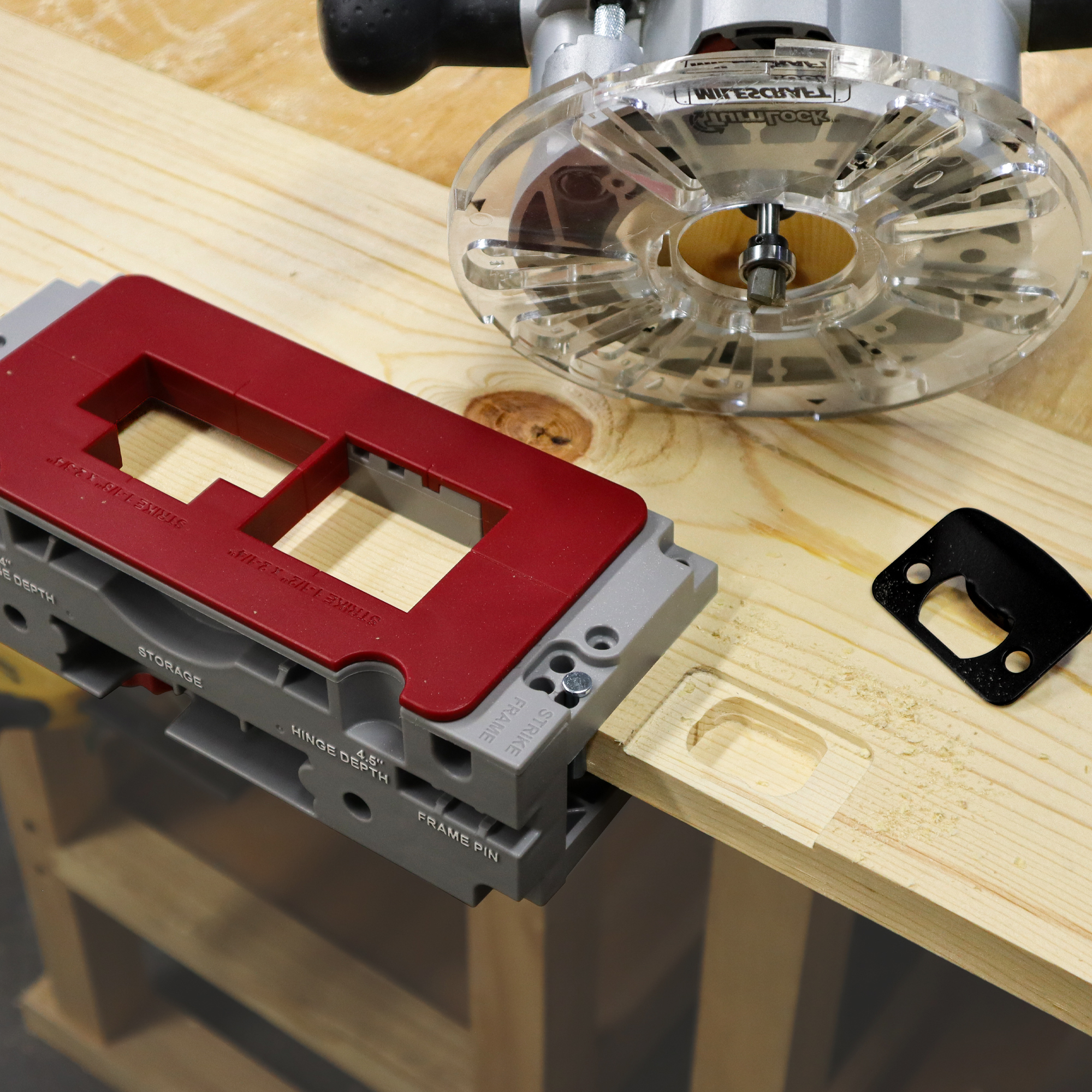

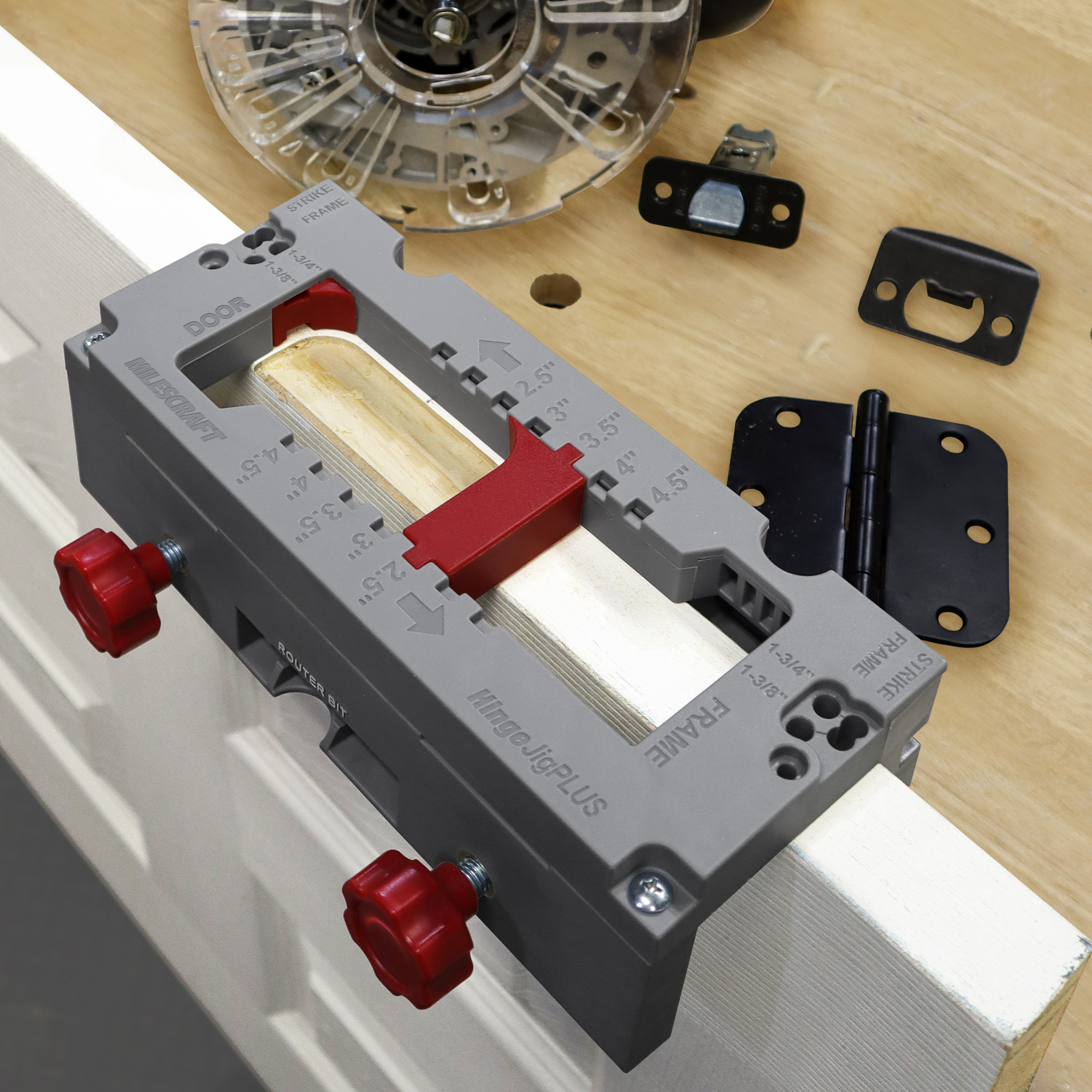

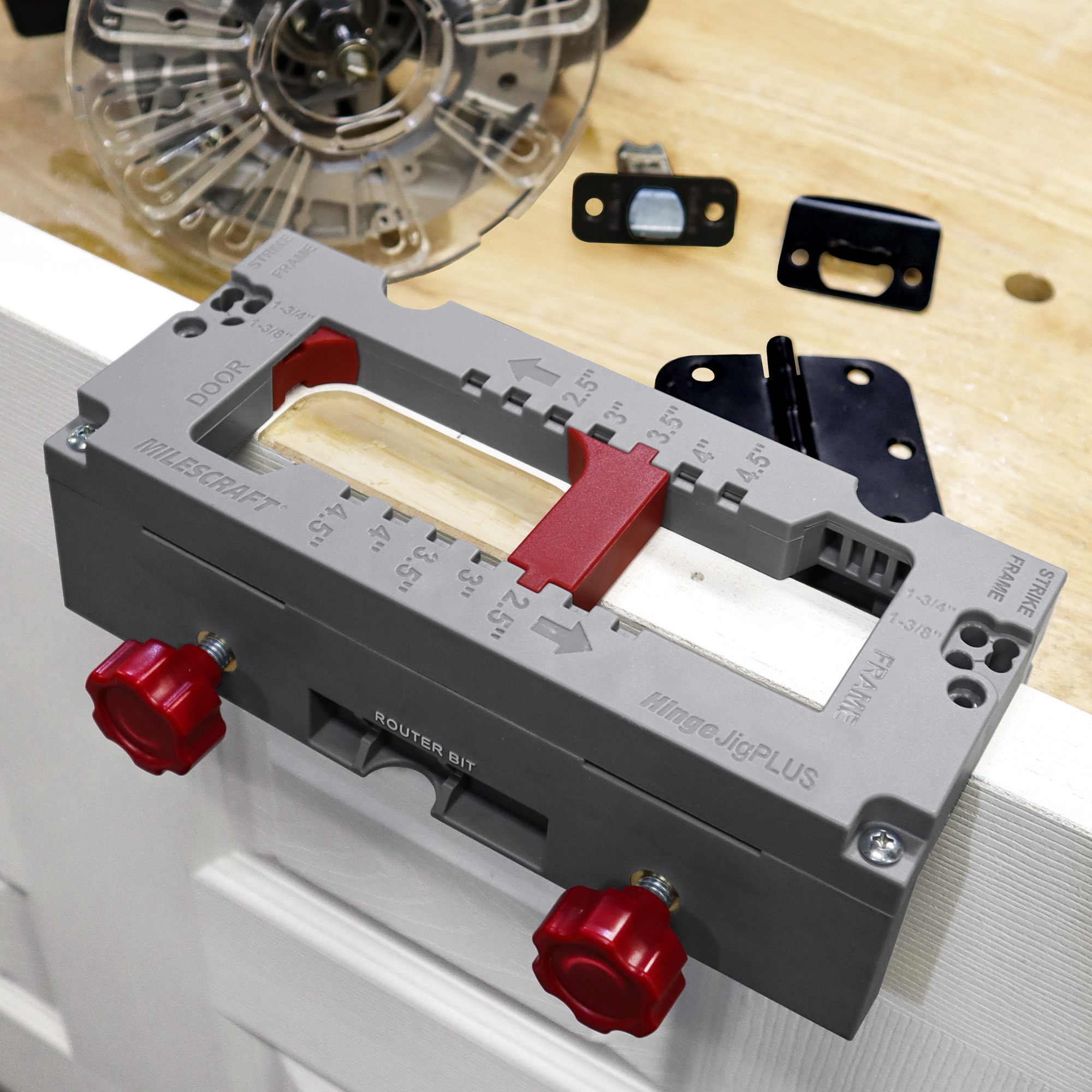

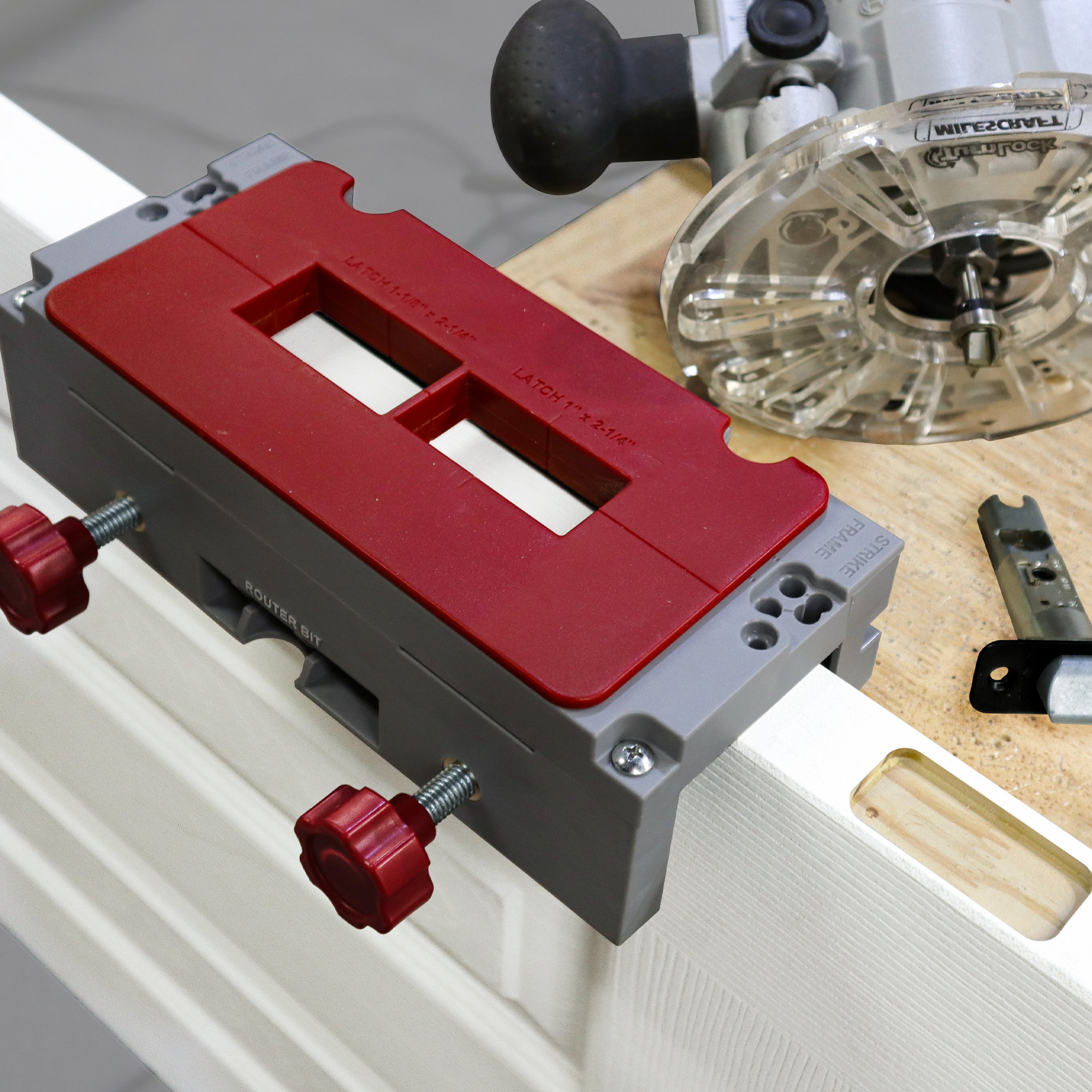

The HingeJigPLUS™, by Milescraft, is a one-stop solution for door installation work. The jig routs and installs door and jamb / frame hinges, latches, and strike plate mortises quickly and accurately.  The included bonus PinDoctor™ even assists in removing your old door. The dual-clamping design of the HingeJigPLUS™ mounts quickly and holds firm to ensure cuts are clean and accurate. No need for screws or nails which can damage your door. Built for North American style hardware.

What's Included

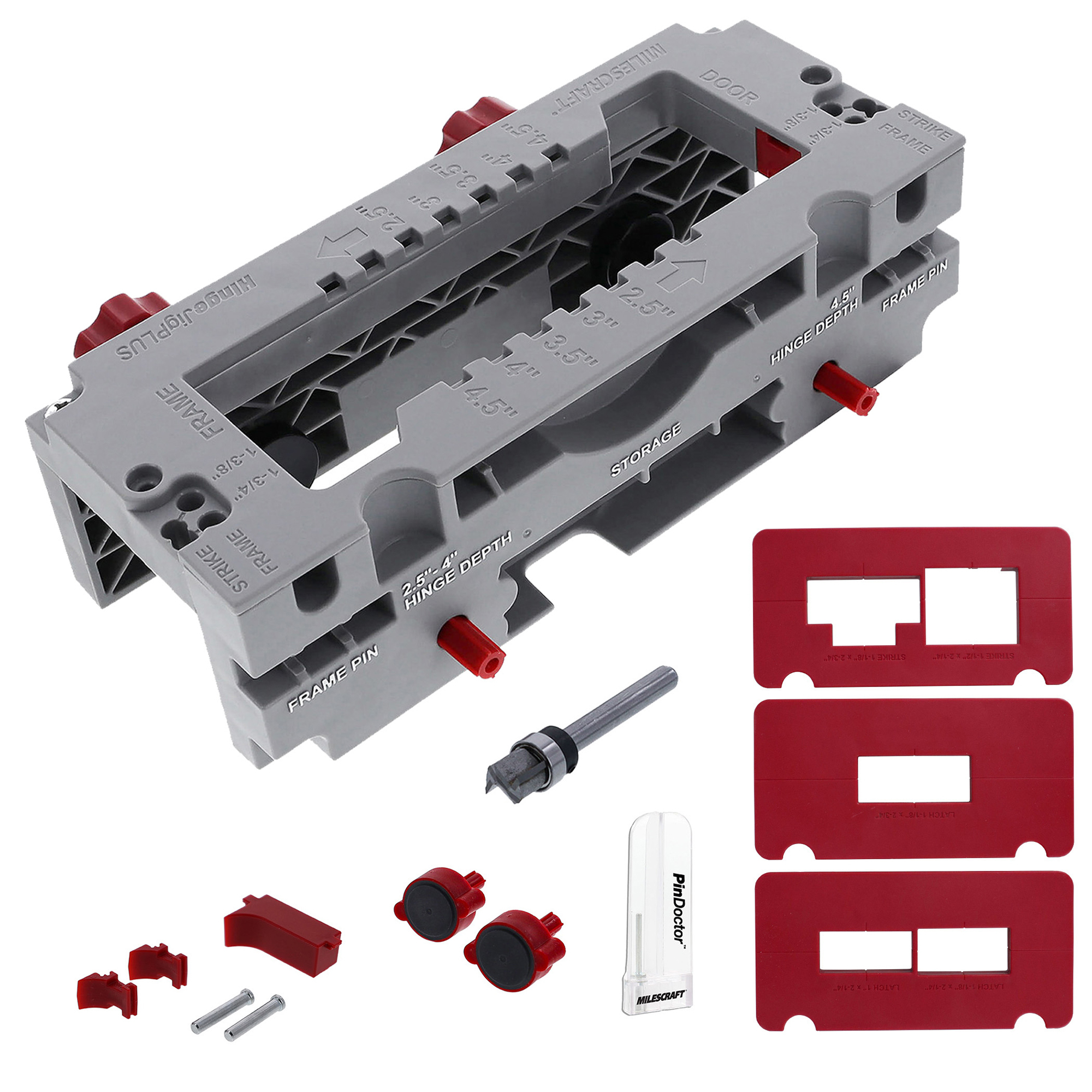

    (1) Jig Main Body (2) Built-in Clamps (1) PinDoctor (1) Adjustable Hinge Spacer (1) 12mm Router bit with Bearing (2) Corner Radius Inserts (2) Adjustable Backset Plugs (2) Frame/Jamb Indexing Pins (2) Latch Templates (1) Strike Plate Template

Features + Benefits

  • Padded self-clamping design of door hinge installation jig sets up quickly and prevents damages to doors caused by mounting screws or nails
  • Adjustable settings allow door hinge jig to be used on all standard size 1-3/8” and 1-3/4” thick doors.
  • Cut professional hinge mortises with ¼”, 5/8”, or square corners. (Chisel Required)
  • Unique design of door hinge installation jig eliminates need for multiple inserts to rout different corner radiuses
  •  Door hinge installation kit routs hinge mortises for 2-1/2” to 4-1/2” door hinges

Key Specs

AttributeSpecification

item#

7027505

Brand

Milescraft

Manufacturer's Warranty

5 year limited warranty

Ship Weight

2.35 LB
AttributeSpecification

Product Type

Jig

Pieces (qty.)

1

Product Weight

2.3500 lb

Dimensions L x W x H (in.)

10.625 x 4.0 x 5.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
