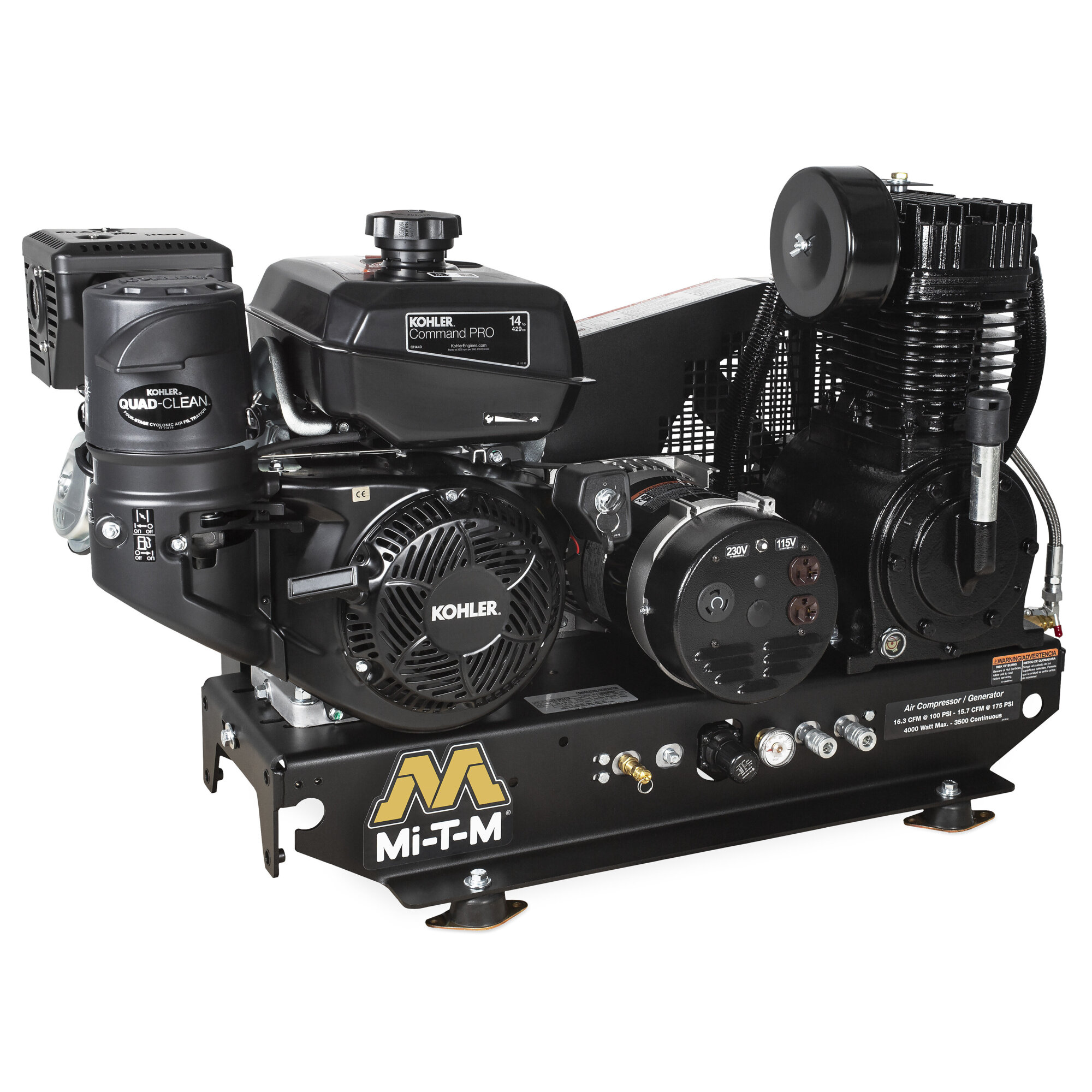

Mi-T-M Base-Mount Gas Air Compressor/Generator, 2-Stage, 16.4 CFM, 4000W, Model # AG2-SM14-BE

Item# 7062651
Mi-T-M Base-Mount Gas Air Compressor/Generator, 2-Stage, 16.4 CFM, 4000W, Model # AG2-SM14-BE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Mi-T-M Base-Mount Gas Air Compressor/Generator, 2-Stage, 16.4 CFM, 4000W, Model # AG2-SM14-BE

Click or Tap image to Zoom

$2929.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
  • Engine: Electric start – battery and cables not included. Part AX-0016
  • Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles
  • Frame: 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard
  • Components: Regulator and two gauges for tank and outlet pressure -12 or 16 1/2-inch fly wheel - Tank drain valve - 1/2-inch port - 150-PSI maximum rated regulator

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Choose this gasoline air compressor and generator combination for unmatched performance, supplying air power and electricity to any jobsite.Designed with the ability to mount on trailers or service trucks, this air compressor delivers consistent power anywhere you need.

What's Included

    (1) Air Compressor/ Generator Combo

Downloads

Product Manual

Features + Benefits

  • Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
  • Engine: Electric start – battery and cables not included. Part AX-0016
  • Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles
  • Frame: 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard
  • Components: Regulator and two gauges for tank and outlet pressure -12 or 16 1/2-inch fly wheel - Tank drain valve - 1/2-inch port - 150-PSI maximum rated regulator

Key Specs

AttributeSpecification

item#

7062651

Brand

Mi-T-M

Manufacturer's Warranty

2 year limited warranty

Ship Weight

397.0 LB

Surge Watts

4,000

Rated Watts

3,500

Fuel Type

Gasoline

Voltage

120/240

Engine Displacement

429 cc

Engine Brand

Kohler

Engine Model

CH440 OHV
AttributeSpecification

Start Type

Electric

Fuel Capacity

1.85 Gal

Number of Outlets

3

Outlet Type

NEMA 5-20R 120V, NEMA L6-20R 240V

Battery Required

Yes

Battery Included

No

Low Oil Shutdown

Yes

CARB Compliant

No

Product Weight

332.0000 lb

Dimensions L x W x H (in.)

47.0 x 22.0 x 28.0 in

Reviews

Questions & Answers

Questions

  1. Does this require an air tank?

    1 answer

    1. The base-mount compressor/generator would require an air tank.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
