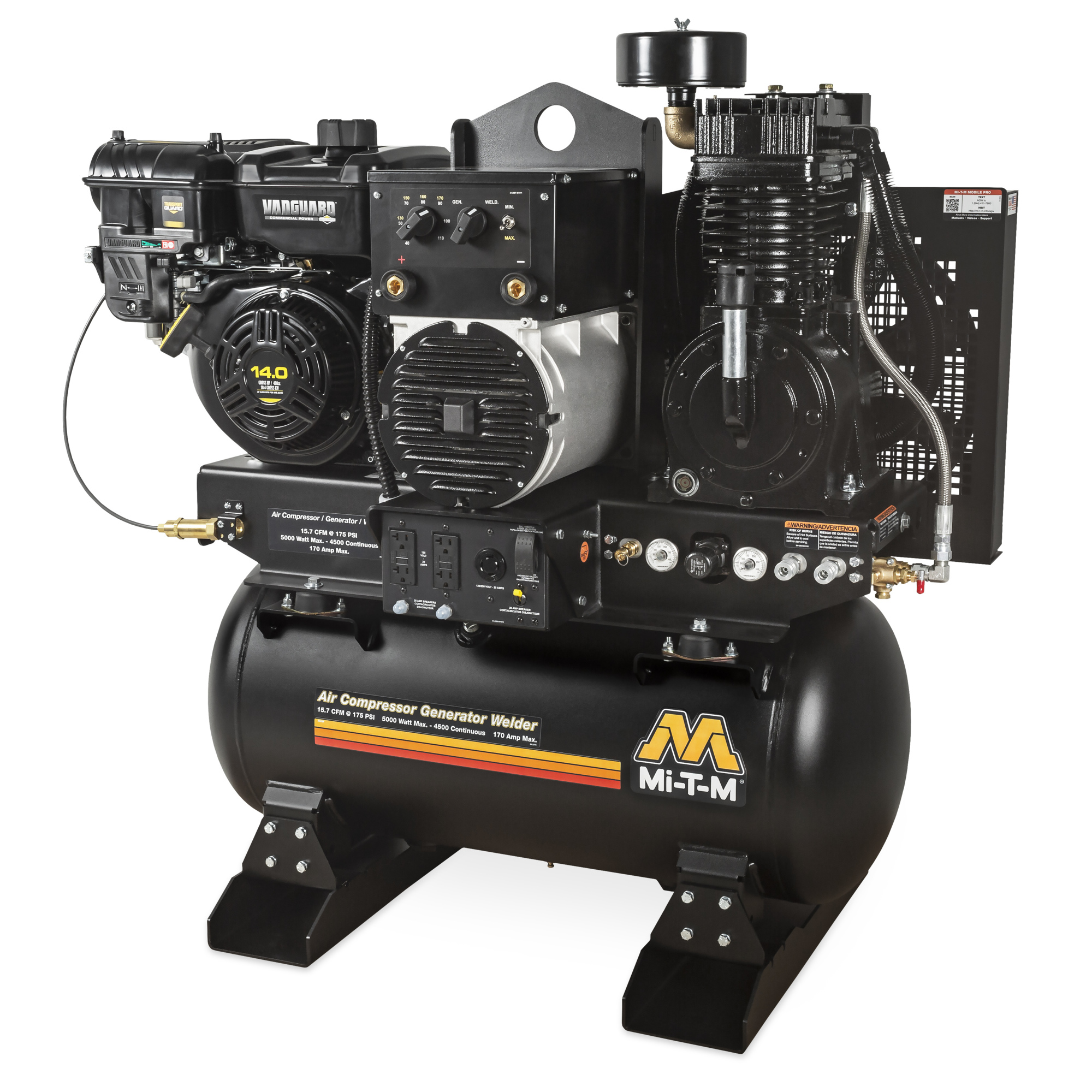

Mi-T-M AGW Series Gasoline Two-Stage Air Compressor/Generator/Welder — 30 Gallon, Model# AGW-SV14-30M

Item# 7040435
Mi-T-M AGW Series Gasoline Two-Stage Air Compressor/Generator/Welder — 30 Gallon, Model# AGW-SV14-30M

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Mi-T-M AGW Series Gasoline Two-Stage Air Compressor/Generator/Welder — 30 Gallon, Model# AGW-SV14-30M

Click or Tap image to Zoom

$6829.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
  • Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
  • Welder: Amperage selection switch, 170A or 220A maximum
  • Frame: Powder coated ASME receiver tank · Powder coated two-piece belt guard · Removable base plate offers flexible installation
  • Components: Regulator and two gauges for tank and outlet pressure · Manual drain valve for proper maintenance · 16 1/2-inch fly wheel

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This AGW Series combines an air compressor, generator and welder into one setup, making it easy to manage multiple tasks efficiently.

What's Included

    (1) Air compressor/Generator/Welder Set up

Features + Benefits

  • Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
  • Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
  • Welder: Amperage selection switch, 170A or 220A maximum
  • Frame: Powder coated ASME receiver tank · Powder coated two-piece belt guard · Removable base plate offers flexible installation
  • Components: Regulator and two gauges for tank and outlet pressure · Manual drain valve for proper maintenance · 16 1/2-inch fly wheel
  • AGW Series OperationGenerator ModeAC current only · Selector switch set to idle down · Switch is set to full throttle
  • Welder Mode: DC current only · Engine must be running full throttle · Selector switch must be set to full throttle. Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.49 state engine. Not for sale in California.Equipped with 150-PSI maximum rated regulator.

Key Specs

AttributeSpecification

item#

7040435

Brand

Mi-T-M

Manufacturer's Warranty

2 year limited warranty

Ship Weight

528.0 LB

Horsepower

14 HP

Air Tank Size

30 Gal

Volts

120V/240V

CFM at 90 PSI

16.4

Max. PSI

175

Stage

2

Air Outlets (qty.)

2

Amps

20
AttributeSpecification

Engine Start Type

Electric

CFM at Max. PSI

15.7

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Petcock

Tank Orientation

Horizontal

Product Weight

lb

Dimensions L x W x H (in.)

46.0 x 47.0 x 22.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
