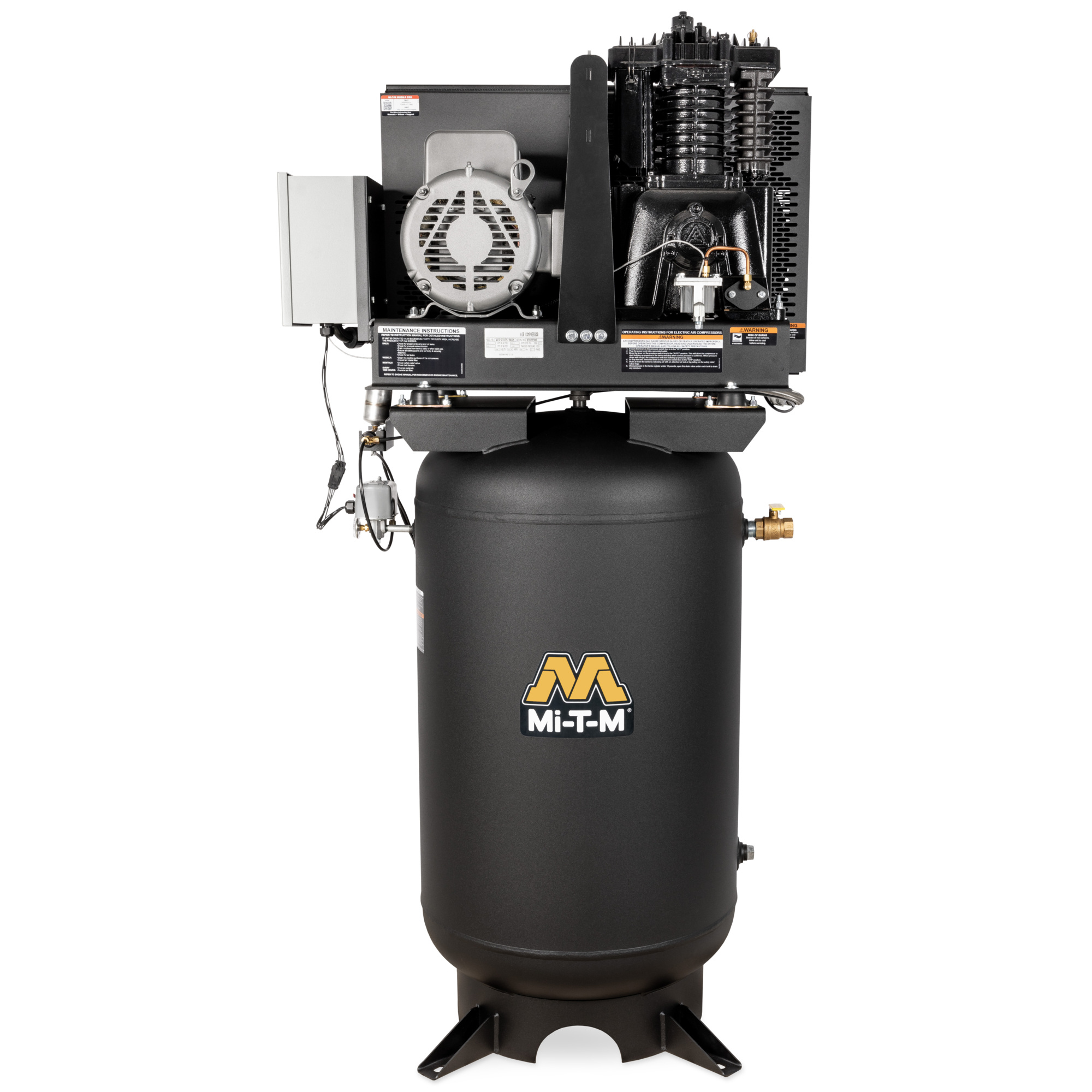

Mi-T-M ACS M Series 7.5 HP Simplex Vertical - 80-Gallon Air Compressor, ACS-23175-80VM

Item# 7320576
Mi-T-M ACS M Series 7.5 HP Simplex Vertical - 80-Gallon Air Compressor, ACS-23175-80VM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Mi-T-M ACS M Series 7.5 HP Simplex Vertical - 80-Gallon Air Compressor, ACS-23175-80VM

Click or Tap image to Zoom

$5423.36

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Quality two stage compressor pump
  • Splash lubricated
  • Stainless-steel braided discharge hose
  • Powder coated ASME receiver tank
  • Removable base plate offers flexible installation

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Mi-T-M ACS M Series 7.5 HP Simplex Vertical Air Compressor is a robust and reliable solution for demanding industrial applications, designed to deliver maximum air power consistently. Featuring a powerful 7.5 HP motor, this compressor ensures efficient performance and durability, making it ideal for heavy-duty tasks. The 80-gallon vertical tank provides ample air storage capacity, reducing the need for frequent refills and ensuring a steady supply of compressed air. Engineered for reliability, the M Series compressor is built to withstand rigorous use, offering long-lasting performance with minimal maintenance. Whether used in a workshop, manufacturing facility, or any other industrial setting, the Mi-T-M ACS M Series air compressor delivers exceptional power, efficiency, and dependability, making it an essential tool for professionals who demand the best in air compression technology.

What's Included

    (1) Air Compressor

Features + Benefits

  • Quality two stage compressor pump
  • Splash lubricated
  • Stainless-steel braided discharge hose
  • Powder coated ASME receiver tank
  • Removable base plate offers flexible installation
  • Magnetic start for thermal overload protection
  • Hour meter
  • 1 year limited electric motor warranty
  • 2 year limited pump exchange warranty
  • ASME Boiler and Pressure Vessel Code – U
  • Air-cooled after cooler removes up to 65% of moisture and drops temperature within 10°F of ambient
  • Low oil sensor does not allow unit to start when oil levels fall below an adequate level
  • Tank drain automatically drains liquid from the air receiver
  • Vibration isolator pads protect the tank from stress

Key Specs

AttributeSpecification

item#

7320576

Brand

Mi-T-M

Manufacturer's Warranty

2 year limited warranty

Ship Weight

741.0 LB

Horsepower

7.5 HP

Air Tank Size

80 Gal

Volts

230V 1Ø

Engine Brand

Honda

Max. PSI

175

Stage

2

Amps

31

Motor Phase

1

Pump Material

Cast Iron
AttributeSpecification

Pump Drive

Belt

CFM at Max. PSI

23.5

Low Oil Shutdown

Yes

Lubrication System

Splash

Electronic Drain Valve

Yes

After Cooler Included

Yes

Tank Fill Time

5 min

Air Dryer

None

Drain Type

Automatic

Tank Orientation

Vertical

Product Weight

657.0000 lb

Dimensions L x W x H (in.)

33.0 x 25.0 x 73.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
