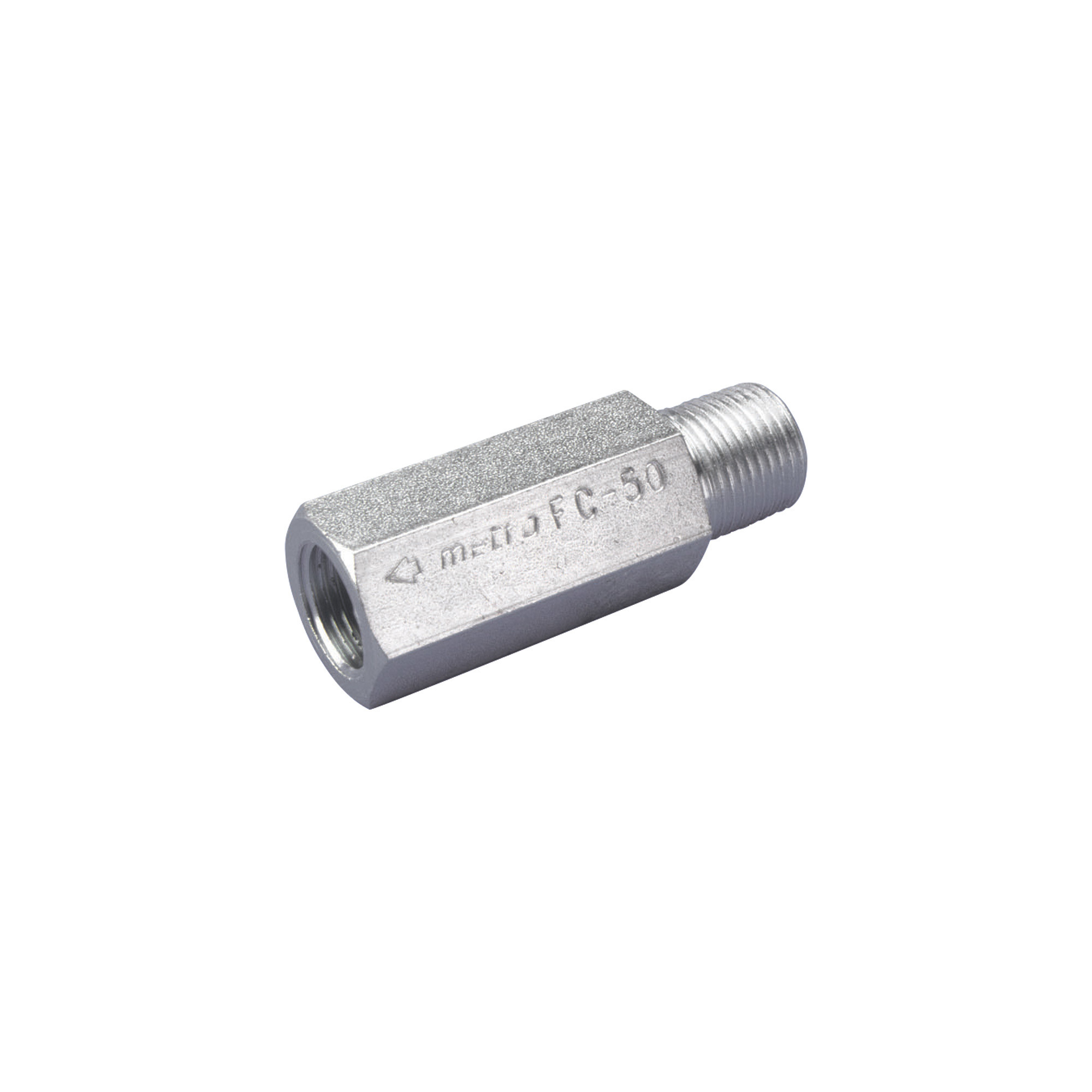

Metro Machine Check Valve, 1/2in. Port, 3,000 PSI, Model# FC-50

Item# 2038
"Metro Machine Check Valve, 1/2in. Port, 3,000 PSI, Model# FC-50"
Top Seller
Metro Machine Check Valve, 1/2in. Port, 3,000 PSI, Model# FC-50

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Metro Machine Check Valve, 1/2in. Port, 3,000 PSI, Model# FC-50

Click or Tap image to Zoom

$39.99

  • Shipping:

    Factory shipped

  • Store Pickup:

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Metro Machine Check Valve will hold pressure in one direction and free flow in other. One end male pipe thread, other end female pipe thread. Free flow direction, male port to female port. Max pressure 3,000 PSI. U.S.A.

Key Specs

AttributeSpecification

item#

2038

Brand

Metro

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.02 LB
AttributeSpecification

Working Port

1/2 in

Max. PSI

3,000

Accessory Type

Model# Fc-50

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. does this check valve have a spring? would i be able to use this valve on the suction side of a pump?

    1. I highly recommend that you stay clear of the check valve in your suction line, if you are using a hydraulic pump. I did not see a cracking pressure for this check valve, but chances are high that it is around 5psi (5psi is pretty common) which means it will create a vacuum of ~10inHg. If your pump is a hydraulic pump, this is a disaster waiting to happen. You always want to keep pump inlet vacuum to a bare minimum, because if the vacuum gets too high you will cavitate your pump and that is a sure death sentence for it. If you need a check valve to keep an oil column in your suction line, you are probably dangerously close to cavitating the pump already.

      Helpful?

    2. The check valve does have an internal spring. They can be mounted in any position and will allow free flow in one direction and checked flow in the opposite direction.

      Helpful?

  2. Do I need 2 of these for a 2 way cylinder

    1 answer

    1. Two check valves are needed for a double acting cylinder if you are needing the cylinder to hold in either direction or for speed control.

      Helpful?

  3. Will this check valve work for air

    1 answer

    1. The check valve is not recommended to be used for air.

      Helpful?

  4. Will this work with gasoline?

    1 answer

    1. This model can be used for hydraulic applications. It is not rated for use with gasoline.

      Helpful?

  5. can I use this valve with water pressure?

    1 answer

    1. The check valve has a maximum pressure of 3000 PSI and a maximum flow of 15-20 GPM. This can be used with water pressure.

      Helpful?

  6. What is the cracking pressure of this valve?

    1 answer

    1. This check valve has a cracking pressure of 5 PSI.

      Helpful?

  7. are both outlets 1/2 npt.

    using these on an air ride system and need 1/2 npt female to 1/2 npt male..looks like it is in the picture so Im just checking....

    1 answer

    1. This Metro Machine Check Valve will allow a direction of flow from the 1/2" npt male port out to the 1/2" npt female port. This valve is not offer in a reverse flow, female port to male port.

      Helpful?

  8. What is flow thur this valve.

    1 answer

    1. The check valve has a maximum pressure of 3000 PSI and a maximum flow of 15-20 GPM.

      Helpful?

  9. Is this valve offered in the same configuration with the opposite flow, and what is the overall length.

    1 answer

    1. This valve is not offered with opposite flow. The length of the valve is 3".

      Helpful?

  10. What temp. will they work.

    Will this work with air 0-125 lbs per sq. Inch .
    Temp. 0-175

    1 answer

    1. Buyers Metro Machine Check Valve will work within a temperature range of -22 to 194 degrees fahrenheit and in pressures up to 3000 PSI.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
