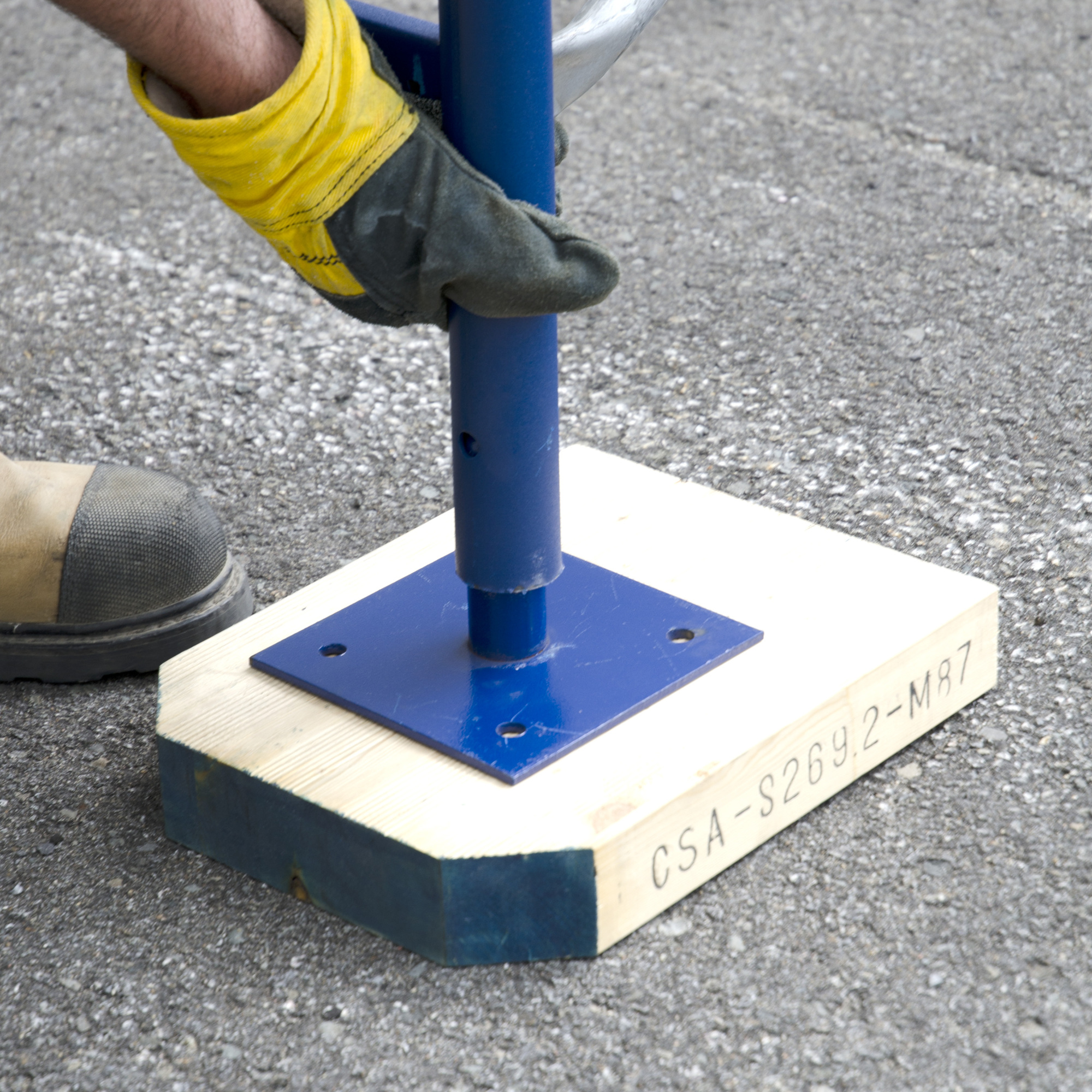

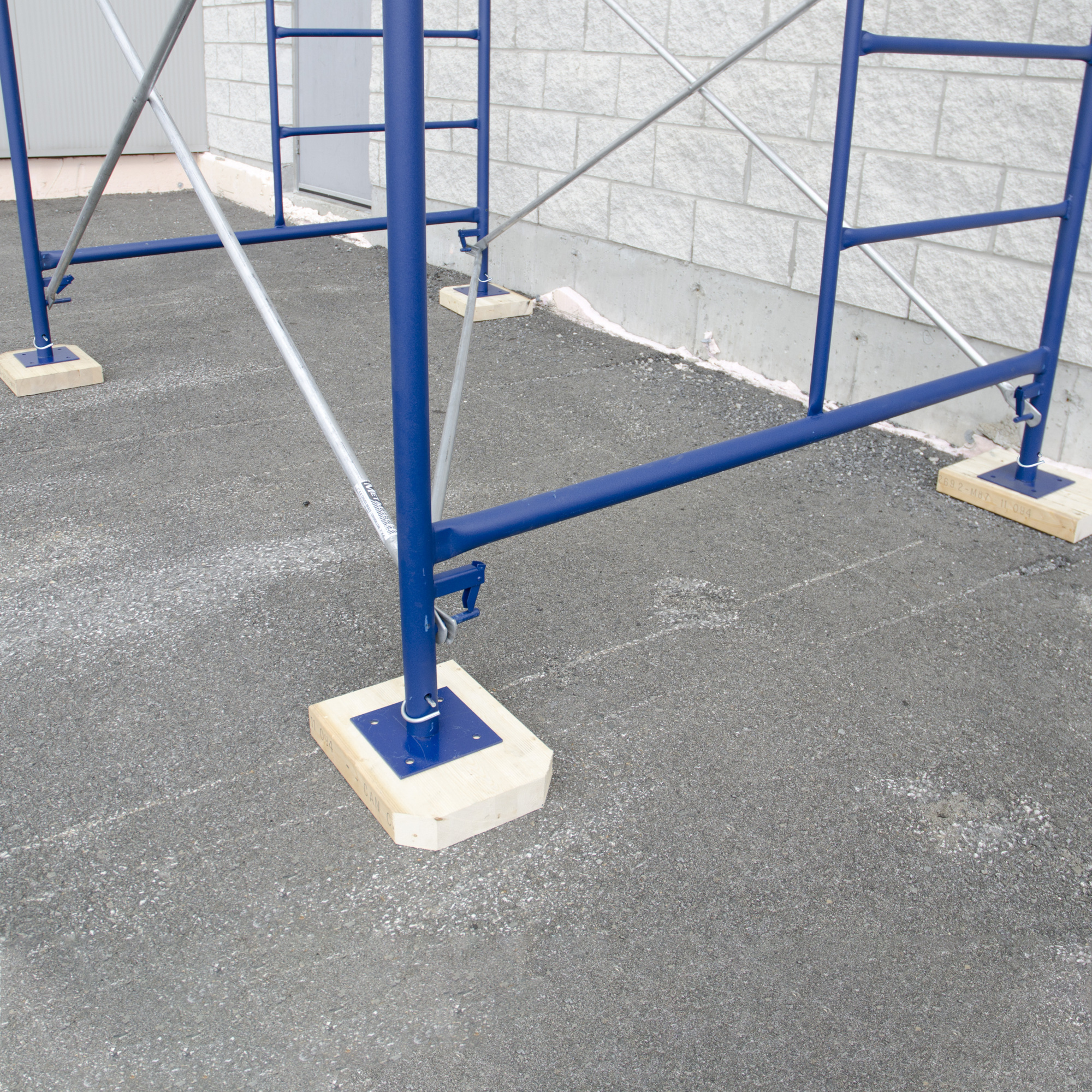

On this Metaltech Base Plate for Scaffold Frames the hole pattern is 4” x 4” with holes measuring 7/16” in diameter. The base is designed to support the scaffolding frame legs directly on a firm and leveled surface. The hole pattern is then used to fix the base plate on that surface.
Metaltech Base Plate for Scaffold Frames, Model# M-MBBF
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$16.99
Buy 12 or more at $15.29 ea.
- Can be used with standard or arched scaffold frames
- Used with pig tail lock (Item# 405951)
See full description
Price for all four:
$119.96
-
What is the hole pattern on the base?
Hello, I would like to add inflatable casters on a 5x5 scaffold frame because we have to roll it over gravel and standard casters wear out very fast. What is the hole pattern on the base?
-
Helpful?
-
The hole pattern on the base is 4”x4” with holes measuring 7/16” in diameter.
However the base’s intended use is to support the scaffolding frame legs directly on a firm and leveled surface.
The hole pattern is then used to fix the base plate on that surface.Helpful?
-
-
What is the inside diameter?
1 answer-
This inside diameter is 7/8''.
Helpful?
-
-
what diameter pipe can fit
1 answer-
The base plate would have a diameter of 7/8" ID and 1 1/4" OD.
Helpful?
-
-
Are there any wheels available to attach to these bases?
1 answer-
We do carry Metaltech casters please see links below.
Helpful?
-
-
Are these base plates safe to use with scaffolding tubes that are 1 3/8" ID. ?
The Metaltech base plates are 1 1/4" OD and are very sloppy installed in my scaffolding. My connectors appear to be 1 5/16" OD.
1 answer-
Metaltech does not recommend using these with any scaffold that doesn't match the 1-1/4" diameter of this base plate.
Helpful?
-
-
If I put two base plates on one end will it be level with the standard wheels on the other end?
1 answer-
When using these base plates, it is either all base plates or all casters. You do not want to mix.
Helpful?
-
-
Do these base plates work with scaffold I-TCISC?
If not, please advise which base plates work w/ scaffold mentioned above...thanks in advance.
1 answer-
These base plates will not work with the scaffolding I-TCISC item number 27736. This scaffolding does not have base plates available. Please see the link below for scaffolding that would accept these base plates.
Helpful?
-
-
Will this work with item#405930
1 answer-
The Base Plate for the scaffolding will not work with the item number 405930 as the diameter of the tube is a different size.
Helpful?
-
-
How tall is the stem?
1 answer-
It is 5" high.
Helpful?
-
-
What is ID and OD size of leg holder?
1 answer-
The OD of the tube is 1.25" and the ID is 1.12".
Helpful?
-
