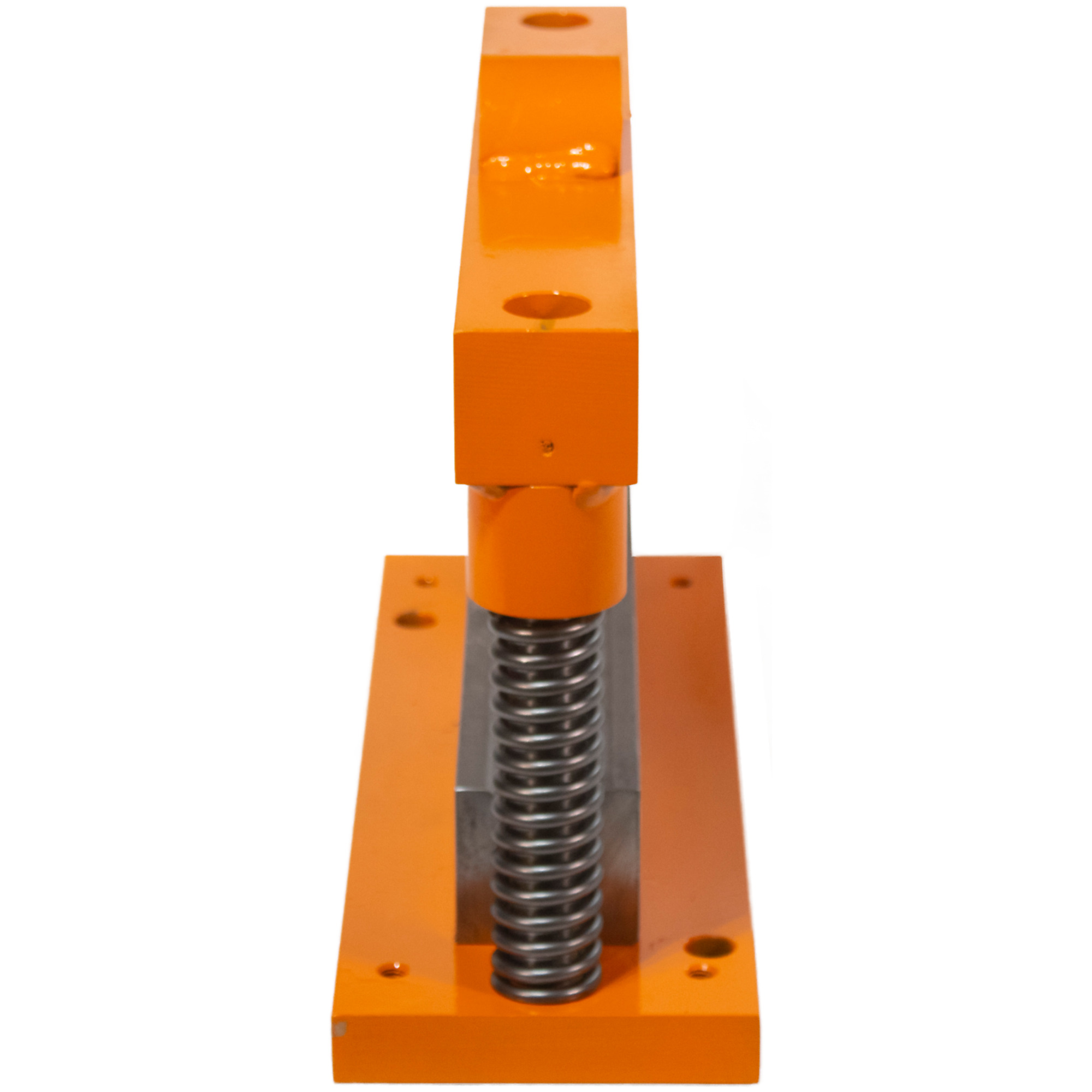

METALpro Sheet Metal Brake, 12in., Model# MP4510

Item# 971643
"METALpro Sheet Metal Brake, 12in., Model# MP4510"
METALpro Sheet Metal Brake, 12in., Model# MP4510

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

METALpro Sheet Metal Brake, 12in., Model# MP4510

Click or Tap image to Zoom

$1258.75

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Country of Origin - USA
  • Die Set Included - 10 gauge upper punch and 3/16" lower die
  • Thickness Capacity Up to 1/2" Mild Steel *additional die sets sold separately based on material thickness/degree of bend
  • Compatibility - Fits in all METALpro Ironworkers and H Frame Presses
  • Weight - 83 lbs

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

METALpro’s 12in. brake accessory fits in any METALpro Ironworkers central workstation. This accessory comes equipped with a standard 90 degree forming brake die set (10-gauge upper punch and 3/16” lower die). METALpro offers an assortment of die sizes and styles, capable of forming 28 gauge to 1/2” mild steel (width limited to tonnage requirements). All METALpro machines and accessories are proudly made in the USA and built to last. The METALpro MP4510 is a universal brake that can be used in all METALpro machine models. It also can be used in other applications such as an H frame presses. Calculating bending tonnage: 150 x material thickness = tonnage required for 12in. length of mild steel. Always bend material (regardless of width) in center of brake.

What's Included

    (1) 12in. sheet metal brake

Features + Benefits

  • Country of Origin - USA
  • Die Set Included - 10 gauge upper punch and 3/16" lower die
  • Thickness Capacity Up to 1/2" Mild Steel *additional die sets sold separately based on material thickness/degree of bend
  • Compatibility - Fits in all METALpro Ironworkers and H Frame Presses
  • Weight - 83 lbs
  • Dimensions - 16.25" × 11.5" × 5.5"

Key Specs

AttributeSpecification

item#

971643

Brand

Metal Pro

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

80.0 LB

Product Type

Brakes
AttributeSpecification

Length

5.5 in

Width

16.25 in

Compatible With

METALpro Ironworkers

Product Weight

lb

Dimensions L x W x H (in.)

16.25 x 6.0 x 11.25 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. what dies are available?

    I would like to bend 12" long 1/4" thick mild steel at 12- degrees and 60 degrees

    1 answer

    1. At this time, Northern Tool does not offer replacement dies. Replacement dies can be purchased directly with the manufacturer.

      Helpful?

  2. Die Removal

    Are the dies removable? Is there set screws on the back side to remove top die just like the original Scotchman.

    1 answer

    1. The dies on this product are removable. There are set screws on the back side to remove the top die.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
