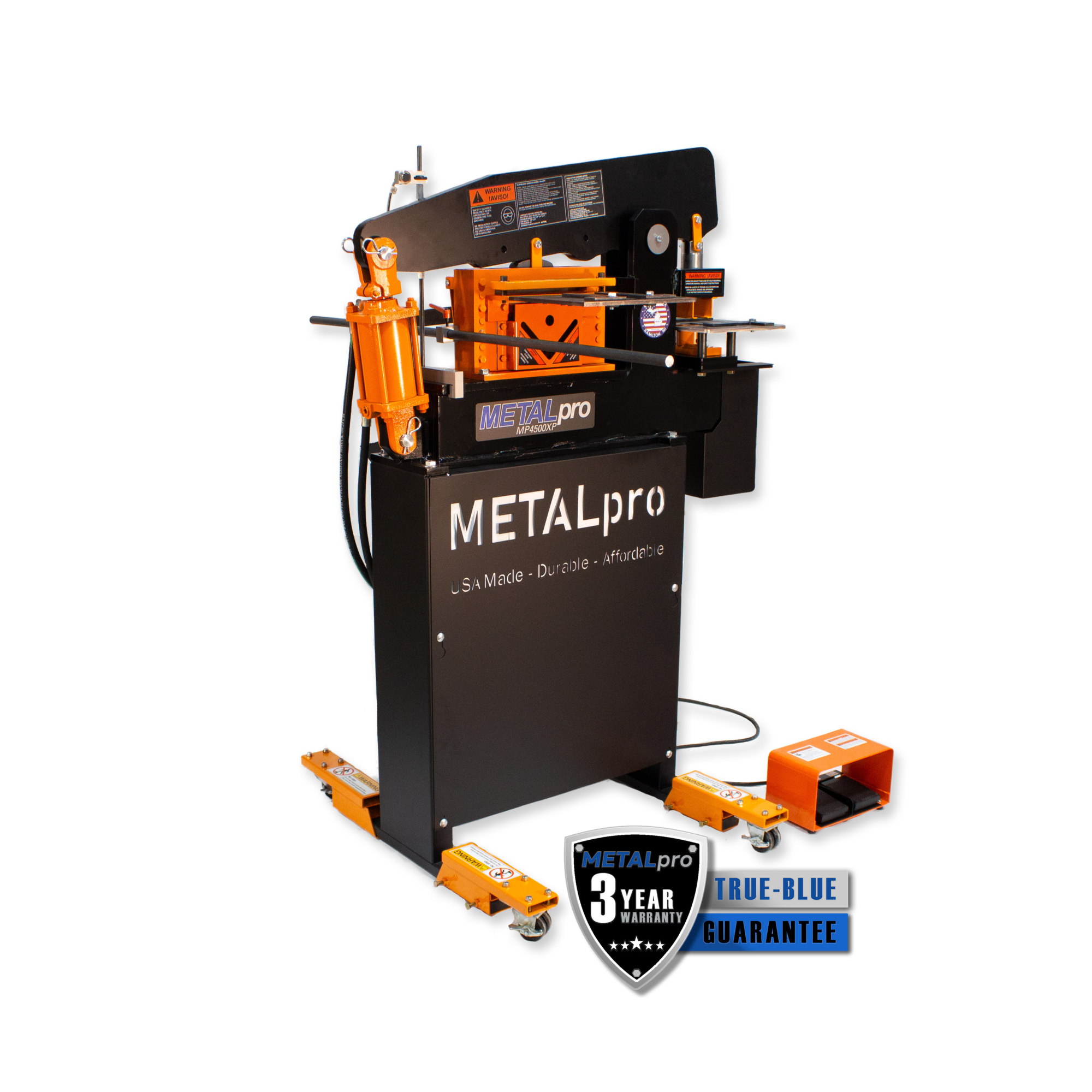

Metal Pro MP4500XP Ironworker — 45 Ton, 1.5HP Motor, 24 Strokes Per Minute, 13 Attachments, Model# MP4500XP

Item# 6871149

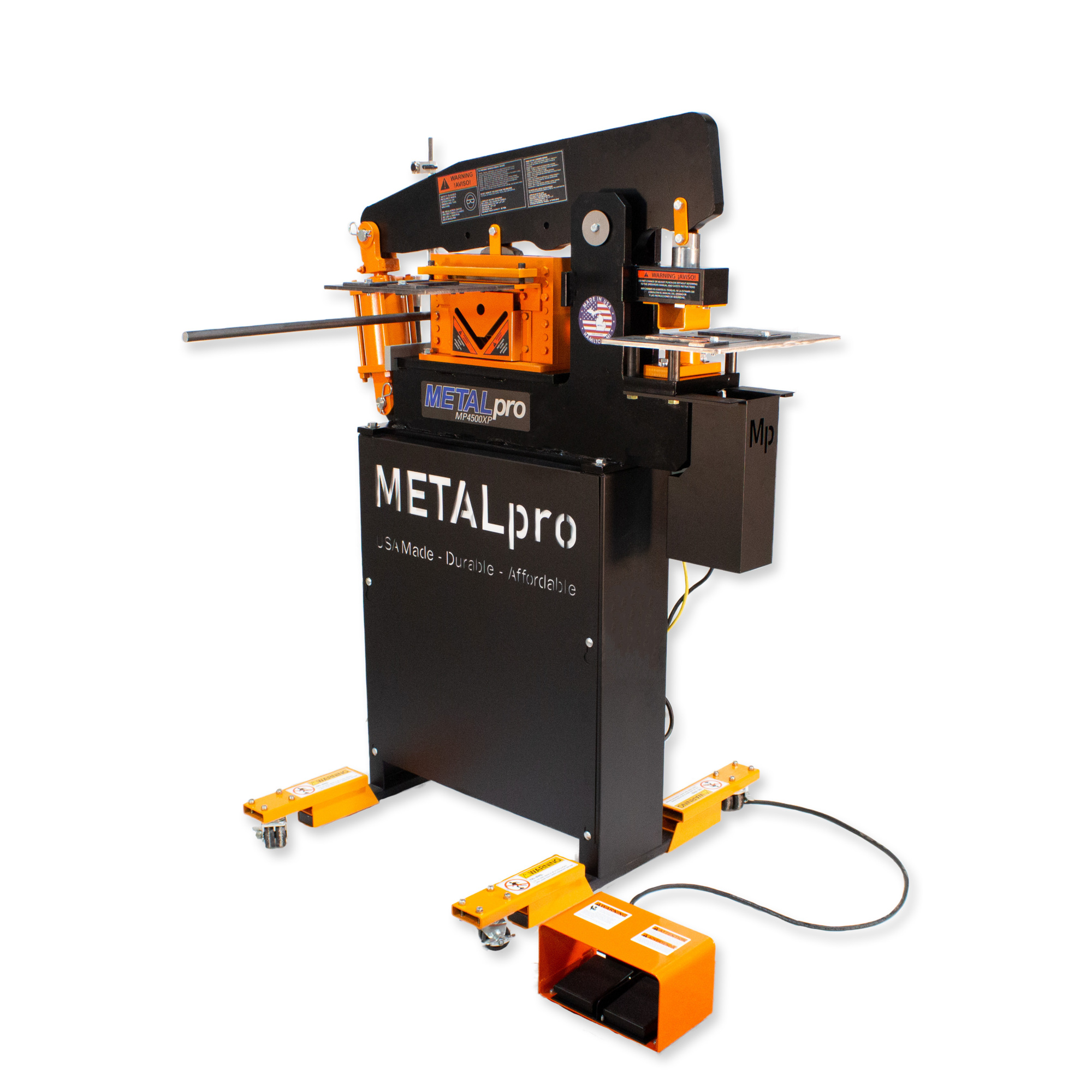

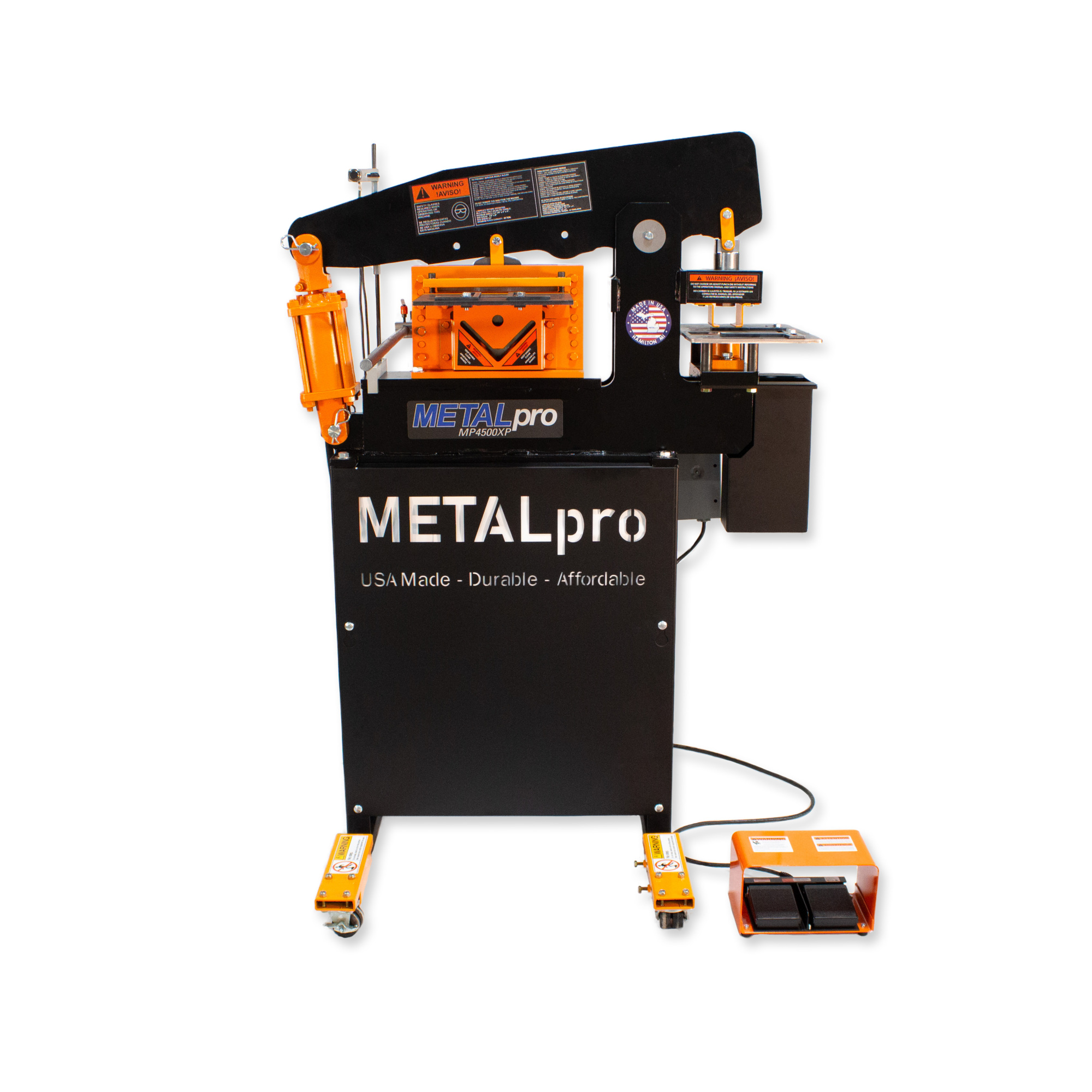

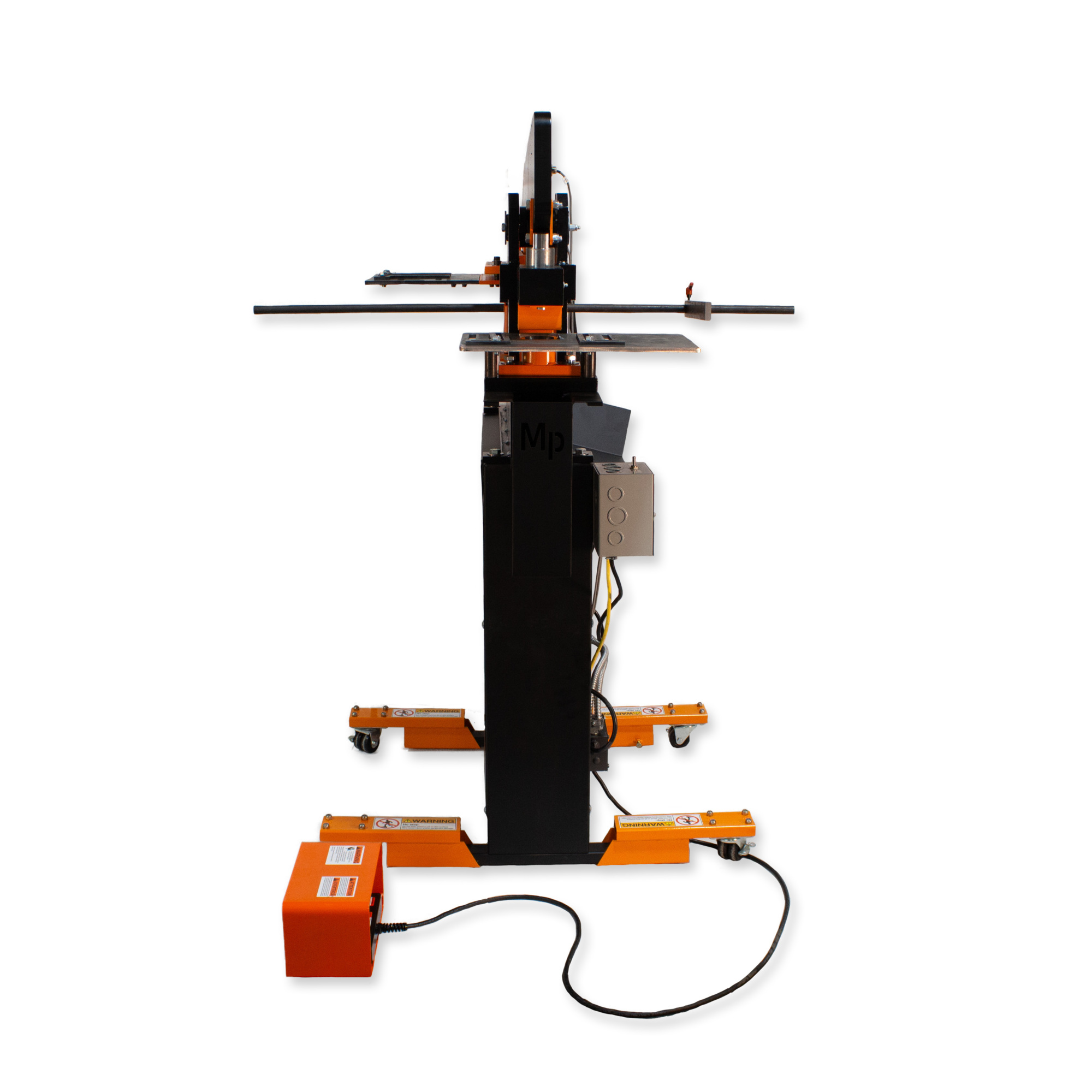

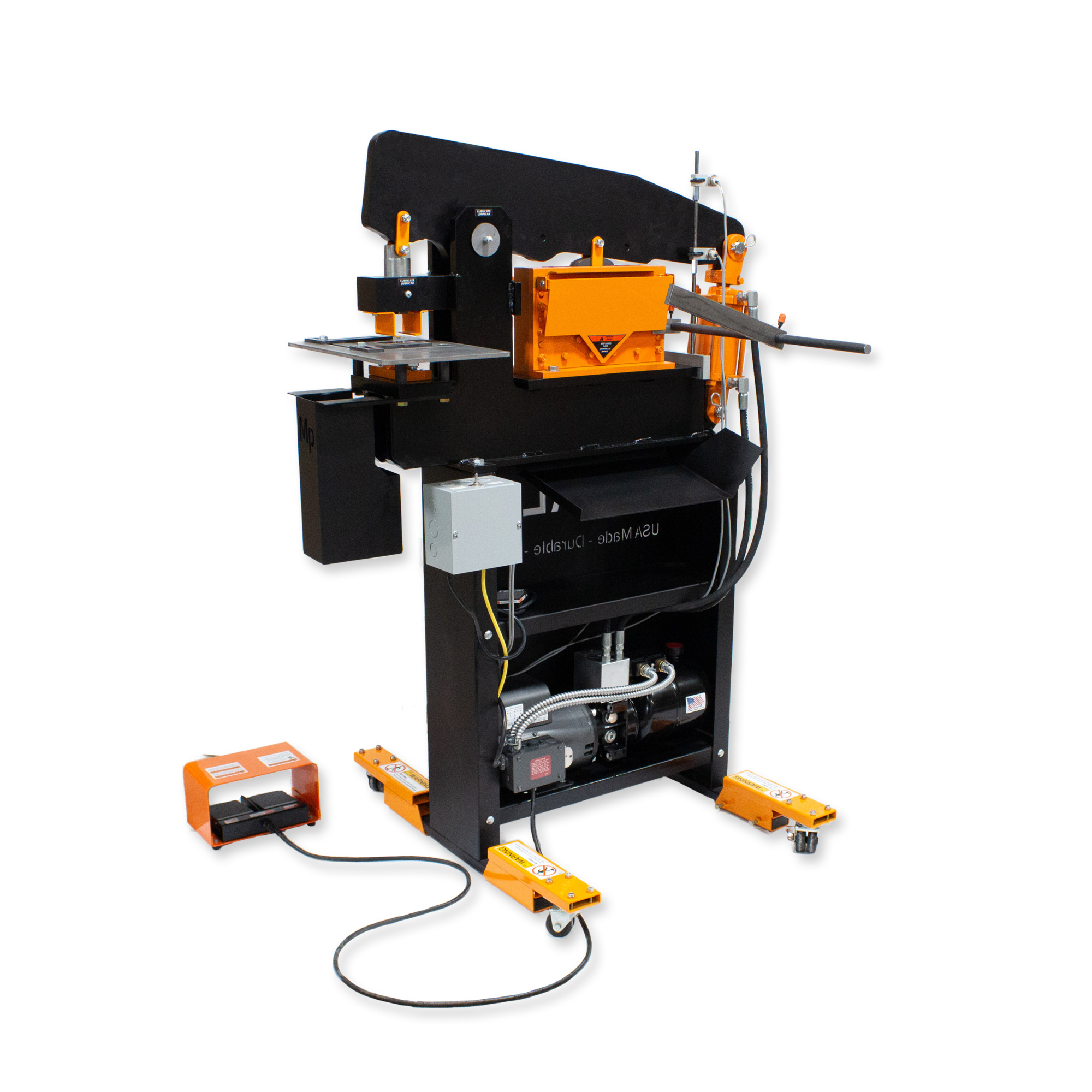

METALpro MP4500XP 45 ton Ironworker
Metal Pro MP4500XP Ironworker — 45 Ton, 1.5HP Motor, 24 Strokes Per Minute, 13 Attachments, Model# MP4500XP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Metal Pro MP4500XP Ironworker — 45 Ton, 1.5HP Motor, 24 Strokes Per Minute, 13 Attachments, Model# MP4500XP

Click or Tap image to Zoom

$12,899.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Country of Origin - USA
  • Capactity - 45 Tons
  • Warranty - 3 years
  • Attachments Included -1.5HP Baldor Motor, 2 Stage (HI-LO) gear pump -Dual pedal foot switch with safety cover (8ft length) -8 inch 3 in 1 Combination Shear -12" Press Brake with 3/16" brake die set -Brake Back Stop -Brake Guide Table -Limit Switch Kit (Stroke Control with micro adjust) -Punch Station Guide Table -Shear Guide Table -Slug Catcher -Wheel Kit -Shear back stop -8 Piece Punch and Die Set (9/32", 11/32", 13/32", 15/32", 17/32", 21/32", 25/32", 29/32")
  • Flat Bar Shear Capacity - 1/4" x 8". 3/8" x 6", 1/2" x 4"

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The MP4500XP (Xtreme Production) is a 45-ton ironworker that comes fully loaded with power and attachments, built to handle production and high out-put speeds. It is powered by a foot switch controlled 1.5HP Baldor motor, spinning an American engineered 2 stage, high performance gear pump. The motor/pump runs on 110V single phase power producing 24 strokes per minute and allows for users to punch, shear or brake up to 1/2in. material. This ironworker comes equipped with 13 attachments (listed below) giving users all the tools needed to hit the ground running. The MP4500XP is loaded with capabilities, and it’s matte black color with orange accents are, sleek, bold and just plain badass. Quality is not just a promise at METALpro, its part of our foundation. It is why we make our machines in Hamilton, Michigan and source 100 percent of our components in the USA. We don’t just talk about durability, we mean it, and that’s why we offer an industry leading 3 year warranty. ATTACHMENTS INCLUDED: 1.5HP Baldor Motor with 2 Stage (HI-LO) gear pump 2900PSI Dual pedal foot switch with safety cover (8ft. length) 8in. 3in. 1 Combination Shear (Flat Bar, Angle Iron, Round Rod, Square Bar) 12in. Press Brake with 3/16in. brake die set Brake Back Stop Brake Guide Table Limit Switch Kit (Stroke Control with micro adjust) Punch Station Guide Table Shear Guide Table Slug Catcher Wheel Kit Shear back stop 8 Piece Punch and Die Set (9/32in., 11/32in., 13/32in., 15/32in., 17/32in., 21/32in., 25/32in., 29/32in.) *ALL METALpro MACHINES ARE RATED FOR MILD STEEL

What's Included

    (1) Attachments Included -1.5HP Baldor Motor, 2 Stage (HI-LO) gear pump -Dual pedal foot switch with safety cover (8ft length) -8 inch 3 in 1 Combination Shear -12" Press Brake with 3/16" brake die set -Brake Back Stop -Brake Guide Table -Limit Switch Kit

Features + Benefits

  • Country of Origin - USA
  • Capactity - 45 Tons
  • Warranty - 3 years
  • Attachments Included -1.5HP Baldor Motor, 2 Stage (HI-LO) gear pump -Dual pedal foot switch with safety cover (8ft length) -8 inch 3 in 1 Combination Shear -12" Press Brake with 3/16" brake die set -Brake Back Stop -Brake Guide Table -Limit Switch Kit (Stroke Control with micro adjust) -Punch Station Guide Table -Shear Guide Table -Slug Catcher -Wheel Kit -Shear back stop -8 Piece Punch and Die Set (9/32", 11/32", 13/32", 15/32", 17/32", 21/32", 25/32", 29/32")
  • Flat Bar Shear Capacity - 1/4" x 8". 3/8" x 6", 1/2" x 4"
  • Angle Iron Shear Capacity - 1/4" x 4" x 4"
  • Rod Shear Capacity - 3/4"
  • Forming Tonnage Capacity - 28 Tons
  • 110/120V Single Phase
  • 26 Strokes Per Minute
  • Gallons Per Minute - LO-4GPM / HI-1.5 GPM @ 450PSI
  • Throat Depth 3-3/4"
  • Operating Weight: 800 lbs
  • Machine Dimensions: 24" x 36.5" x 59"
  • OSHA/ASNI B11-8 Approved

Key Specs

AttributeSpecification

item#

6871149

Brand

Metal Pro

Manufacturer's Warranty

3 year limited warranty

Ship Weight

800.0 LB

Horsepower

1.5 HP

Volts

110

Phase

Single-phase

Hydraulic Pump Speed

4 GPM

Valve Pressure

2,900 PSI

Foot Switch Control

Yes
AttributeSpecification

Throat Depth

3.75 in

Punching Pressure

45 Tons

Reservoir Size

1.5 Gal

Flat Bar Shear Capacity

0.5 in

Square/Round Shear Capacity

0.75 in

Angle Shear Capacity

0.25 in

Amps

20

Portable

Yes

Product Weight

800.0000 lb

Dimensions L x W x H (in.)

24.0 x 36.5 x 59.0 in

Reviews

Questions & Answers

29 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
