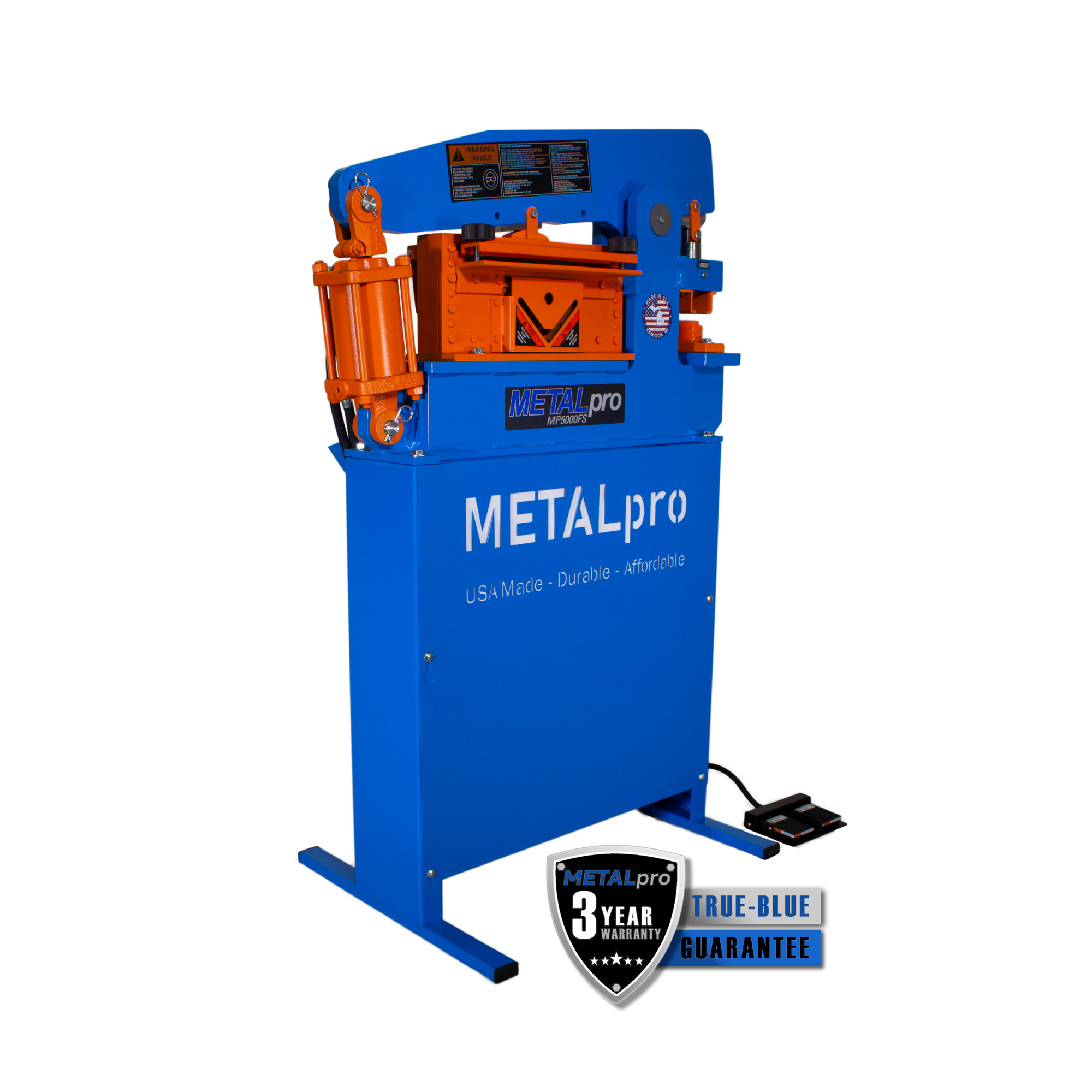

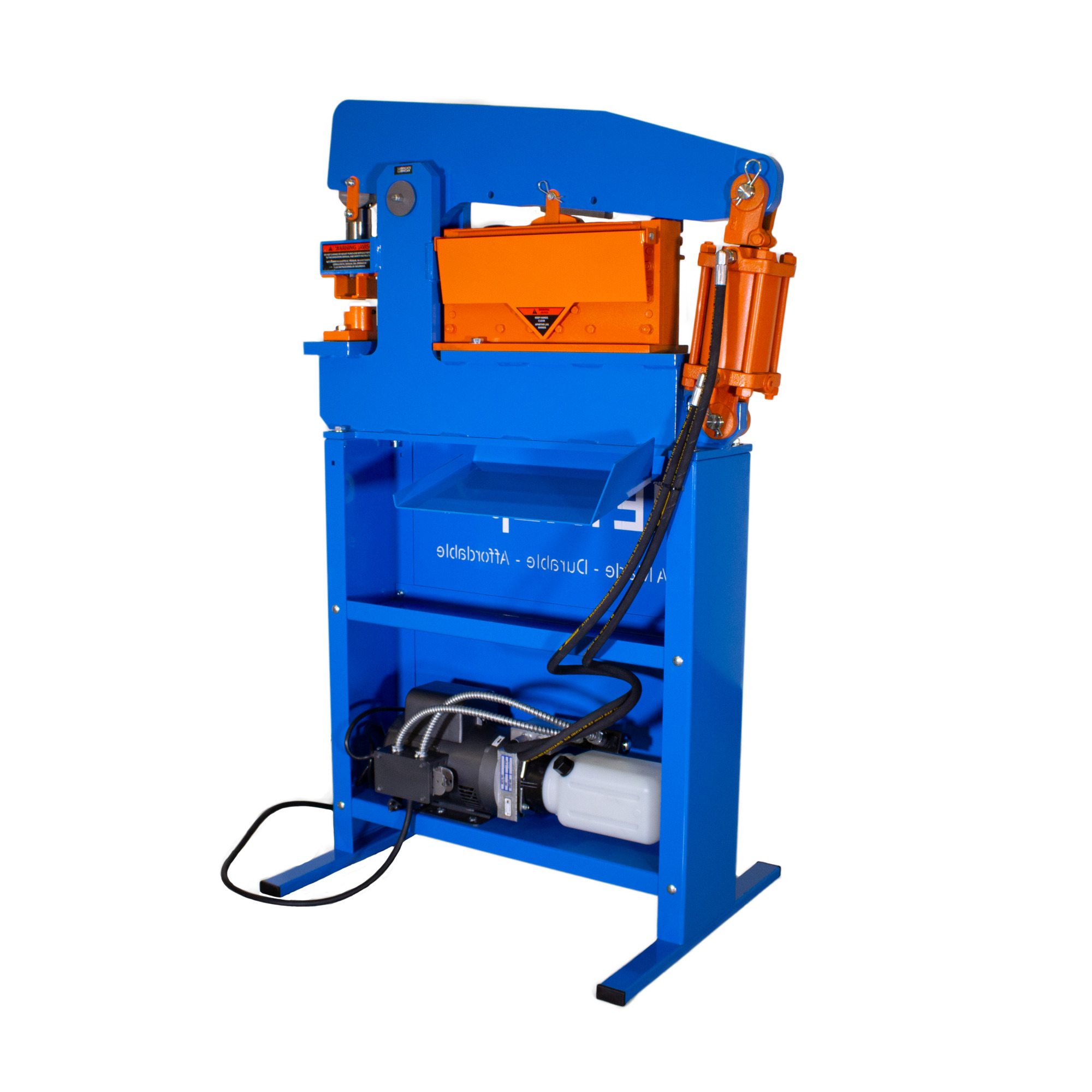

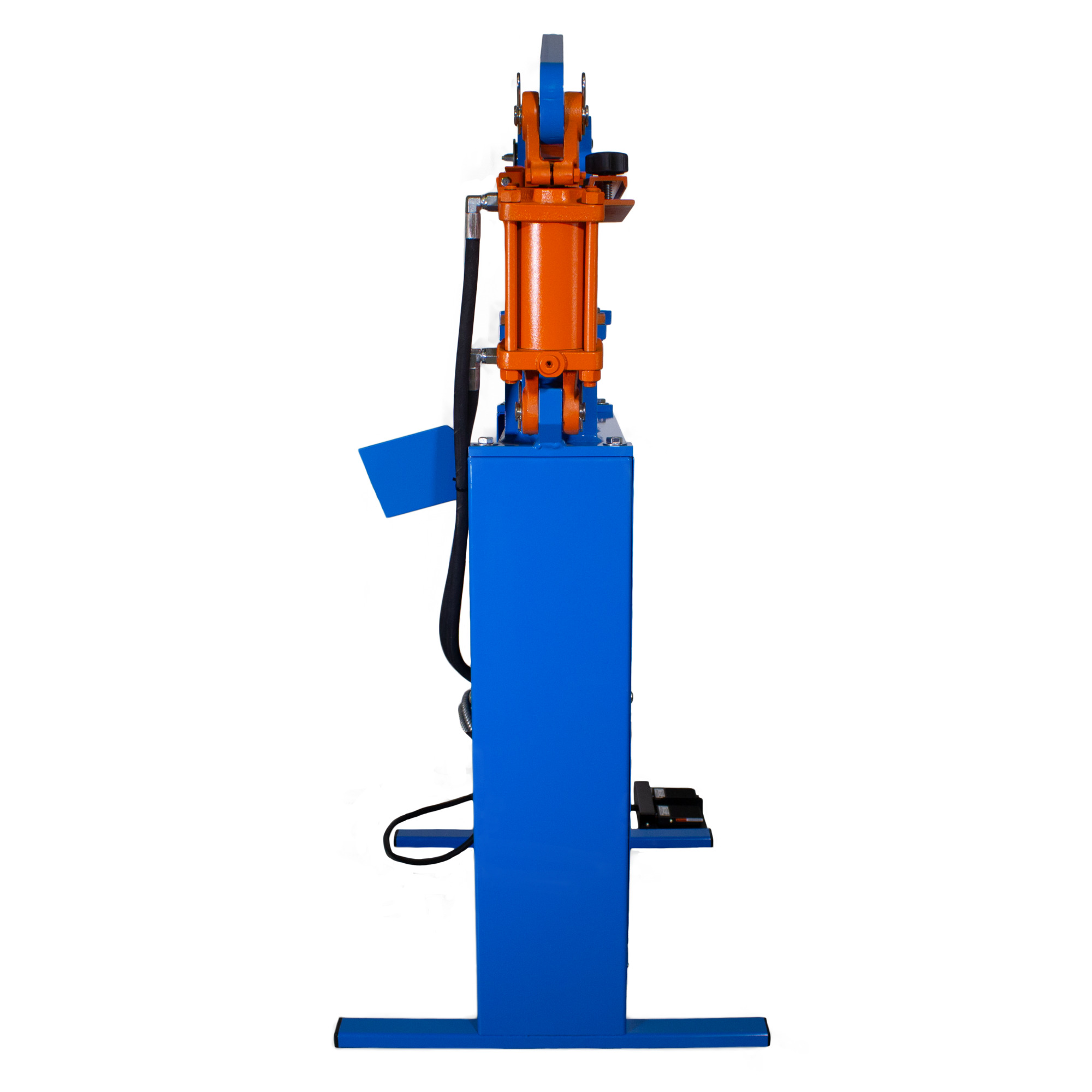

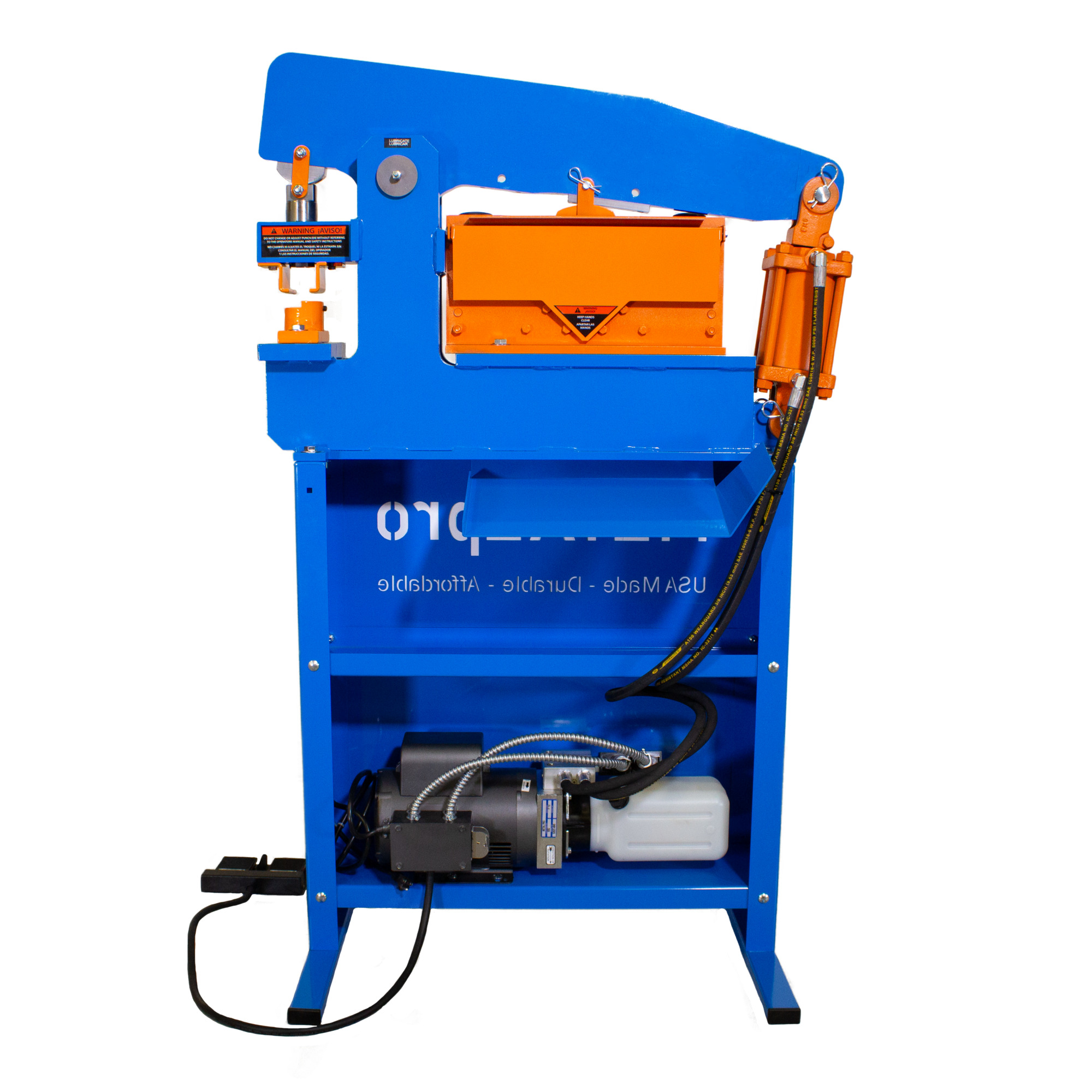

METALpro 50-Ton Capacity Ironworker, Model# MP5000FS
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Country of Origin - USA
- 50 Ton Punch Capacity
- 3 year Warranty
- Flat Bar Shear Capacity - 1/4" x 12", 3/8" x 8", 1/2" x 6"
- Angle Iron Shear Capacity - 1/4" x 4" x 4"
See full description
What's Included
- (1) Ironworker
Features + Benefits
- Country of Origin - USA
- 50 Ton Punch Capacity
- 3 year Warranty
- Flat Bar Shear Capacity - 1/4" x 12", 3/8" x 8", 1/2" x 6"
- Angle Iron Shear Capacity - 1/4" x 4" x 4"
- Rod Shear Capacity - 3/4"
- Square Shear Capacity - 5/8"
- Forming Capacity - Up to 1/2" Mild Steel *brake sold separately
- Forming Tonnage Capacity - 28 Tons
- Punch Capacity - 1/2" Mild Steel
- 110/120V Single Phase
- Motor - 1.5 Horsepower
- Hydraulic Pressure - 2900 PSI
- Throat Depth - 3-3/4"
- Operating Weight - 650 lbs
- Machine Dimensions - 24" x 36.5" x 59"
- OSHA/ASNI B11-8 Approved
See All Ironworkers
See All Metal Pro Ironworkers
Currently Viewing This Product
Specifications
1.5 HP
5 HP
7.5 HP
7.5 HP
110
230
230
230
Single-phase
Single-phase
Single-phase
Three-phase
1.5 GPM
3.5 GPM
10.5 GPM
10.5 GPM
2,900 PSI
2,500 PSI
3,500 PSI
3,500 PSI
Yes
Yes
Yes
Yes
3.75 in
7 in
9.75 in
9.75 in
50 Tons
50 Tons
65 Tons
65 Tons
1.5 Gal
7 Gal
17 Gal
17 Gal
0.5 in
10 in
24 in
24 in
0.75 in
0.75 in
1 in
1 in
0.25 in
4 in
5 in
5 in
0.5 to 2 in
0.31 in
0.37 in
0.37 in
20
23
23
22
Yes
No
No
No
650 lb
lb
lb
lb
-
3 1/2 GPM, single stage
10 1/2 GPM, 2-stage
10 1/2 GPM, 2-stage
-
2 1/2 in. ram
3 1/2 in. ram
3 1/2 in. ram
-
7 gal.
17 gal.
17 gal.
-
7
9 3/4
9 3/4
-
50
65
65
-
1/2 x 10; 3/4 x 4
3/8 x 24; 1/2 x 14; 1 x 4
3/8 x 24; 1/2 x 14; 1 x 4
-
3/4
1
1
-
3 x 3 x 3/8; 4 x 4 x 1/4
5 x 5 x 3/8
5 x 5 x 3/8
-
5/16
3/8
3/8
-
45.0 x 51.0 x 62.0 in
46.0 x 69.0 x 63.0 in
46.0 x 69.0 x 63.0 in
