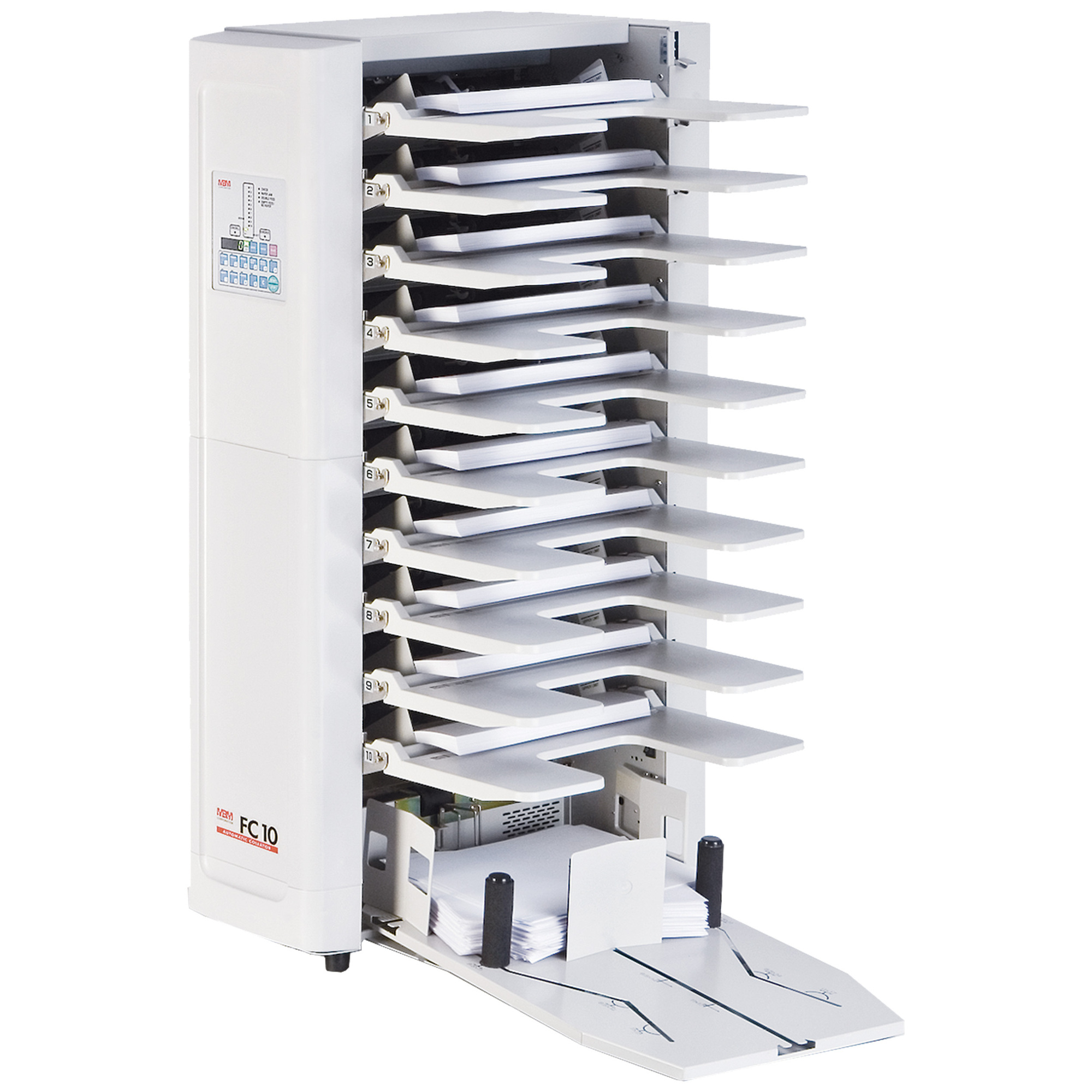

Ideal MBM FC10 Plus Friction Collator — 10-Bin, 275-Sheet Capacity Per Bin, 3,600 Sets/Hour, LED Display, Criss-Cross Stacking, Model# FC10 Plus

Item# 6744625
1 Pieces
Ideal MBM FC10 Plus Friction Collator — 10-Bin, 275-Sheet Capacity Per Bin, 3,600 Sets/Hour, LED Display, Criss-Cross Stacking, Model# FC10 Plus

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ideal MBM FC10 Plus Friction Collator — 10-Bin, 275-Sheet Capacity Per Bin, 3,600 Sets/Hour, LED Display, Criss-Cross Stacking, Model# FC10 Plus

Click or Tap image to Zoom

$8929.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Fast, High-Volume Collating – Collates up to 3,600 sets per hour, ideal for production environments
  • 10 Individual Bins – Each bin holds up to 275 sheets and features adjustable feed and separator pressures for reliable feeding
  • LED Control Panel – Easy-to-use interface with a 4-digit counter and simple touch-button operation for quick setup
  • Versatile Program Modes – Choose from preset batch, insertion, and alternate bin modes for seamless, continuous production
  • Criss-Cross & Straight Stacking – Adjustable stacking table allows easy set separation and improved organization

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The MBM FC10 Plus is a high-speed, 10-bin automatic friction collator, engineered for efficiency, precision, and flexibility. Perfect for print shops, copy centers, mail rooms, and in-plant operations, this powerhouse handles a wide range of paper stocks and weights, collating up to 3,600 sets per hour. With its intuitive touch-button control panel, programmable batch, insertion, and alternate bin modes, and a large 275-sheet capacity per bin, the FC10 Plus boosts productivity with minimal operator effort. The self-centering guides and adjustable feed pressures ensure flawless performance across different paper sizes and weights. Criss-cross or straight stacking modes help streamline post-collation workflows. Add the optional mobile base and corner stapler for even more efficiency.

What's Included

    (1) Collator

Features + Benefits

  • Fast, High-Volume Collating – Collates up to 3,600 sets per hour, ideal for production environments

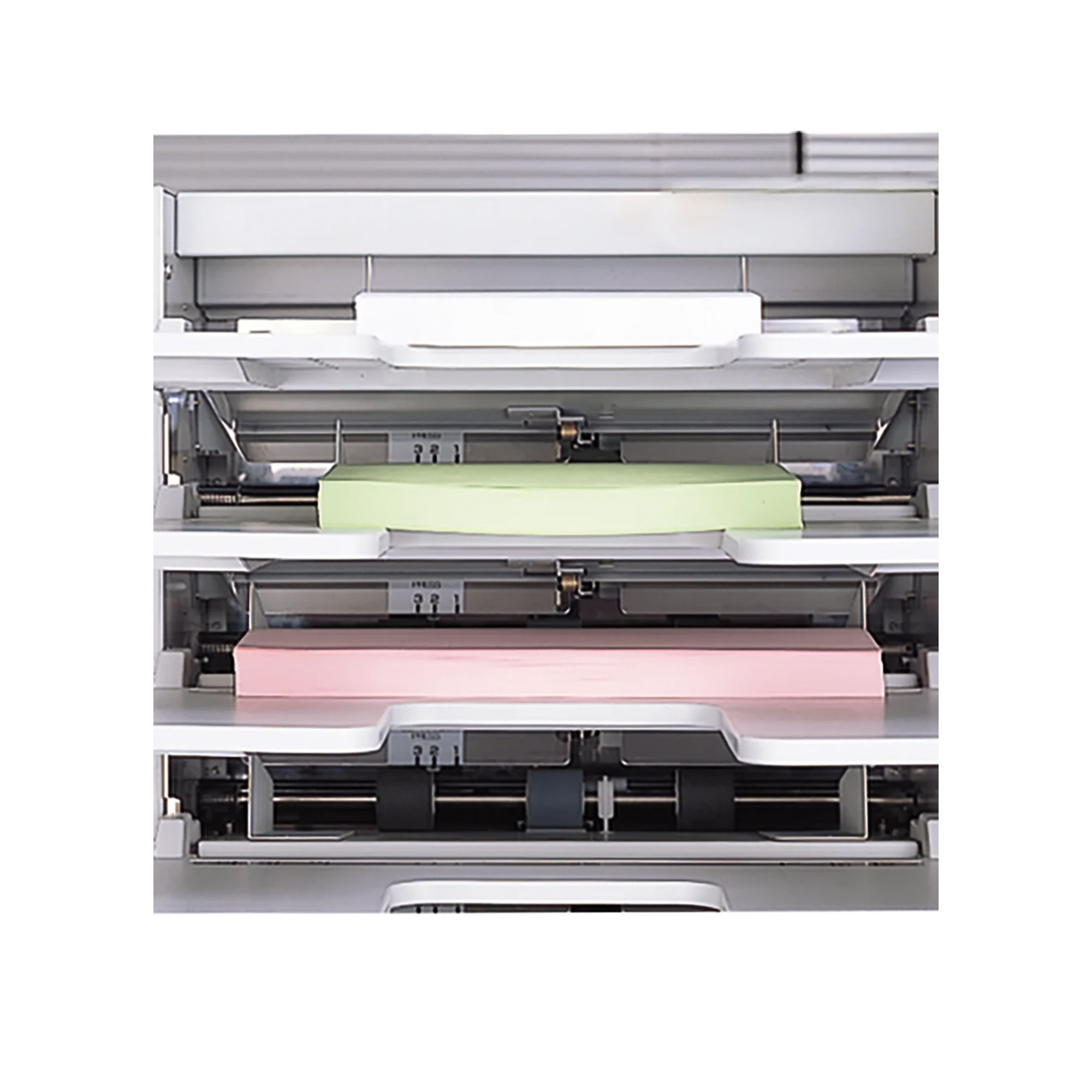

  • 10 Individual Bins – Each bin holds up to 275 sheets and features adjustable feed and separator pressures for reliable feeding

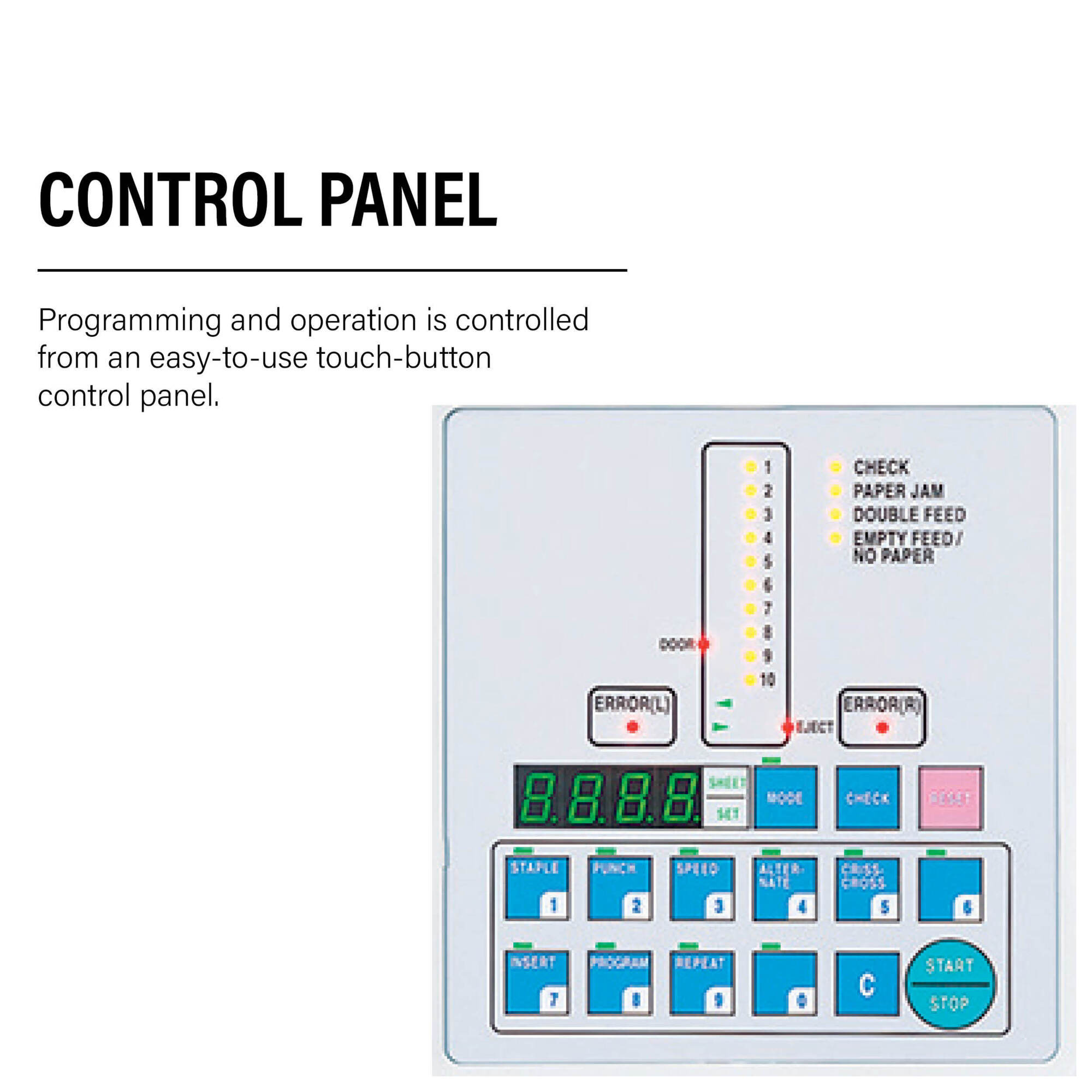

  • LED Control Panel – Easy-to-use interface with a 4-digit counter and simple touch-button operation for quick setup
  • Versatile Program Modes – Choose from preset batch, insertion, and alternate bin modes for seamless, continuous production

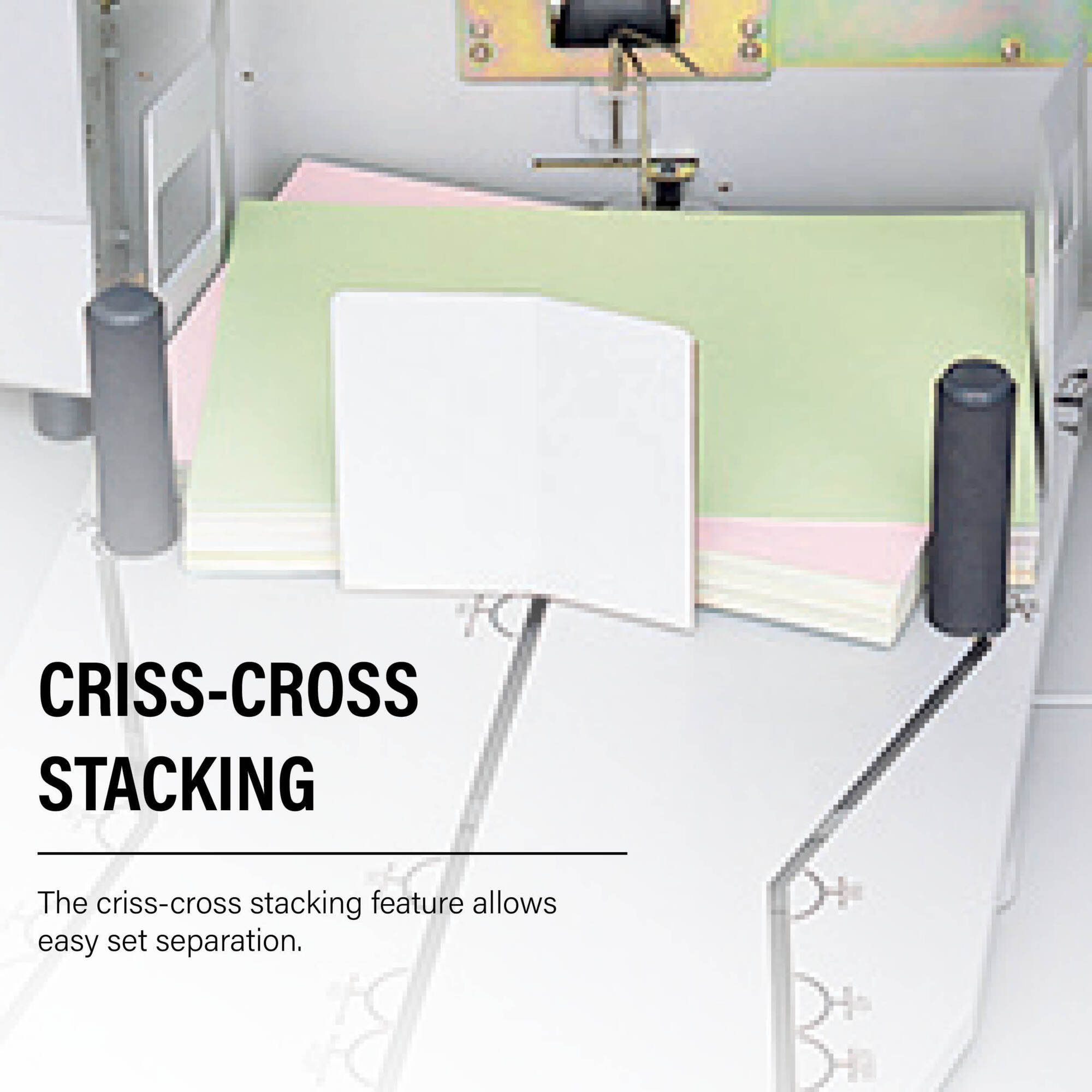

  • Criss-Cross & Straight Stacking – Adjustable stacking table allows easy set separation and improved organization
  • Self-Centering Paper Guides – Automatically adjust to various paper sizes (3.75" x 5.8" to 12.8" x 18.5") for quick changeovers
  • Wide Paper Compatibility – Handles paper weights from 20 lbs to 1000 lbs for maximum versatility
  • Smart Bin Monitoring – Bin empty sensors alert the operator for minimal downtime and efficient job completion
  • Compact, Efficient Footprint – Space-saving design (21.5” x 39.75” x 19.75”) with optional wheeled base for mobility
  • Reliable Build & Safety Compliance – Built to last and UL/C UL approved for safety and durability in any setting

Key Specs

AttributeSpecification

item#

6744625

Brand

IDEAL

Manufacturer's Warranty

1 year limited warranty

Ship Weight

230.0 LB

Product Type

Other

Color Finish

White
AttributeSpecification

Pieces (qty.)

1

Material

Metal

Compartments (qty.)

10

Product Weight

176.4000 lb

Dimensions L x W x H (in.)

231.0 x 27.0 x 41.25 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
