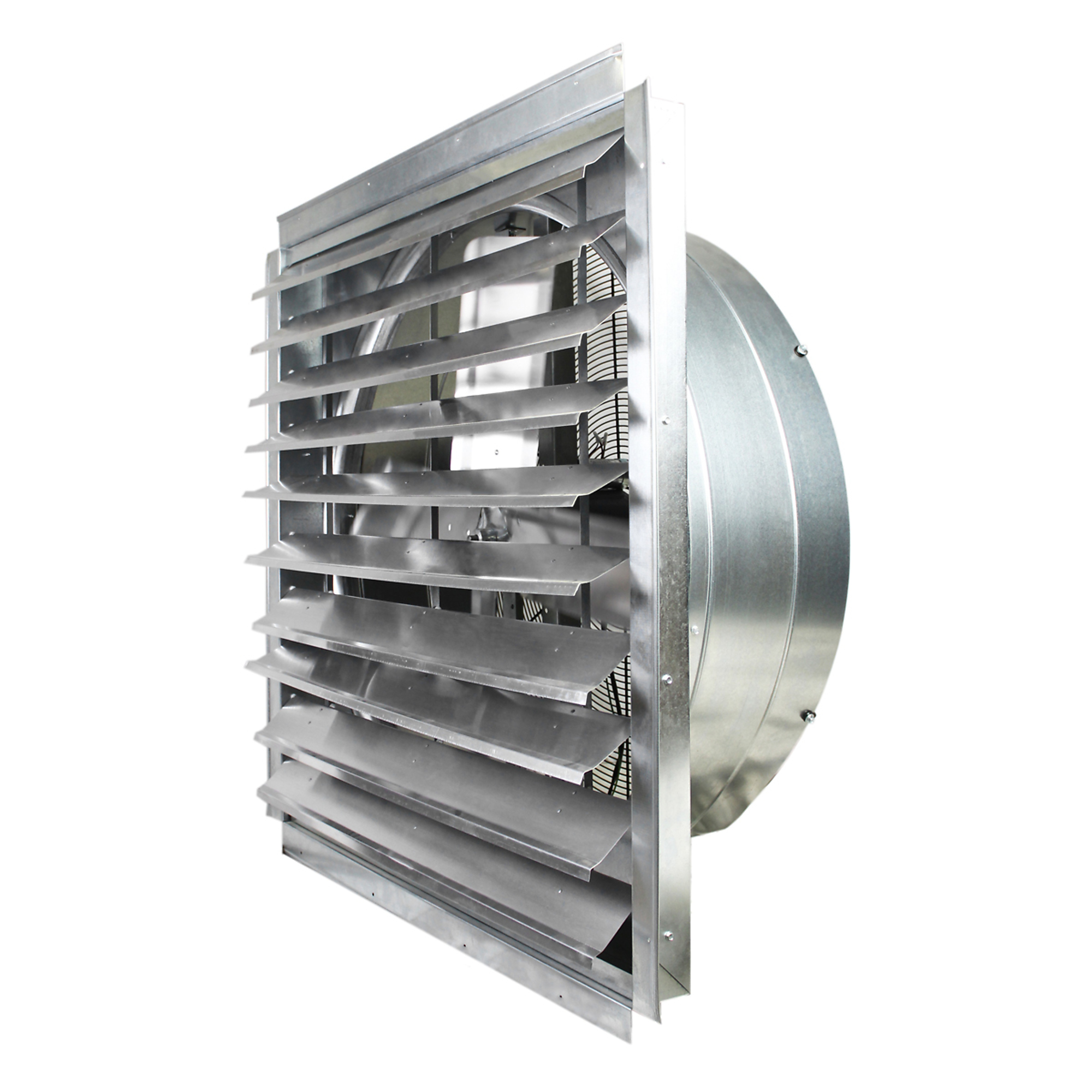

Maxx Air, 36 in. Heavy Duty Exhaust Fan with Automatic Shutter, Drive Type Direct, Fan Diameter 36 in, Air Delivery 9000 cfm, Model# IF36

Item# 7021322
Maxx Air, 36 in. Heavy Duty Exhaust Fan with Automatic Shutter, Drive Type Direct, Fan Diameter 36 in, Air Delivery 9000 cfm, Model# IF36

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Maxx Air, 36 in. Heavy Duty Exhaust Fan with Automatic Shutter, Drive Type Direct, Fan Diameter 36 in, Air Delivery 9000 cfm, Model# IF36

Click or Tap image to Zoom

$649.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Moves up to 9,000 CFM

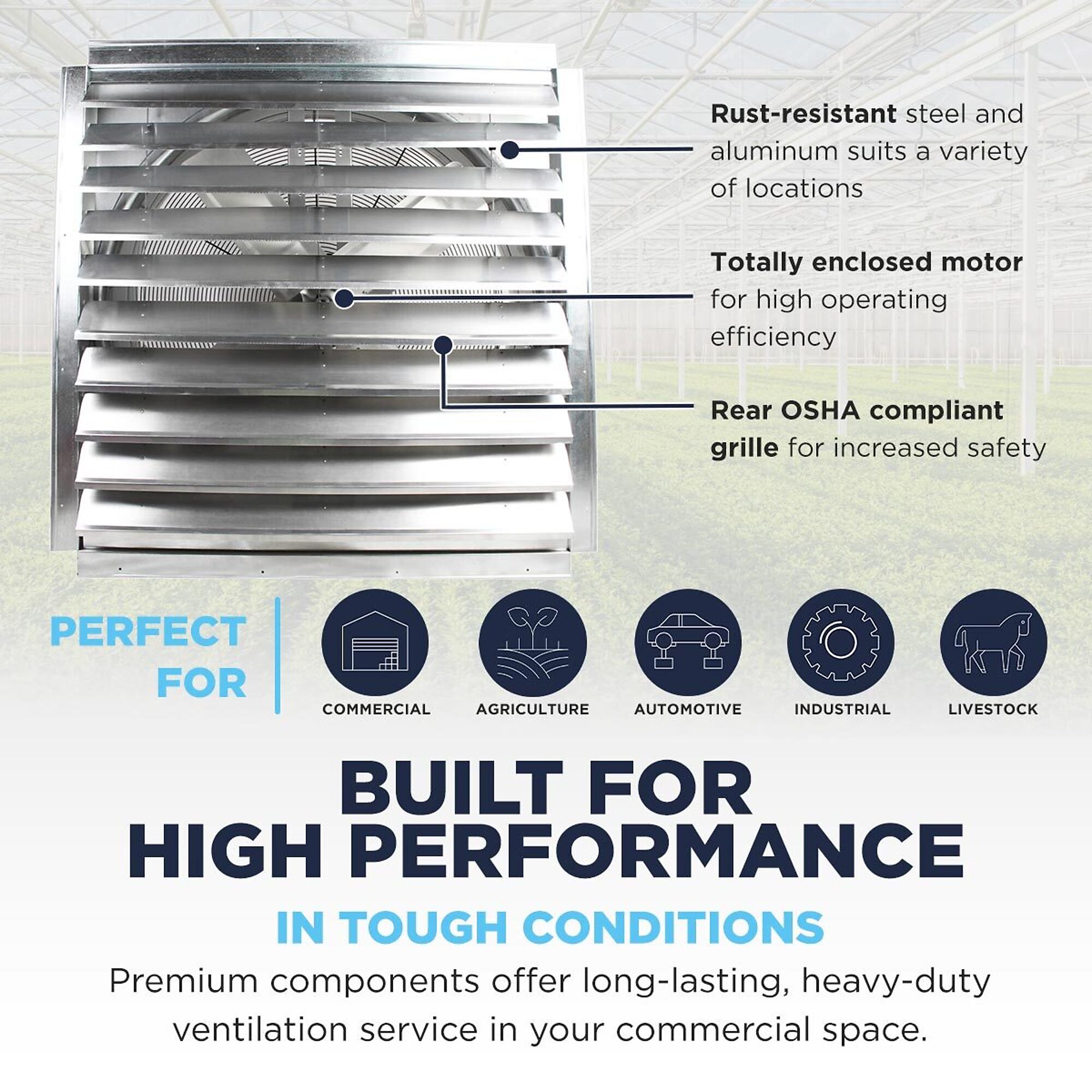

  • Rust-resistant galvanized steel housing with removable interior grille

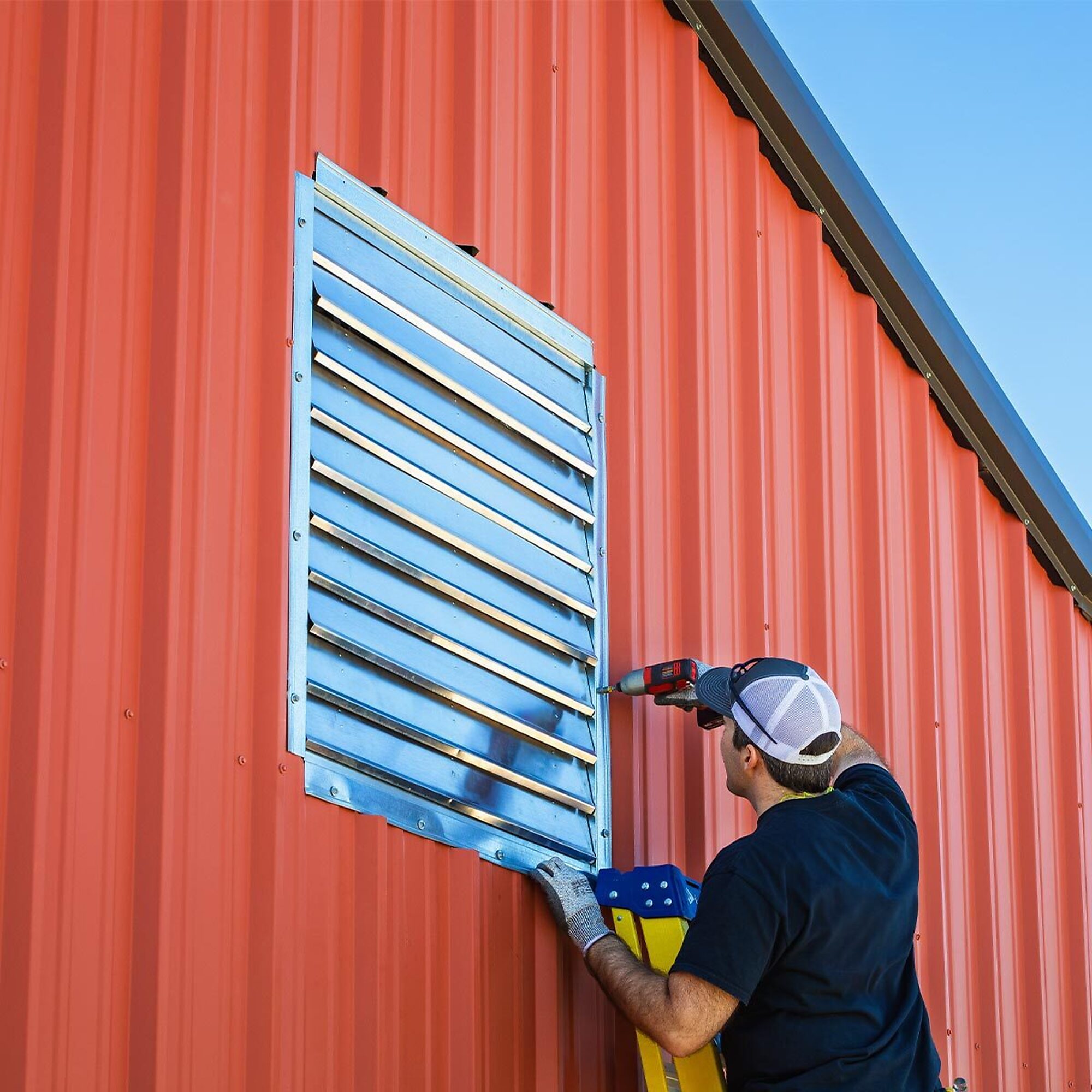

  • Pre-drilled holes on flange and rolled flange edges for safe and easy installation

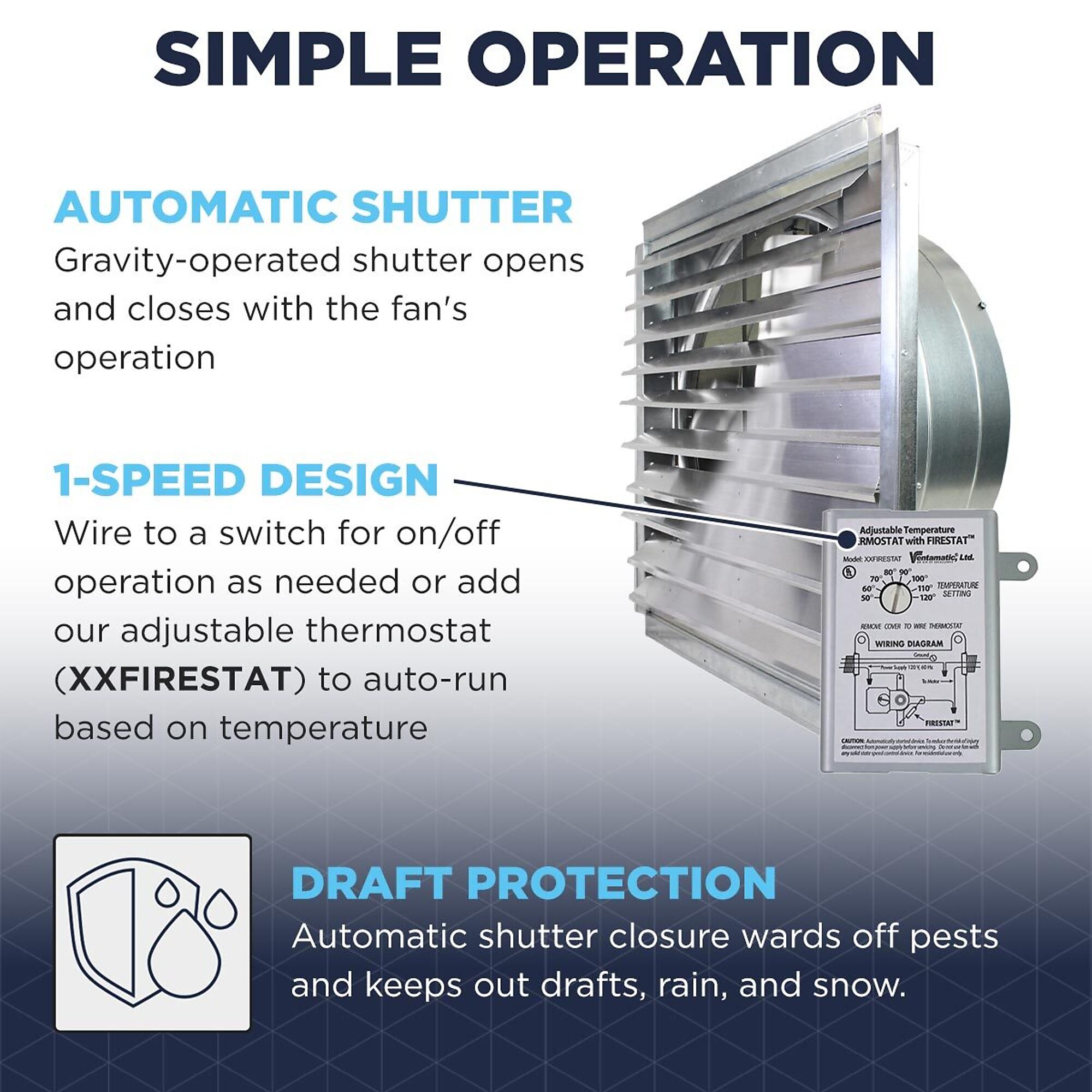

  • Automatic shutter prevents drafts from entering through the external opening
  • OSHA compliant grille and totally enclosed, energy efficient PSC motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

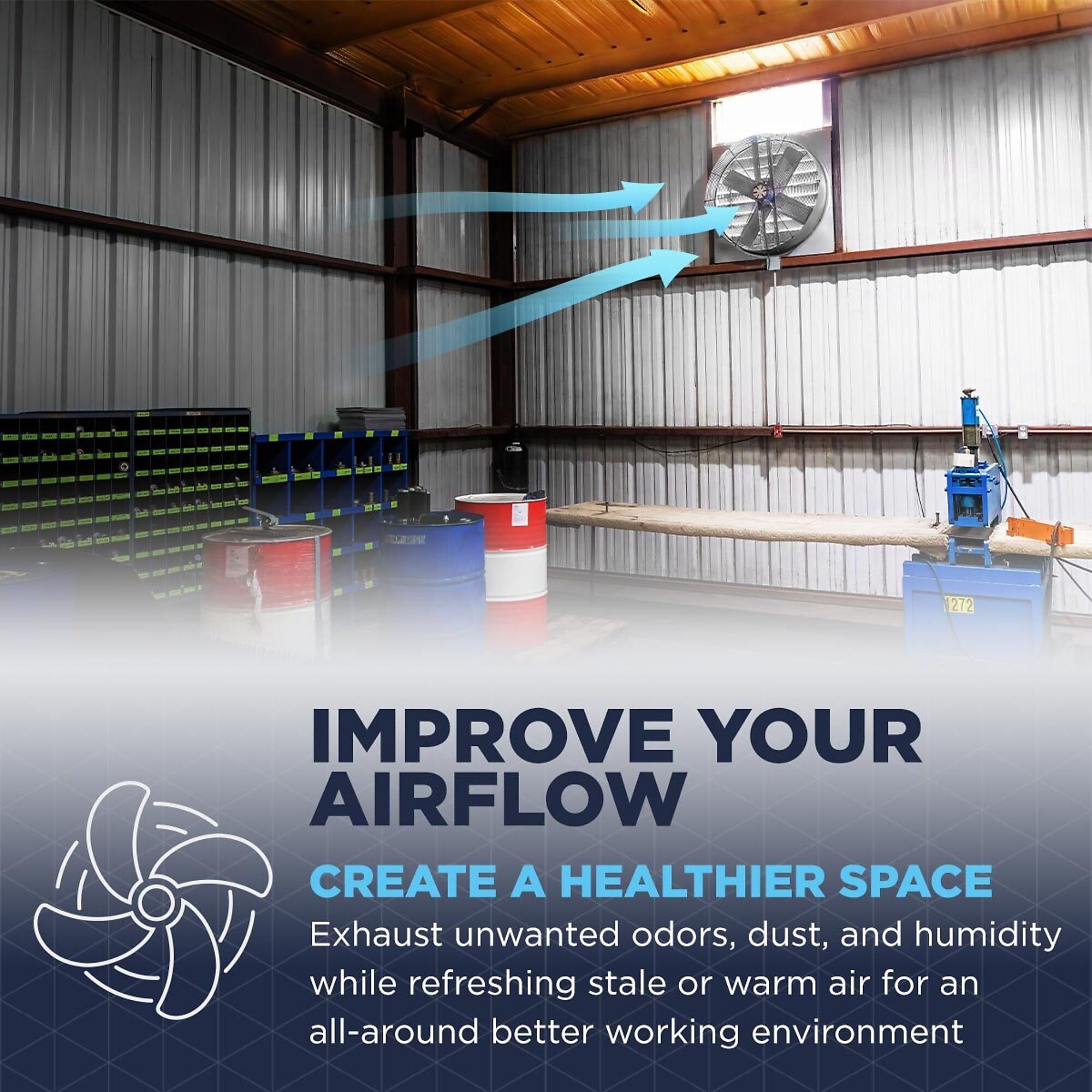

The Maxx Air 36in. Exhaust Fan can be used in garages, barns, greenhouses, warehouses, and a variety of other agricultural and industrial locations to quickly remove unwanted odors, dust and humidity, and refresh stale or warm air in your space. The fan is constructed of a sturdy 20 gauge steel housing with aluminum shutter, a safety grille and a totally enclosed, thermally protected motor. Arrives fully assembled, just mount to your desired building wall and wire into your electrical system to complete installation. Pair this fan with our adjustable thermostat with firestat (XXFIRESTAT) for greater operational control.

What's Included

    (1) 36" Exhaust Fan (1) Instruction Manual

Features + Benefits

  • Moves up to 9,000 CFM
  • Rust-resistant galvanized steel housing with removable interior grille
  • Pre-drilled holes on flange and rolled flange edges for safe and easy installation
  • Automatic shutter prevents drafts from entering through the external opening
  • OSHA compliant grille and totally enclosed, energy efficient PSC motor
  • Requires wiring to your building's electrical system and 30 sq. ft. of NFA intake ventilation. Not intended to exhaust hazardous fumes or chemicals.
  • 1-year limited warranty

Key Specs

AttributeSpecification

item#

7021322

Brand

Maxx Air

Manufacturer's Warranty

1 year limited warranty

Ship Weight

84.0 LB

Drive Type

Direct

Fan Diameter

36 in

Volts

120

Watts

620

Amps

5.15

Hardwired

Yes
AttributeSpecification

Speeds (qty.)

1

Max. Fan Speed

900 rpm

Primary Color

Silver

Secondary Color

Silver

Assembly Required

No

Outdoor Rated

No

Phase

Single-phase

Horsepower

0.5 HP

Product Weight

84.0000 lb

Dimensions L x W x H (in.)

14.1 x 43.5 x 43.5 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
