The port size on the cylinder is an SAE #8 (3/4"-16) thread size.

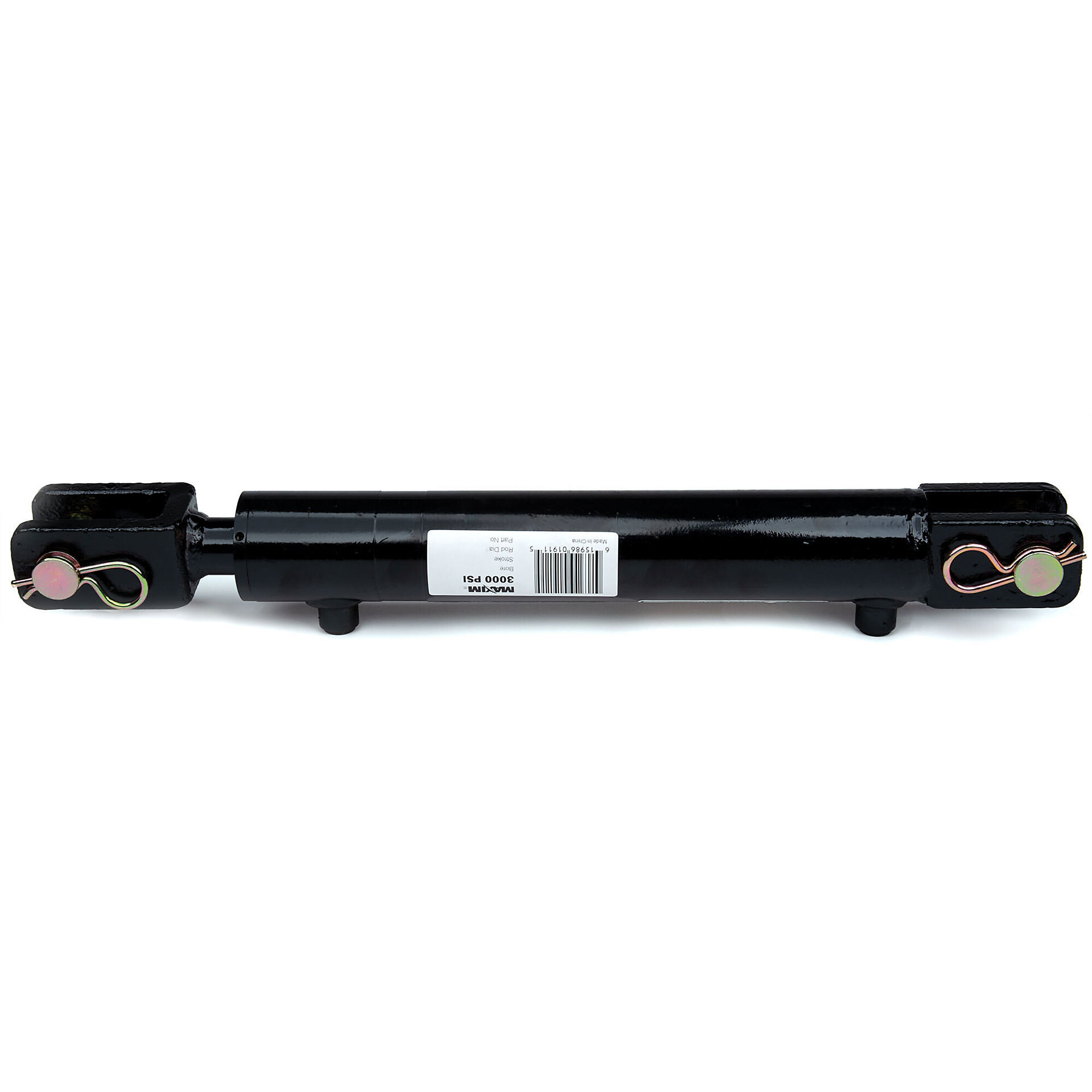

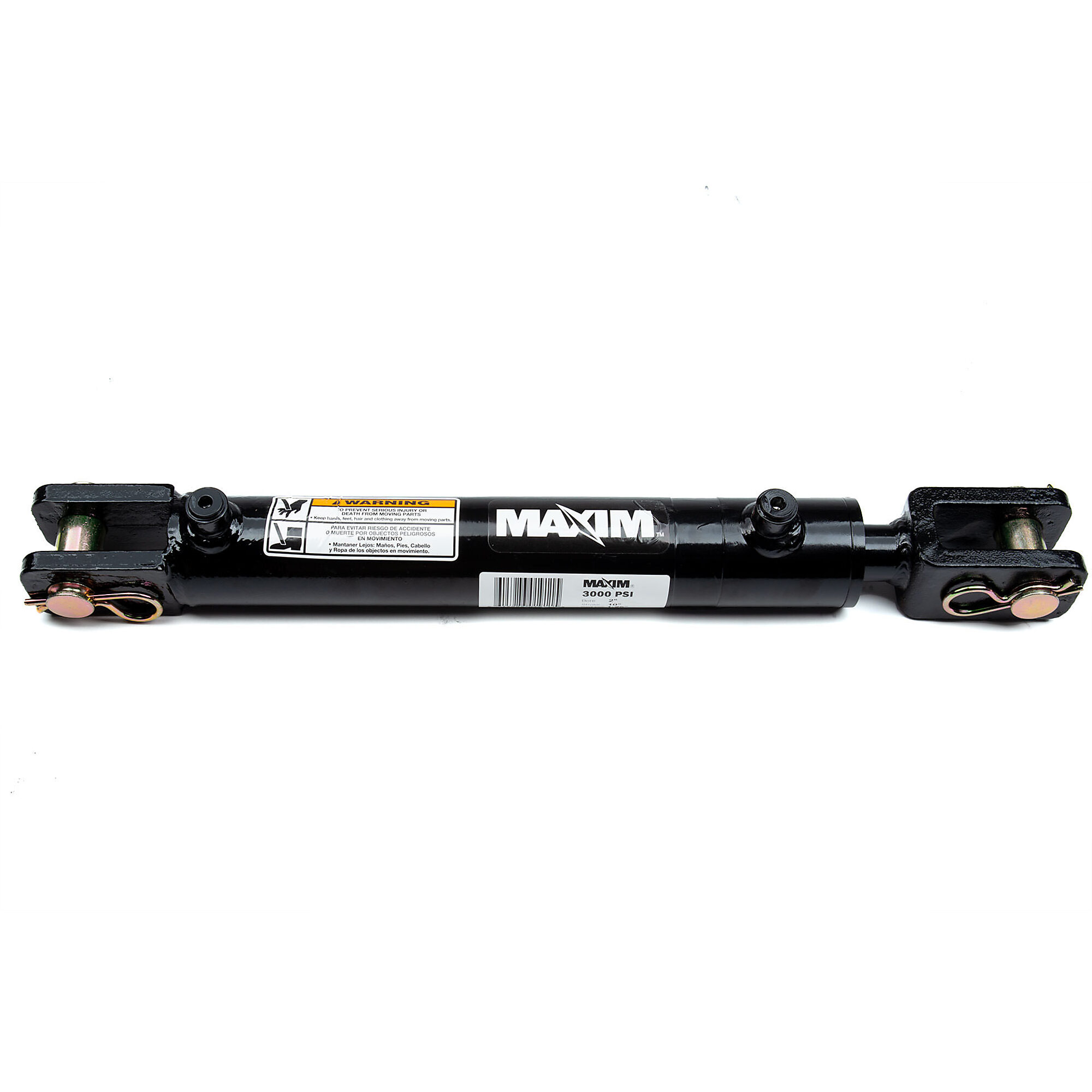

Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 3 in, Stroke Length 20 in, Model# 288435
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$209.99
- Ductile iron ASTM A536 65-45-12 for excellent life
- Grade 8, high tensile zinc-plagted piston lock nut

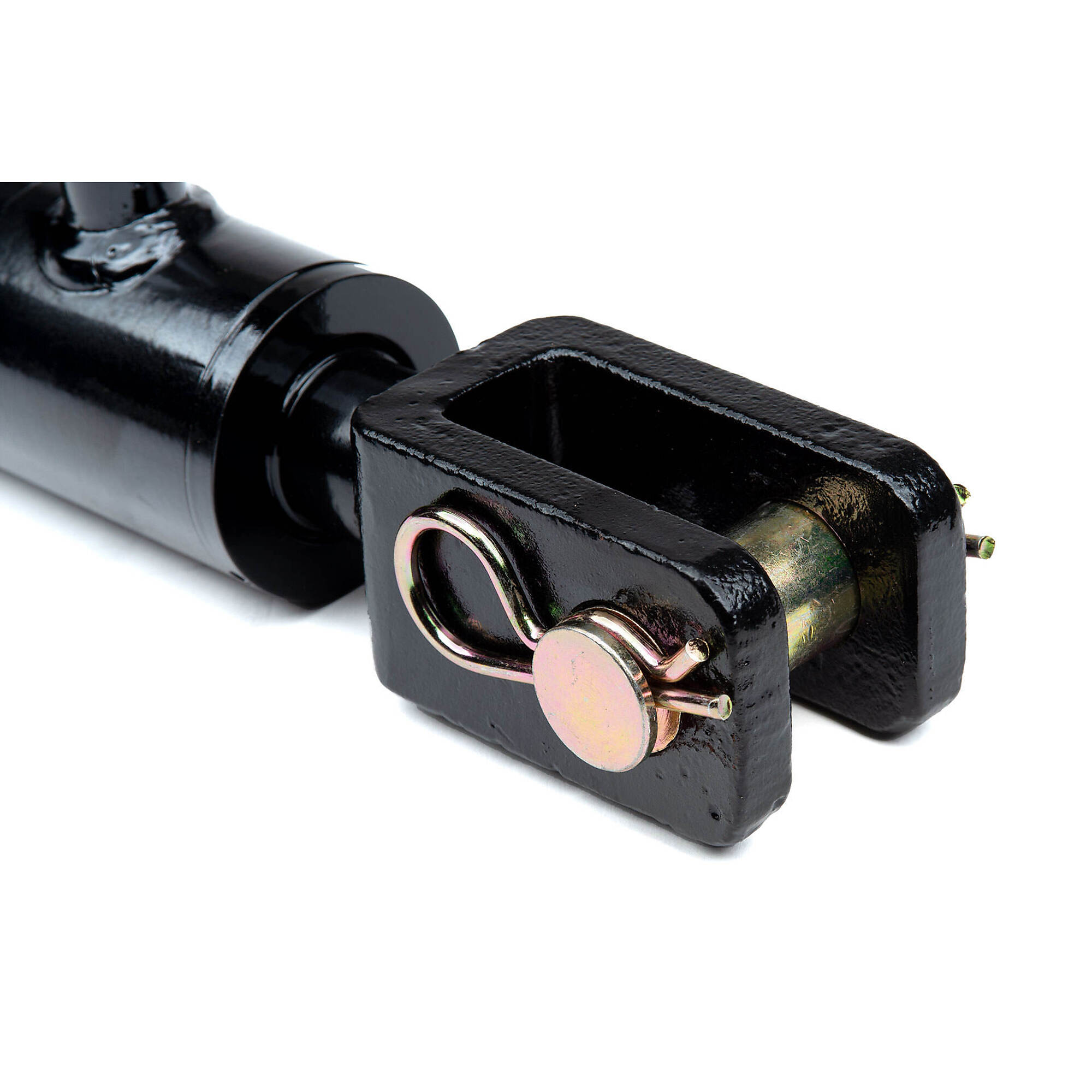

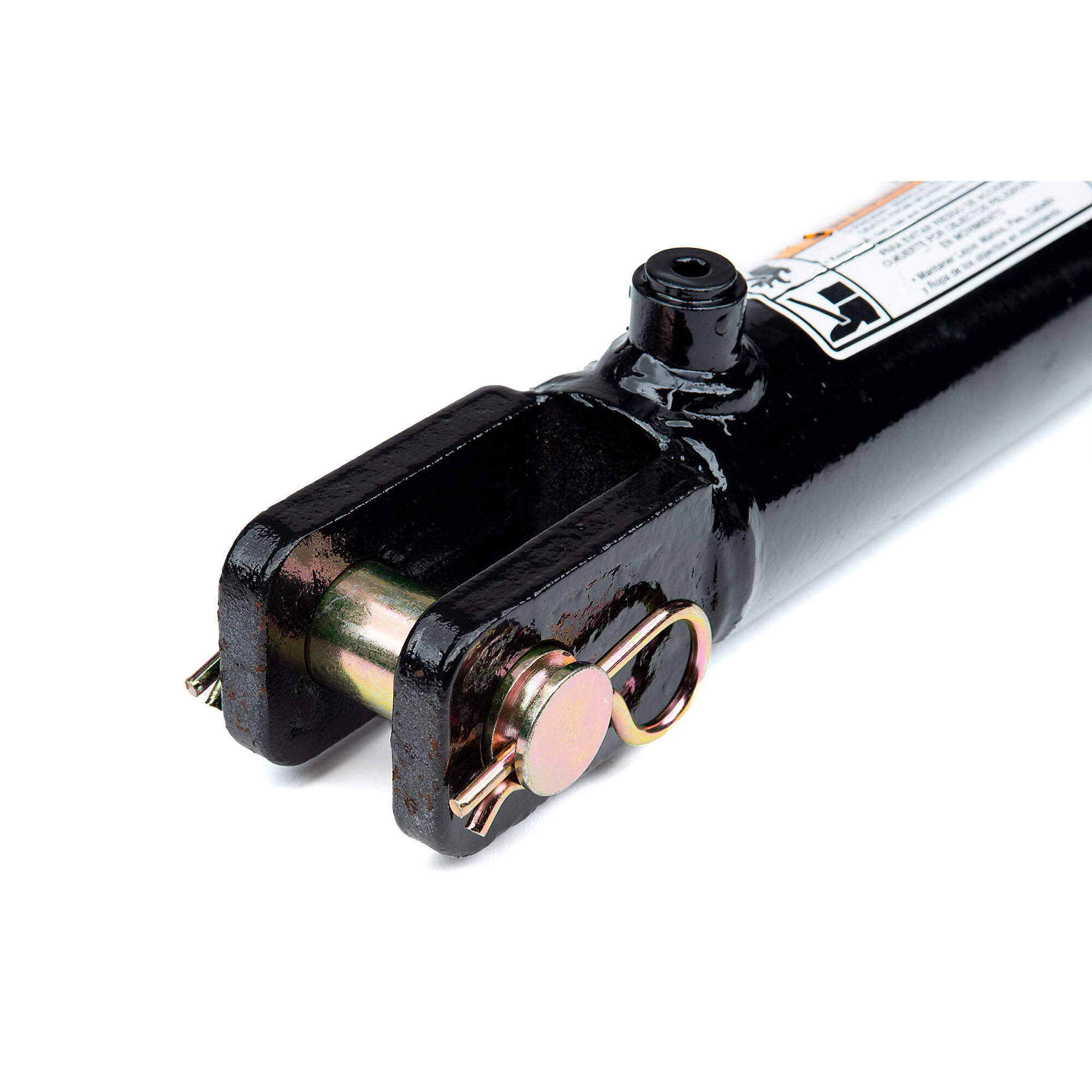

- Steel-cast female clevis end mounts
- Polypak rod seal with B lip design
Prop 65 Warning: See Details
See full description
See All Welded Clevis Cylinders
See All Maxim Welded Clevis Cylinders
Currently Viewing This Product
Specifications
Specifications
Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 3 in, Stroke Length 20 in, Model# 288435
WEN CC-4008 Clevis Hydraulic Cylinder with 4-inch Bore and 8-inch Stroke
Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2.5 in, Stroke Length 8 in, Model# 288416
Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 4 in, Stroke Length 36 in, Model# 288464
Max. PSI
Same
3,000
4,500
3,000
3,000
Bore Diameter
Same
3 in
4 in
2.5 in
4 in
Stroke Length
Same
20 in
8 in
8 in
36 in
Retracted Length
Same
30.25 in
18.25 in
18.25 in
46.25 in
Extended Length
Same
50.25 in
26.25 in
26.25 in
82.25 in
Pin Diameter
Same
1 in
-
1 in
1 in
Product Weight
Same
37.2700 lb
40.3000 lb
23.2800 lb
90.0000 lb
Dimensions L x W x H (in.)
Same
50.25 x 3.0 x 3.0 in
20.3 x 5.31 x 4.5 in
26.25 x 2.5 x 2.5 in
82.25 x 4.0 x 4.0 in
Port Size
Same
-
0.75 in
-
-
