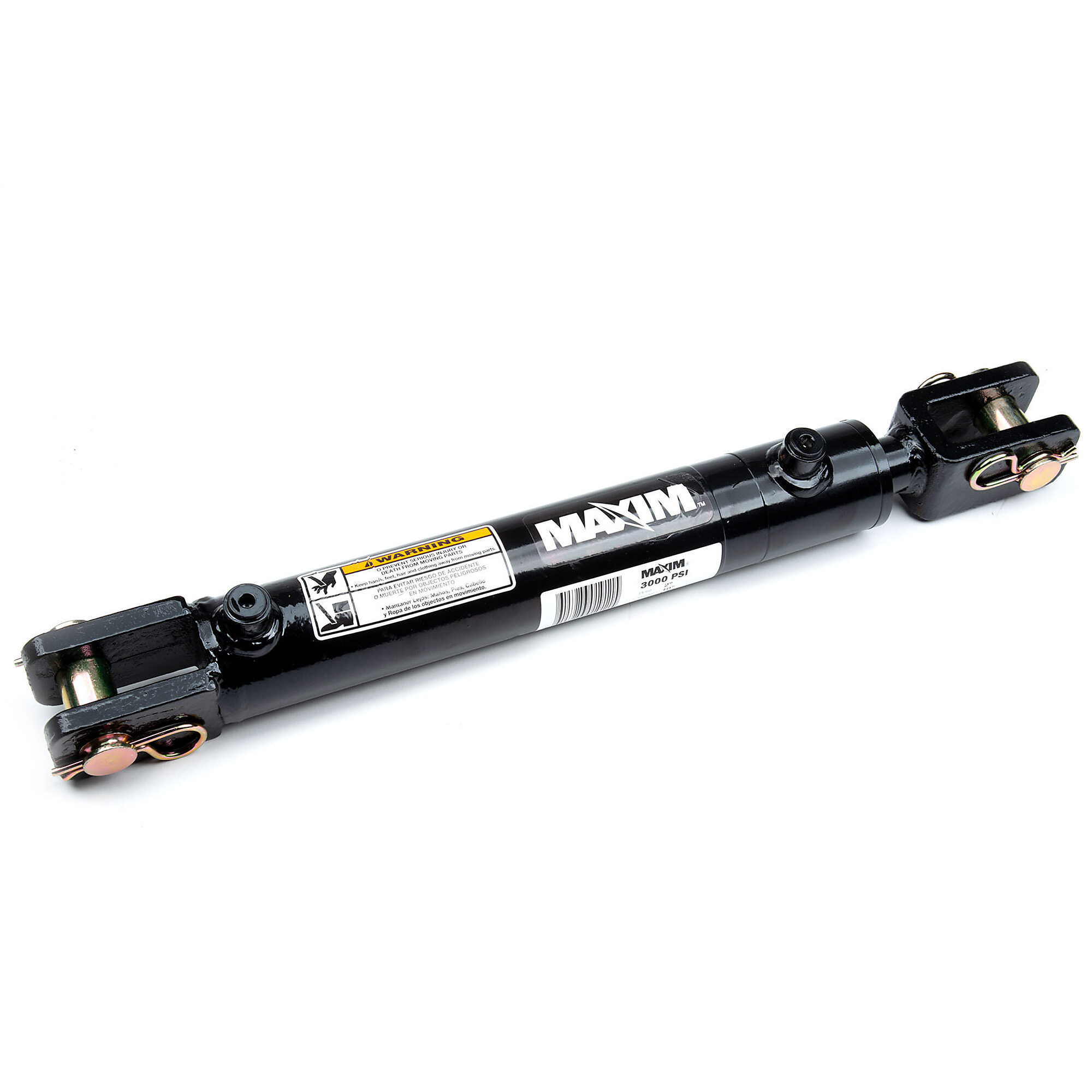

Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 24 in, Model# 288410

Item# 4858240
33 of 35 reviewers received a sample product or took part in a promotion
Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 24 in, Model# 288410

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 24 in, Model# 288410

Click or Tap image to Zoom

$159.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Ductile iron ASTM A536 65-45-12 for excellent life
  • Grade 8, high tensile zinc-plagted piston lock nut

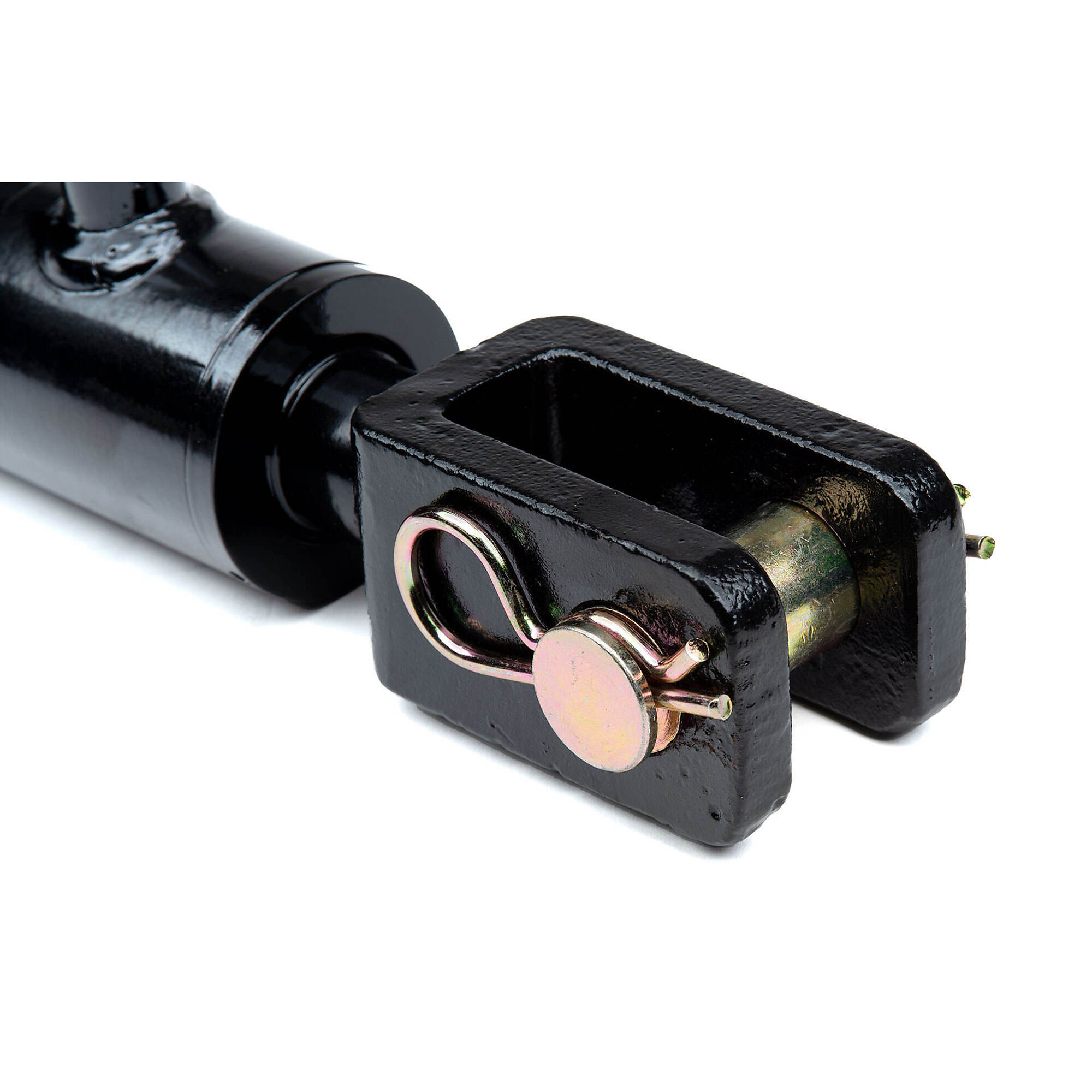

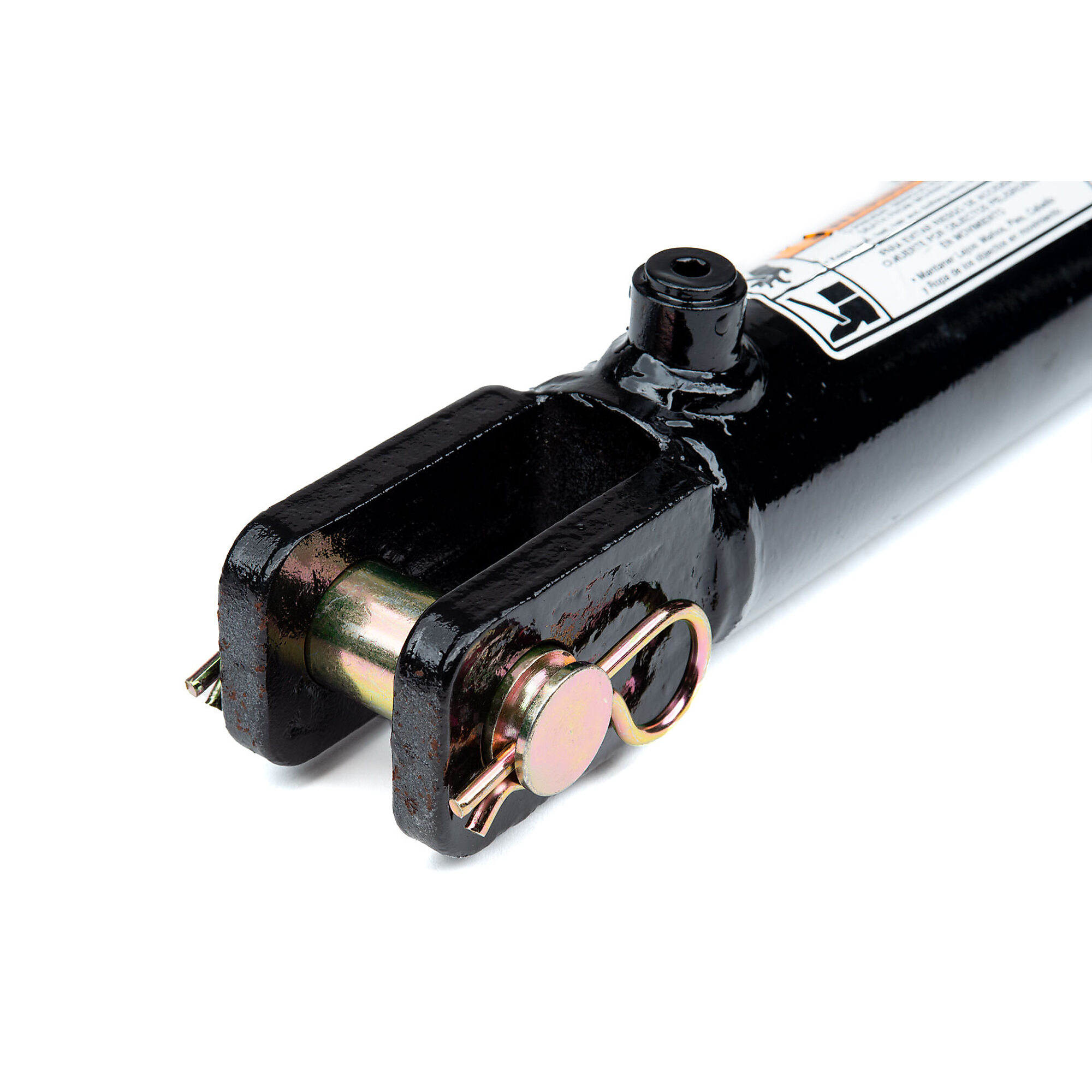

  • Steel-cast female clevis end mounts
  • Polypak rod seal with B lip design

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

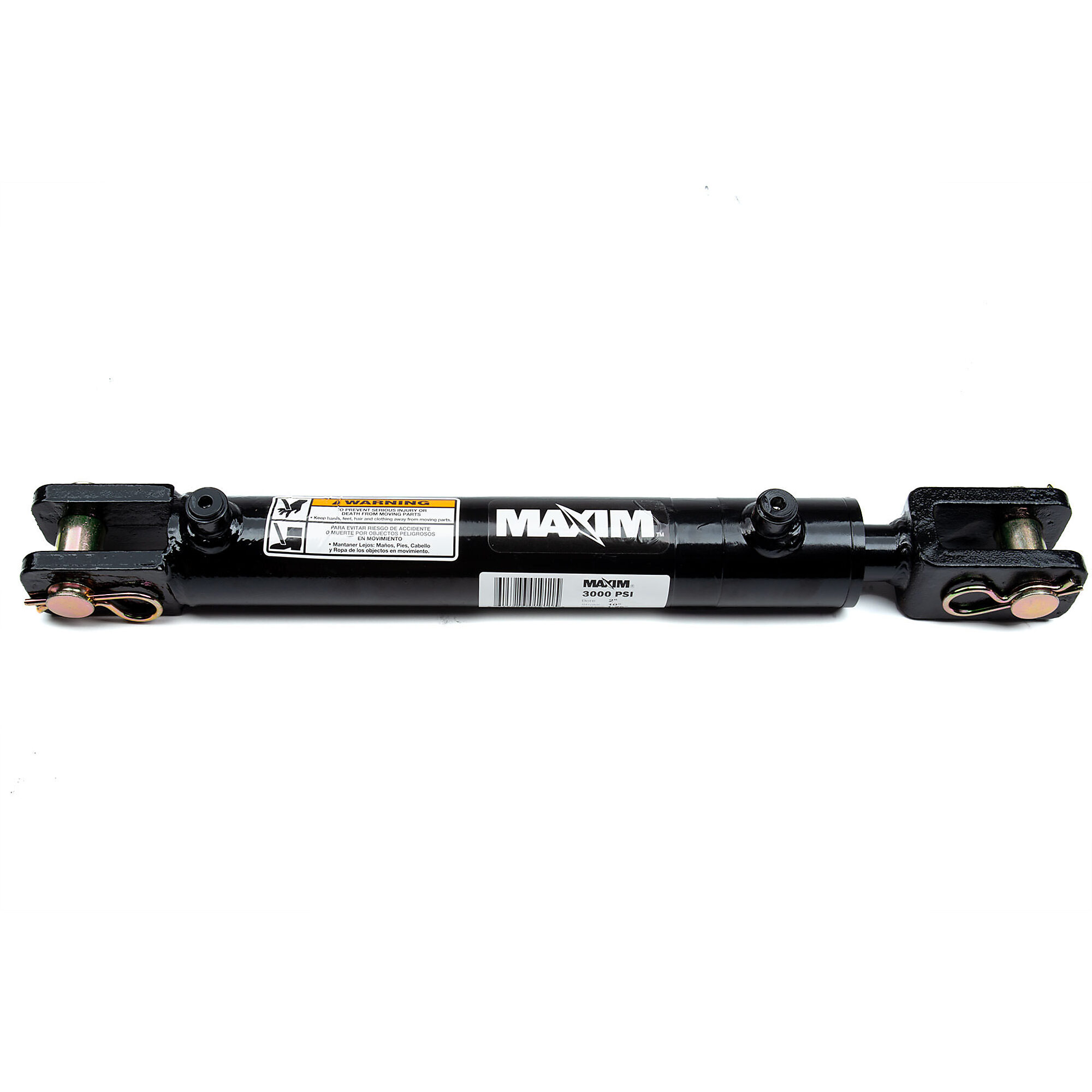

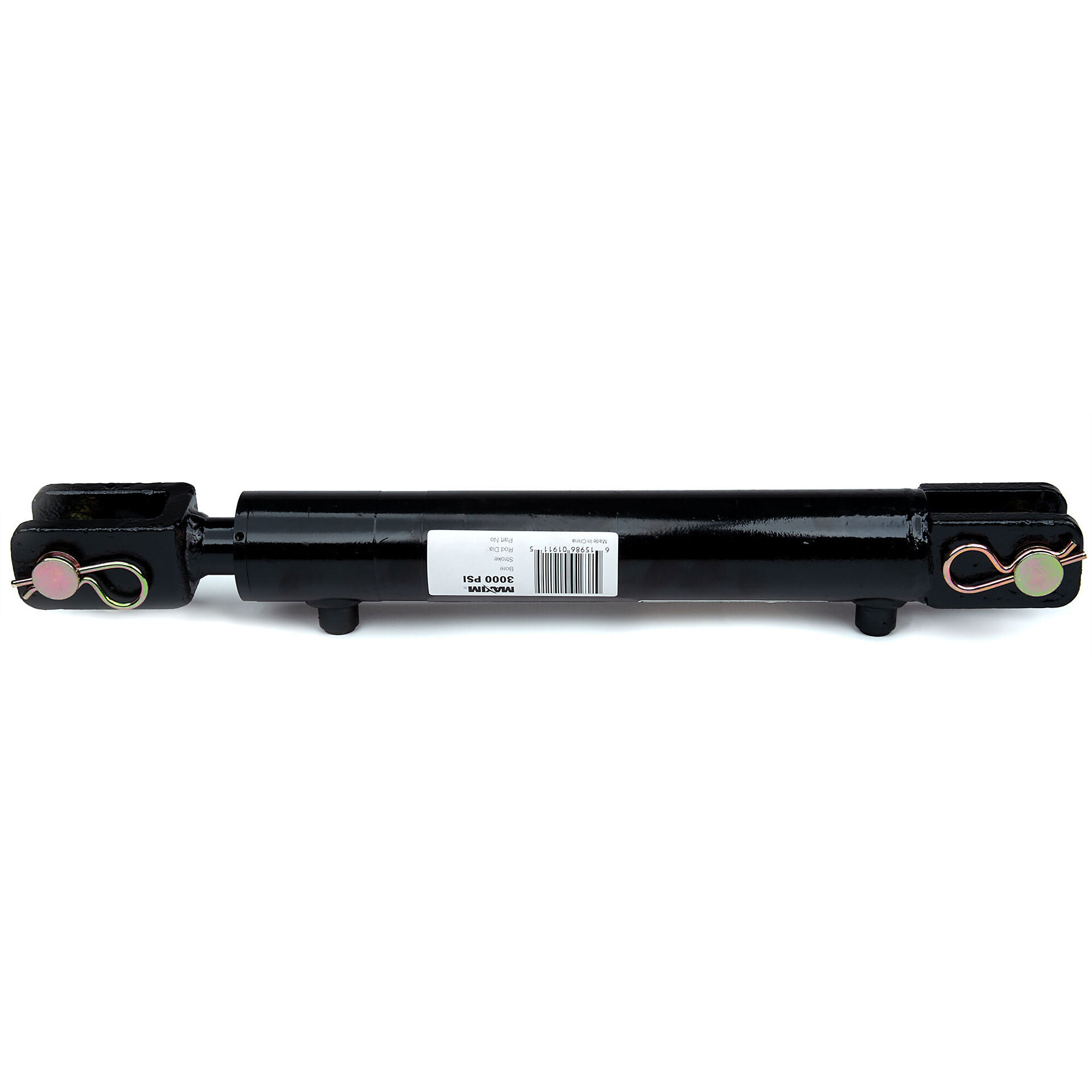

The Maxim WC welded hydraulic cylinder is designed for demanding applications and built to ensure maximum reliability and performance, exceeding the highest standards. Manufactured from precision-forged steel with a hard chrome-plated rod, this cylinder is made for durability. For maximum flexibility the base-end clevis extends an extra 2in. to offer a greater swing radius. For the highest reliability, the Maxim WC features a piston made from ductile iron with a long-lasting Hallite 755 wear ring, Buna o-ring tube seals, a deep PolyPak rod seal with a B-lip design, and snap-in urethane rod wiper. This cylinder is rated for 3000 psi and female clevis-mounted with included pins and clips. Comes standard in black.

What's Included

    (1) Cylinder

Features + Benefits

  • Ductile iron ASTM A536 65-45-12 for excellent life
  • Grade 8, high tensile zinc-plagted piston lock nut
  • Steel-cast female clevis end mounts
  • Polypak rod seal with B lip design

Key Specs

AttributeSpecification

item#

4858240

Brand

Maxim

Manufacturer's Warranty

1 year limited warranty

Ship Weight

29.56 LB

Max. PSI

3,000

Bore Diameter

2 in
AttributeSpecification

Stroke Length

24 in

Retracted Length

34.25 in

Extended Length

58.25 in

Pin Diameter

1 in

Product Weight

29.5600 lb

Dimensions L x W x H (in.)

58.25 x 2.0 x 2.0 in

Reviews

Questions & Answers

35 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Is this cylinder a double action cylinder or single cylinder? Will it push and pull or only lift or pull in?

    1 answer

    1. The Maxim WC Welded Cylinder you mentioned is a double-acting cylinder. This means it can both push and pull, providing power in both directions. It is designed to lift and retract, making it suitable for applications requiring movement in both directions.

      Helpful?

  2. What is the width of the yoke, outside dimensions?

    1 answer

    1. The outside width of the yoke/clevis, on both ends, is 2.125".

      Helpful?

  3. what is the thread size

    1 answer

    1. The port size is an SAE-6 (9/16-18).

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
