The yoke width on both ends would be 2 1/4" OD.

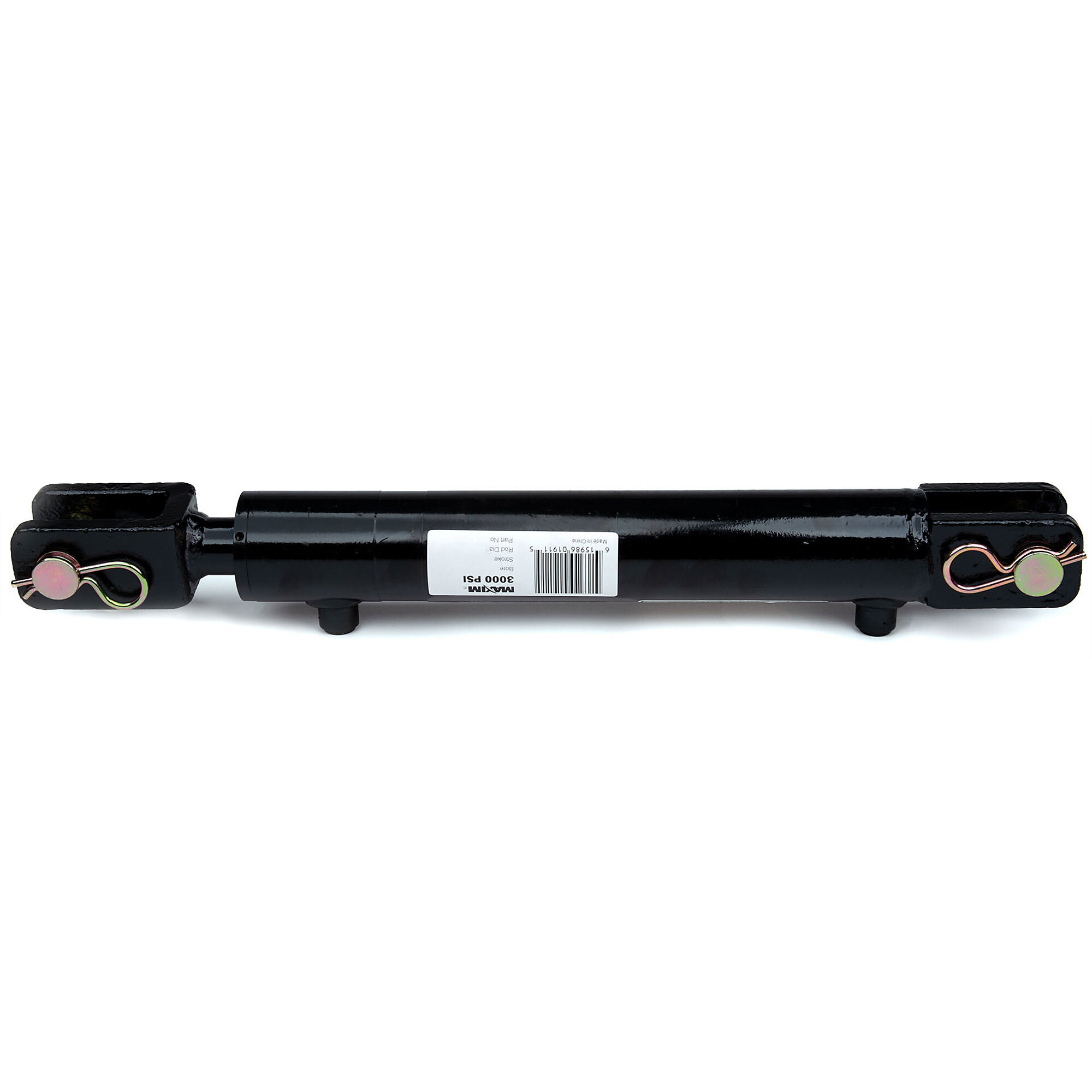

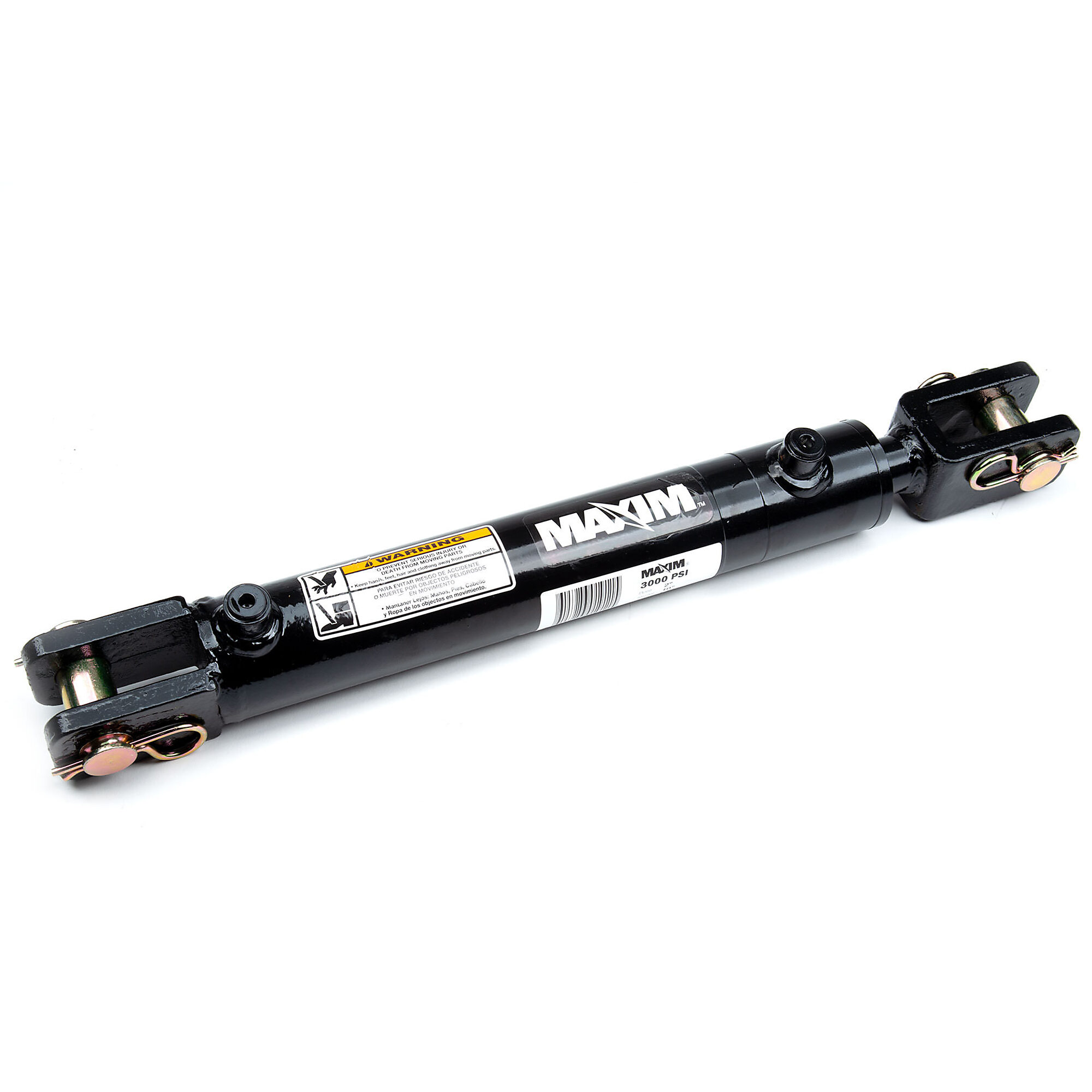

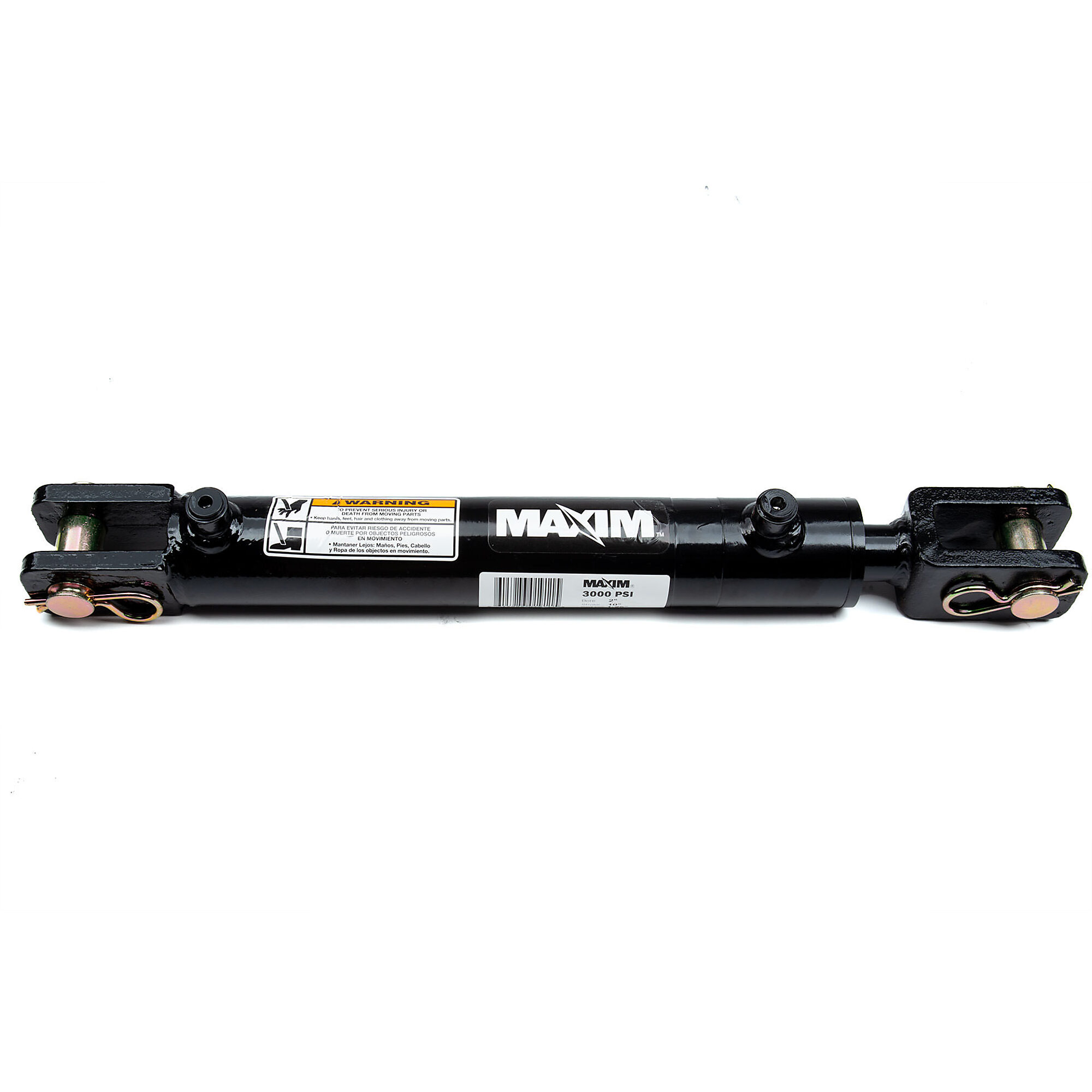

WC Welded Clevis Hydraulic Cylinder: 2 Bore x 10 Stroke, 1.25 Rod
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$234.45
- Ductile iron ASTM A536 65-45-12 for excellent life
- Piston Lock Nut: Grade 8, high tensile zinc-plated
- Gland: Ductile iron ASTM A536 65-45-14

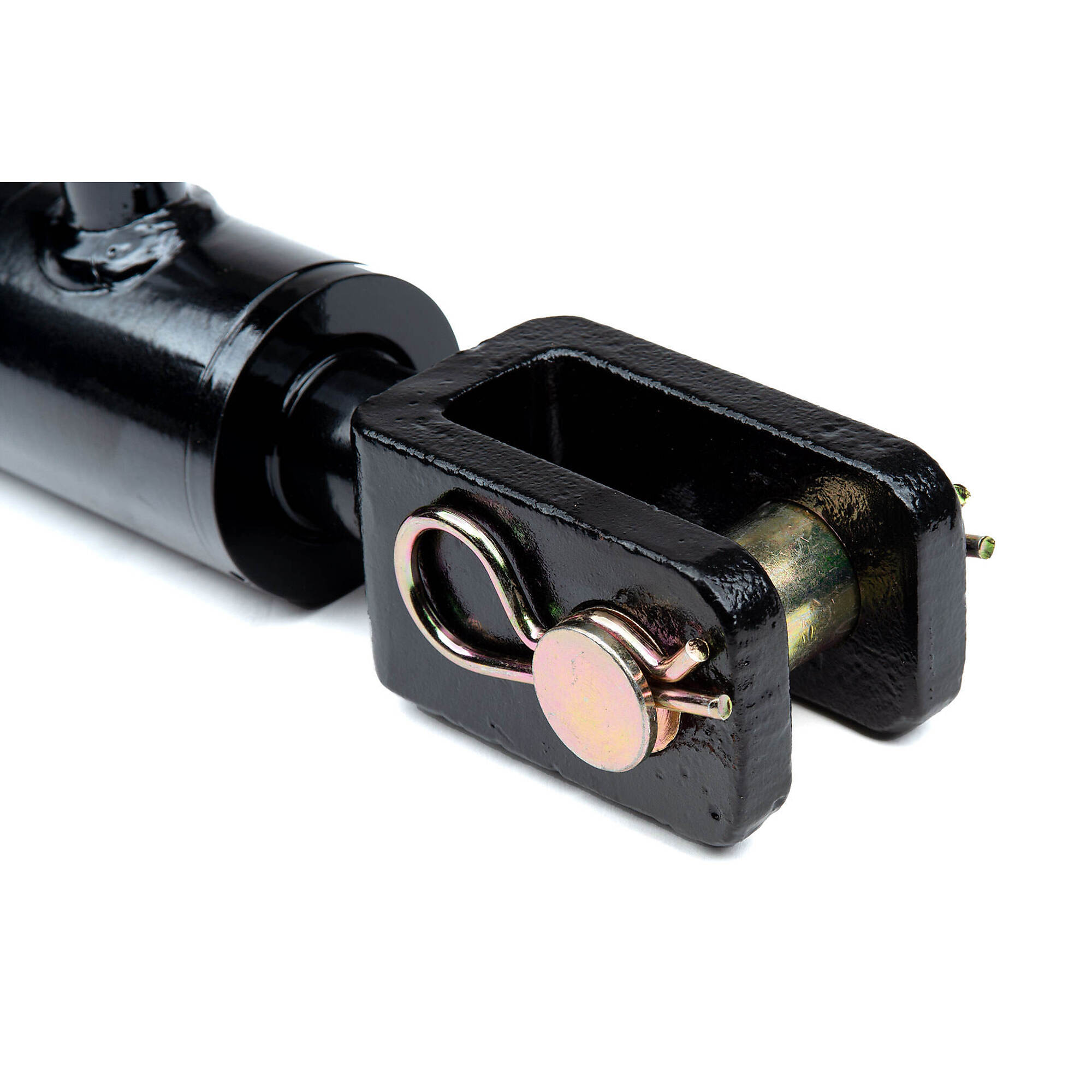

- Durable Construction: Steel cast female clevises with pins and clips included, high tensile cold drawn tube, precision honed for extended seal life
See full description
See All Welded Clevis Cylinders
See All Maxim Welded Clevis Cylinders
Currently Viewing This Product
Specifications
Specifications
WC Welded Clevis Hydraulic Cylinder: 2 Bore x 10 Stroke, 1.25 Rod
WC Welded Clevis Hydraulic Cylinder: 3 Bore x 18 Stroke, 1.5 Rod
WC Welded Clevis Hydraulic Cylinder: 4 Bore x 12 Stroke, 2 Rod
Max. PSI
Same
3,000
3,000
3,000
Bore Diameter
Same
2 in
3 in
4 in
Stroke Length
Same
10 in
18 in
12 in
Retracted Length
Same
20.25 in
28.25 in
22.25 in
Extended Length
Same
30.25 in
46.25 in
34.25 in
Pin Diameter
Same
1 in
1 in
1 in
Product Weight
Same
17.6400 lb
34.0000 lb
44.0900 lb
Dimensions L x W x H (in.)
Same
30.25 x 4.0 x 4.0 in
31.0 x 5.0 x 5.0 in
34.25 x 6.0 x 6.0 in
Shaft Diameter
Same
-
1.5 in
-
Cylinder Capacity
Same
-
21,200 lb
-
