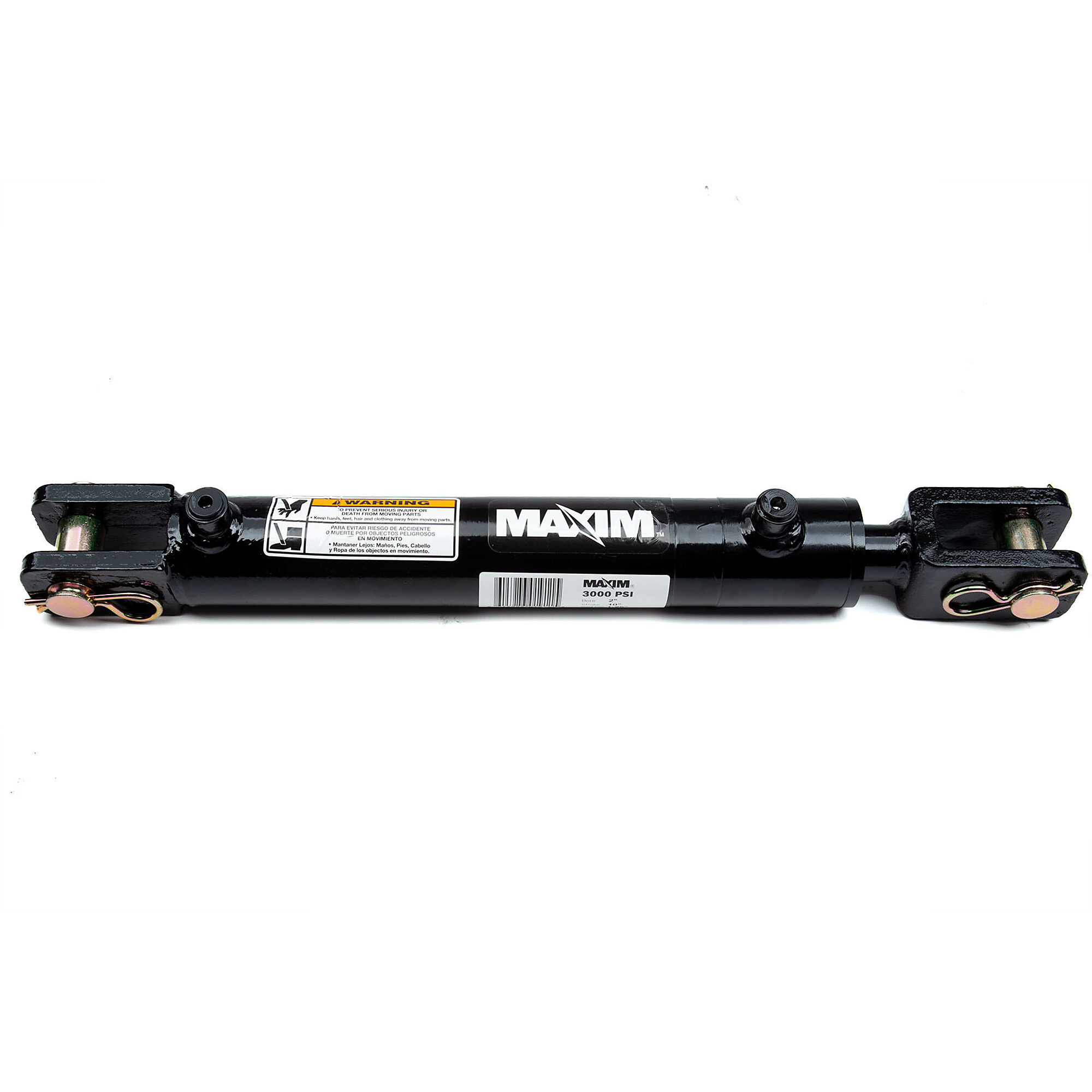

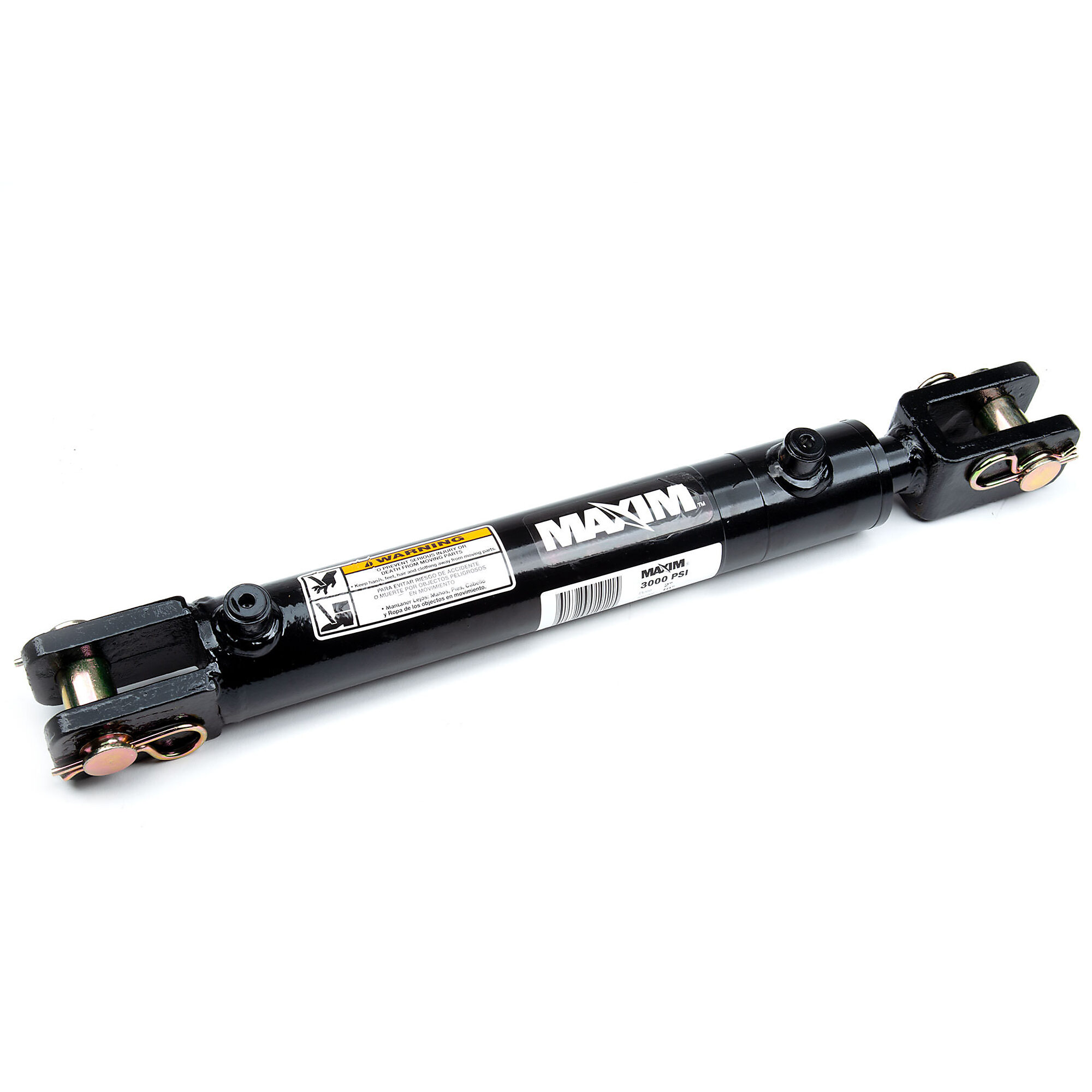

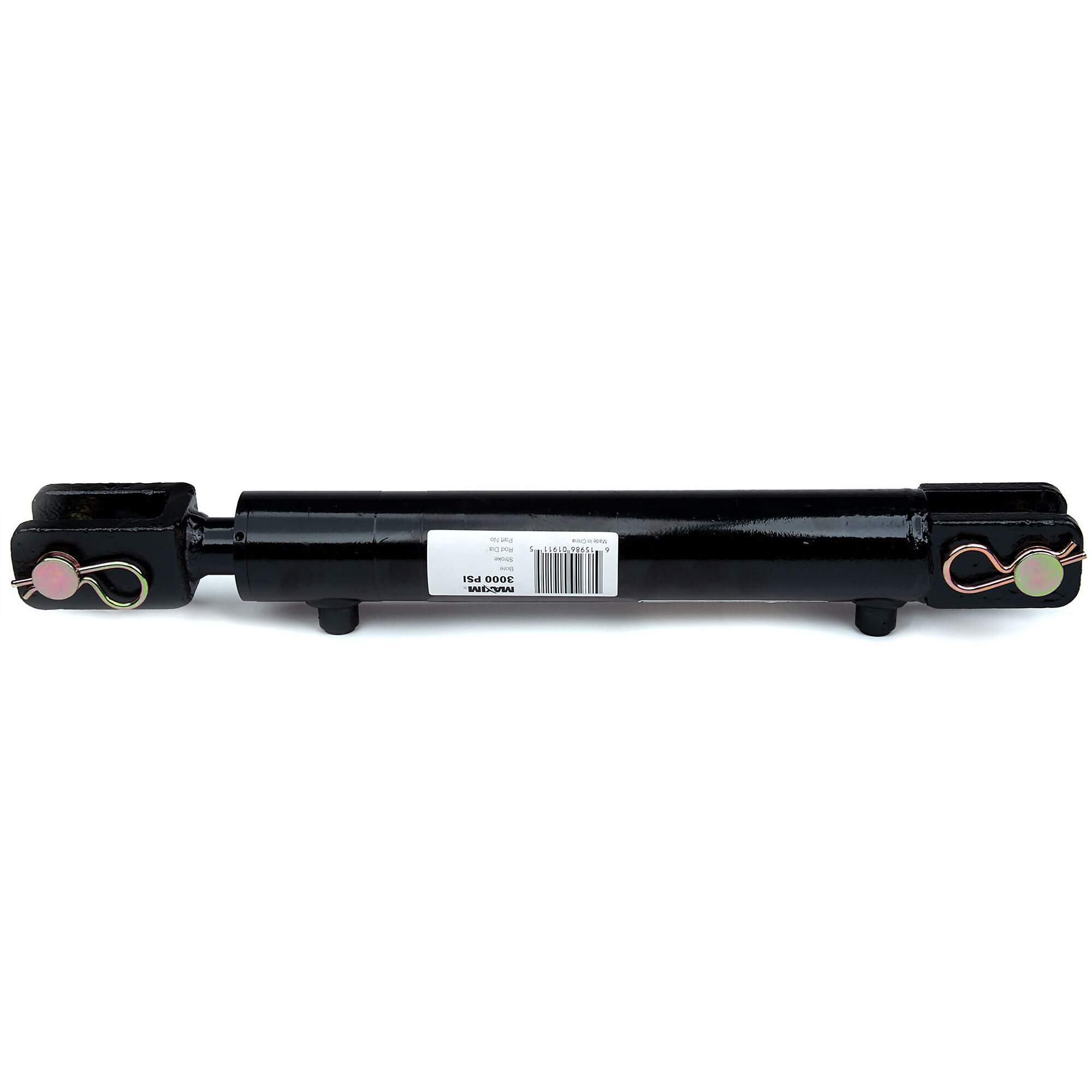

Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2.5 in, Stroke Length 8 in, Model# 288416

Item# 4858151
Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2.5 in, Stroke Length 8 in, Model# 288416

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2.5 in, Stroke Length 8 in, Model# 288416

Click or Tap image to Zoom

$169.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Ductile iron ASTM A536 65-45-12 for excellent life
  • Grade 8, high tensile zinc-plagted piston lock nut

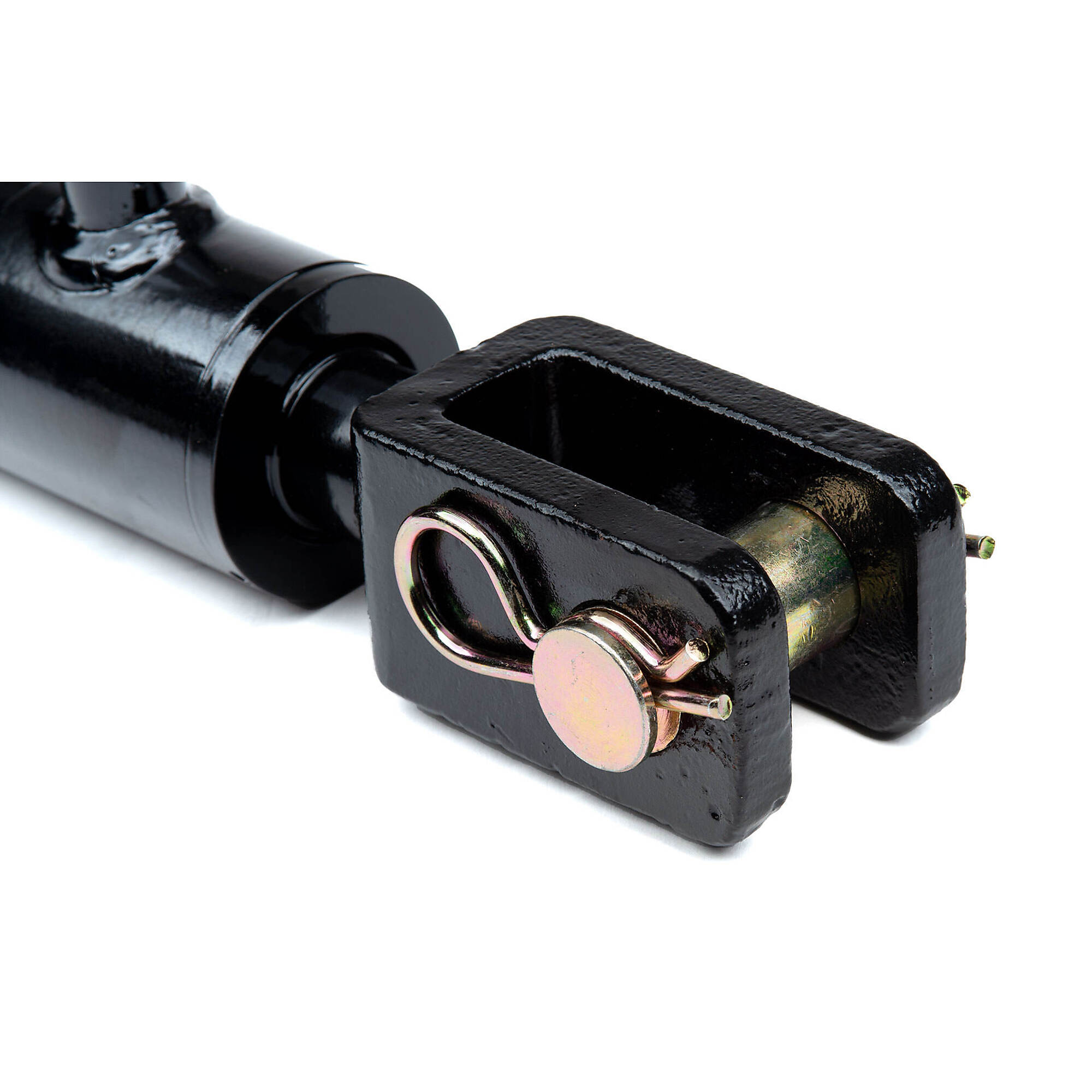

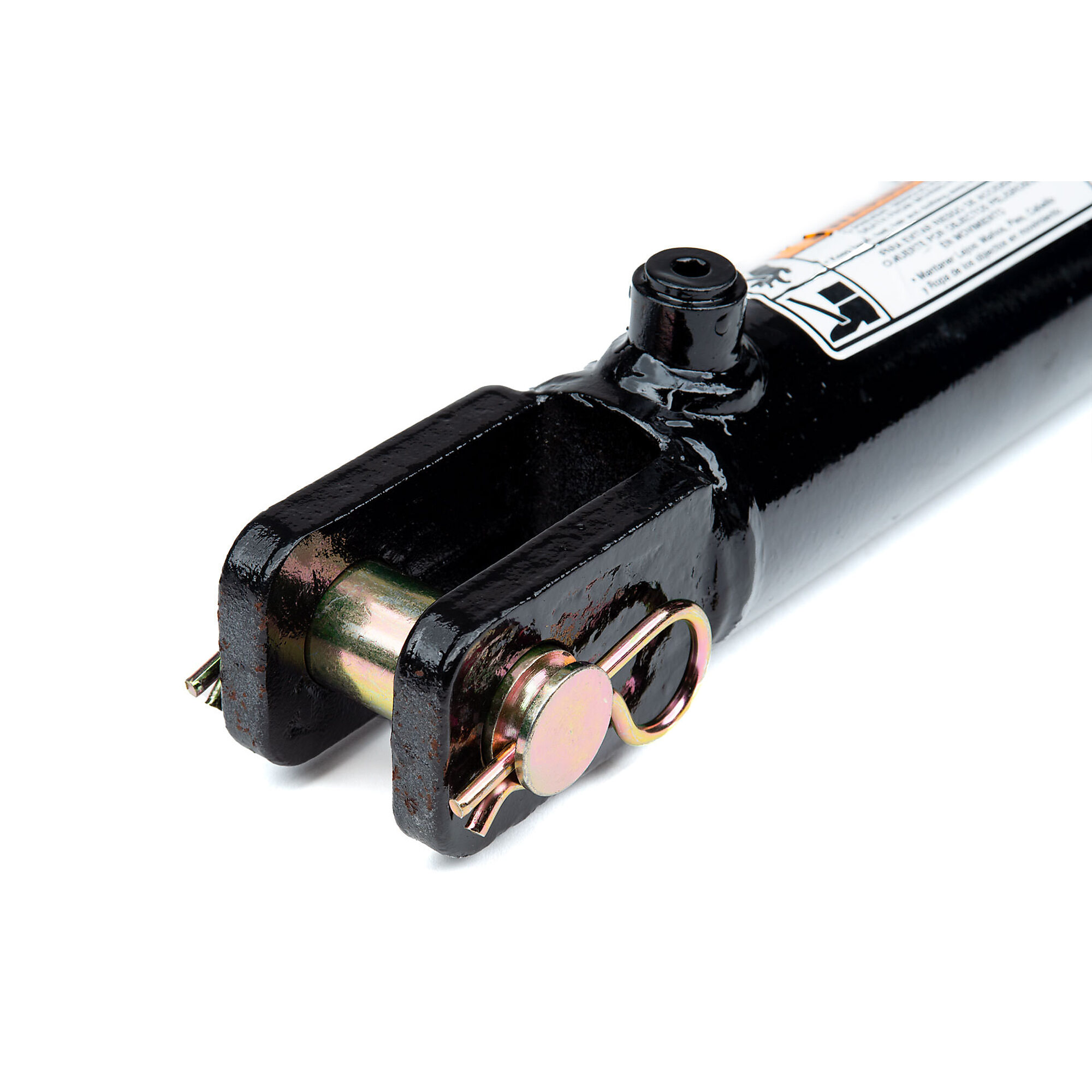

  • Steel-cast female clevis end mounts
  • Polypak rod seal with B lip design

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Maxim WC welded hydraulic cylinder is designed for demanding applications and built to ensure maximum reliability and performance, exceeding the highest standards. Manufactured from precision-forged steel with a hard chrome-plated rod, this cylinder is made for durability. For maximum flexibility the base-end clevis extends an extra 2in. to offer a greater swing radius. For the highest reliability, the Maxim WC features a piston made from ductile iron with a long-lasting Hallite 755 wear ring, Buna o-ring tube seals, a deep PolyPak rod seal with a B-lip design, and snap-in urethane rod wiper. This cylinder is rated for 3000 psi and female clevis-mounted with included pins and clips. Comes standard in black.

What's Included

    (1) Cylinder

Features + Benefits

  • Ductile iron ASTM A536 65-45-12 for excellent life
  • Grade 8, high tensile zinc-plagted piston lock nut
  • Steel-cast female clevis end mounts
  • Polypak rod seal with B lip design

Key Specs

AttributeSpecification

item#

4858151

Brand

Maxim

Manufacturer's Warranty

1 year limited warranty

Ship Weight

23.28 LB

Max. PSI

3,000

Bore Diameter

2.5 in
AttributeSpecification

Stroke Length

8 in

Retracted Length

18.25 in

Extended Length

26.25 in

Pin Diameter

1 in

Product Weight

23.2800 lb

Dimensions L x W x H (in.)

26.25 x 2.5 x 2.5 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Whats the diameter Of pins?

    1 answer

    1. The mounting pins on the Maxim Model 288416 hydraulic cylinder are 1 inch in diameter.

      Helpful?

  2. What is the rod diameter on this cylinder

    1 answer

    1. The rod diameter is 1.5".

      Helpful?

  3. What size fittings do I need for the hydraulic ports?

    1 answer

    1. This cylinder has SAE 8 ports.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
