The cylinder would be double acting.

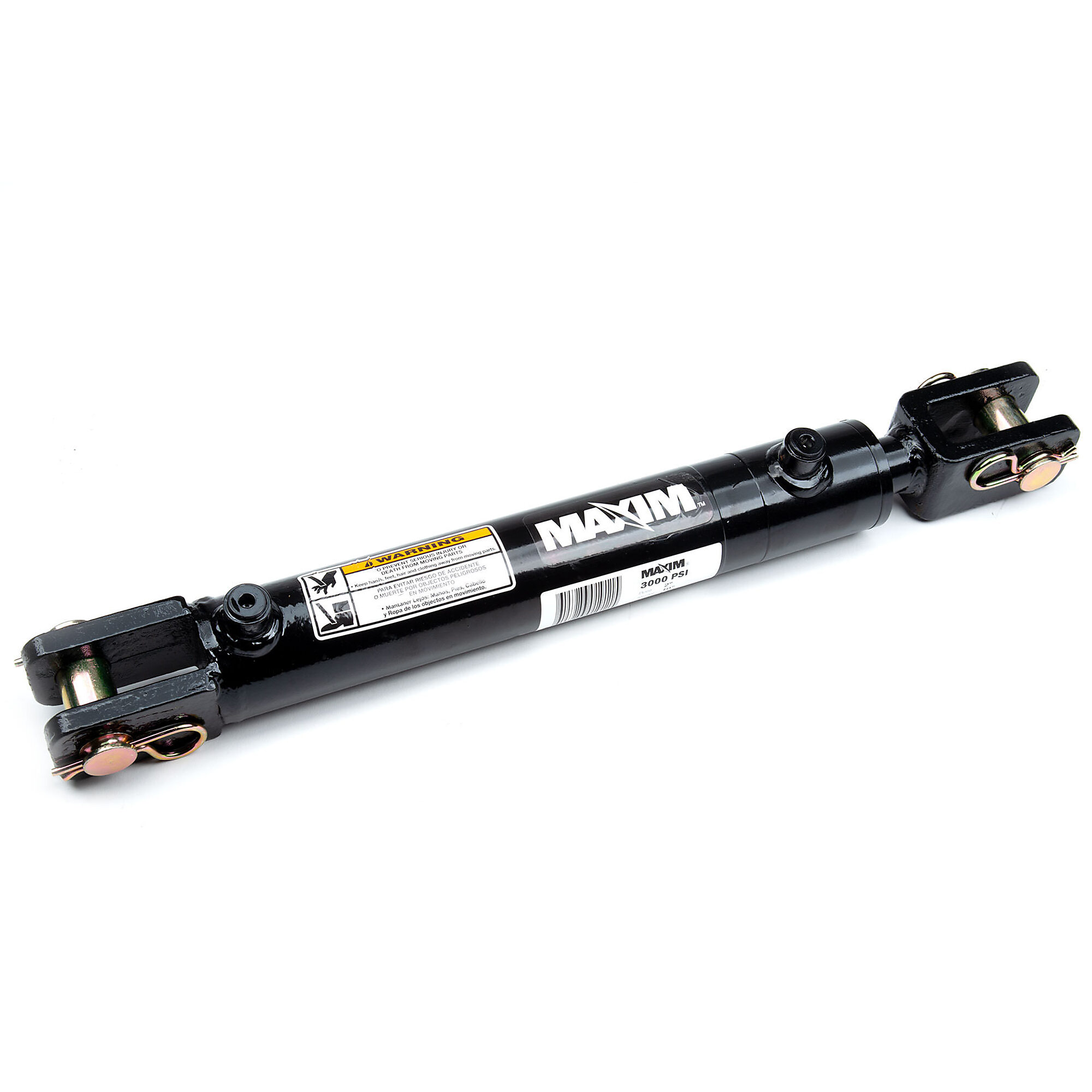

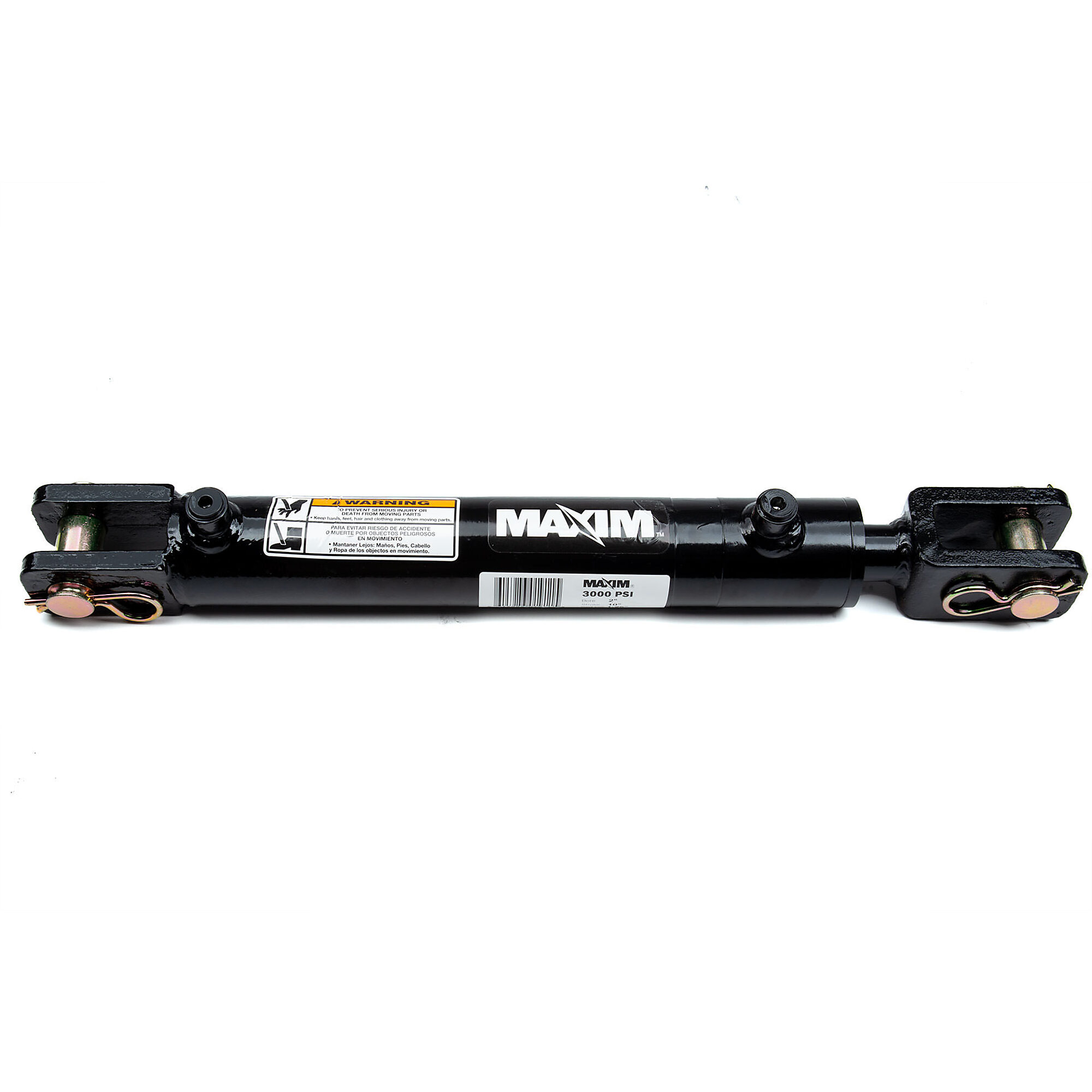

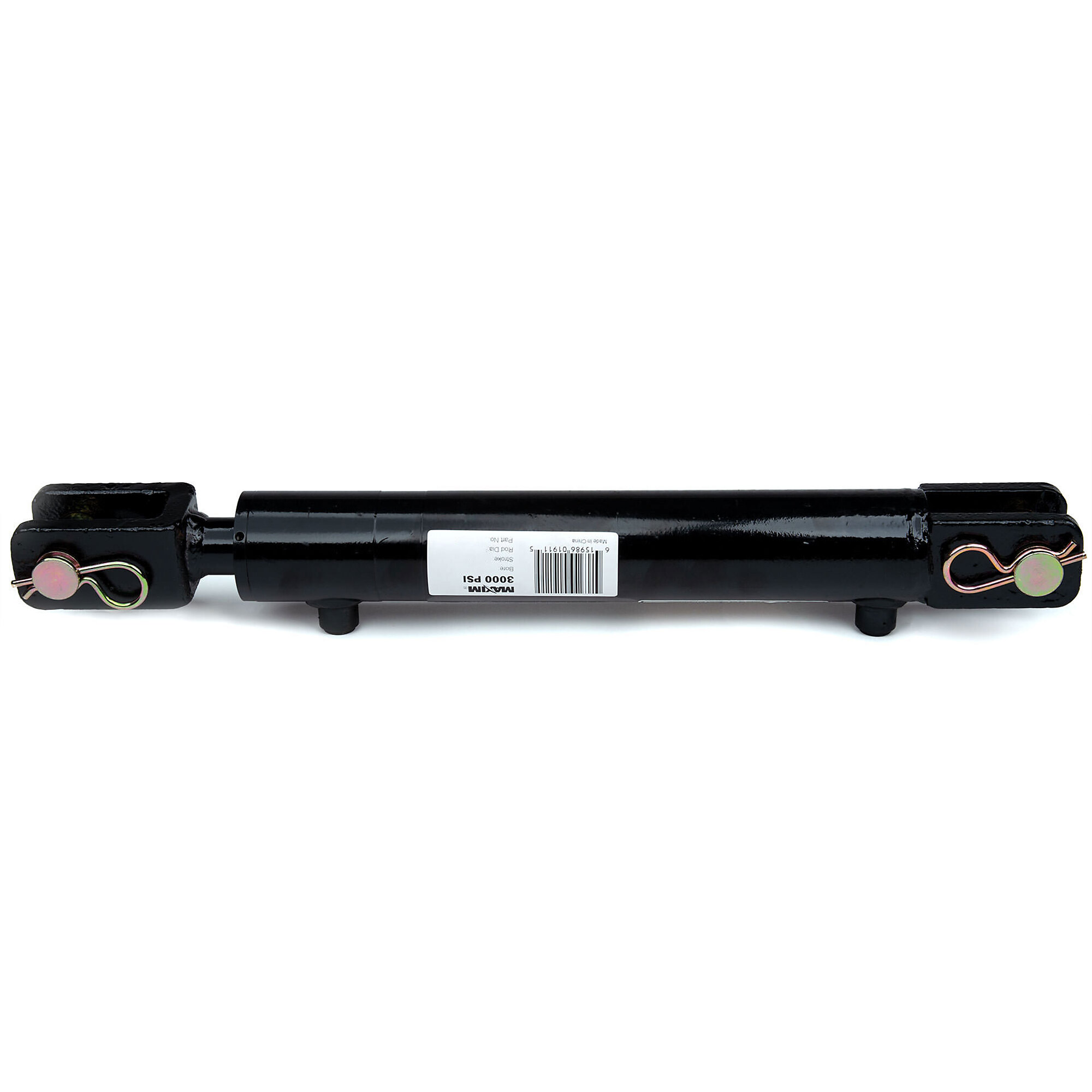

WC Welded Clevis Hydraulic Cylinder: 2.5 Bore x 30 Stroke, 1.5 Rod
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$349.52
- Piston Lock Nut: Grade 8, high tensile zinc-plated
- Gland: Ductile iron ASTM A536 65-45-31

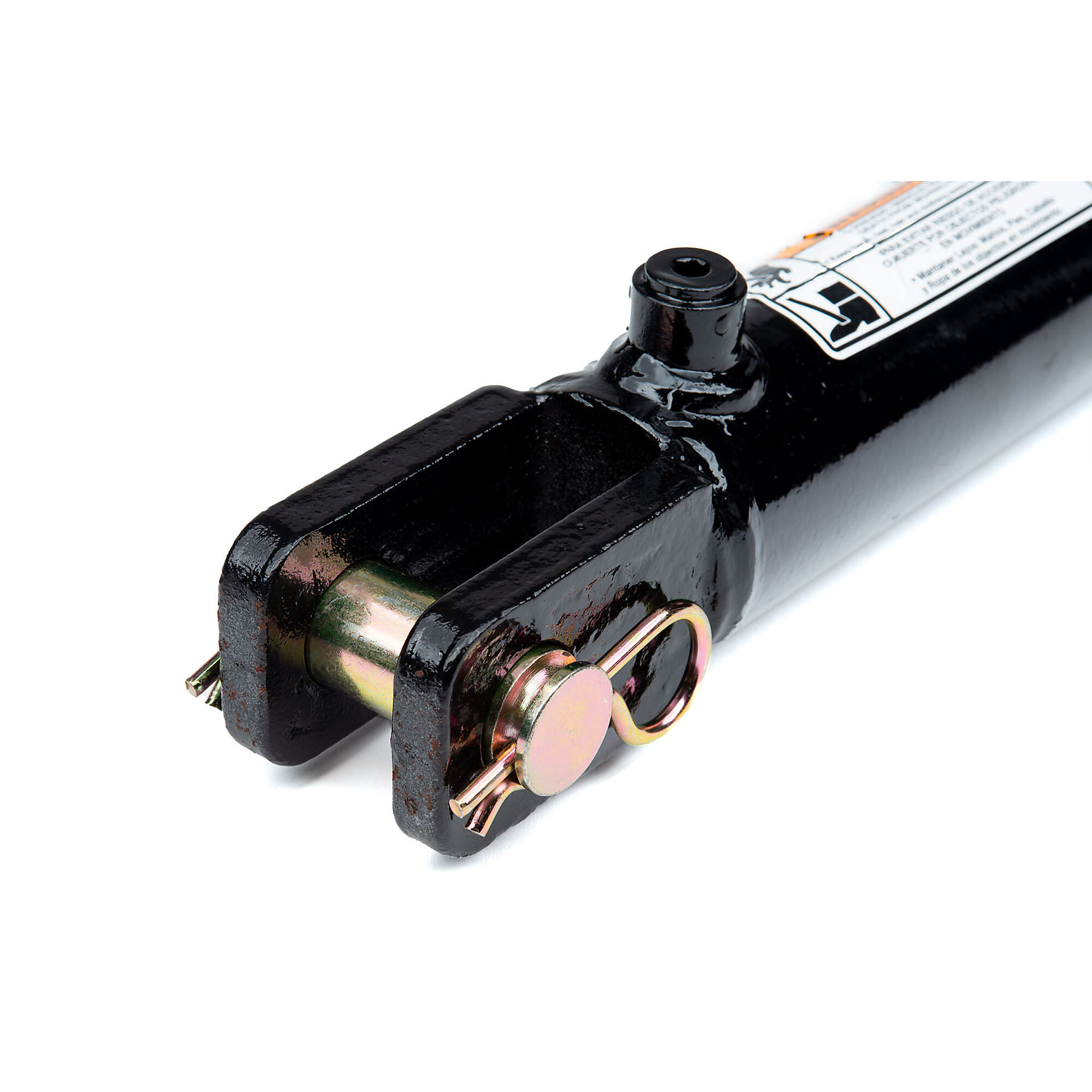

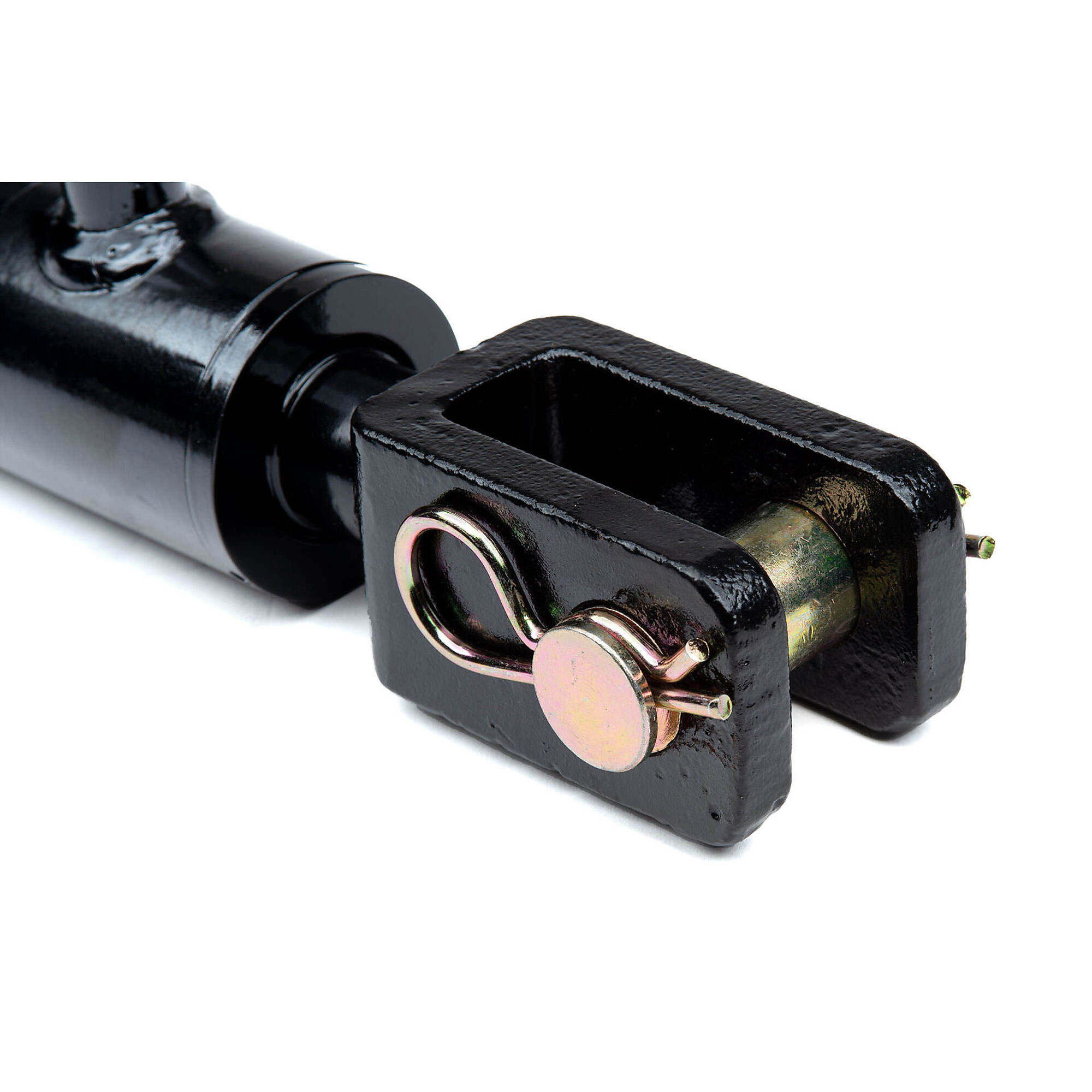

- Durable Construction: Steel cast female clevises with pins and clips included, high tensile cold drawn tube, precision honed for extended seal life
- Durable Construction: Steel cast female clevises with pins and clips included, high tensile cold drawn tube, precision honed for extended seal life
See full description
See All Welded Clevis Cylinders
See All Maxim Welded Clevis Cylinders
Currently Viewing This Product
Specifications
Specifications
WC Welded Clevis Hydraulic Cylinder: 2.5 Bore x 30 Stroke, 1.5 Rod
WC Welded Clevis Hydraulic Cylinder: 3 Bore x 18 Stroke, 1.5 Rod
Chief, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 8 in, Model# 287004
WC Welded Clevis Hydraulic Cylinder: 2 Bore x 10 Stroke, 1.25 Rod
Max. PSI
Same
3,000
3,000
3,000
3,000
Bore Diameter
Same
2.5 in
3 in
2 in
2 in
Stroke Length
Same
30 in
18 in
8 in
10 in
Retracted Length
Same
40.25 in
28.25 in
18.25 in
20.25 in
Extended Length
Same
70.25 in
46.25 in
26.25 in
30.25 in
Pin Diameter
Same
1 in
1 in
1 in
1 in
Product Weight
Same
41.4500 lb
34.0000 lb
18.8700 lb
17.6400 lb
Dimensions L x W x H (in.)
Same
70.25 x 4.5 x 4.5 in
31.0 x 5.0 x 5.0 in
26.25 x 2.0 x 2.0 in
30.25 x 4.0 x 4.0 in
Shaft Diameter
Same
-
1.5 in
-
-
Cylinder Capacity
Same
-
21,200 lb
-
-
