Maxim, TC Tie-rod Cylinder, Max. PSI 2500, Bore Diameter 4 in, Stroke Length 24 in, Model# 218332

Item# 4858531
"Maxim, TC Tie-rod Cylinder, Max. PSI 2500, Bore Diameter 4 in, Stroke Length 24 in, Model# 218332"
Maxim, TC Tie-rod Cylinder, Max. PSI 2500, Bore Diameter 4 in, Stroke Length 24 in, Model# 218332

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Maxim, TC Tie-rod Cylinder, Max. PSI 2500, Bore Diameter 4 in, Stroke Length 24 in, Model# 218332

Click or Tap image to Zoom

$309.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Precision honed steel materials
  • Hallite 755 piston seal for prolonged wear resistance
  • Hard chrome plated rod

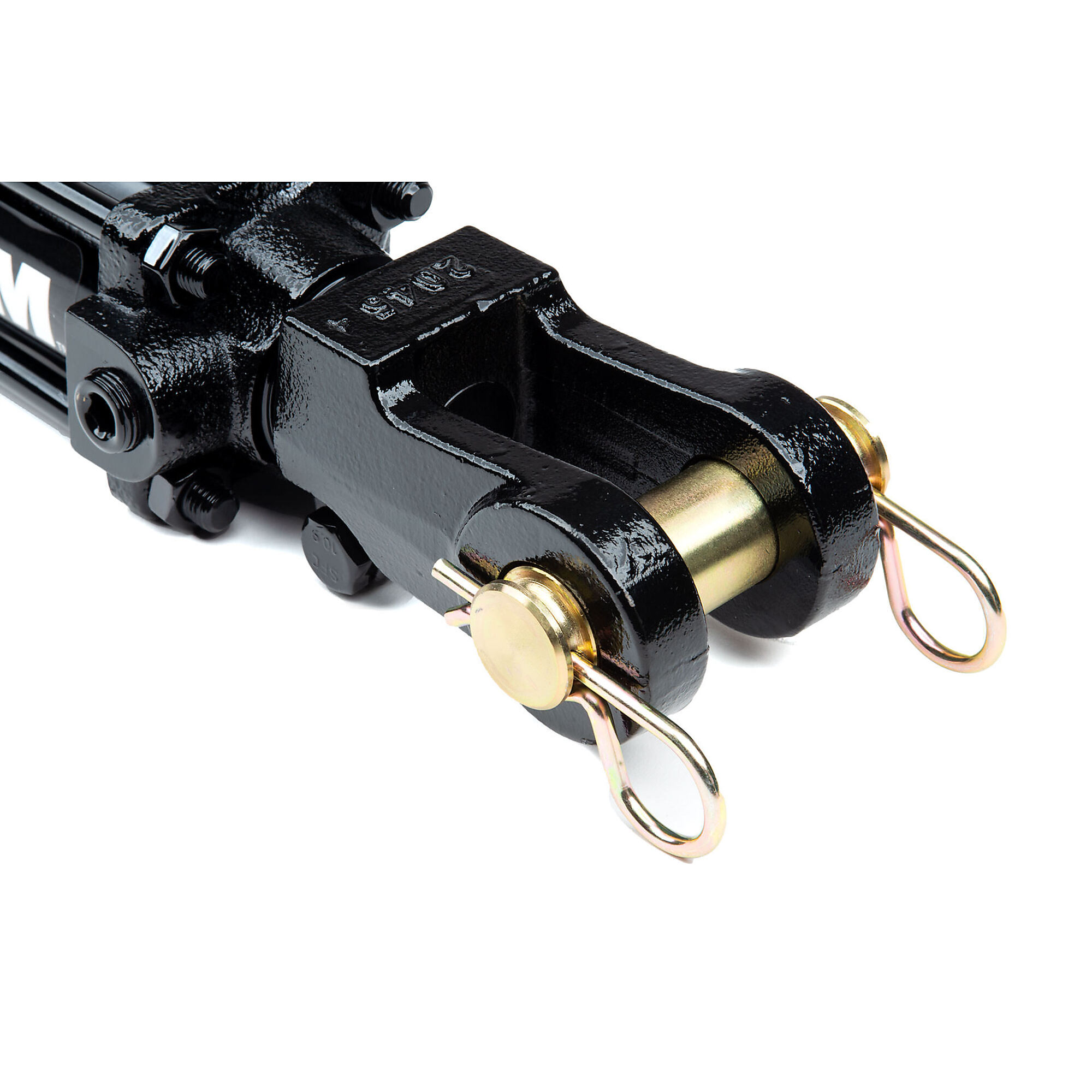

  • Ductile iron female clevis end mounts with pins and clips included

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Maxim TC 2500 PSI tie-rod hydraulic cylinder is designed for rugged agricultural applications, making it well suited to perform in demanding applications in any industry. This cylinder provides value without sacrificing engineered quality. Each cylinder undergoes rigorous testing that exceeds industry standards and ensures maximum reliability and performance.

What's Included

    (1) Cylinder

Features + Benefits

  • Precision honed steel materials
  • Hallite 755 piston seal for prolonged wear resistance
  • Hard chrome plated rod
  • Ductile iron female clevis end mounts with pins and clips included

Key Specs

AttributeSpecification

item#

4858531

Brand

Maxim

Manufacturer's Warranty

1 year limited warranty

Ship Weight

81.0 LB

Max. PSI

2,500

Bore Diameter

4 in
AttributeSpecification

Stroke Length

24 in

Retracted Length

34.25 in

Extended Length

58.25 in

Pin Diameter

1 in

Product Weight

81.0000 lb

Dimensions L x W x H (in.)

58.25 x 4.0 x 4.0 in

Reviews

Questions & Answers

35 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. On cylinder maxim 218332 are the threads on rod 1 1/4 UNF

    1 answer

    1. The 4 in bore × 24 in stroke Maxim 218332 tie-rod cylinder uses a 1 ¼″ – 12 UNF thread on the piston rod.

      Helpful?

  2. What is the threaded rod end diameter or the bore of the threaded clevis

    1 answer

    1. The 4-inch bore Maxim TC tie-rod cylinder (Model 218332) features a threaded clevis bore tapped 1¼-12 UNF (major diameter approximately 1.25 inches) and a clevis pivot-pin hole measuring 0.630 inches (16 mm).

      Helpful?

  3. What is bore of threaded shaft that goes into the clevis

    1 answer

    1. On model 218332 Maxim Tie-rod Cylinder it has a 4 inch bore diameter. The threaded rod on this model has a diameter of 1 1/8 inches.

      Helpful?

  4. What size hydraulic fitting does it take?

    1 answer

    1. The port sizes are 1/2'' NPT fittings.

      Helpful?

  5. What is the rod diameter?  This question is not the cylinder bore. Is it 1 inch 1-1/2 or 1-3/4?

    1 answer

    1. This cylinder would have a 2" diameter rod.

      Helpful?

  6. Is this a double acting cylinder ?

    1 answer

    1. The cylinder is double acting.

      Helpful?

  7. what size is cylinder rod

    1 answer

    1. The bore diameter is 4".

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
