MAXair Dual Control Premium Compressor - 5 HP, 25 Gal., 220V, 18.5 CFM, 170 PSI, Model# P5125H1-MAP

Item# 6097940
1 of 21 reviewers received a sample product or took part in a promotion
MAXair Dual Control Premium Compressor - 5 HP, 25 Gal., 220V, 18.5 CFM, 170 PSI, Model# P5125H1-MAP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

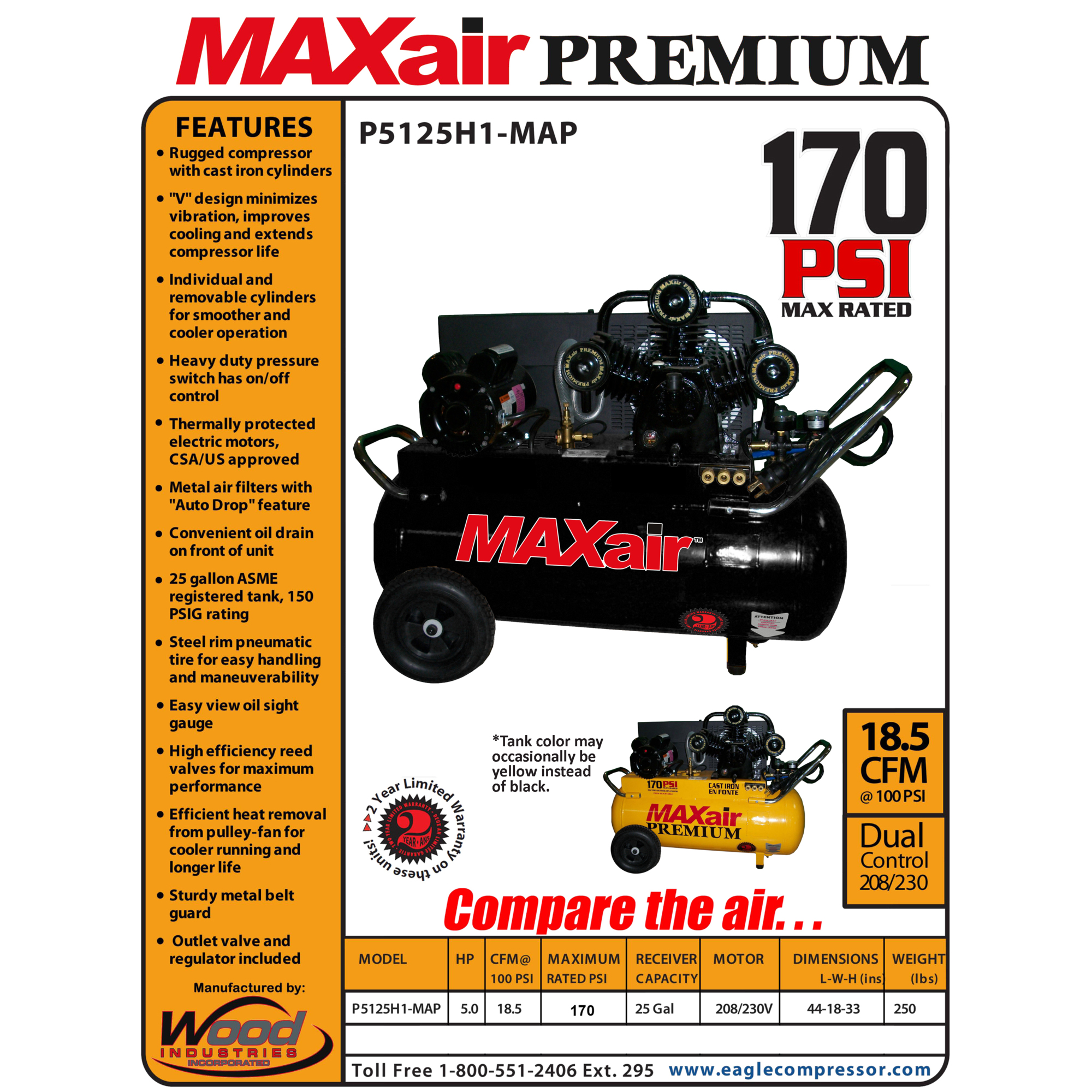

MAXair Dual Control Premium Compressor - 5 HP, 25 Gal., 220V, 18.5 CFM, 170 PSI, Model# P5125H1-MAP

Click or Tap image to Zoom

  • V Style design improves cooling & extends compressor life
  • Horizontal Portable Tank Design
  • 18.5 CFM @ 100 PSI
  • Convenient Extended Oil & Tank Drain
  • Heavy Duty 5 HP Motor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The MAXair Premium 25 gallon portable compressor sets the standard in it's class, making it the perfect option for the professional or the enthusiast. The large tank allows for longer runs times between the on/off intervals. The durable 5hp motor drives the robust V-style, triple cylinder cast iron pump and delivers an industy leading 18.5 CFM's of air with a max PSI of 170. The MAXair unit has an extended oil drain for easy clean service when it's time and convenient oil site glass for monitoring lubrcants. The Government certified ASME tank pressure release valve ensures your safety is priority #1. The V-Style pump allows for the larger bore pistons to run at a lower RPM rate while still producing more air than the competition. The lower speed, creates less friction and less heat ultimately giving the compressor longer life. The fully enclosed metal belt guard meets or exceeds UL OSHA requirements. Features like the automotive style air filters, triple quick connects, liquid filled gauge, German brand heavy duty ON/OFF pressure switch, and extended tank drain all add up to a greater value. The dual mode control feature is invaulable for contractors on sites with temporary power or where generators are being used. Dual control allows the unit to be operated in the traditional ON/OFF mode or the continous run mode which allows the unit to build max pressure then it unloads the "extra" air until the compressor drops to the kick in pressure again. This feature reduces stopping and starting and the continous run option eliminates the extra high amp draw that is assocaited with start up on air compressors. Our "Premium Promise" gives you an unrivaled 2 year warranty even for commerical applications. . . MAXair is MORE!

What's Included

    (1) AIR COMPRESSOR

Downloads

Product Manual
Play Item Video

Features + Benefits

  • V Style design improves cooling & extends compressor life
  • Horizontal Portable Tank Design
  • 18.5 CFM @ 100 PSI
  • Convenient Extended Oil & Tank Drain
  • Heavy Duty 5 HP Motor
  • Operates Multiple Impact & Mechanic Tools at Once
  • Easy View Oil Site Guage
  • Larger Bore Pistons Produce More Air and Generate less Heat
  • Two Year Warranty
  • Assembled in the USA!
  • 170 PSI Cast Iron Pump
  • All Terrian Flat Free Tires
  • Dual Mode Control Allows for Stop/Start or Continous Run Operation

Key Specs

AttributeSpecification

item#

6097940

Brand

MAXair

Manufacturer's Warranty

2 year limited warranty

Ship Weight

355.0 LB

Horsepower

5 HP

Air Tank Size

25 Gal

Volts

220 Volt

CFM at 90 PSI

18.5

Max. PSI

170

Stage

1

Air Outlets (qty.)

3

Amps

22

Duty Cycle

0.5 %

Fuel Capacity

0 Gal

Motor RPM

3,450

Working Pressure

120-150 PSI
AttributeSpecification

Motor Phase

1

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/4 in. NPT

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Petcock

Tank Orientation

Horizontal

Engine Model

Not Applicable

Product Weight

250.0000 lb

Dimensions L x W x H (in.)

44.0 x 18.0 x 33.0 in
