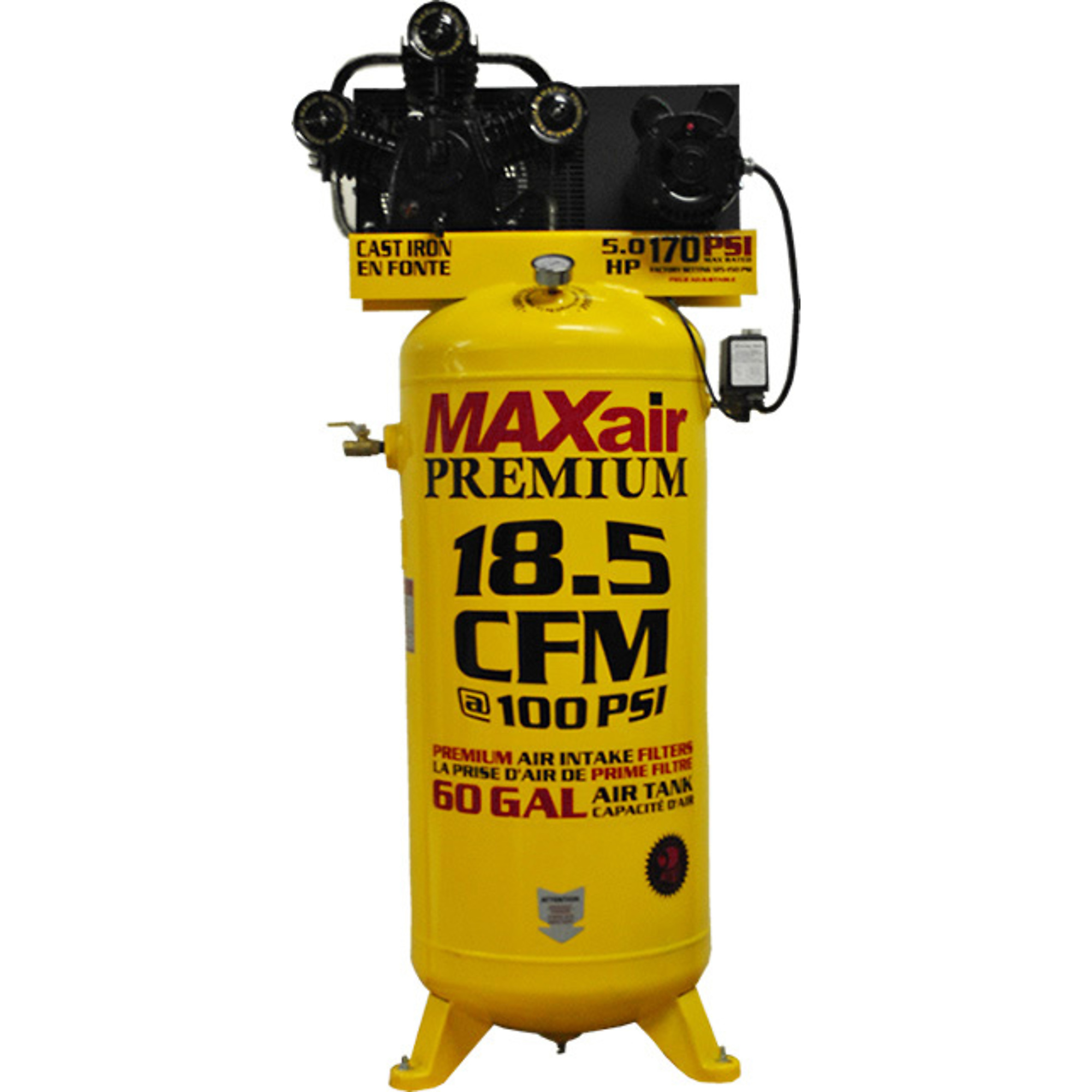

MAXair Premium Air Compressor - 60-Gallon, 18.5 CFM, 5 HP, 220V, Model# C5160V1-MAP

Item# 6097894
MAXair Premium Air Compressor - 60-Gallon, 18.5 CFM, 5 HP, 220V, Model# C5160V1-MAP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

MAXair Premium Air Compressor - 60-Gallon, 18.5 CFM, 5 HP, 220V, Model# C5160V1-MAP

Click or Tap image to Zoom

$1699.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • V Style design improves cooling & extends compressor life
  • Space Saving Vertical Tank Design
  • 18.5 CFM @ 100 PSI
  • Convenient Extended Oil & Tank Drain
  • Heavy Duty 5 HP Motor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The MAXair Premium 60 gallon shop compressor sets the standard in it's class, making it the perfect option for the professional or the enthusiast. The large tank allows for longer runs times between the on/off intervals. The durable 5hp motor drives the robust V-style, triple cylinder cast iron pump and delivers an industy leading 18.5 CFM's of air with a max PSI of 170. The MAXair unit has an extended oil drain for easy clean service when it's time and convenient oil site glass for monitoring lubrcants. The Government certified ASME tank pressure release valve ensures your safety is priority #1. The V-Style pump allows for the larger bore pistons to run at a lower RPM rate while still producing more air than the competition. The lower speed, creates less friction and less heat ultimately giving the compressor longer life. The fully enclosed metal belt guard meets or exceeds UL OSHA requirements. Features like the automotive style air filters, 1/2in. ball valve, liquid filled gauge, German brand heavy duty ON/OFF pressure switch, and extended tank drain all add up to a greater value. Our "Premium Promise" gives you an unrivaled 2 year warranty even for commerical applications. . . MAXair is MORE!

What's Included

    (1) AIR COMPRESSOR

Downloads

Product Manual
Play Item Video

Features + Benefits

  • V Style design improves cooling & extends compressor life
  • Space Saving Vertical Tank Design
  • 18.5 CFM @ 100 PSI
  • Convenient Extended Oil & Tank Drain
  • Heavy Duty 5 HP Motor
  • Operates Multiple Impact & Mechanic Tools at Once
  • Easy View Oil Site Guage
  • Larger Bore Pistons Produce More Air and Generate less Heat
  • Two Year Warranty
  • Assembled in the USA!
  • 170 PSI Cast Iron Pump

Key Specs

AttributeSpecification

item#

6097894

Brand

MAXair

Manufacturer's Warranty

2 year limited warranty

Ship Weight

300.0 LB

Air Tank Size

60 Gal

Volts

220 Volt

CFM at 90 PSI

18.5

Motor Phase

1

Stage

1

Tank Orientation

Vertical

Horsepower

5 HP

Max. PSI

170

Air Outlets (qty.)

1

Amps

22

Duty Cycle

0.5 %

Fuel Capacity

0 Gal
AttributeSpecification

Motor RPM

3,400

Working Pressure

120-150 PSI

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/2 in. NPT

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Petcock

Engine Model

Not Applicable

Product Weight

280.0000 lb

Dimensions L x W x H (in.)

30.0 x 20.0 x 66.0 in

Reviews

Questions & Answers

Questions

  1. What is the duty cycle of this compressor

    1 answer

    1. The air compressor is rated at an 80% duty cycle.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
