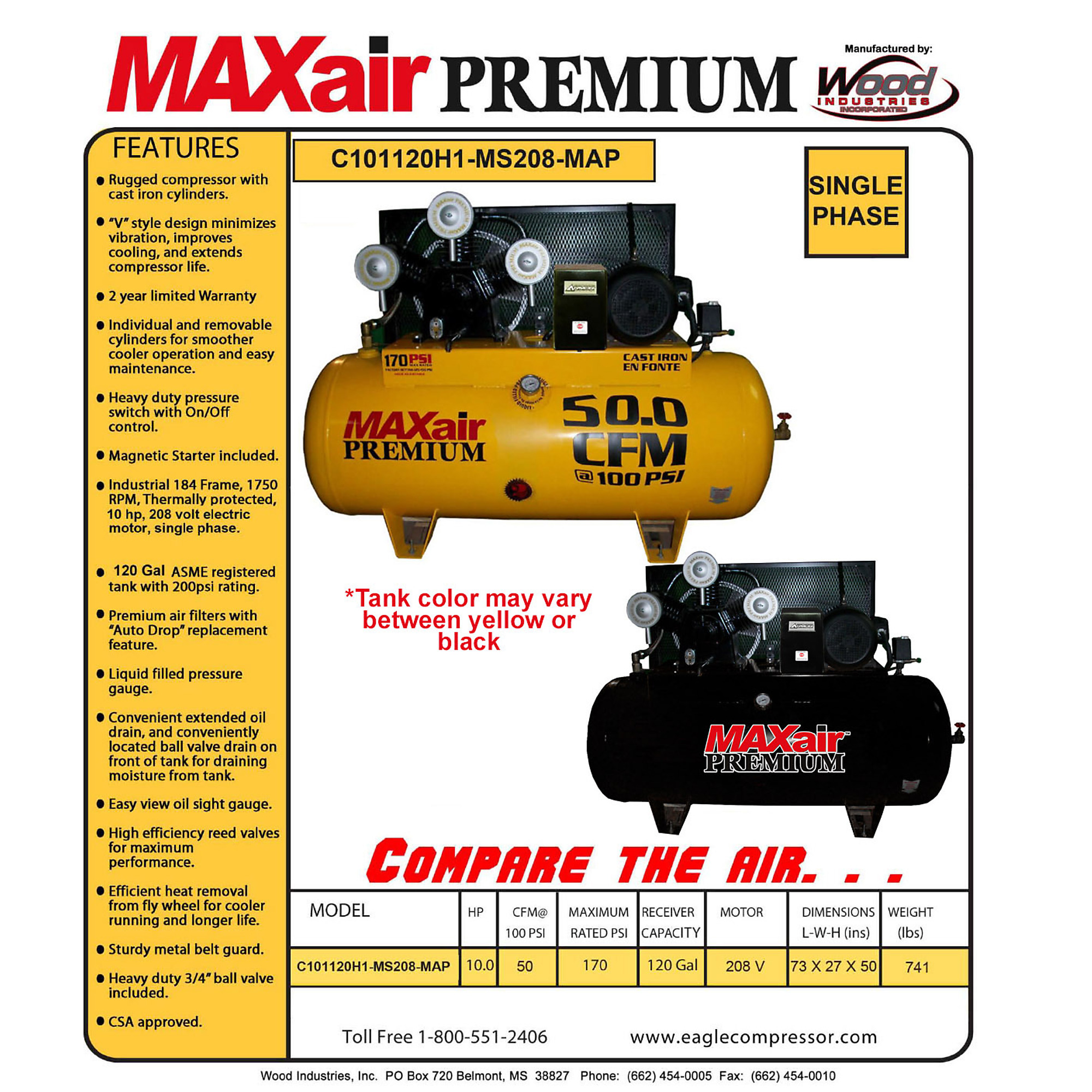

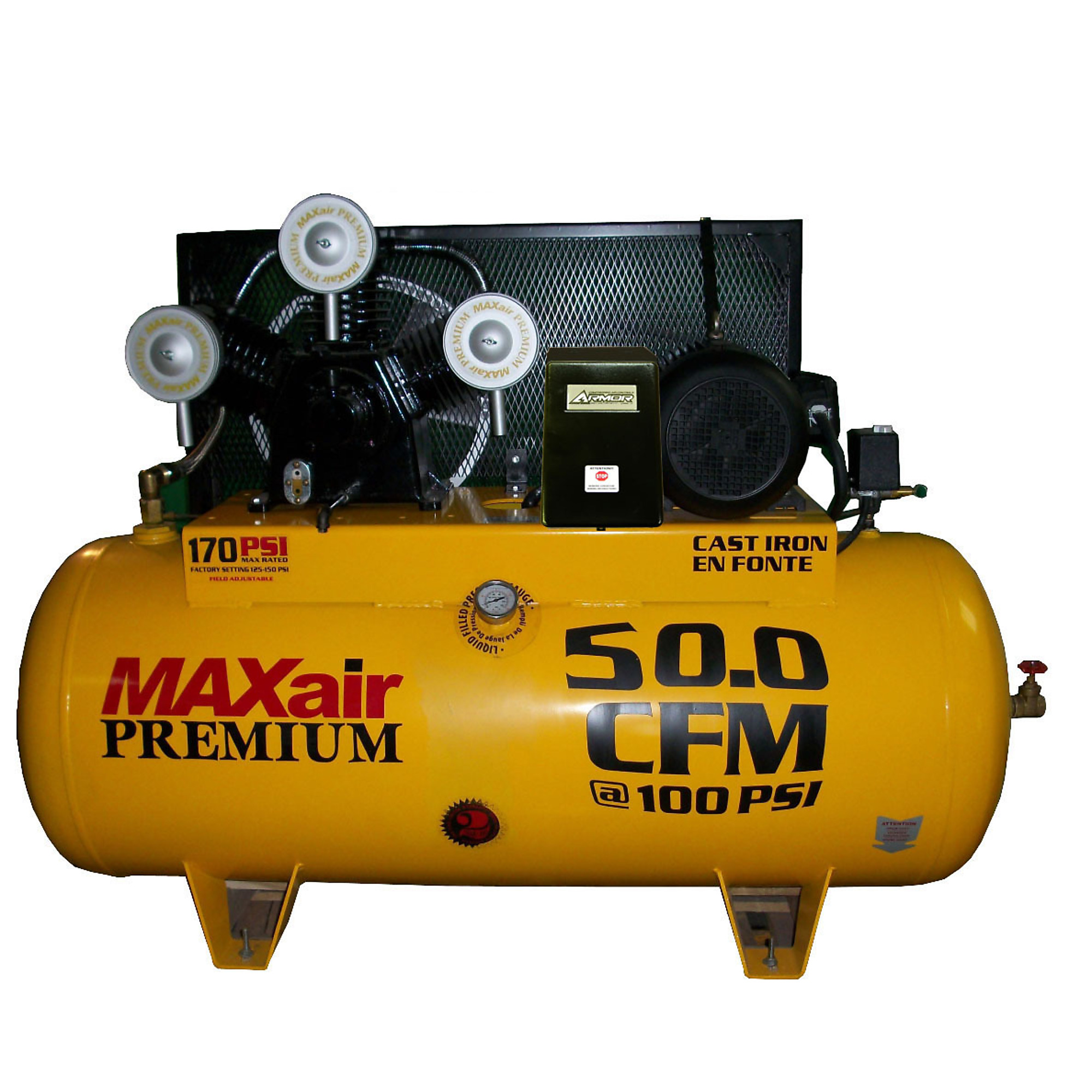

MAXair Premium Air Compressor - 120 Gal., 50 CFM, 10 HP, Single Phase, Cast Iron Pump, Model# C101120H1-MS208-MAP

Item# 6108071
MAXair Premium Air Compressor - 120 Gal., 50 CFM, 10 HP, Single Phase, Cast Iron Pump, Model# C101120H1-MS208-MAP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

MAXair Premium Air Compressor - 120 Gal., 50 CFM, 10 HP, Single Phase, Cast Iron Pump, Model# C101120H1-MS208-MAP

Click or Tap image to Zoom

$5099.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • V Style compressor design improves cooling & extends compressor life
  • Horizontal Tank Design
  • 50 CFM @ 100 PSI
  • Convenient Extended Oil & Tank Drain
  • Heavy Duty 10HP Single Phase Industrial Motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The MAXair Premium 120 gallon shop compressor sets the standard in it's class, making it the perfect option for the professional, the enthusiast or it can be the power driving many different types of small business operations. This is the largest reciprocating compressor in the industry that still operates on single phase power. So if you have a business with no acess to 3 phase power, this might be your answer. This Premium unit is ideal for small body shops, tires shops, dry cleaners and many other small business applications. The large tank allows for longer runs times between the on/off intervals. The durable 10hp industrial motor drives the robust V-style, three cylinder cast iron pump and delivers an industy leading 50 CFM's of air with a max PSI of 170. The MAXair unit has an extended oil drain for easy clean service when it's time and convenient oil site glass for monitoring lubrcants. The Government certified ASME tank pressure release valve ensures your safety is priority #1. The V-Style pump allows for the larger bore pistons to run at a lower RPM rate while still producing more air than the competition. The lower speed, creates less friction and less heat ultimately giving the compressor longer life. The fully enclosed metal belt guard meets or exceeds UL OSHA requirements. Features like the Armor brand magnetic starter, automotive style air filters, 3/4in. ball valve, liquid filled gauge, German brand heavy duty ON/OFF pressure switch, and extended tank drain all add up to a greater value. Our "Premium Promise" gives you an unrivaled 2 year warranty even for commerical applications. . . MAXair is MORE!

What's Included

    (1) AIR COMPRESSOR

Downloads

Product Manual

Features + Benefits

  • V Style compressor design improves cooling & extends compressor life
  • Horizontal Tank Design
  • 50 CFM @ 100 PSI
  • Convenient Extended Oil & Tank Drain
  • Heavy Duty 10HP Single Phase Industrial Motor
  • Operates Multiple Impact & Mechanic Tools at Once
  • Easy View Oil Site Guage
  • Larger Bore Pistons Produce More Air and Generate less Heat
  • Two Year Warranty
  • Assembled in the USA!
  • 170 PSI Cast Iron Pump

Key Specs

AttributeSpecification

item#

6108071

Brand

MAXair

Manufacturer's Warranty

2 year limited warranty

Ship Weight

1109.0 LB

Air Tank Size

120 Gal
AttributeSpecification

Volts

208

Horsepower

10 HP

Product Weight

741.0000 lb

Dimensions L x W x H (in.)

73.0 x 27.0 x 50.0 in
