Master Mfg, 60-Gal 3-Pt Broadcast Sprayer - 2.2GPM, 13ft. Swath, Tank Size 60 Gal, Flow 2.2 GPM, Pressure 70 PSI, Model# S3O-61-060D-MM

Item# 6547373
Master Mfg, 60-Gal 3-Pt Broadcast Sprayer - 2.2GPM, 13ft. Swath, Tank Size 60 Gal, Flow 2.2 GPM, Pressure 70 PSI, Model# S3O-61-060D-MM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Master Mfg, 60-Gal 3-Pt Broadcast Sprayer - 2.2GPM, 13ft. Swath, Tank Size 60 Gal, Flow 2.2 GPM, Pressure 70 PSI, Model# S3O-61-060D-MM

Click or Tap image to Zoom

$699.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Designed to handle up to 6 acres in one sitting
  • 60-gallon translucent tank with raised volume markings
  • Broadcast spray up to 13 feet with all-steel foldable boom
  • Spray boom includes eight quick attach flat fan nozzles
  • Spot spray up to 25 feet vertically and 30 feet horizontally

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Get your tractor revved up for this one-of-a-kind, Master Manufacturing 60 Gallon Deluxe 3-Point Broadcast Spot Sprayer. Featuring a top-of-the-line pumping system that includes a robust Everflo 2.2GPM 12V on-demand diaphragm pump, pressure gauge, adjustable pressure regulator, and a shut-off valve that controls water flow to spray boom. In minutes, easily mount the heavy-duty all-steel frame to any category one tractor. Keep debris and chemical clumps from entering your pump with the easy to maintain quick attach inline strainer. Keep your 15ft. of hose from dragging and being damaged with the included hook and loop hose strap. Other features include thick tank walls for increased durability and a quick power connection with the included 12V wire harness. Backed by a two-year warranty on pump components. When it comes time to spot spray, un-holster your deluxe spray gun and reach up to 25ft. vertically and 30ft. horizontally from the comfort of your seat. As applications change, quickly adjust the heavy-duty brass nozzle from a steady stream to a wide mist. Deluxe spray gun is field repairable and features a trigger lock to reduce hand fatigue on longer jobs. This 3-point sprayer features the premium, heavy duty SSBK-820 broadcast spray boom that has a 13ft. spray swath. Featuring quick attach, no-drip spray nozzles that prevent excessive chemical dripping after spraying. With fold-able wings, easily prevent damage from oncoming obstacles such as trees or fold wings in for more compact storage. Comes standard with eight flat fan nozzles. Designed to handle up to 6 acres* of coverage in one sitting, making it ideal for large spray applications with a category one tractor. *Acreage coverage is based on running spraying application at 30 PSI while maintaining speed at 5 MPH.

What's Included

    (1) Sprayer

Features + Benefits

  • Designed to handle up to 6 acres in one sitting
  • 60-gallon translucent tank with raised volume markings
  • Broadcast spray up to 13 feet with all-steel foldable boom

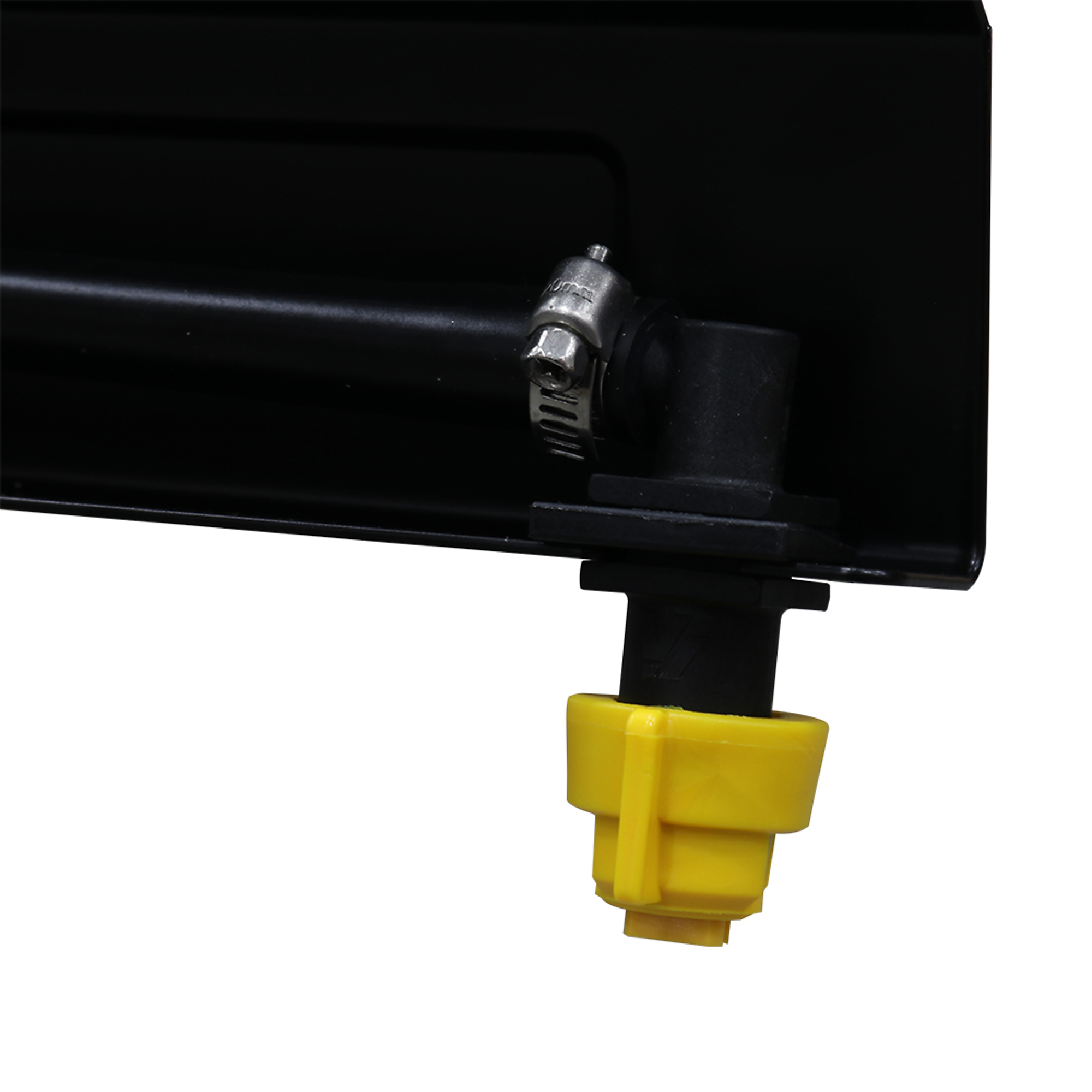

  • Spray boom includes eight quick attach flat fan nozzles
  • Spot spray up to 25 feet vertically and 30 feet horizontally

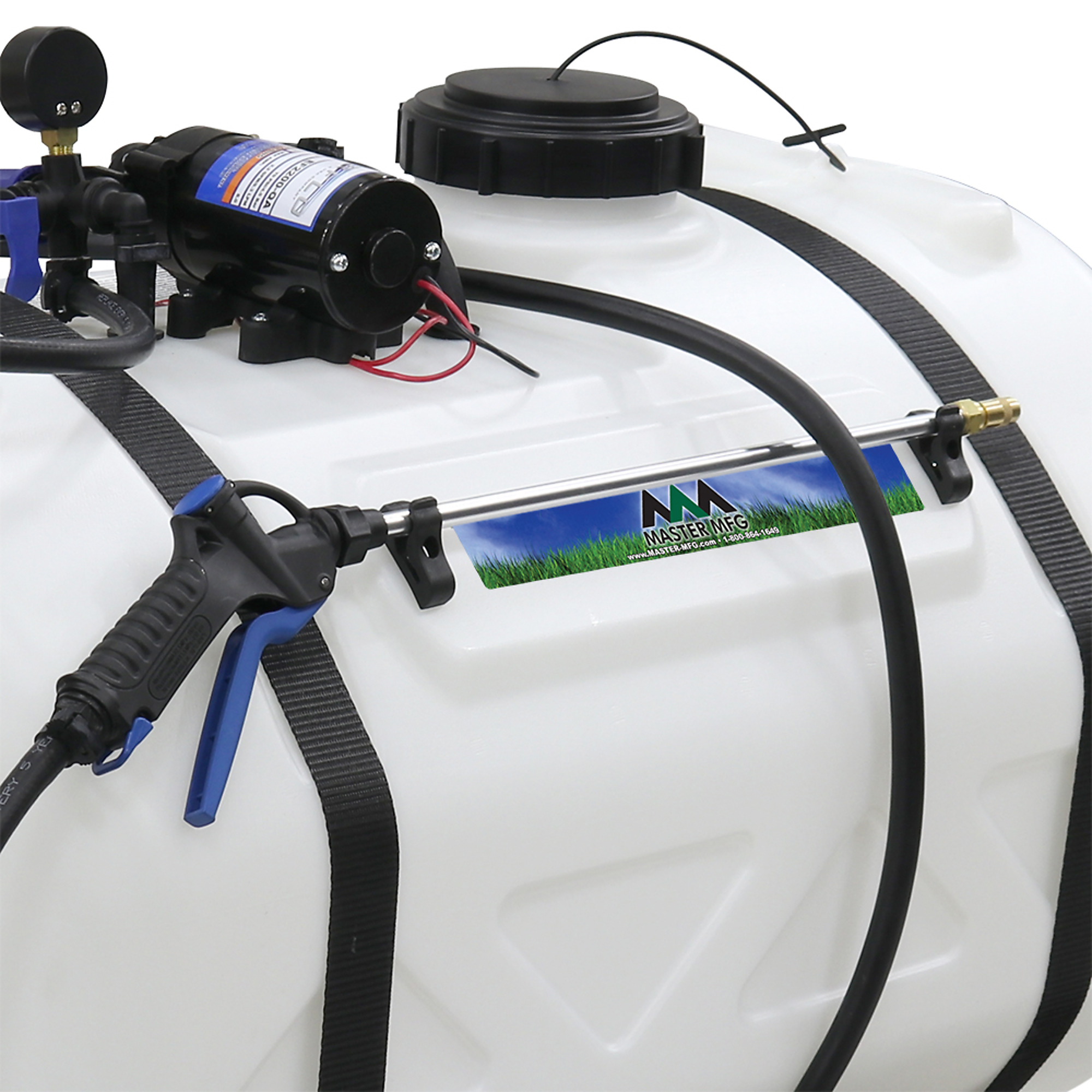

  • Adjustable spray gun goes from steady stream to mist

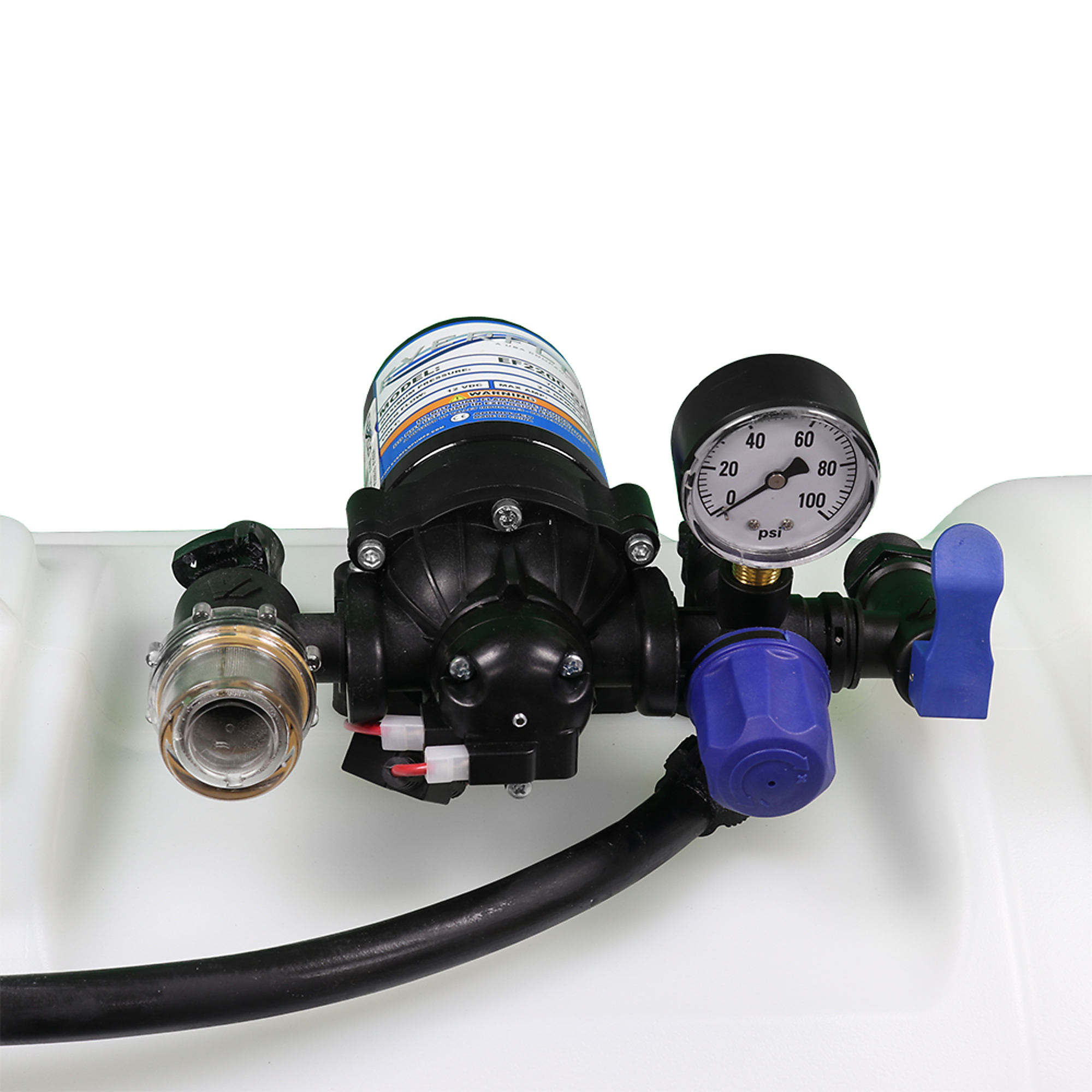

  • Everflo 12V diaphragm pump that delivers up to 2.2 GPM at 70 PSI
  • Pressure regulating system that includes regulator, pressure gauge and boom shut-off valve
  • All-steel powder-coated frame for increased durability

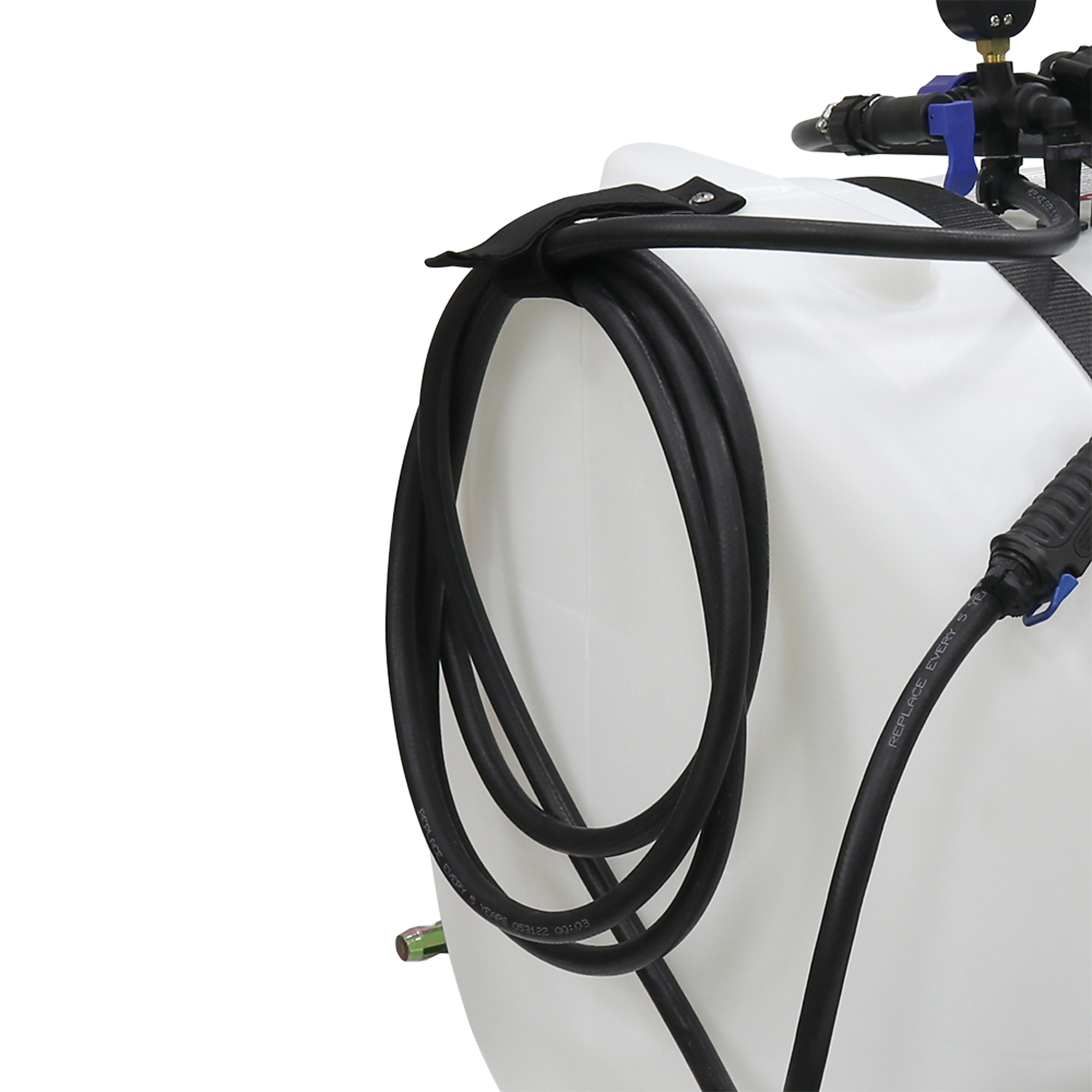

  • 15 feet of rubber hose for extended spot spraying
  • Pre-installed hose strap to keep hose organized and off the ground
  • Inline strainer that keeps debris and chemical clumps out of tank
  • 6" tank lid with tether to keep fluids in
  • Molded-in drain port with tethered cap for complete draining
  • Includes 12-volt wire harness with power switch
  • Extra-thick tank walls for increased durability
  • Can be secured onto the back of a category one tractor
  • Backed by a two-year warranty on manufacturer defects

Key Specs

AttributeSpecification

item#

6547373

Brand

Master Mfg

Manufacturer's Warranty

2 year limited warranty

Ship Weight

96.0 LB

Tank Size

60 Gal

Flow

2.2 GPM

Pressure

70 PSI

Boomless

No

Broadcast Width

13 ft

Horizontal Spray Distance

30 ft
AttributeSpecification

Tank Material

Polyethylene

Spray Pattern

Steady Stream to Mist

Spray Gun Type

Deluxe

Nozzles (qty.)

8

Tow Behind Cart Included

No

Pump Type

12-Volt

Hose Length

180 in

Product Weight

91.0000 lb

Dimensions L x W x H (in.)

142.0 x 30.0 x 31.0 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. How does the wiring harness hook up to the power source? Is it alligator clips or is it a cigarette lighter type plug? If it's alligator clamps, is there a place to mount a battery on the tank?

    1 answer

    1. The wiring harness would have alligator clips on it to connect to the vehicles 12 volt battery. The sprayer would not have a place on it to mount an external battery.

      Helpful?

  2. I'm spraying between the rows of longleaf pines that are 8-9 feet wide, there are a few as narrow as 7 feet.  How wide is the boom sprayer and can it be altered to accommodate this application or do you have an alternative that will work better.

    1 answer

    1. The boom has a 13 foot spray width. It could not be altered. We would not offer an alternative that could be altered from the boom spray width.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
