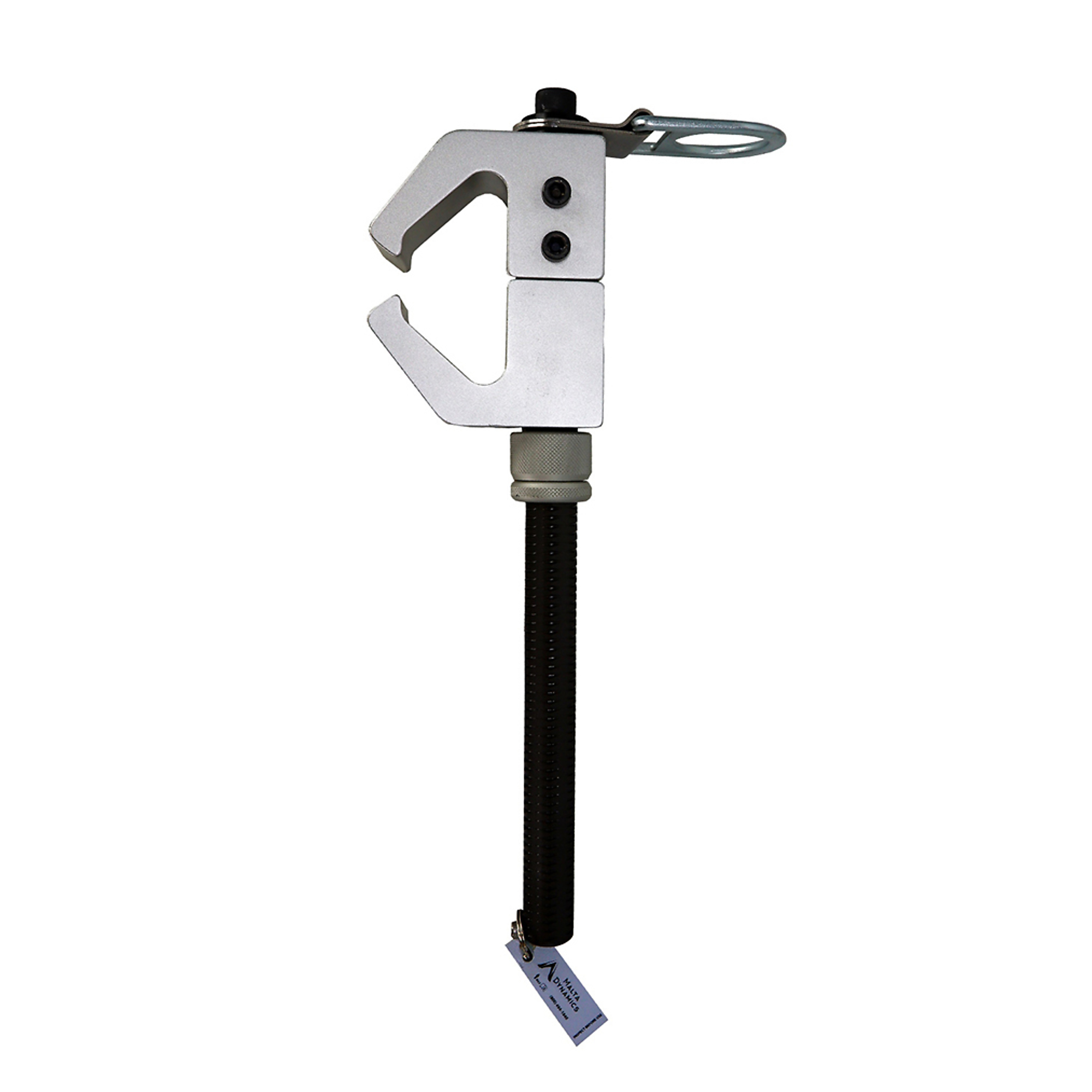

Malta Dynamics Vertical/Fixed Beam Anchor, OSHA and ANSI Compliant, 5,000 lb (22kN) Breaking Strength, 310 lb Weight Capacity, Model# A6105

Item# 6609263
Malta Dynamics Vertical/Fixed Beam Anchor, OSHA and ANSI Compliant, 5,000 lb (22kN) Breaking Strength, 310 lb Weight Capacity, Model# A6105

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Malta Dynamics Vertical/Fixed Beam Anchor, OSHA and ANSI Compliant, 5,000 lb (22kN) Breaking Strength, 310 lb Weight Capacity, Model# A6105

Click or Tap image to Zoom

$253.49

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Meets ANSI Z359.18-2017
  • Compliant with OSHA 1926.502 and OSHA 1910.66
  • Beam Flange Width Range: 4.5" to 12"
  • Beam Flange Thickness: 0.5" to 2"
  • Breaking Strength: 5,000 lbf. / 22 kN

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Malta Dynamics Vertical Fixed Beam 4.5”-12” Reusable Anchor with 360° Swivel D-Ring, OSHA/ANSI Compliant Personal Fall Protection System. This is a secure beam clamp tie-off point designed for fall protection, rope access, and work positioning. It is compliant with OSHA and ANSI standards and has been field tested and approved for use in various industries such as construction, oil gas, transportation, and utilities. The adjustable paw and locking nuts allow it to fit a range of beam sizes, and it is made of lightweight aircraft aluminum bars and alloy steel materials, making it durable and able to support a load of up to 5,000 lbs. or 22kN. Its innovative removable and reusable design allows for easy installation without tools and repeated use after inspections.

What's Included

    (1) Vertical/Fixed Beam Anchor

Features + Benefits

  • Meets ANSI Z359.18-2017
  • Compliant with OSHA 1926.502 and OSHA 1910.66

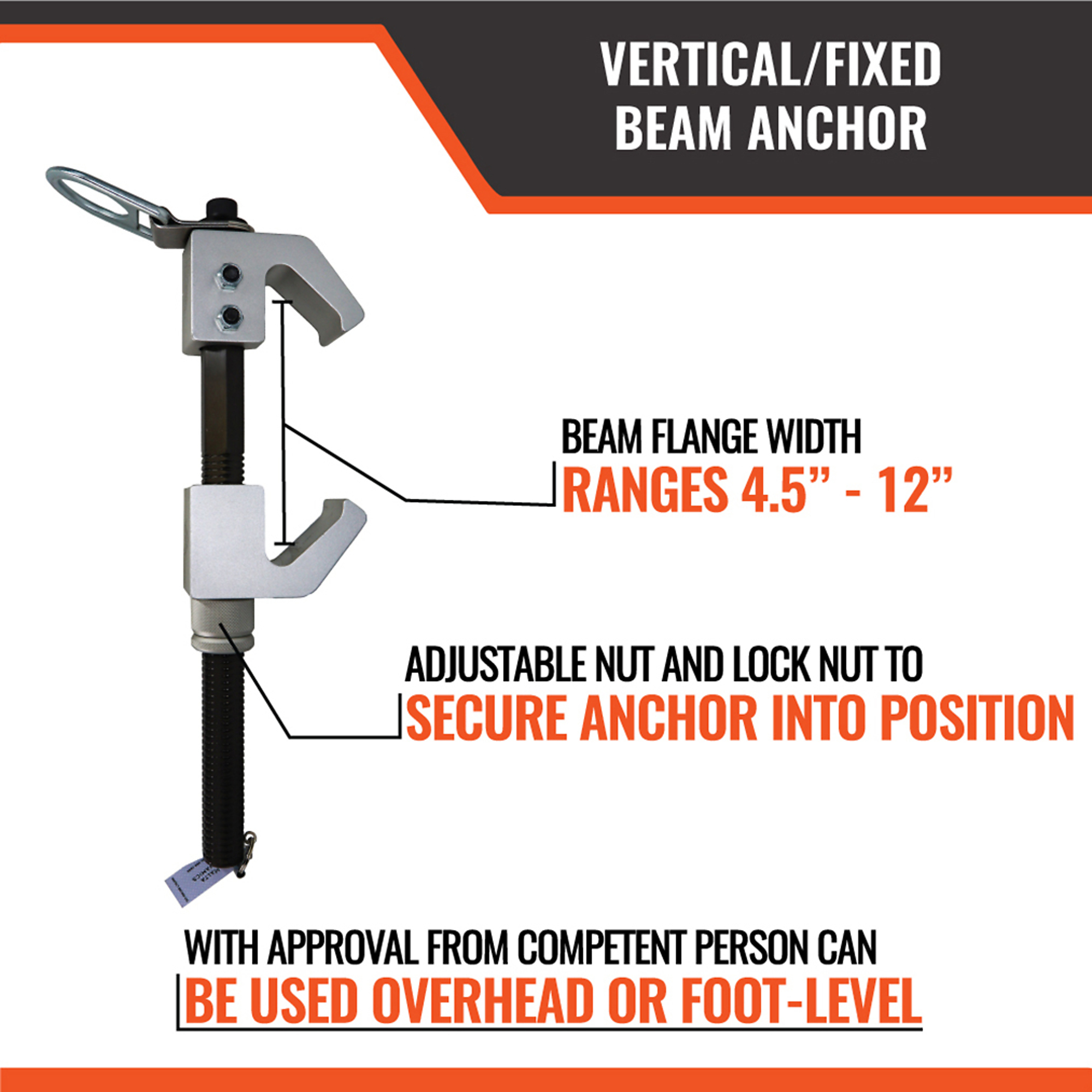

  • Beam Flange Width Range: 4.5" to 12"

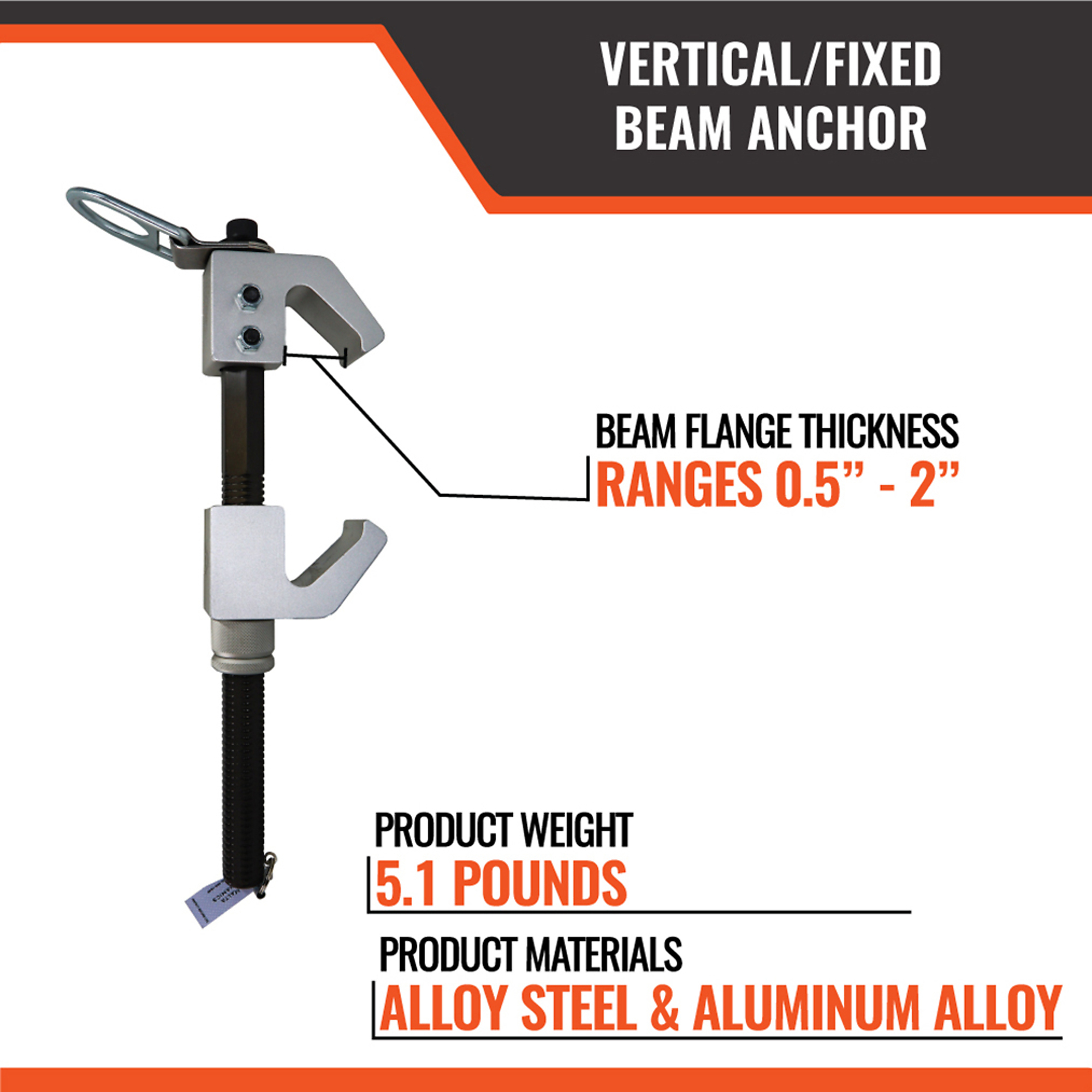

  • Beam Flange Thickness: 0.5" to 2"
  • Breaking Strength: 5,000 lbf. / 22 kN
  • Product Weight: 5.1 lbs.
  • Product materials: alloy steel and aluminum alloy
  • Adjustment nut and lock nut to secure anchor into position

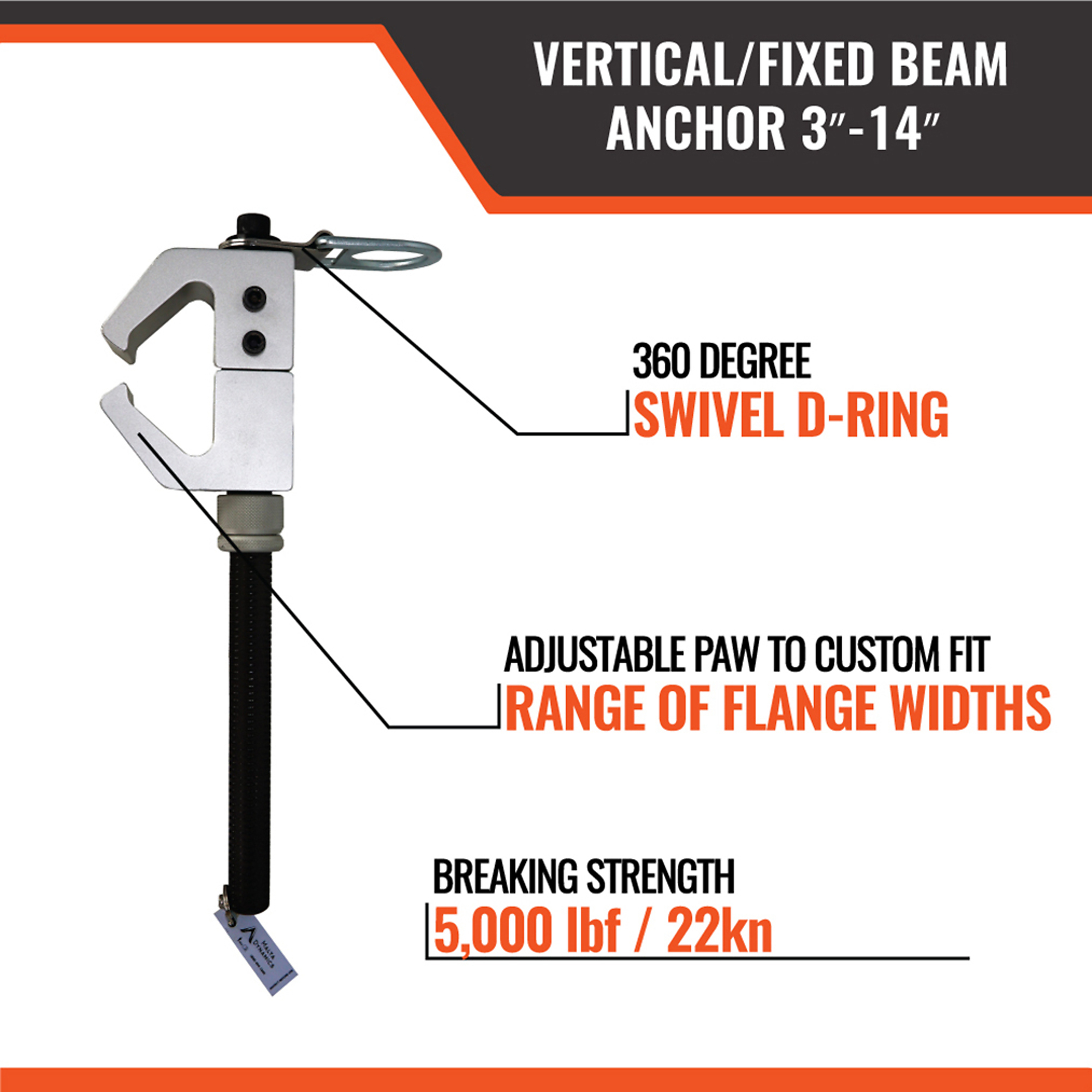

  • 360 degree swivel D-Ring
  • Adjustable paw to custom fit range of flange widths
  • Can be used overhead or at foot-level (approval from a Competent Person required)
  • Can support one user (130–310 lbs.) in fall arrest or fall restraint applications

Key Specs

AttributeSpecification

item#

6609263

Brand

Malta Dynamics

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

7.7 LB

Weight Capacity

310 lb

Length

28.5 in
AttributeSpecification

Breaking Strength

22 kN

Product Type

Beam Clamp

Material

Alloy Steel

Product Weight

7.7000 lb

Dimensions L x W x H (in.)

4.0 x 28.25 x 4.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
