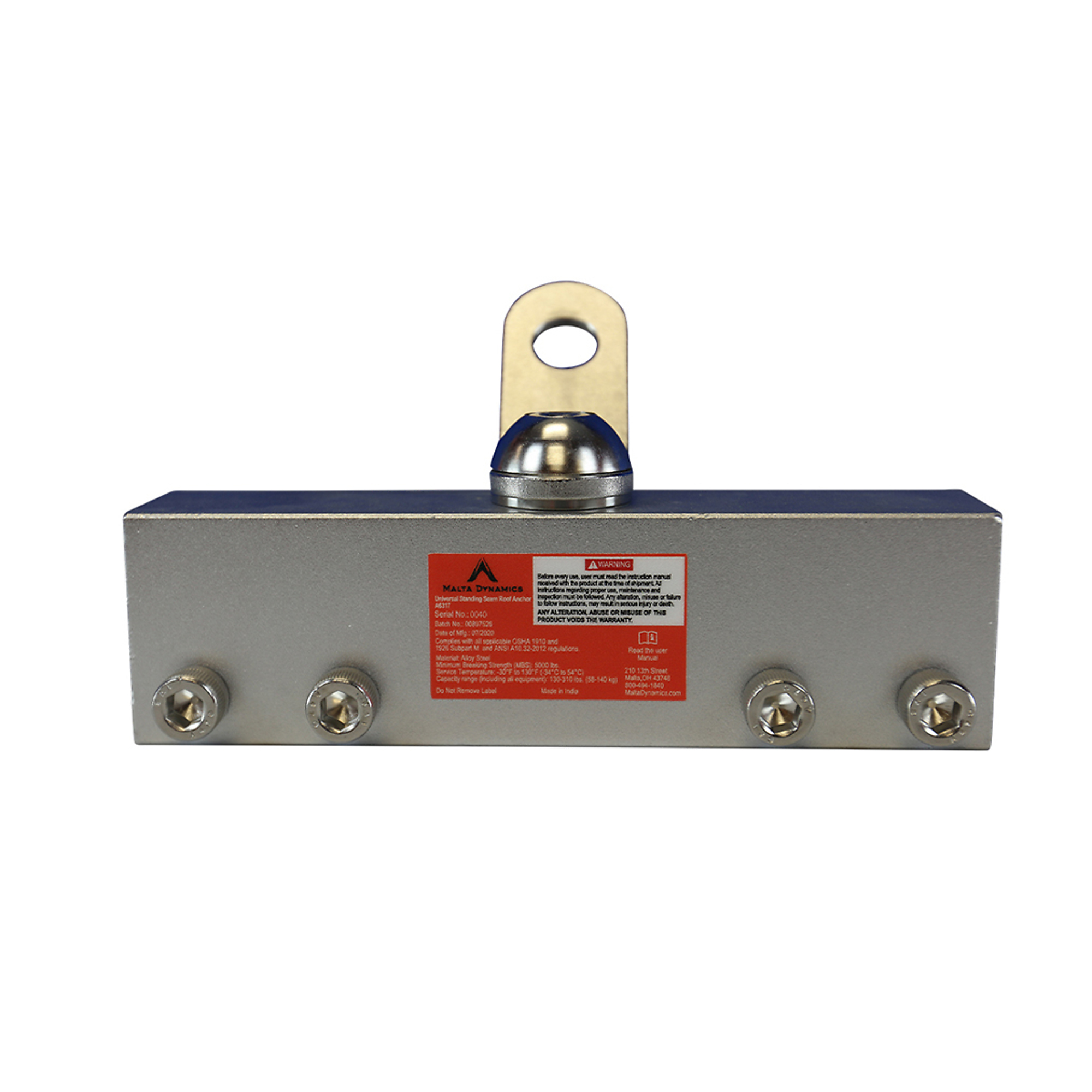

Malta Dynamics Standing Seam Roof Anchor, OSHA and ANSI Compliant, 5,000 lb (22kN) Breaking Strength, 310 lb Weight Capacity, Model# A6317

Item# 6609423
Malta Dynamics Standing Seam Roof Anchor, OSHA and ANSI Compliant, 5,000 lb (22kN) Breaking Strength, 310 lb Weight Capacity, Model# A6317

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Malta Dynamics Standing Seam Roof Anchor, OSHA and ANSI Compliant, 5,000 lb (22kN) Breaking Strength, 310 lb Weight Capacity, Model# A6317

Click or Tap image to Zoom

$149.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

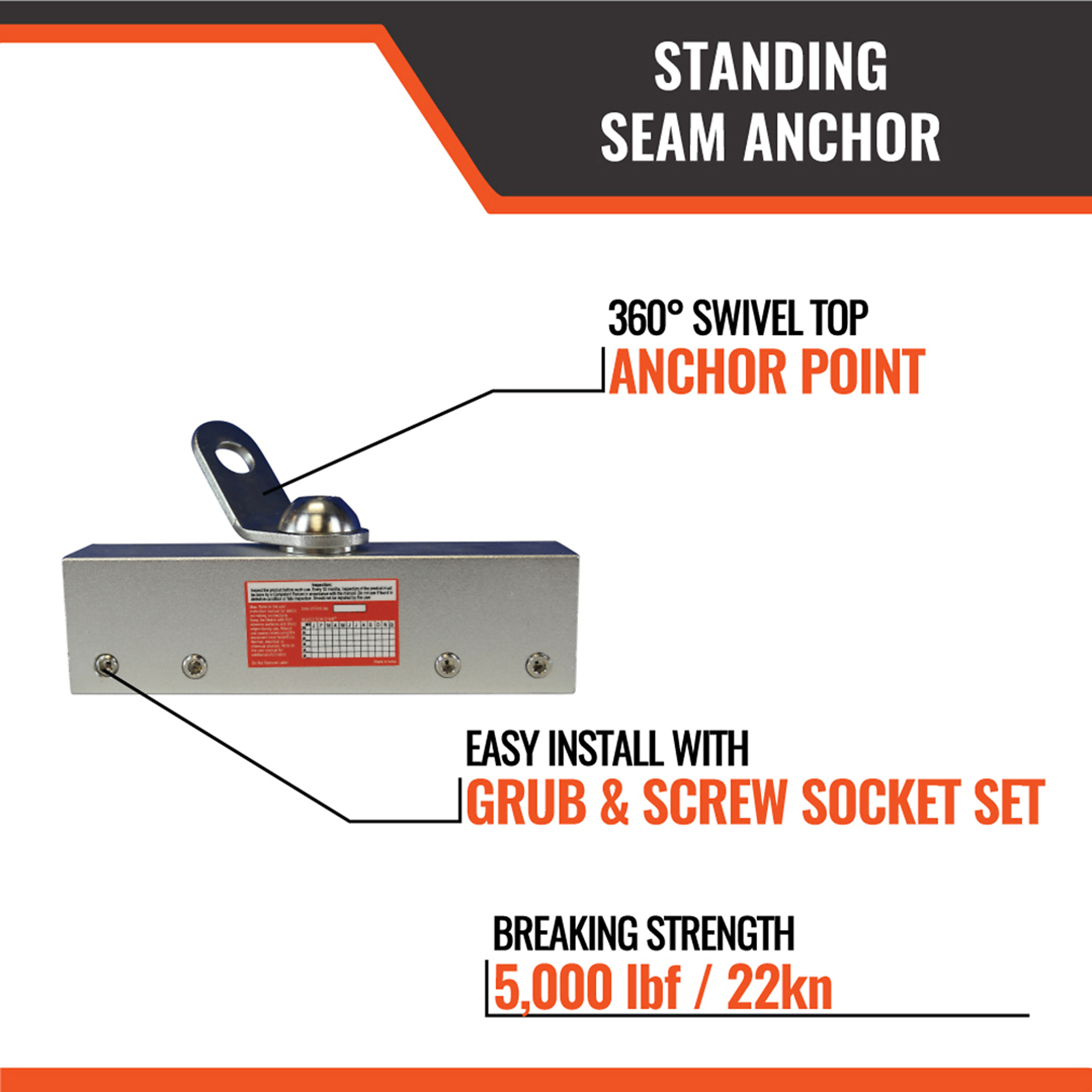

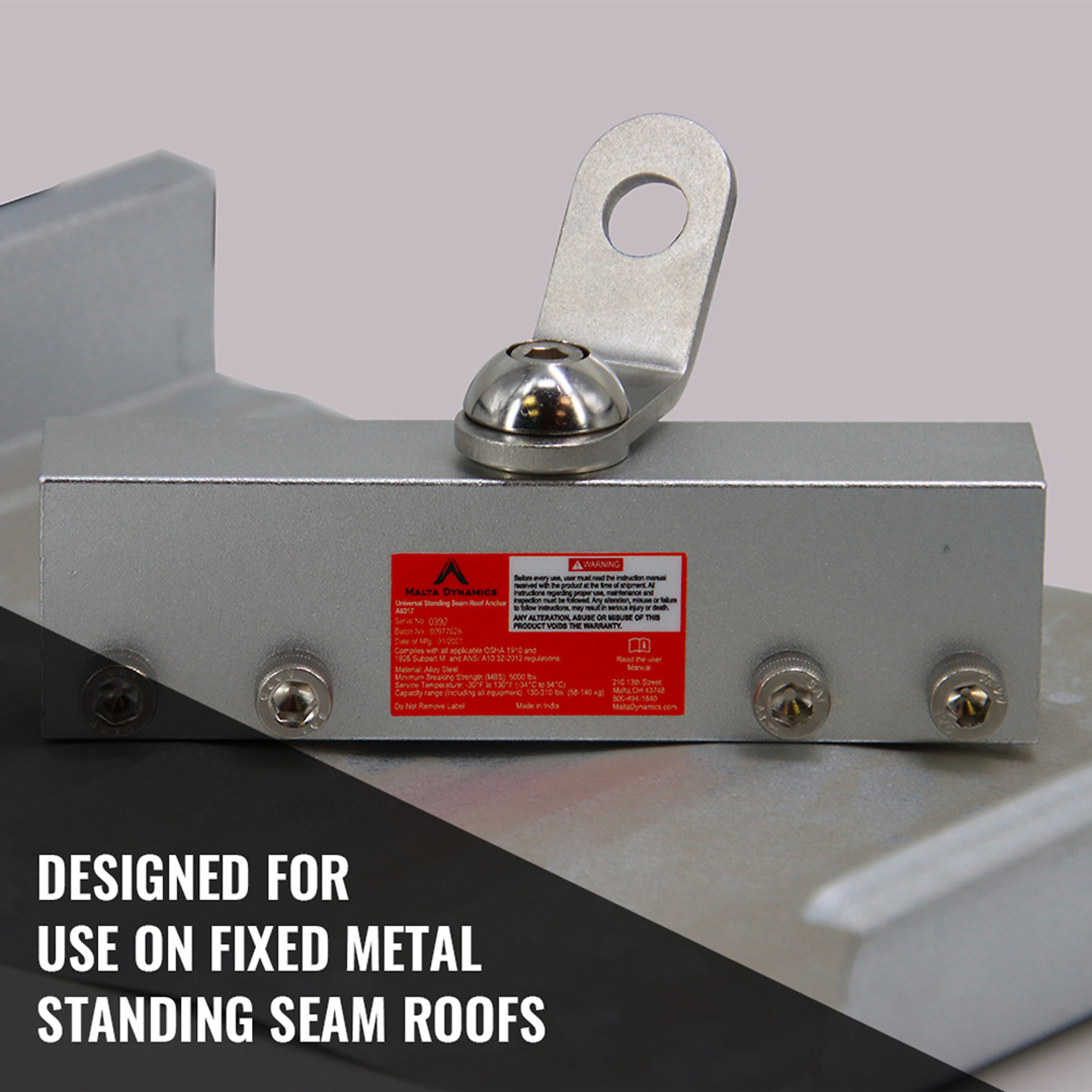

  • Designed to be fixed on metal standing seam roofs
  • Swivel anchor point for 360 degree motion
  • Meets Z359.18-2017 TYPE A
  • Materials: Aluminum alloy & stainless steel
  • Minimum Breaking Strength: 5000lbs

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

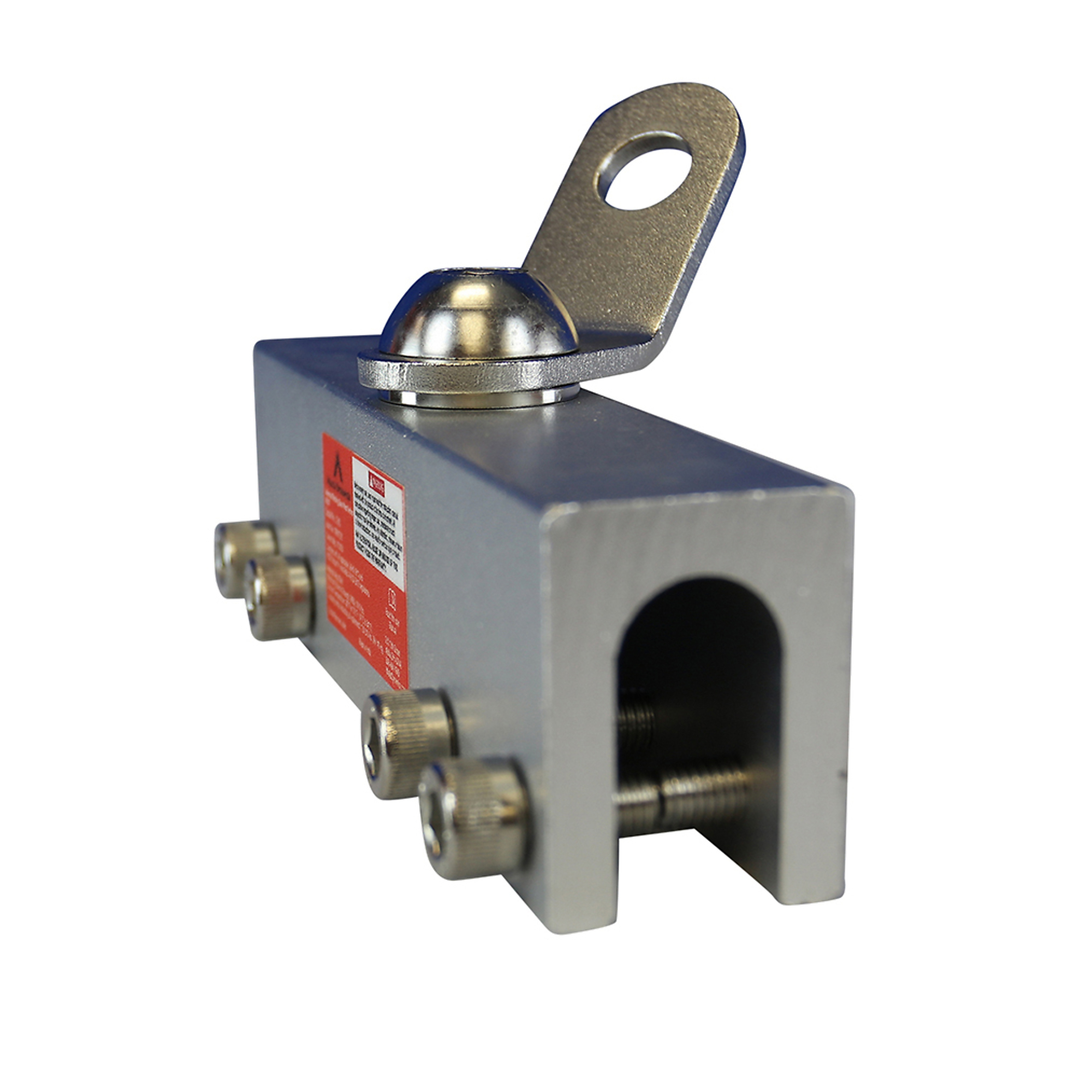

The Malta Dynamics Standing Seam Roof Anchor Clamp is an ideal safety anchor for metal roofs. A common issue that workers face when working on metal roofs is the inability to locate a safe anchor point without leaving noticeable damage on the roof that they are working on or penetrating the panels. This standing seam metal roof anchor is compact and non-penetrating. It utilizes 8 grub screws that tighten down onto the metal roof seam. The set grub screws pinch tight on the seam to provide a reliable standing seam anchor point. At only 2.2 lbs. the Malta Dynamics standing seam safety anchor is extremely lightweight. This makes it one of the lightest certified anchors on the market to meet the 5,000 lb. standard for minimum breaking strength. With materials like aluminum alloy and stainless steel, this anchor is small but surprisingly durable. Although this anchor is tiny and low profile, it has been rigorously tested to the strict standards of OSHA 1926 subpart M, OSHA 1910, and ANSI Z359.1:2007. This standing seam safety anchor is designed for use on roofs with a maximum slope of 12/12 pitch and must be attached to fully seamed panels. To be safe and effective, the standing seam metal roof anchor must be positioned properly to apply load in the long axis of the anchor bracket. A competent person must sign off on the installation and integrity of the personal fall arrest system before use on the jobsite. This metal roof anchor features a 360 degree swivel top connection point to allow the user to enjoy complete freedom with their motions and can access all sides of the roof without having to reposition and without tangling.

What's Included

    (1) Standing Seam Roof Anchor

Features + Benefits

  • Designed to be fixed on metal standing seam roofs
  • Swivel anchor point for 360 degree motion
  • Meets Z359.18-2017 TYPE A
  • Materials: Aluminum alloy & stainless steel
  • Minimum Breaking Strength: 5000lbs

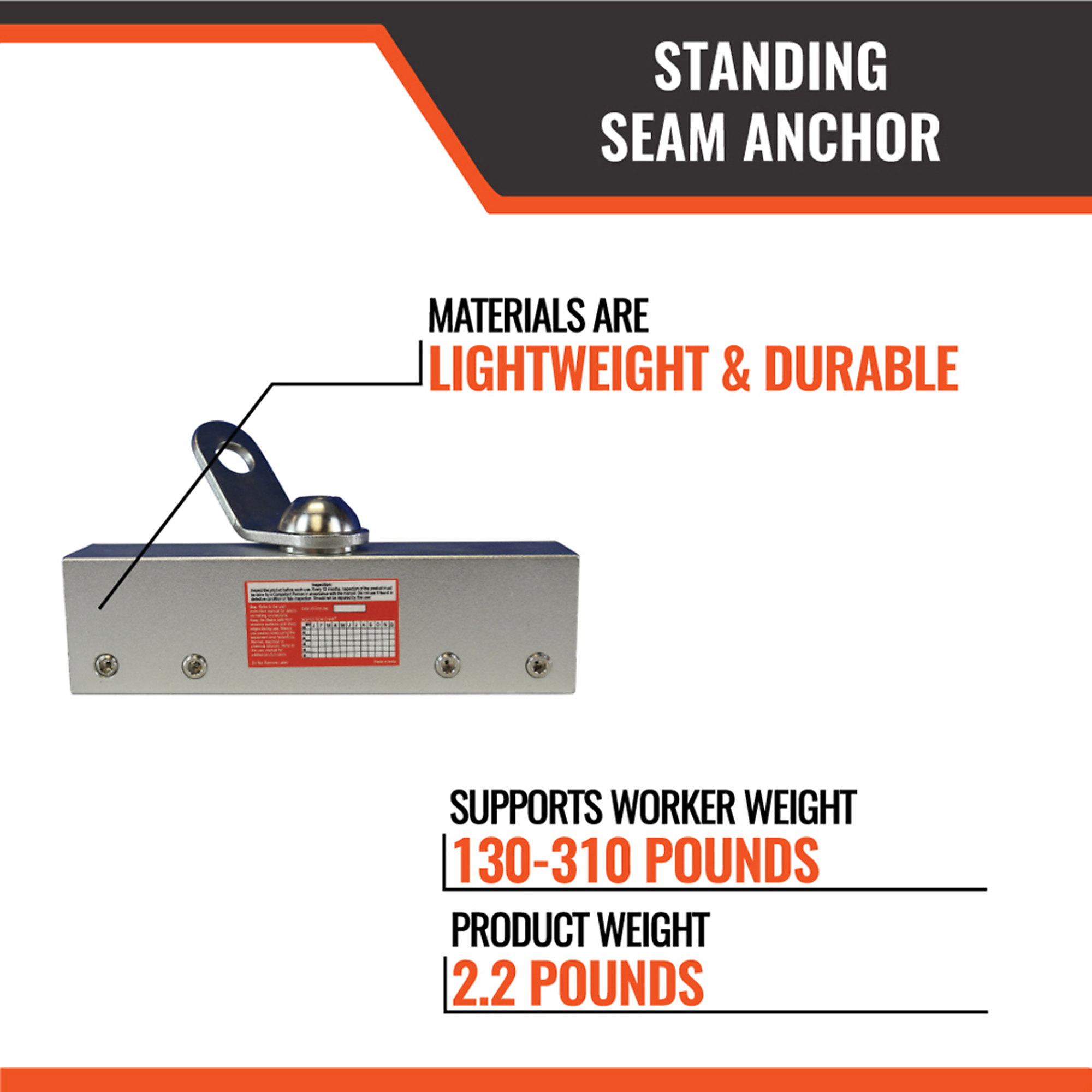

  • Weight: 2.2lbs

Key Specs

AttributeSpecification

item#

6609423

Brand

Malta Dynamics

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

2.7 LB

Weight Capacity

310 lb

Length

9 in
AttributeSpecification

Breaking Strength

22 kN

Product Type

Anchor

Material

Alloy Steel

Product Weight

2.7000 lb

Dimensions L x W x H (in.)

9.75 x 5.75 x 3.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
