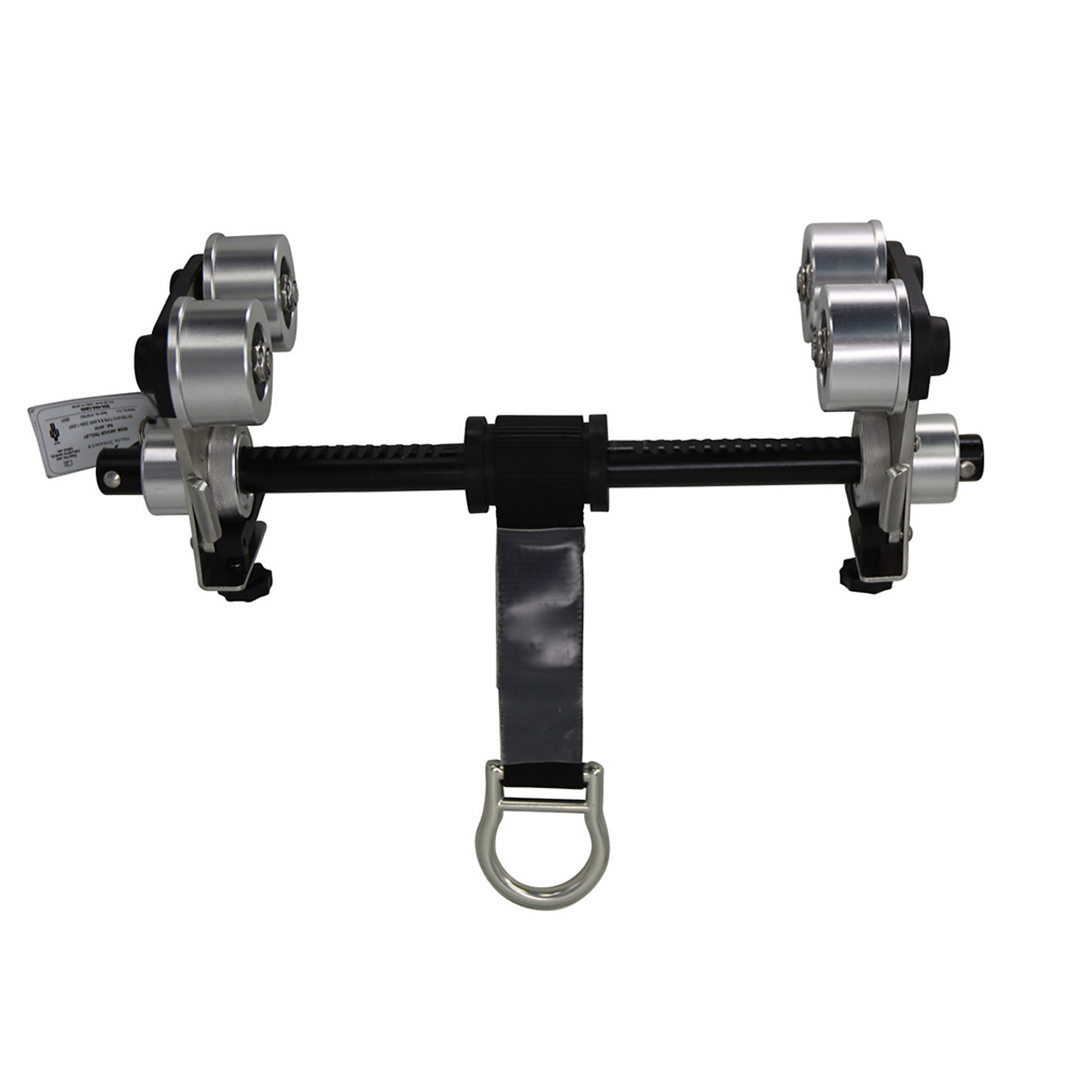

Malta Dynamics Beam Trolley 3" - 10" 5K, OSHA and ANSI Compliant, 5,000 lb (22kN) Breaking Strength, 310 lb Weight Capacity, Model# A6101

Item# 6609247
Malta Dynamics Beam Trolley 3" - 10" 5K, OSHA and ANSI Compliant, 5,000 lb (22kN) Breaking Strength, 310 lb Weight Capacity, Model# A6101

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Malta Dynamics Beam Trolley 3" - 10" 5K, OSHA and ANSI Compliant, 5,000 lb (22kN) Breaking Strength, 310 lb Weight Capacity, Model# A6101

Click or Tap image to Zoom

$506.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

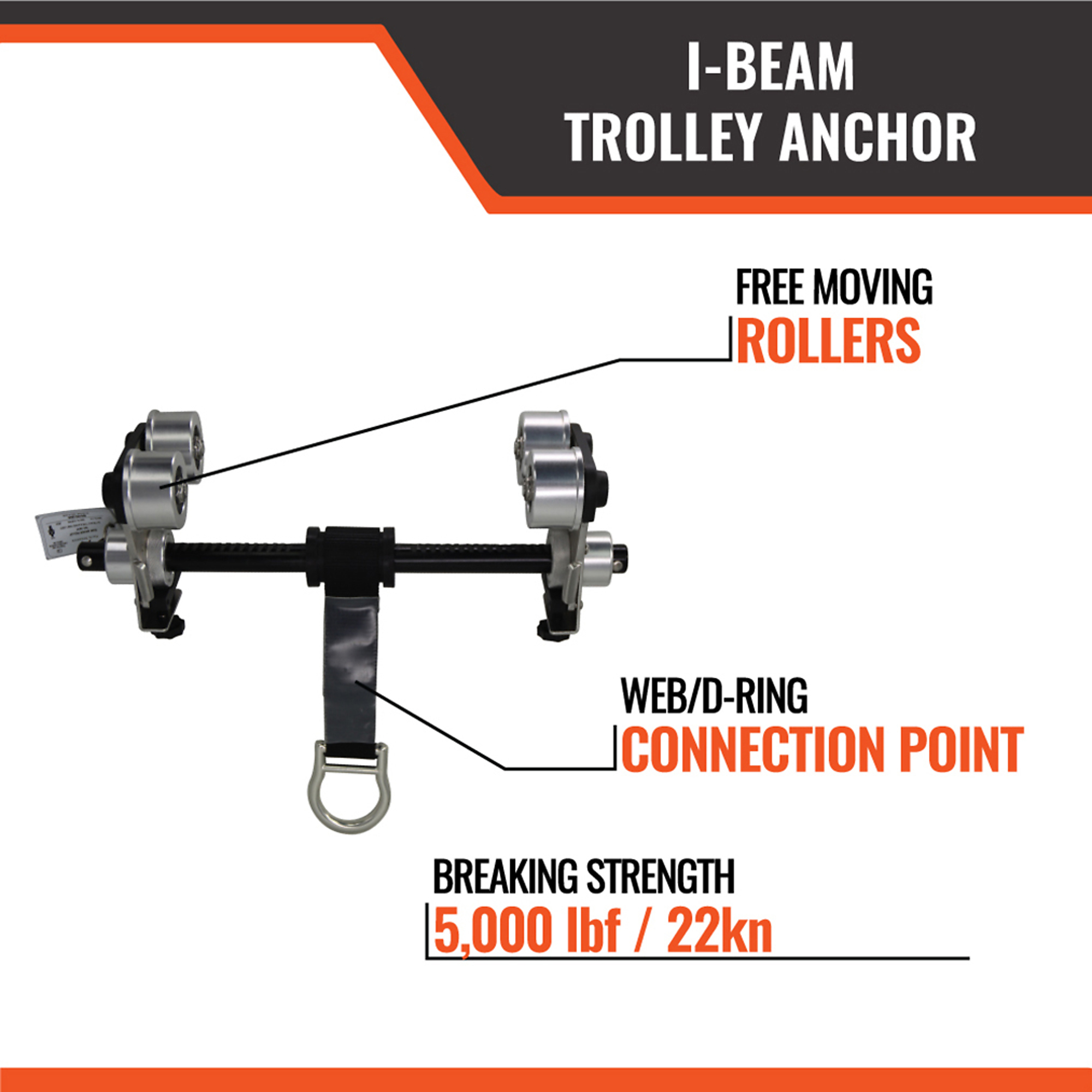

  • Free moving rollers create smooth and safe movement along the I-Beam
  • Durable webbing with an easily accessible D-Ring connection point for quick installation

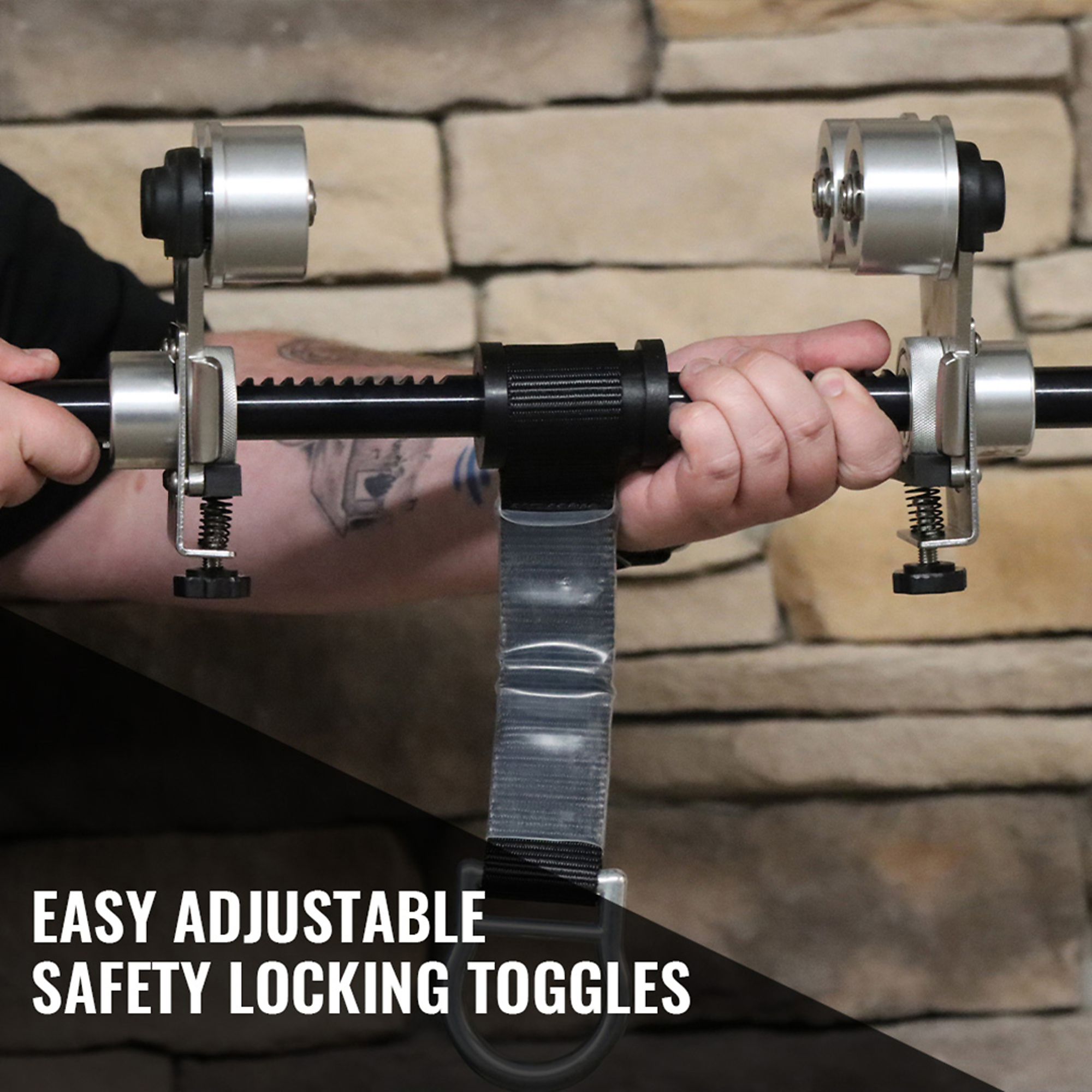

  • Easily adjustable pins and locking toggles prevent clamp slippage
  • Trails along the I-beam as the user moves to remain safely tied-off while creating a maximum range of accessibility for work
  • Static tensile strength: 5,000 lbf / 22 kN

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

he Malta Dynamics Beam Trolley Anchor is a versatile and reliable beam anchor device that allows for safe and smooth movement along I-Beams. This fall protection trolley system is built with durable materials and features free-moving aluminum rollers that glide effortlessly along the beam to follow the movements of the user while remaining safely connected to the anchor. It is equipped with easily adjustable pins and locking toggles that prevent clamp slippage and is designed to fit beams ranging from 3in. to 10in. wide with a thickness of 1/4in. to 7/8in. The anchor is equipped with a swiveling polyester D-Ring connection point that is easily accessible from either side of the rolling I-Beam anchor. This vertical trolley system can be used for fall arrest, fall restraint, and work positioning applications and is compliant with OSHA and ANSI safety standards. Overall, the Malta Dynamics Beam Trolley Anchor is a top-selling and highly recommended option for workers who require a reliable and versatile beam anchor system for their fall protection needs.

What's Included

    (1) Beam Trolley 3" - 10" 5K

Features + Benefits

  • Free moving rollers create smooth and safe movement along the I-Beam
  • Durable webbing with an easily accessible D-Ring connection point for quick installation
  • Easily adjustable pins and locking toggles prevent clamp slippage
  • Trails along the I-beam as the user moves to remain safely tied-off while creating a maximum range of accessibility for work
  • Static tensile strength: 5,000 lbf / 22 kN
  • Can support one user (130-310 lbs.) in fall arrest or fall restraint applications
  • Can be used overhead or at foot-level (approval from a competent person required)
  • Cross bar and roller material: Aluminum
  • Webbing material: Polyester
  • Swivel material: Zinc plated steel
  • Spring and hardware material: Stainless steel
  • Product weight: 9.27 lbs.

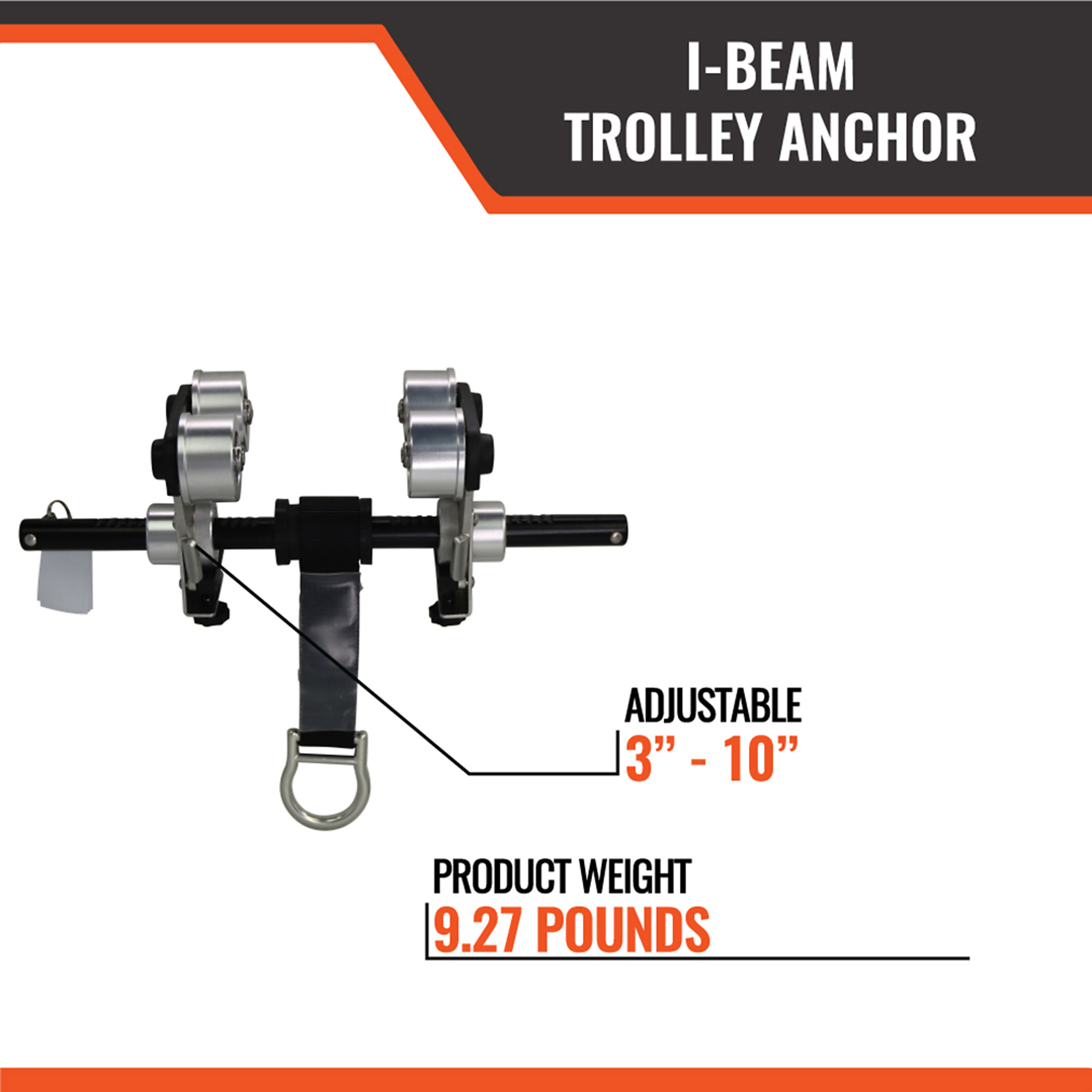

  • Beam flange width: 3" – 10"
  • Beam flange thickness: 1/4” – 7/8”
  • Meets ANSI Z359.18-2017, ANSI A10.32-12, and CE-EN 795

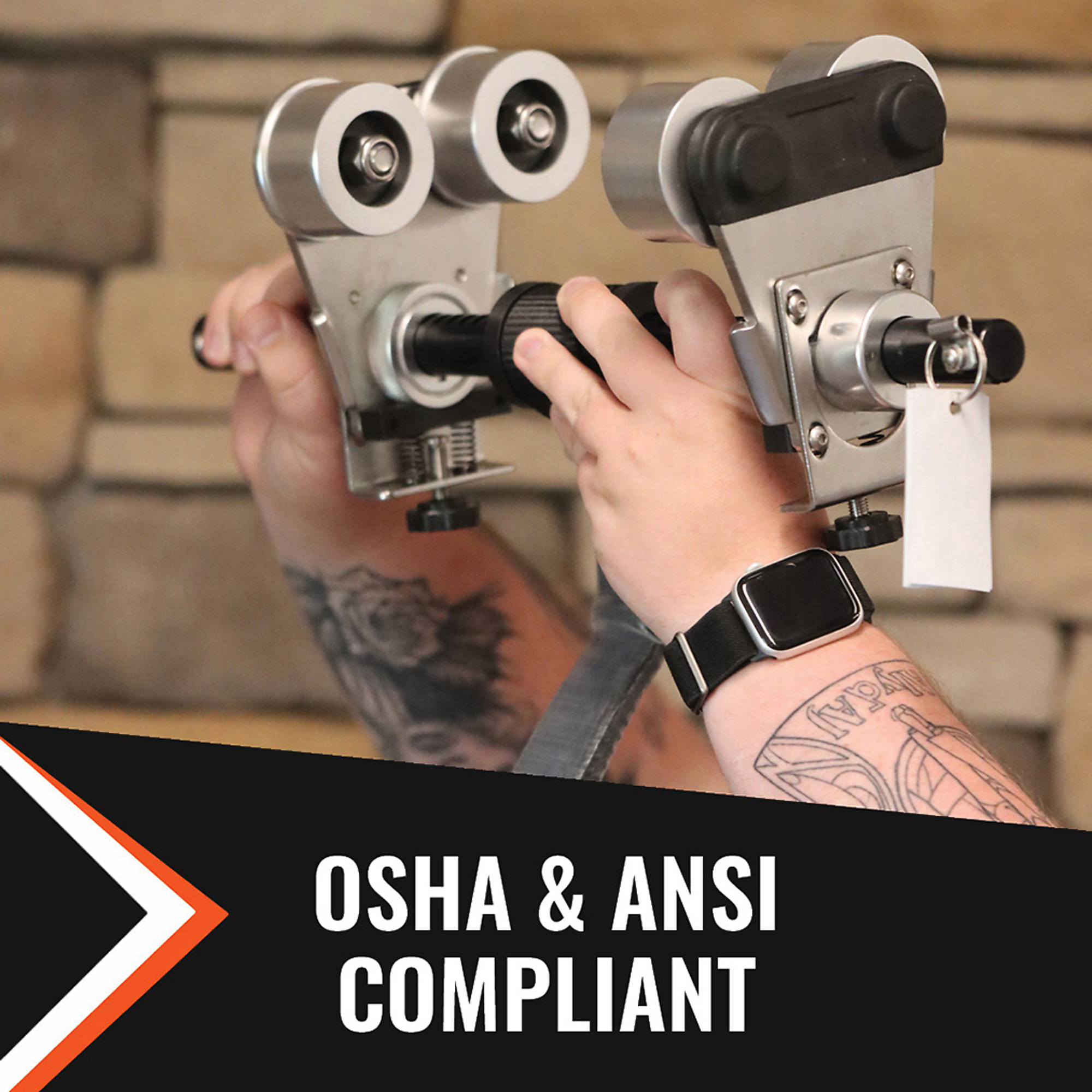

  • Compliant with OSHA 1926.502 and OSHA 1910.66

Key Specs

AttributeSpecification

item#

6609247

Brand

Malta Dynamics

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

7.7 LB

Weight Capacity

310 lb

Length

10 in
AttributeSpecification

Breaking Strength

22 kN

Product Type

Beam Clamp

Material

Alloy Steel

Product Weight

7.7000 lb

Dimensions L x W x H (in.)

17.0 x 8.0 x 7.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
