Magister Hydraulic Solenoid Diverter Valve, 6 ports selector, 24 GPM

Item# 7454620
New
Magister Hydraulic Solenoid Diverter Valve, 6 ports selector, 24 GPM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

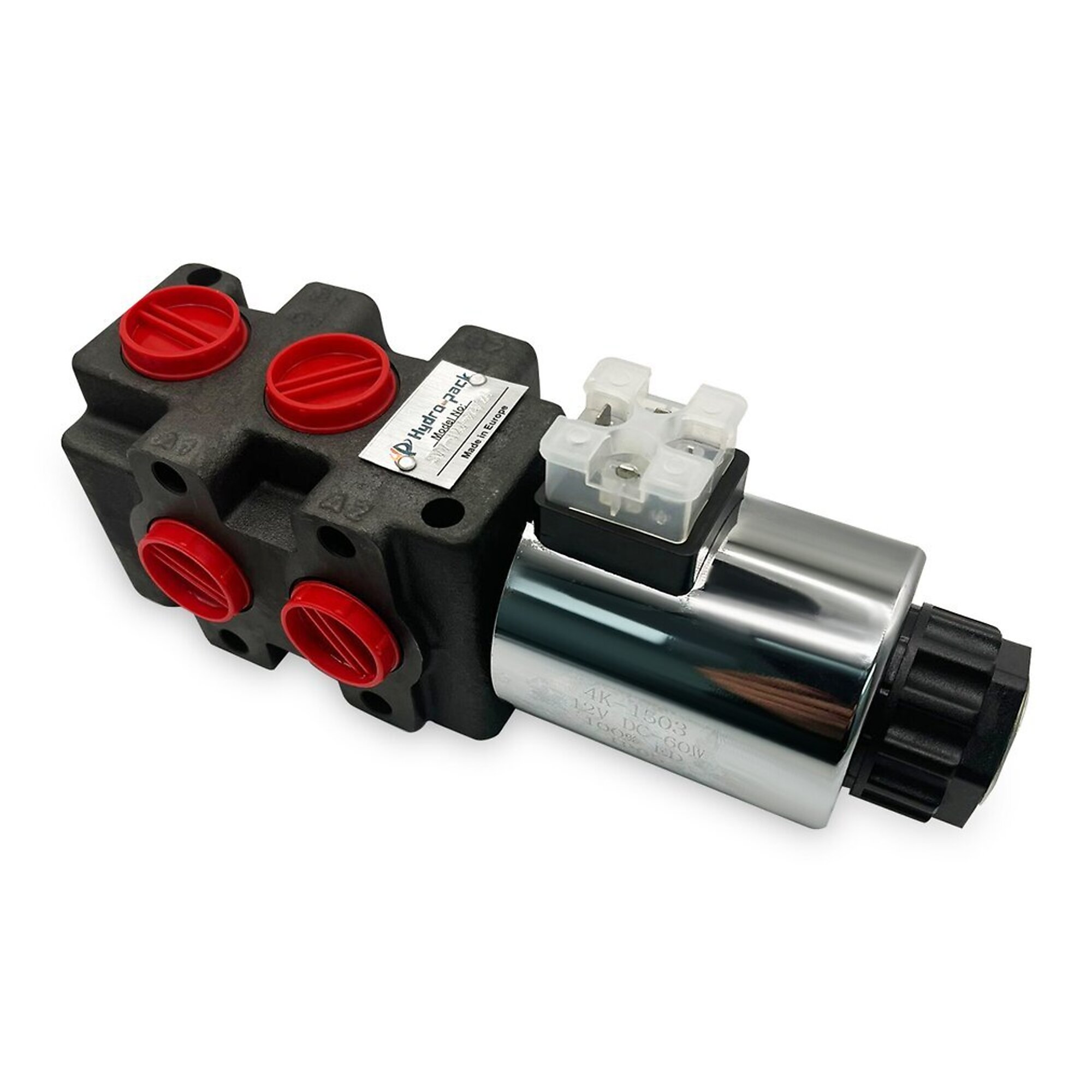

Magister Hydraulic Solenoid Diverter Valve, 6 ports selector, 24 GPM

Click or Tap image to Zoom

$235.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Made in Europe, American Standards
  • Flow: 24 GPM
  • Max Pressure: 4060 PSI
  • Inlet Port: SAE 8
  • Operating Pressure: 3600 PSI

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Hydraulic Solenoid Diverter Valve, 6 ports selector, 24 GPM. This diverter valve is a 6-way, 2-position (6/2) solenoid-operated valve. They are used for selective connection of different cylinders/hydraulic motors in the application. When the valve is de-energized, oil is directed from the D C ports to the first actuator. When the valve coil is energized, oil is directed from the A B ports to the second actuator. These diverter valves are used together with directional control valves. A and B ports (working ports) from the control valve are connected to P1 and P2 ports of Diverter/Selector valves. Other ports (A, B, C, and D) are connected to cylinders or hydraulic motors in the application. A valve can be stacked up to 3 valves, allowing for the diverting of flow in 2, 3, or 4 directions depending on the combination chosen. It is made for a max working pressure of 4060 PSI (with operating pressure 3600 PSI) and will accept flows up to 24 GPM - 1/2” ported version. The advanced design of the valve spool ensures that fast spool switching can take place under any conditions without the use of a separate drain line.

What's Included

    (1) Magister Hydraulic Solenoid Diverter Valve, 6 ports selector, 24 GPM

Features + Benefits

  • Made in Europe, American Standards
  • Flow: 24 GPM
  • Max Pressure: 4060 PSI
  • Inlet Port: SAE 8
  • Operating Pressure: 3600 PSI

Key Specs

AttributeSpecification

item#

7454620

Brand

Magister Hydraulics

Manufacturer's Warranty

1 year limited warranty

Ship Weight

6.0 LB

GPM

24

Working Port

#8 SAE in

Max. PSI

4,060
AttributeSpecification

Directional Control

6-way, 2-position

Body Material

Cast Iron

Inlet Port

#8 SAE in

Outlet Port

#8 SAE in

Product Weight

6.0000 lb

Dimensions L x W x H (in.)

9.0 x 5.0 x 5.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
