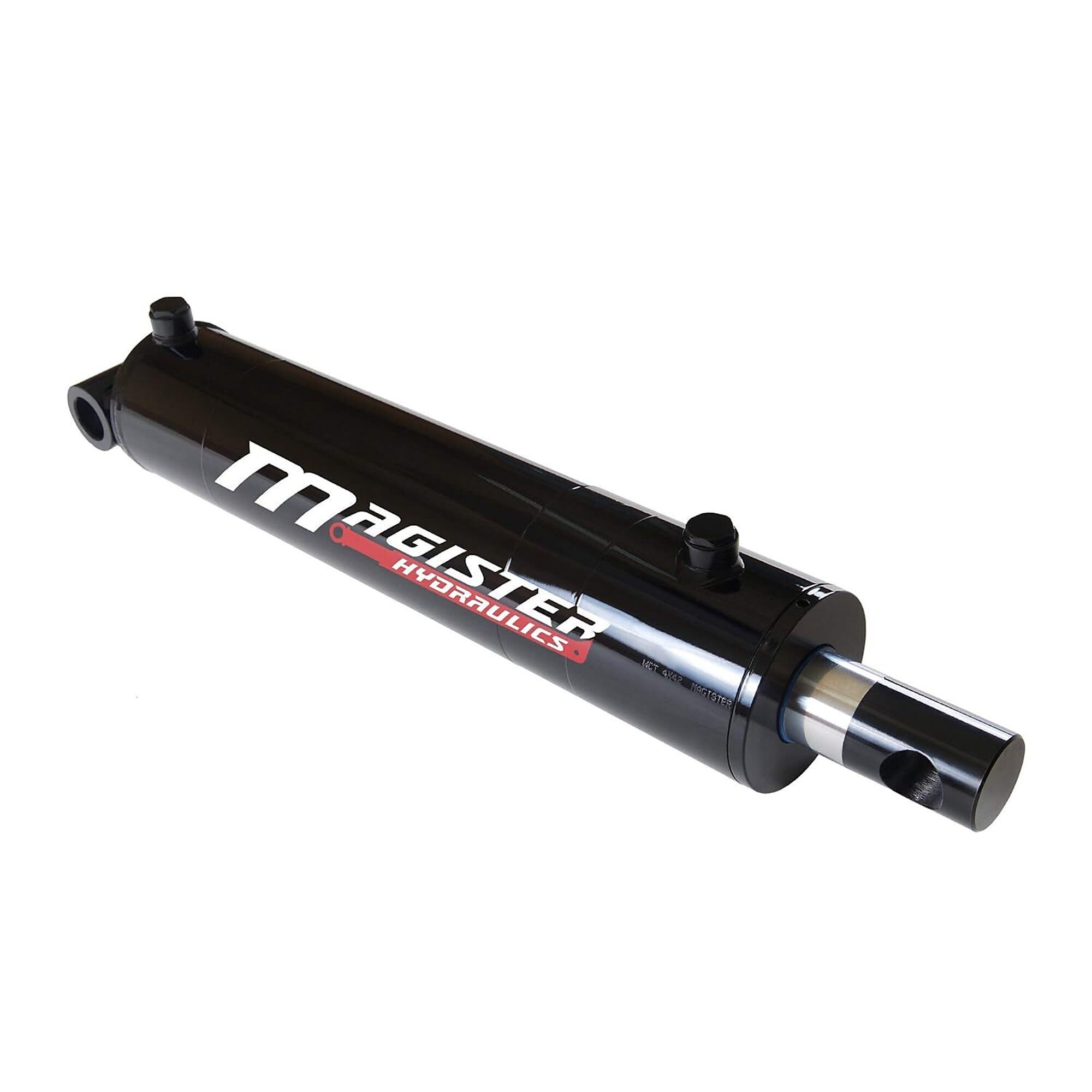

Magister 4" bore x 30" stroke pin eye hydraulic cylinder WPE 4x30
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Made in Europe, American Standards
- Extreme Load Capacity: Welded cross-tube base end, ? 4.5" honed cold-drawn tubing, ? 2.0" chrome-plated rod (steel 1045) with through-hole rod end for easy pin eye mounting and top-quality piston seals make it capable
- Wide Range Hydraulic Applications: Suitable for use in construction, oil & gas, agriculture, forestry, waste and material handling, as well as lifting and pushing tasks.
- Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications
- High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life
See full description
See All Cross Tube Welded Cylinders
See All Cross Tube Welded Cylinders
Currently Viewing This Product
Specifications
3,500
3,500
3,500
3,500
4 in
2.5 in
3 in
2.5 in
30 in
32 in
8 in
12 in
2 in
1.5 in
1.5 in
1.5 in
32,000 lb
10,600 lb
21,000 lb
14,700 lb
39 in
40 in
16 in
21 in
39 in
40 in
16 in
21 in
69 in
72 in
24 in
33 in
1.25 in
1 in
1 in
1 in
0.5 in
0.5 in
0.5 in
0.5 in
6.52 lb
2.72 lb
0.98 lb
1.02 lb
85.0000 lb
42.0000 lb
22.0000 lb
24.0000 lb
44.0 x 6.0 x 6.0 in
43.0 x 5.0 x 5.0 in
20.0 x 5.0 x 5.0 in
26.0 x 5.0 x 5.0 in
