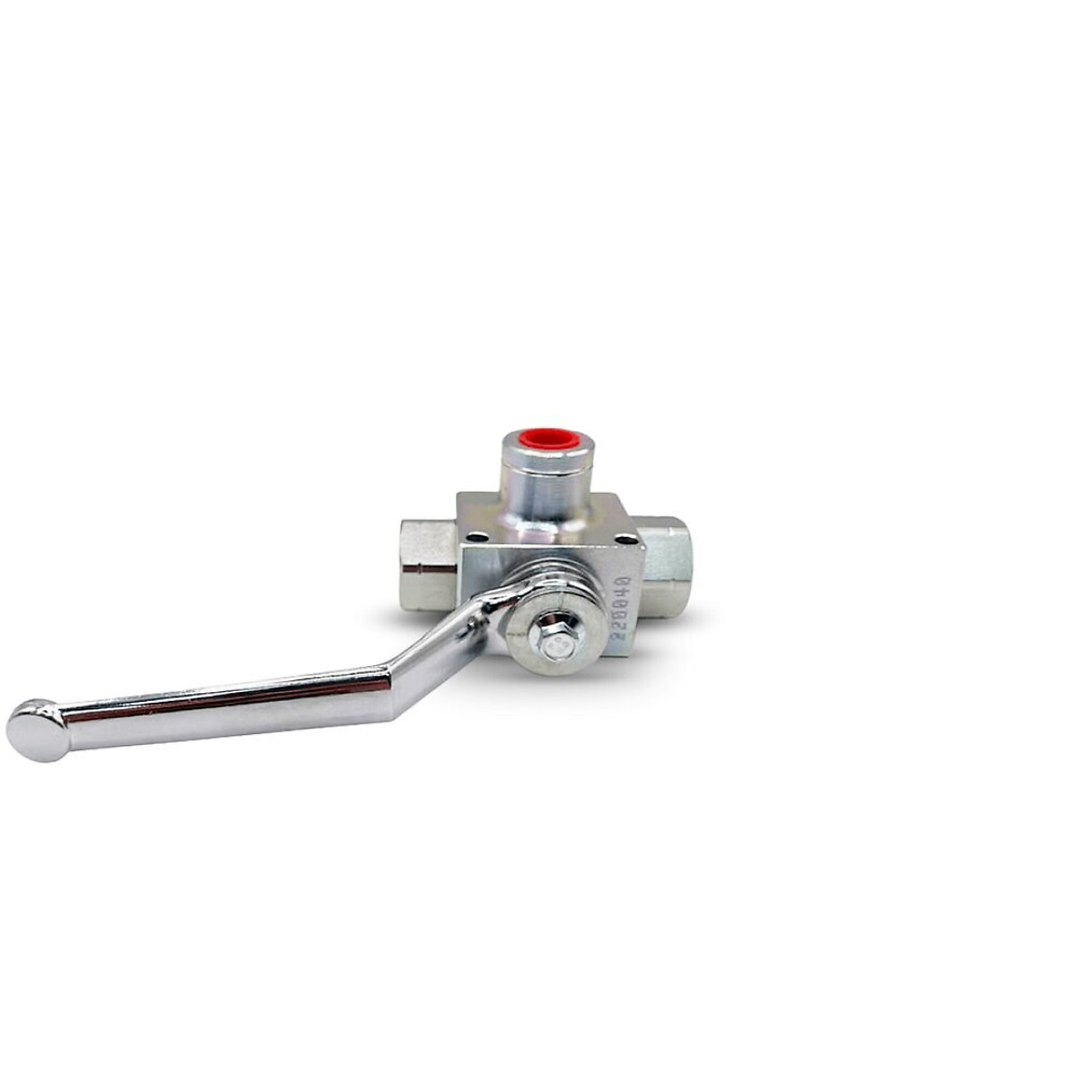

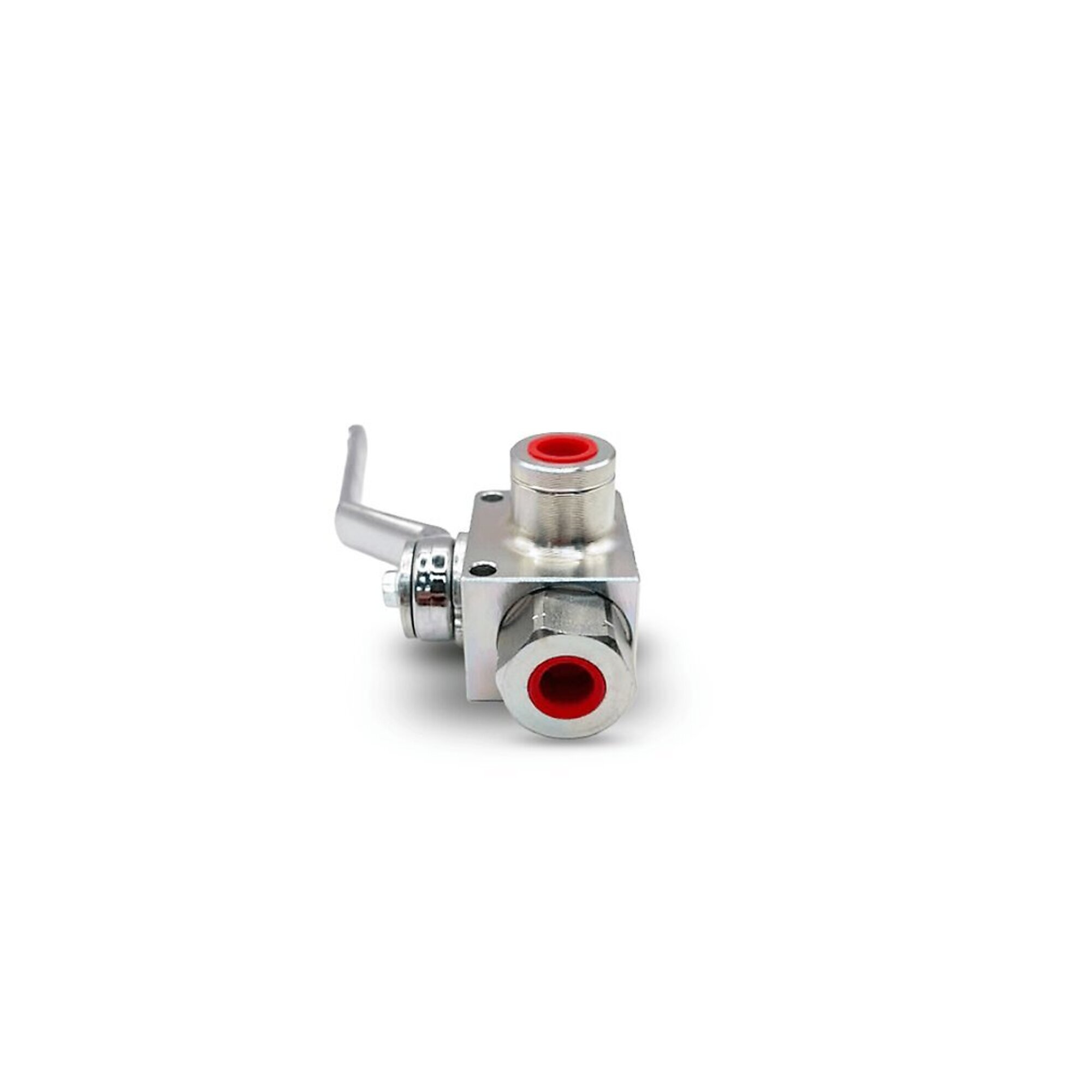

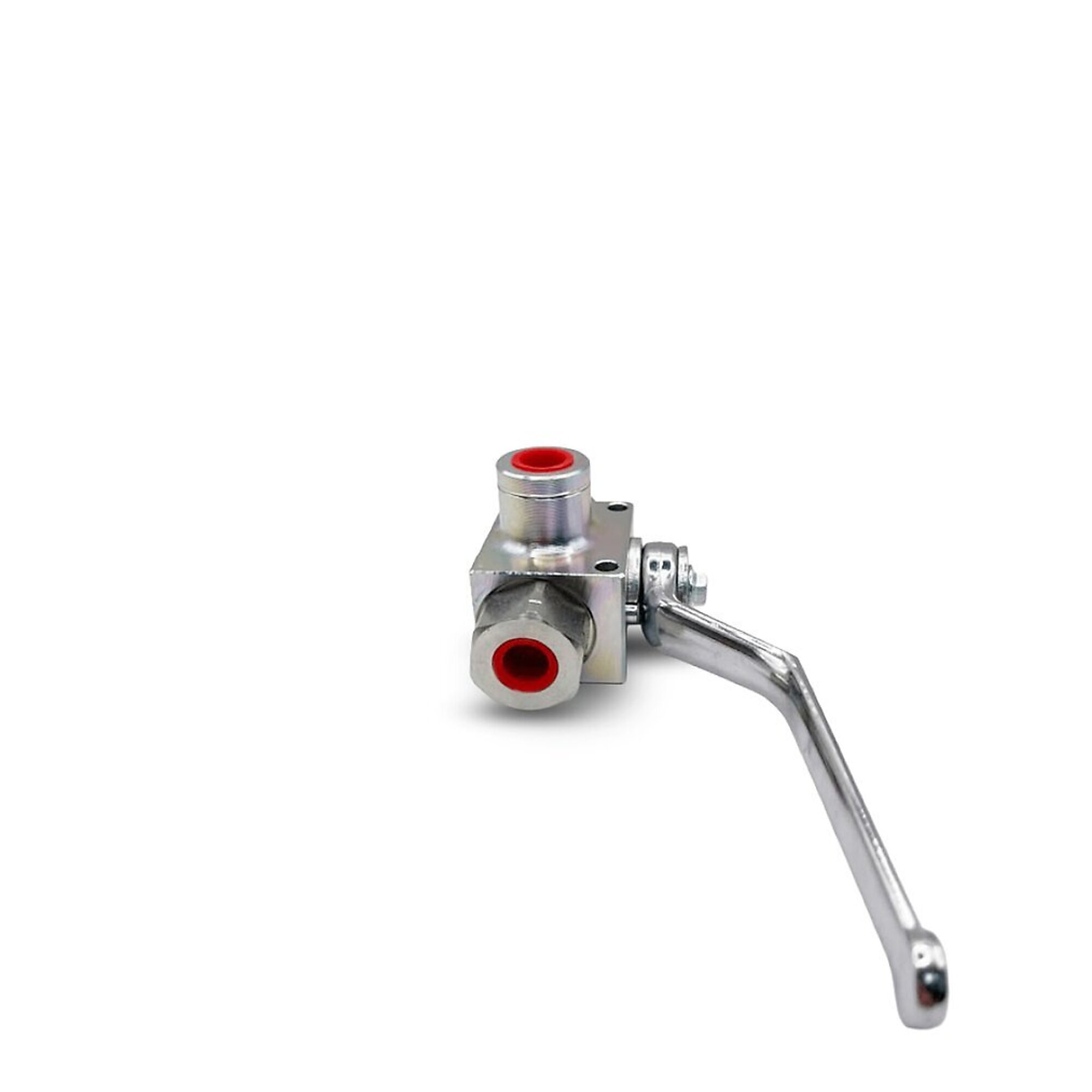

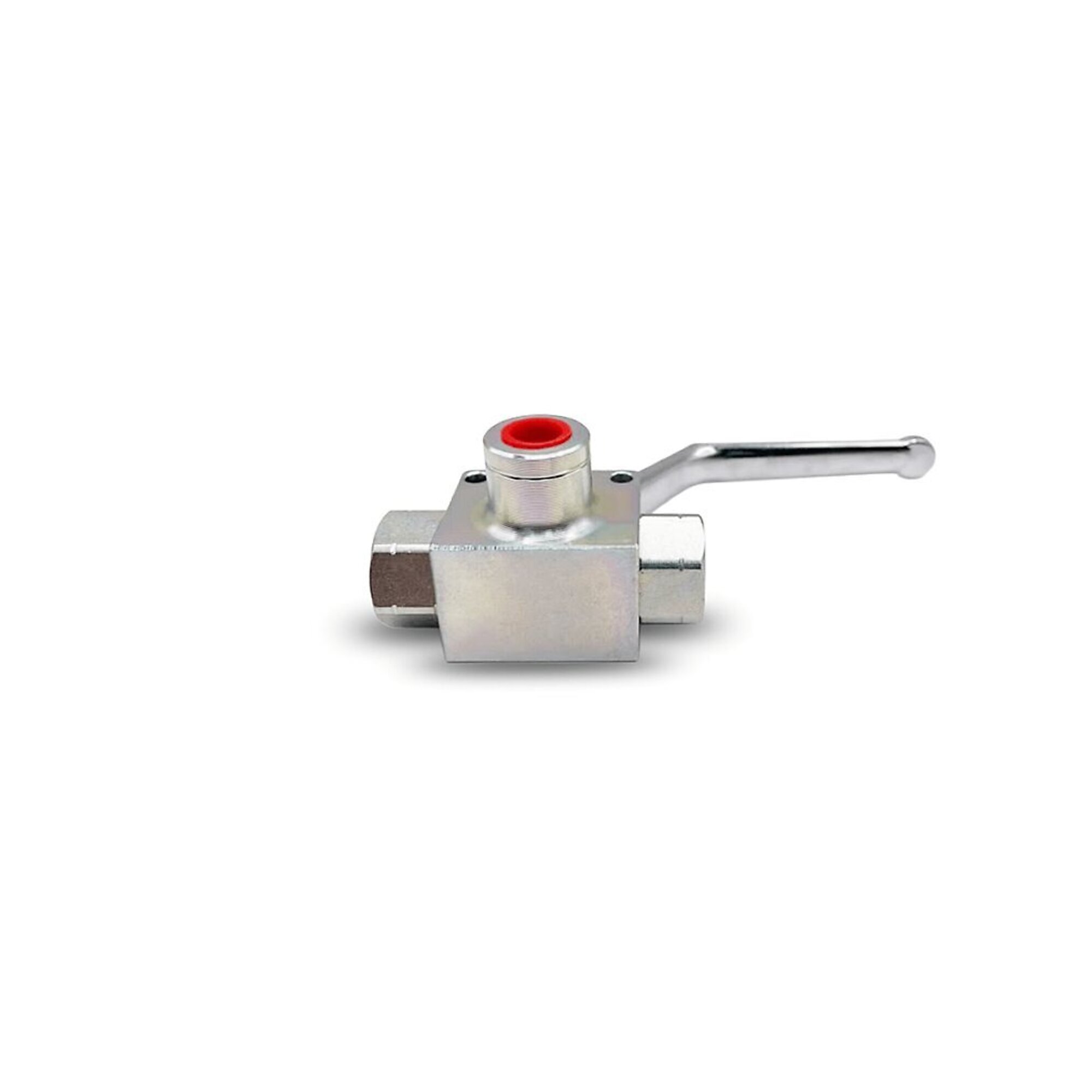

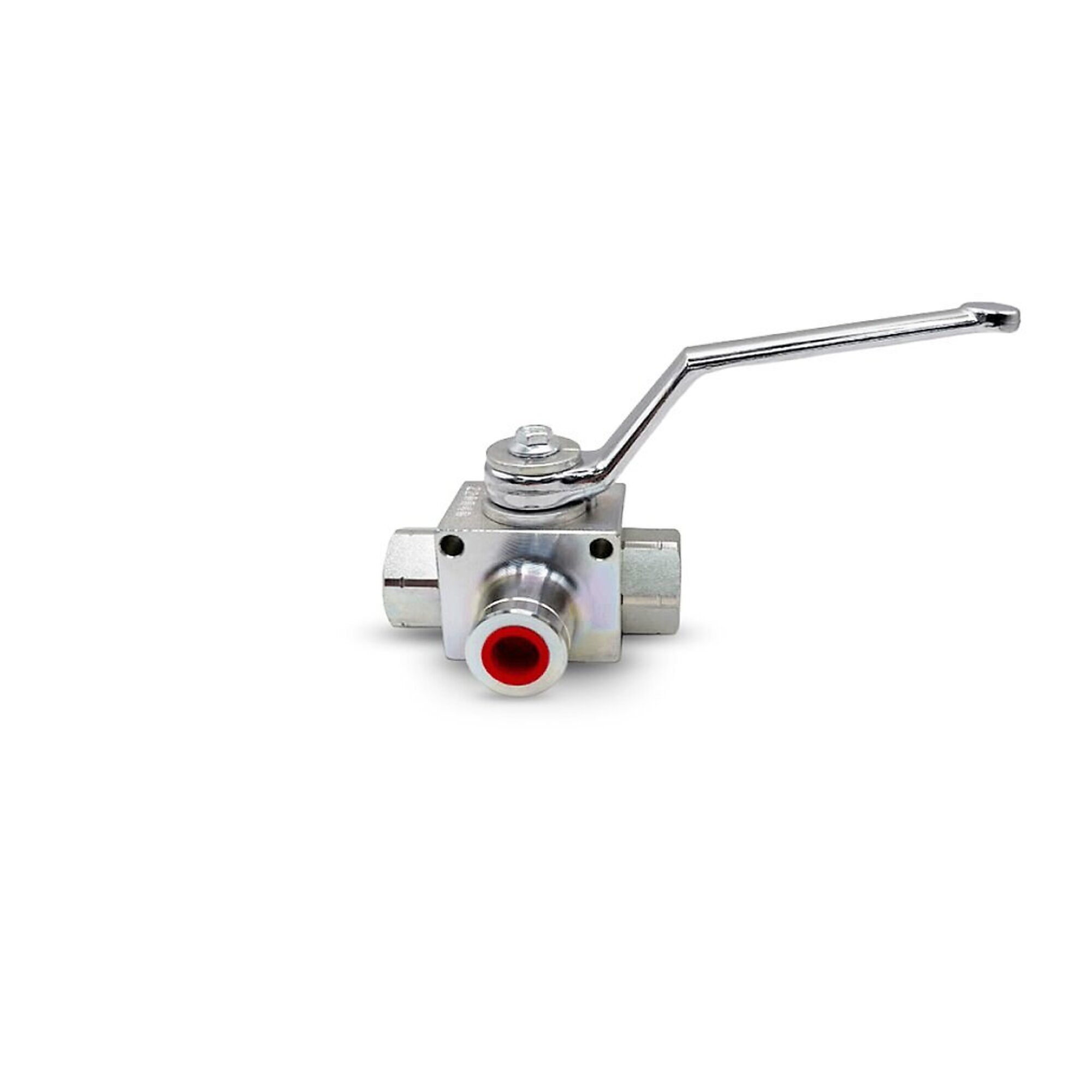

Magister 3 Way Ball Valve 1/4" NPT HV-BV-3W-4N

Item# 7454734
New
Magister 3 Way Ball Valve 1/4" NPT HV-BV-3W-4N

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Magister 3 Way Ball Valve 1/4" NPT HV-BV-3W-4N

Click or Tap image to Zoom

$75.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Made in Europe, American Standards
  • Body: zinc-plated steel
  • Internal parts: ground and chromium-plated steel
  • Seals: BUNA N standard and POM seals
  • Leakage: does not allow leakage

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

3 Way Ball Valve 1/4in. NPT. Ball valves provide reliable shut-off performance for high-pressure hydraulic and industrial systems. Built from carbon steel and rated for pressures up to 7250 PSI, they are well suited for demanding applications in agriculture, heavy industry, lifting equipment, the steel industry, and painting lines. Designed for high mechanical strength, dependable sealing, and continuous operation, these valves are ideal for controlling technical fluids in complex working environments. These valves are used to divert the inlet flow towards 2 alternative ports (L scheme).

What's Included

    (1) Magister 3 Way Ball Valve 1/4" NPT HV-BV-3W-4N

Features + Benefits

  • Made in Europe, American Standards
  • Body: zinc-plated steel
  • Internal parts: ground and chromium-plated steel
  • Seals: BUNA N standard and POM seals
  • Leakage: does not allow leakage

Key Specs

AttributeSpecification

item#

7454734

Brand

Magister Hydraulics

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.0 LB

Working Port

1/4 NPT in
AttributeSpecification

Max. PSI

7,250

Directional Control

3-way, 2-position

Body Material

Zinc-Plated Steel

Product Weight

2.0000 lb

Dimensions L x W x H (in.)

6.0 x 6.0 x 6.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
