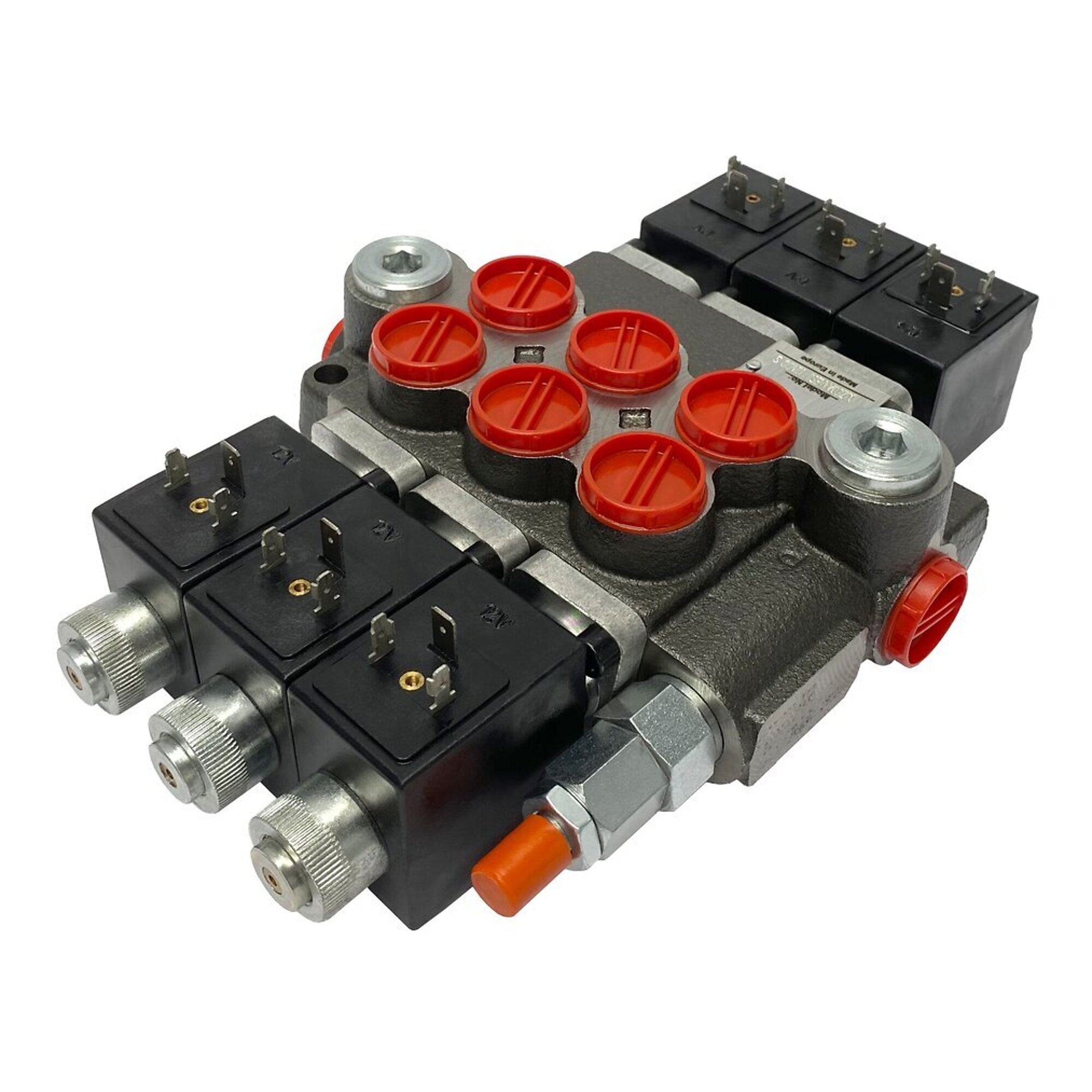

Magister 3 spool x 13 GPM solenoid hydraulic control valve HCV-S 3x13

Item# 7454751
NewTop Seller
Magister 3 spool x 13 GPM solenoid hydraulic control valve HCV-S 3x13

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Magister 3 spool x 13 GPM solenoid hydraulic control valve HCV-S 3x13

Click or Tap image to Zoom

$535.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Made in Europe, American Standards
  • Electric Solenoid Operation: Allows easy remote or automated control via a simple 12V DC connection, making it ideal for custom control panels and automated systems
  • Robust & Reliable: Manufactured to European standards with a durable cast iron body for long-term performance and resistance to harsh operating conditions
  • Wide Compatibility: Suitable for new designs or as a replacement valve for small tractors, tractor loaders, log splitters, forklifts, and tow trucks
  • Easy Integration: Simple mounting using 2 × M8 bolts and standard SAE ports for straightforward connection to existing hydraulic systems

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Upgrade to convenient electric operation with this 3 Spool, 13 GPM, 12V DC Solenoid Hydraulic Control Valve. Designed for precise remote control of hydraulic flow up to 3600 PSI (maximum 4600 PSI), it eliminates the need for manual levers and enables smooth, efficient operation. Its heavy-duty cast iron monoblock body ensures leak-free durability and reliable performance in demanding environments, with an operating temperature range from -40°F to 140°F. DIN connector not included.

What's Included

    (1) Magister 3 spool x 13 GPM solenoid hydraulic control valve HCV-S 3x13

Features + Benefits

  • Made in Europe, American Standards
  • Electric Solenoid Operation: Allows easy remote or automated control via a simple 12V DC connection, making it ideal for custom control panels and automated systems
  • Robust & Reliable: Manufactured to European standards with a durable cast iron body for long-term performance and resistance to harsh operating conditions
  • Wide Compatibility: Suitable for new designs or as a replacement valve for small tractors, tractor loaders, log splitters, forklifts, and tow trucks
  • Easy Integration: Simple mounting using 2 × M8 bolts and standard SAE ports for straightforward connection to existing hydraulic systems

Key Specs

AttributeSpecification

item#

7454751

Brand

Magister Hydraulics

Manufacturer's Warranty

1 year limited warranty

Ship Weight

17.0 LB

GPM

13

Working Port

#8 SAE in

Max. PSI

4,600
AttributeSpecification

Spool (qty.)

3

Directional Control

4-way, 3-position

Body Material

Cast Iron

Inlet Port

#10 SAE in

Outlet Port

#10 SAE in

Product Weight

17.0000 lb

Dimensions L x W x H (in.)

12.0 x 9.0 x 6.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
