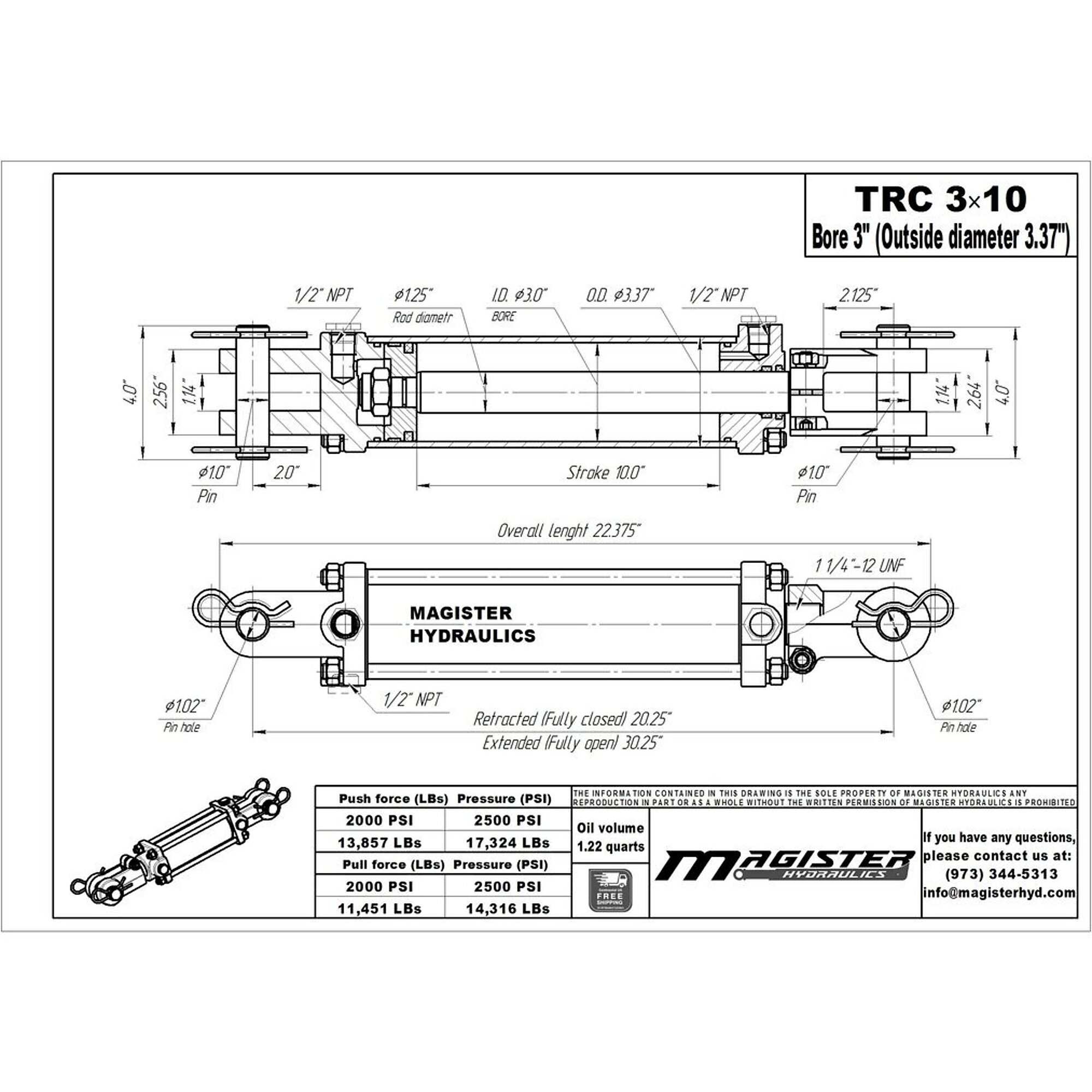

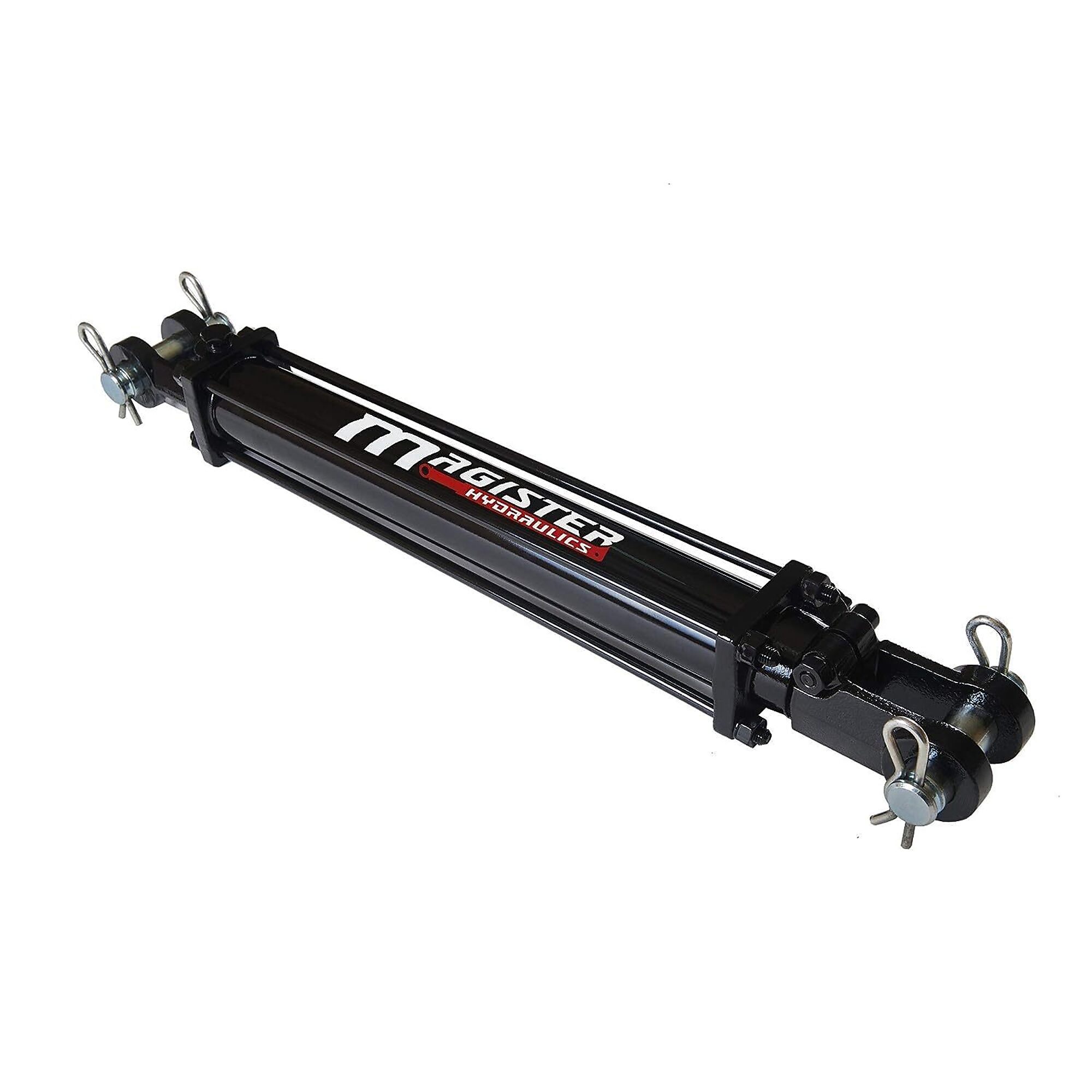

Magister 3" bore x 10" stroke tie rod hydraulic cylinder TRC 3x10

Item# 7448203
New
Magister 3" bore x 10" stroke tie rod hydraulic cylinder TRC 3x10

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Magister 3" bore x 10" stroke tie rod hydraulic cylinder TRC 3x10

Click or Tap image to Zoom

  • Made in Europe, American Standards

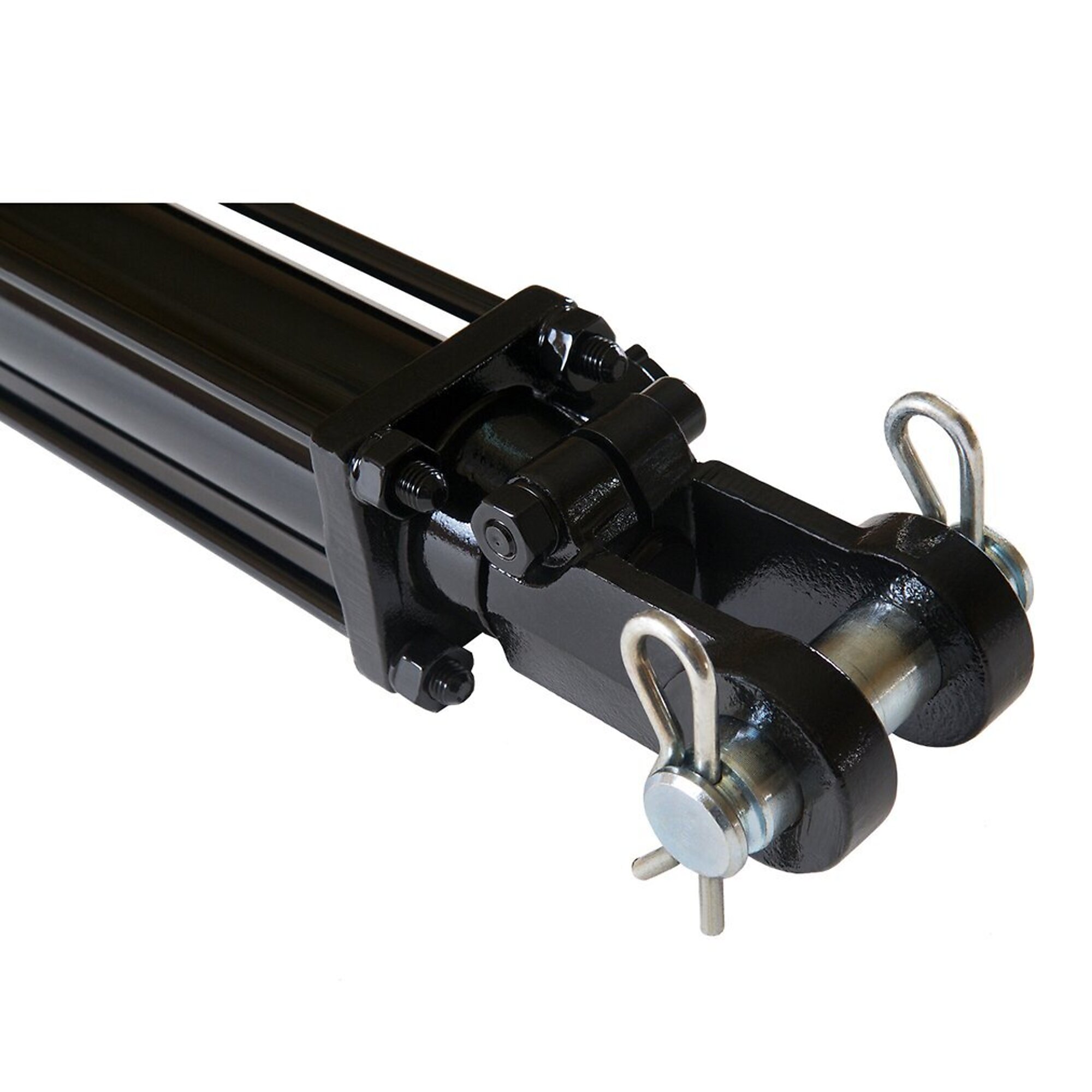

  • High load capacity: Cast iron clevis end, ? 3.37" honed cold-drawn tubing, ? 1.25" chrome-plated rod (steel 1045) with screw-on clevis on the rod end, and top-quality piston seals make it capable of handling heavy loads
  • Wide Range Hydraulic Applications: Manufacturing and automation, agriculture and farming equipment, construction, material handling, mining, automotive industry, industrial machinery, due to their versatility,
  • Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications
  • High-Quality Construction: Designed with heavy-duty steel end caps, precision-machined tie rods, and honed steel tubing, ensuring long-lasting performance and easy maintenance

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Designed for Maximum Performance and Durability, the heavy-duty Tie-Rod Hydraulic Cylinder is engineered to withstand the toughest jobs in agriculture, construction, and industrial equipment. The Magister Hydraulics Tie-Rod Double Acting Hydraulic Ram features a 3in. bore and 10in. stroke, built with a durable tie-rod design for superior strength and reliability. This construction ensures easy maintenance and long-lasting performance, making it an affordable and high-quality alternative to OEM hydraulic rams. The tie-rod cylinders are ideal for a wide range of low-pressure agriculture and construction applications, including waste management, recycling, mobile, transportation, insudstial, and material handling.

What's Included

    (1) Magister 3" bore x 10" stroke tie rod hydraulic cylinder TRC 3x10

Features + Benefits

  • Made in Europe, American Standards
  • High load capacity: Cast iron clevis end, ? 3.37" honed cold-drawn tubing, ? 1.25" chrome-plated rod (steel 1045) with screw-on clevis on the rod end, and top-quality piston seals make it capable of handling heavy loads
  • Wide Range Hydraulic Applications: Manufacturing and automation, agriculture and farming equipment, construction, material handling, mining, automotive industry, industrial machinery, due to their versatility,
  • Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications
  • High-Quality Construction: Designed with heavy-duty steel end caps, precision-machined tie rods, and honed steel tubing, ensuring long-lasting performance and easy maintenance

Key Specs

AttributeSpecification

item#

7448203

Brand

Magister Hydraulics

Manufacturer's Warranty

2 year limited warranty

Ship Weight

30.0 LB

Max. PSI

2,500

Bore Diameter

3 in

Stroke Length

10 in

Shaft Diameter

1.25 in

Cylinder Capacity

17,670 lb
AttributeSpecification

Closed Pin Center

20.25 in

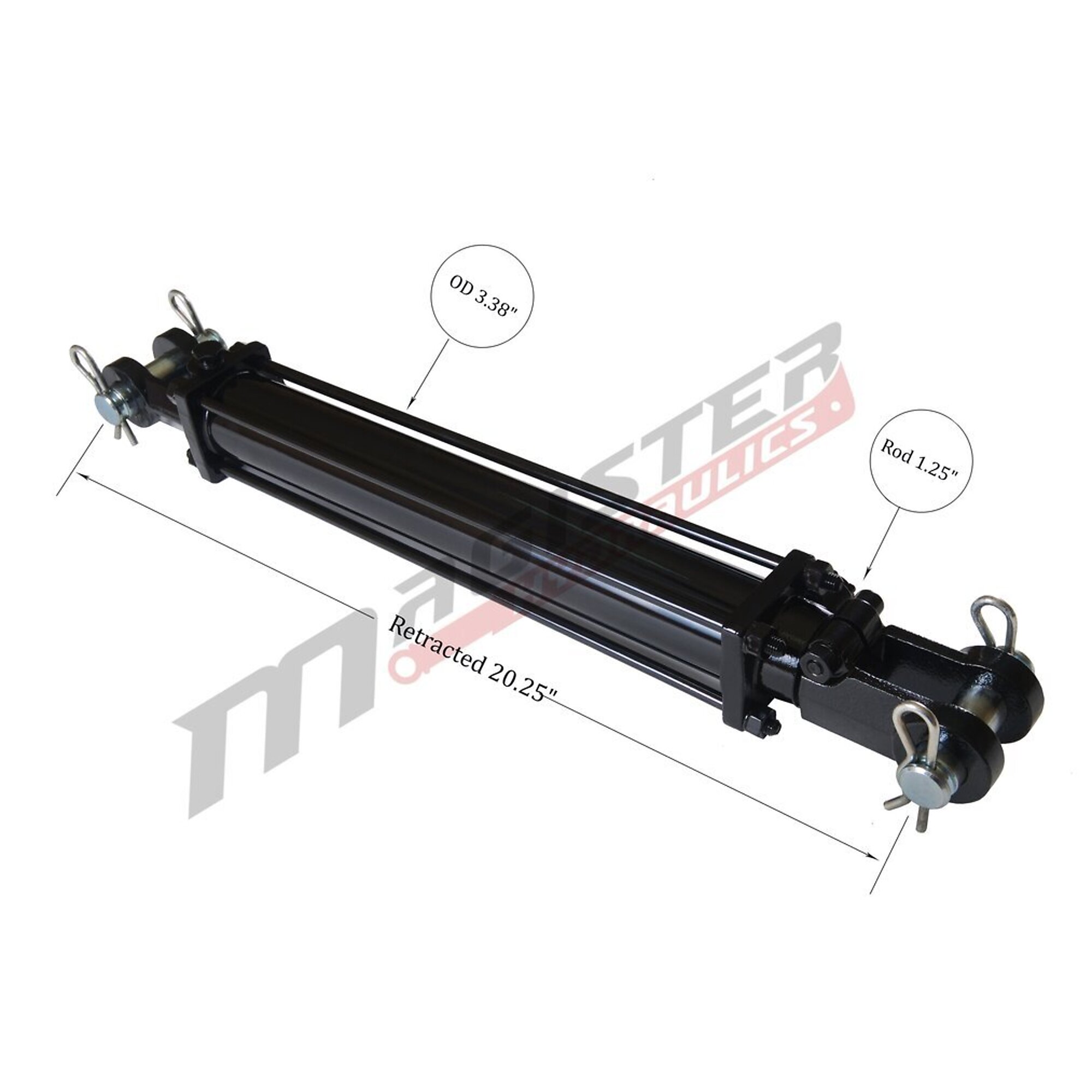

Retracted Length

20.25 in

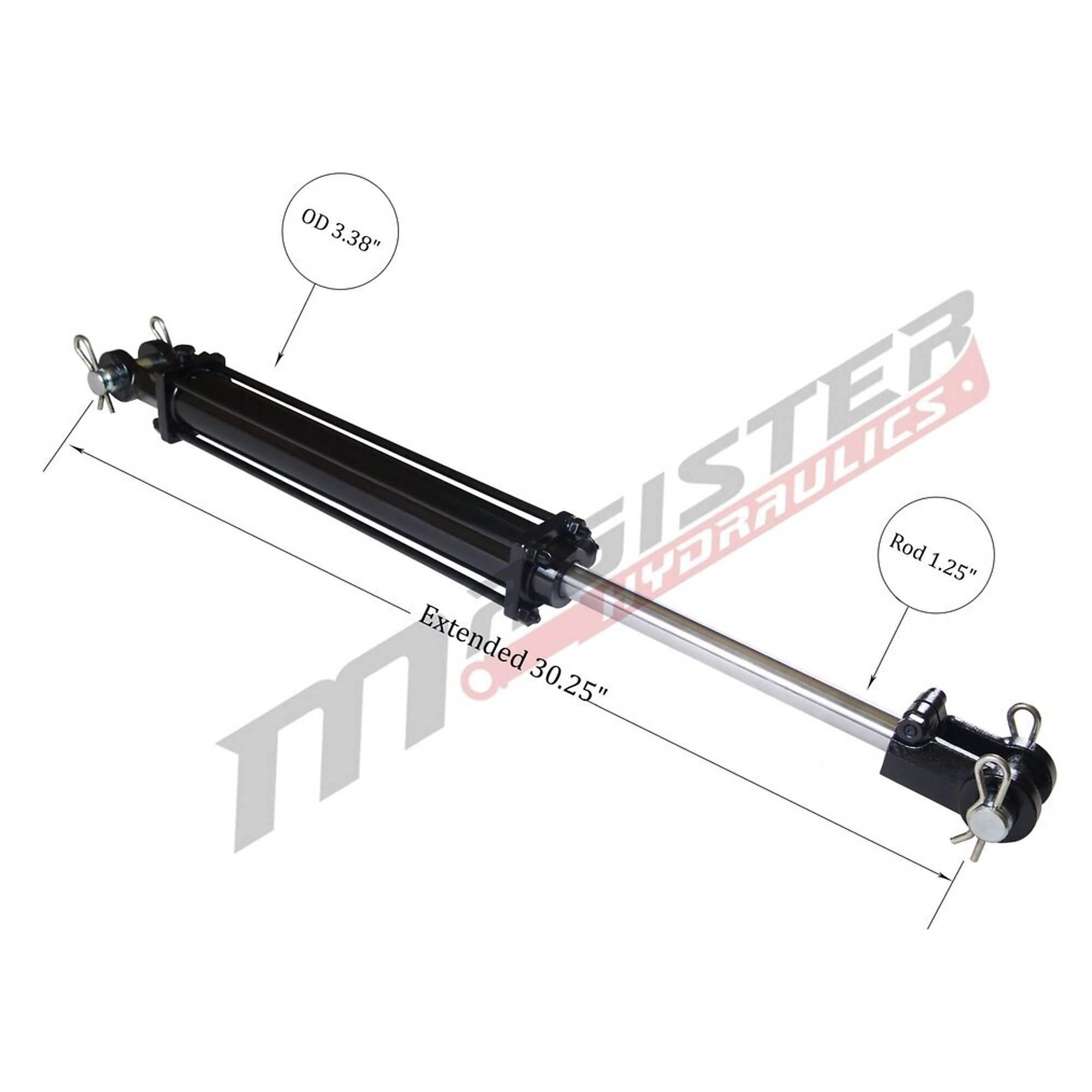

Extended Length

30.25 in

Pin Diameter

1 in

Port Size

0.5 in

Oil Volume

1.22 lb

Product Weight

30.0000 lb

Dimensions L x W x H (in.)

29.0 x 5.0 x 5.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
