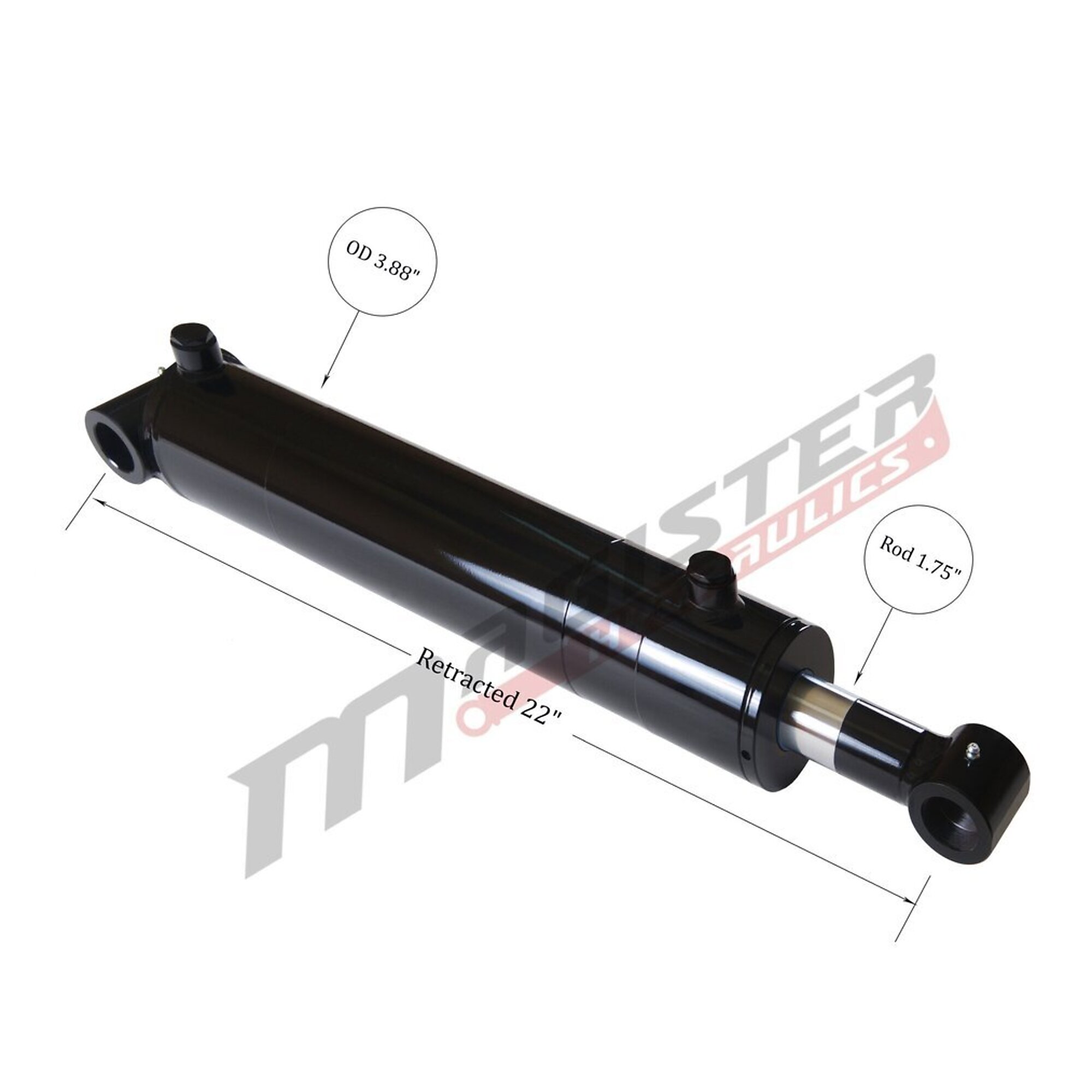

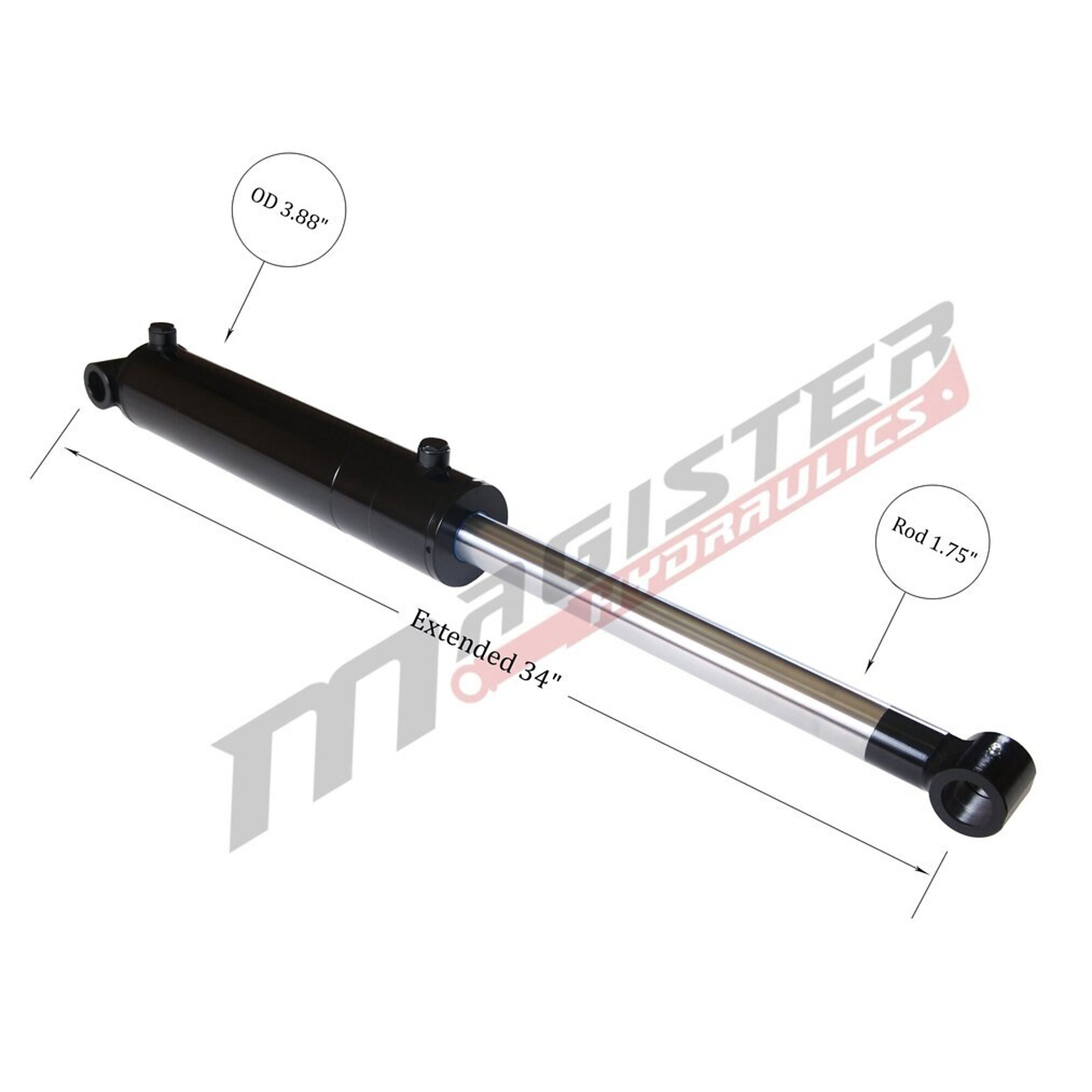

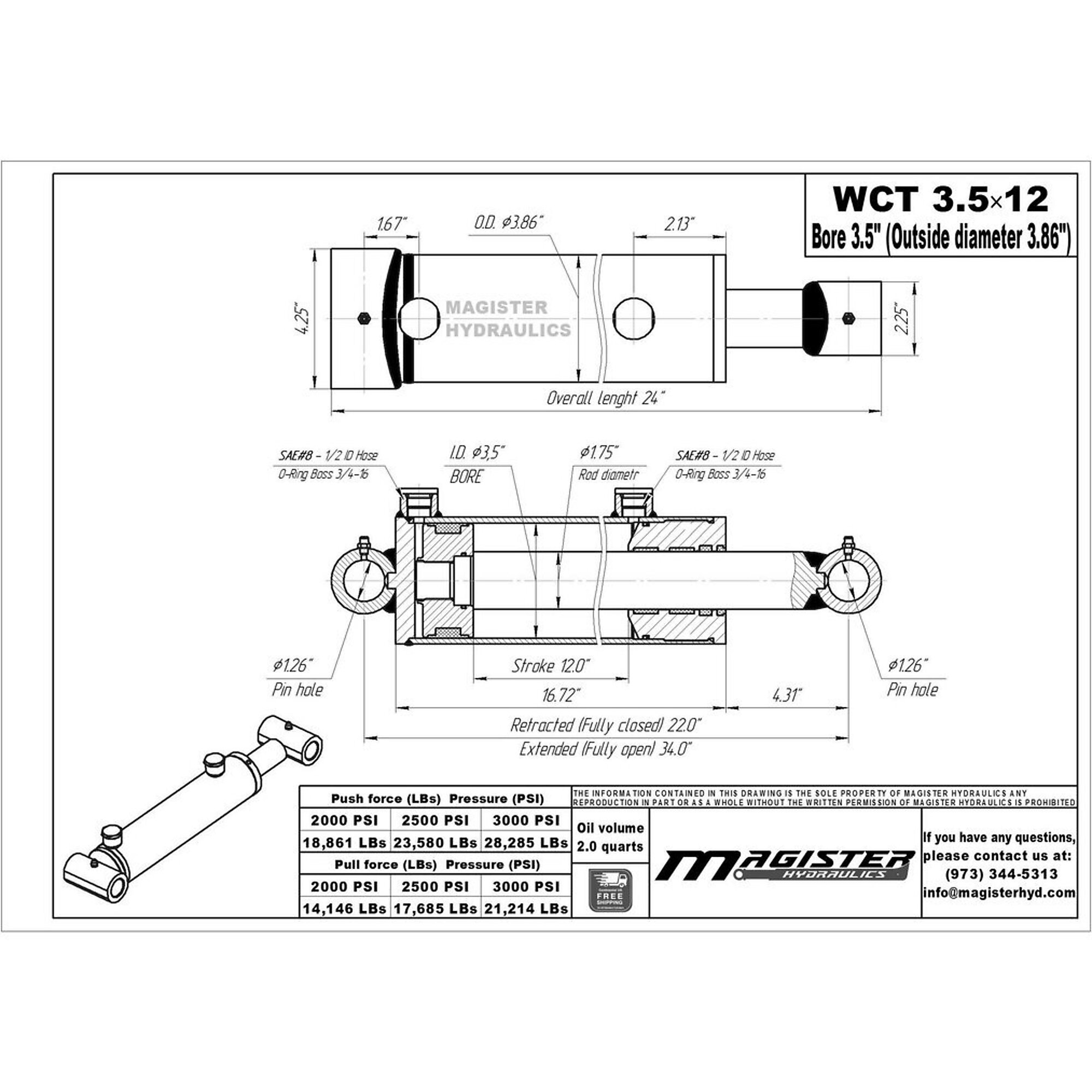

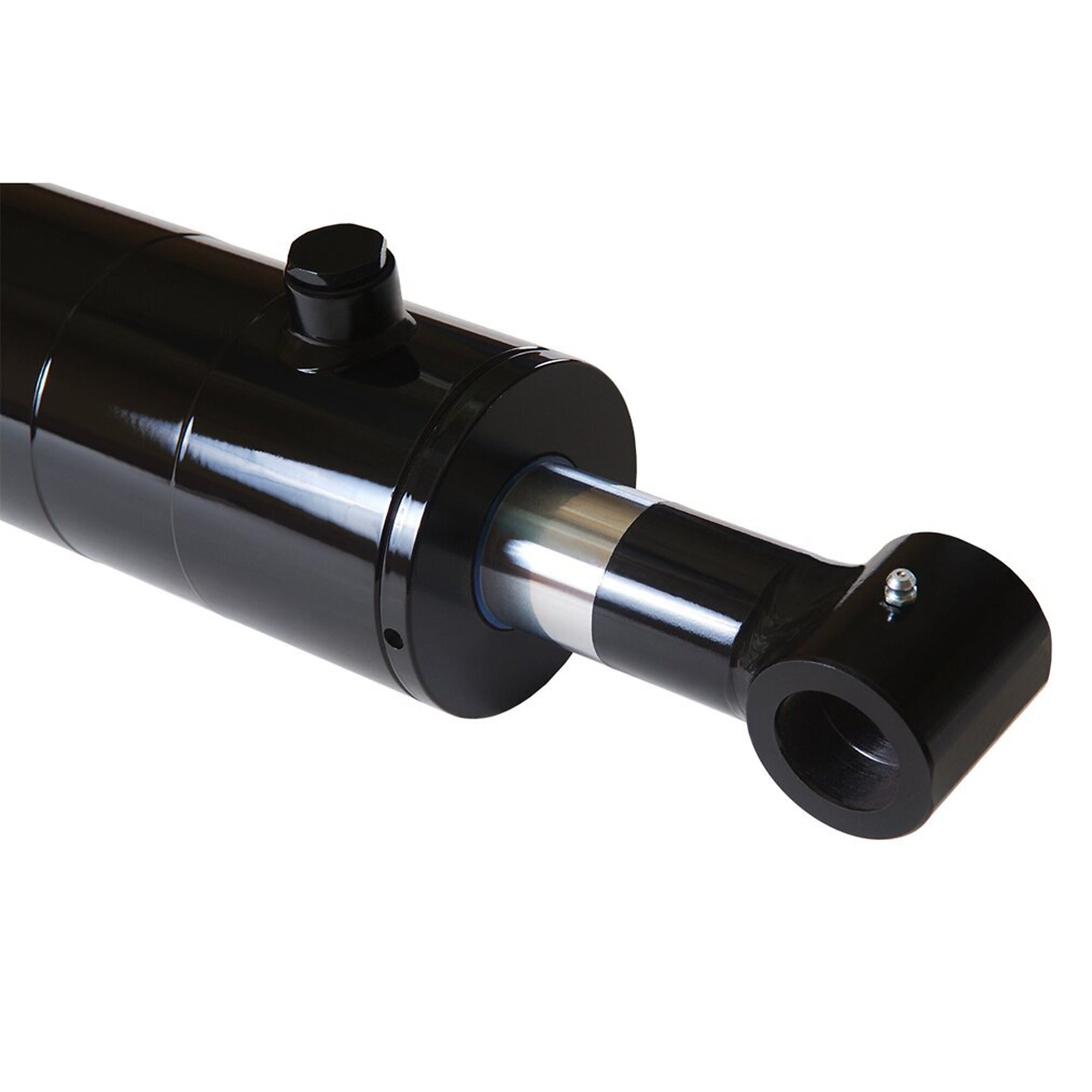

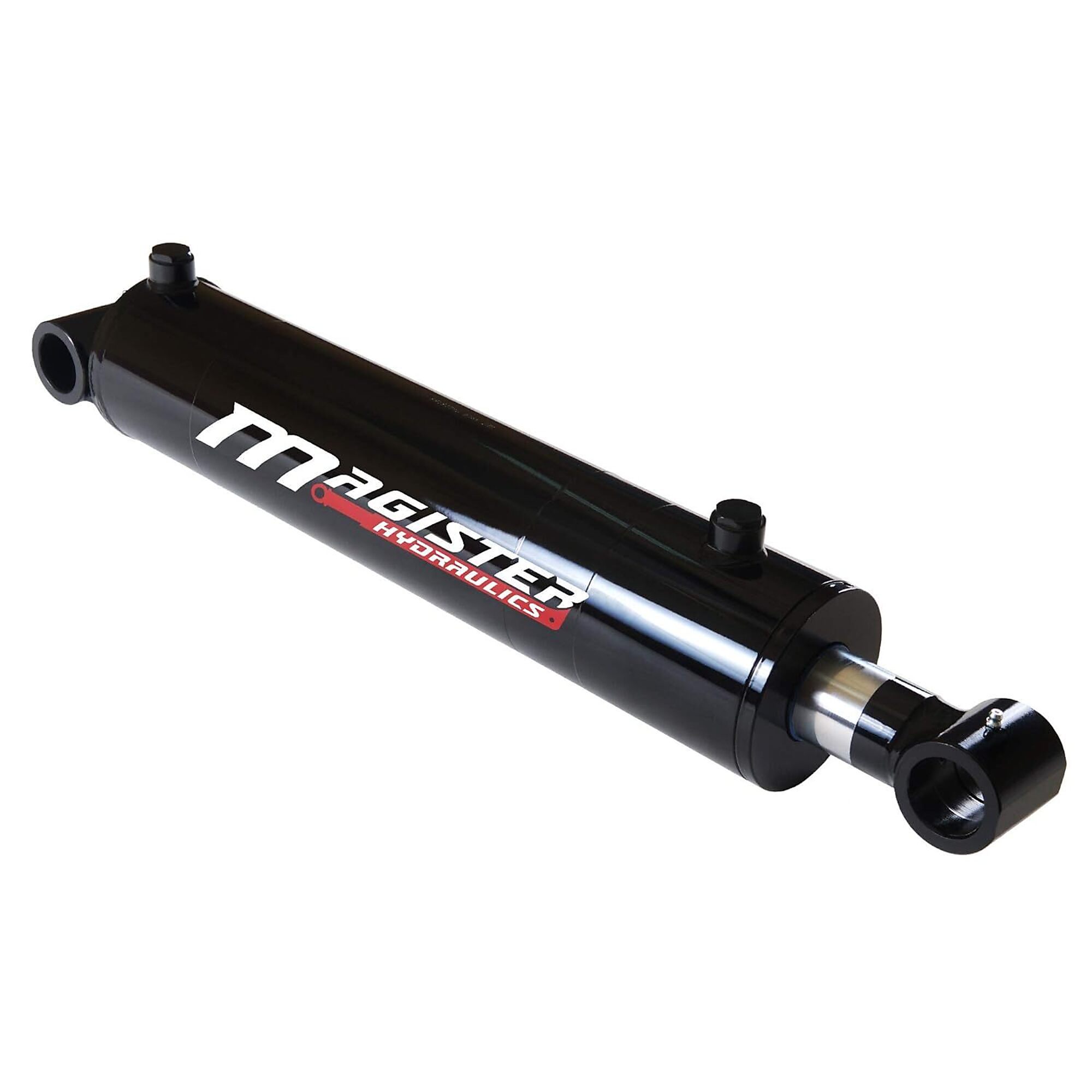

Magister 3.5" bore x 12" stroke cross tube hydraulic cylinder WCT 3.5x12
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Made in Europe, American Standards
- Extreme load capacity: Welded cross tube ends, ? 3.86" honed cold-drawn tubing, ? 1.75" chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 12" stroke
- Wide Range Hydraulic Applications: forklifts, backhoes, front end loaders, tractors, ensuring reliable operation in harsh environments thanks to the usage of this cross tube cylinder
- Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications
- High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life
See full description
See All Cross Tube Welded Cylinders
See All Cross Tube Welded Cylinders
Currently Viewing This Product
Specifications
3,500
3,000
4,500
4,500
3.5 in
3 in
3 in
2.5 in
12 in
8 in
4 in
8 in
1.75 in
1.5 in
-
-
28,800 lb
21,200 lb
-
-
22 in
-
-
-
22 in
16 in
12 in
16 in
34 in
24 in
16 in
24 in
1.25 in
1 in
-
-
0.5 in
-
0.75 in
0.75 in
2 lb
-
-
-
36.0000 lb
22.7100 lb
18.5000 lb
17.9000 lb
26.0 x 6.0 x 6.0 in
40.0 x 5.0 x 5.0 in
13.5 x 4.22 x 3.75 in
17.5 x 3.7 x 3.25 in
