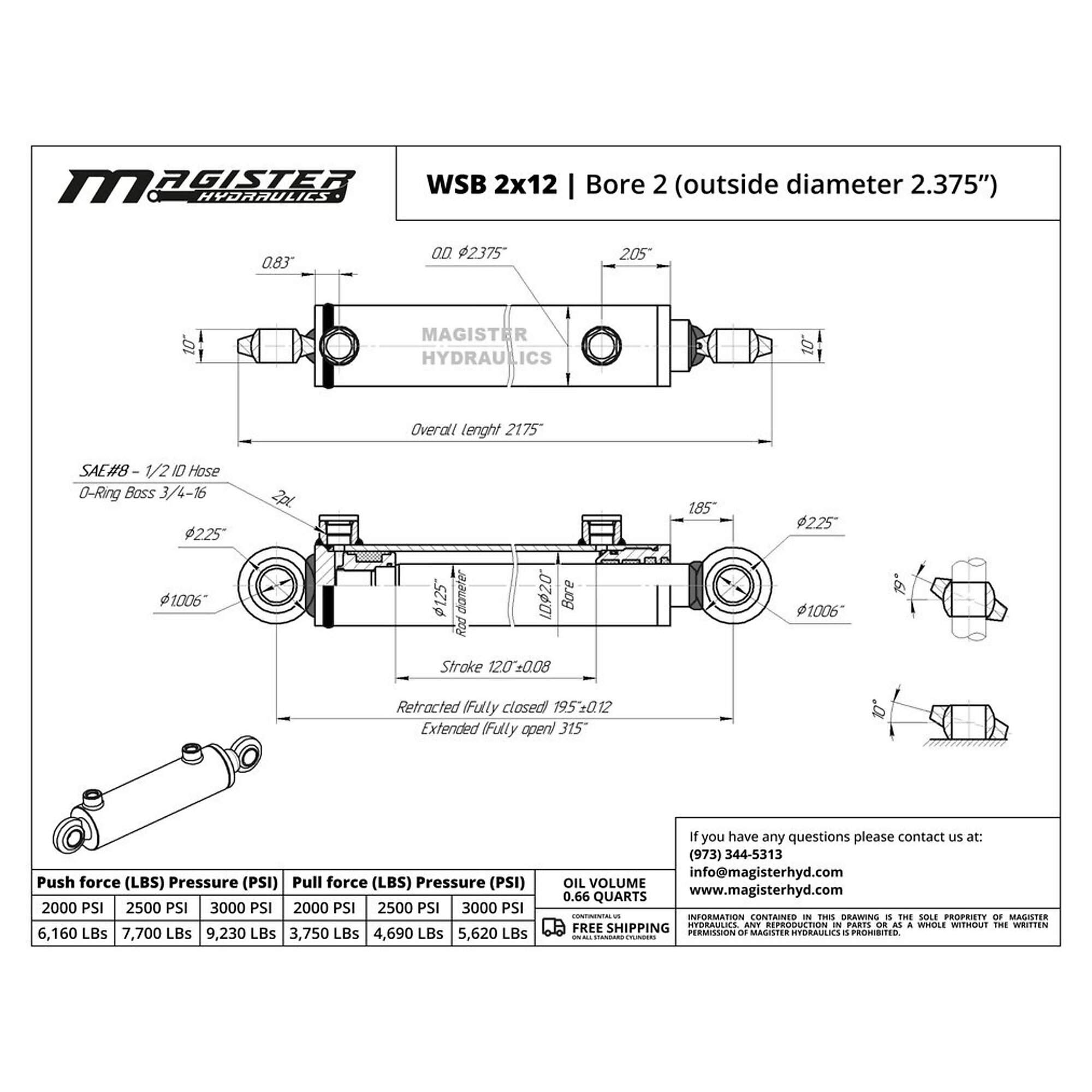

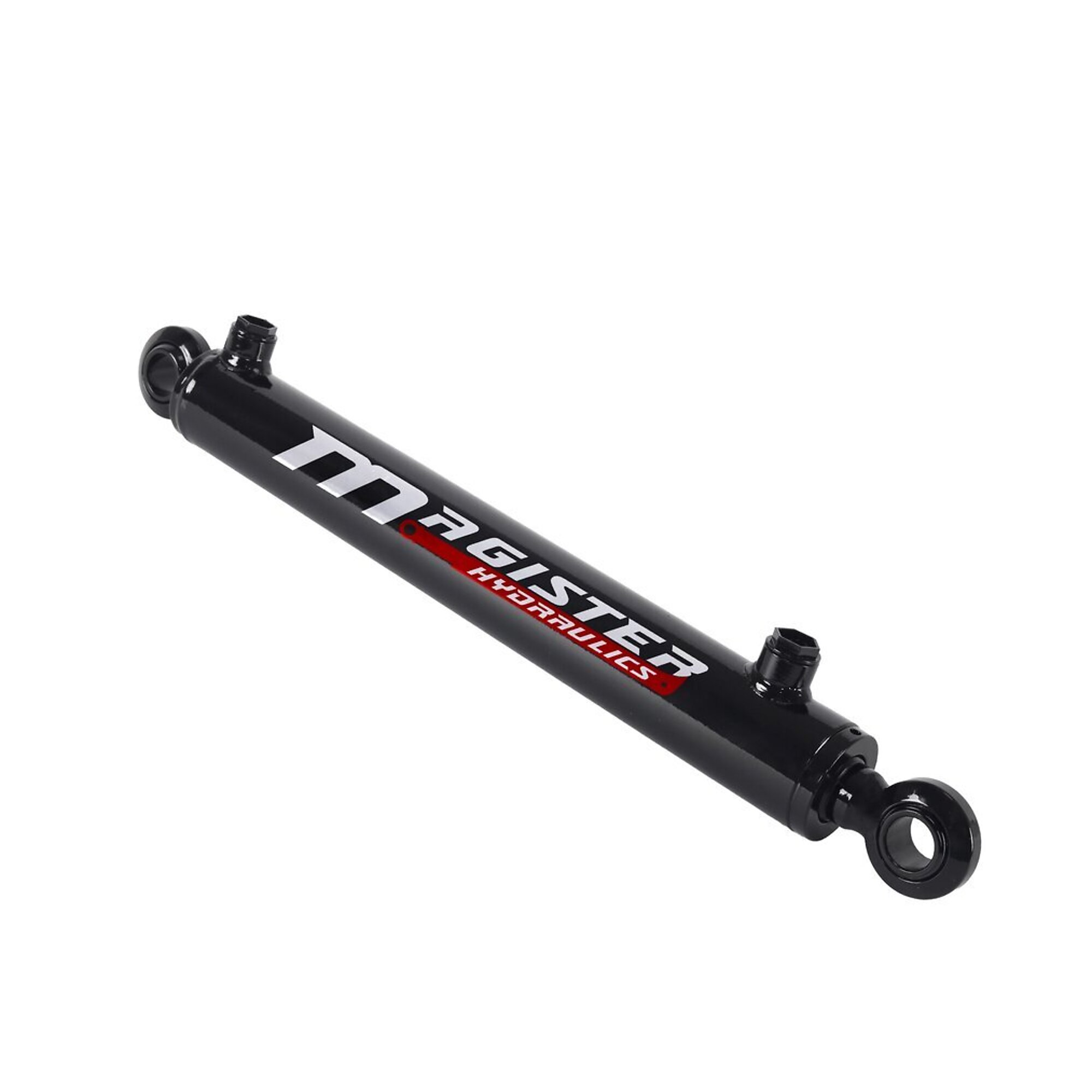

Magister 2" bore x 12" stroke swivel ball hydraulic cylinder WSB 2x12
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Made in Europe, American Standards

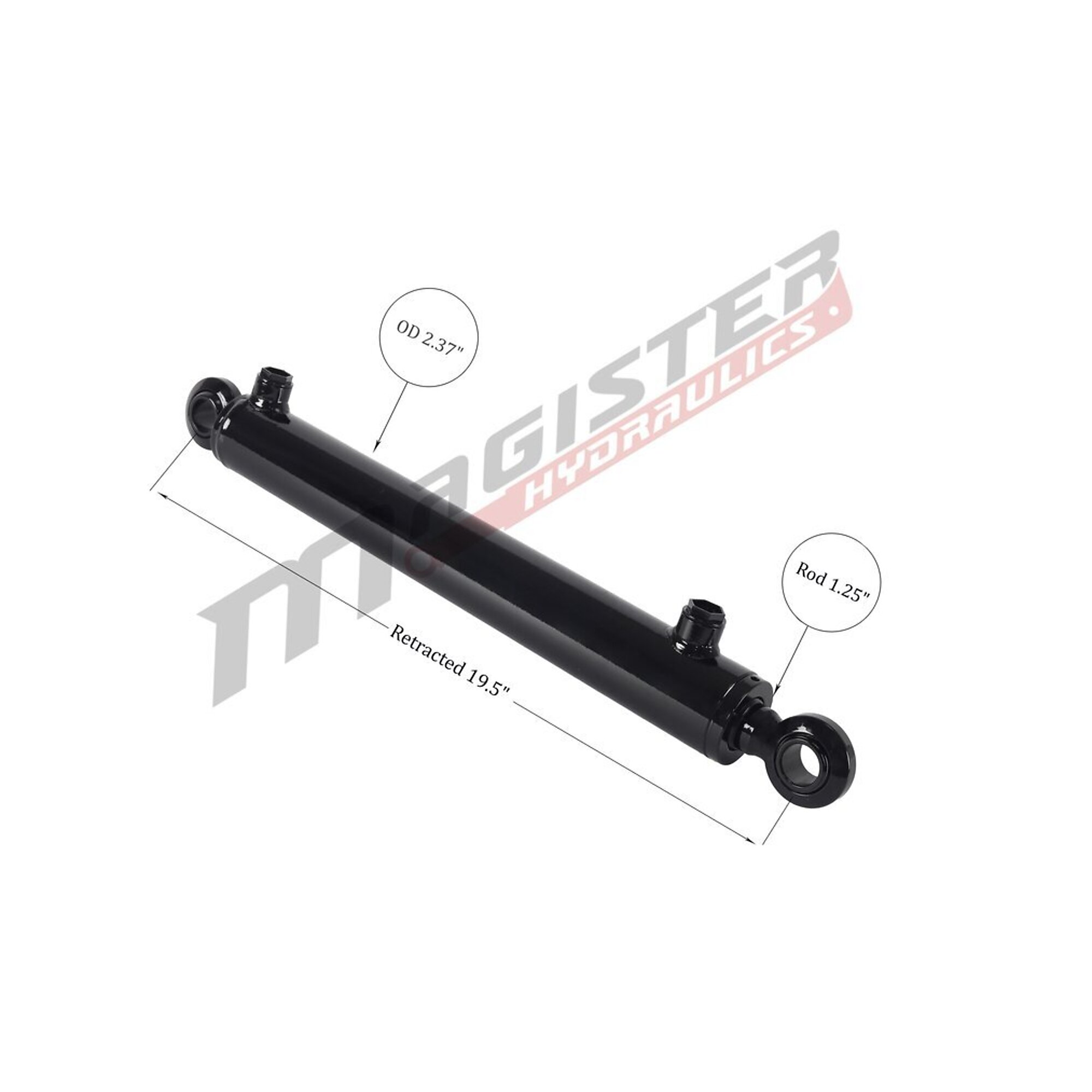

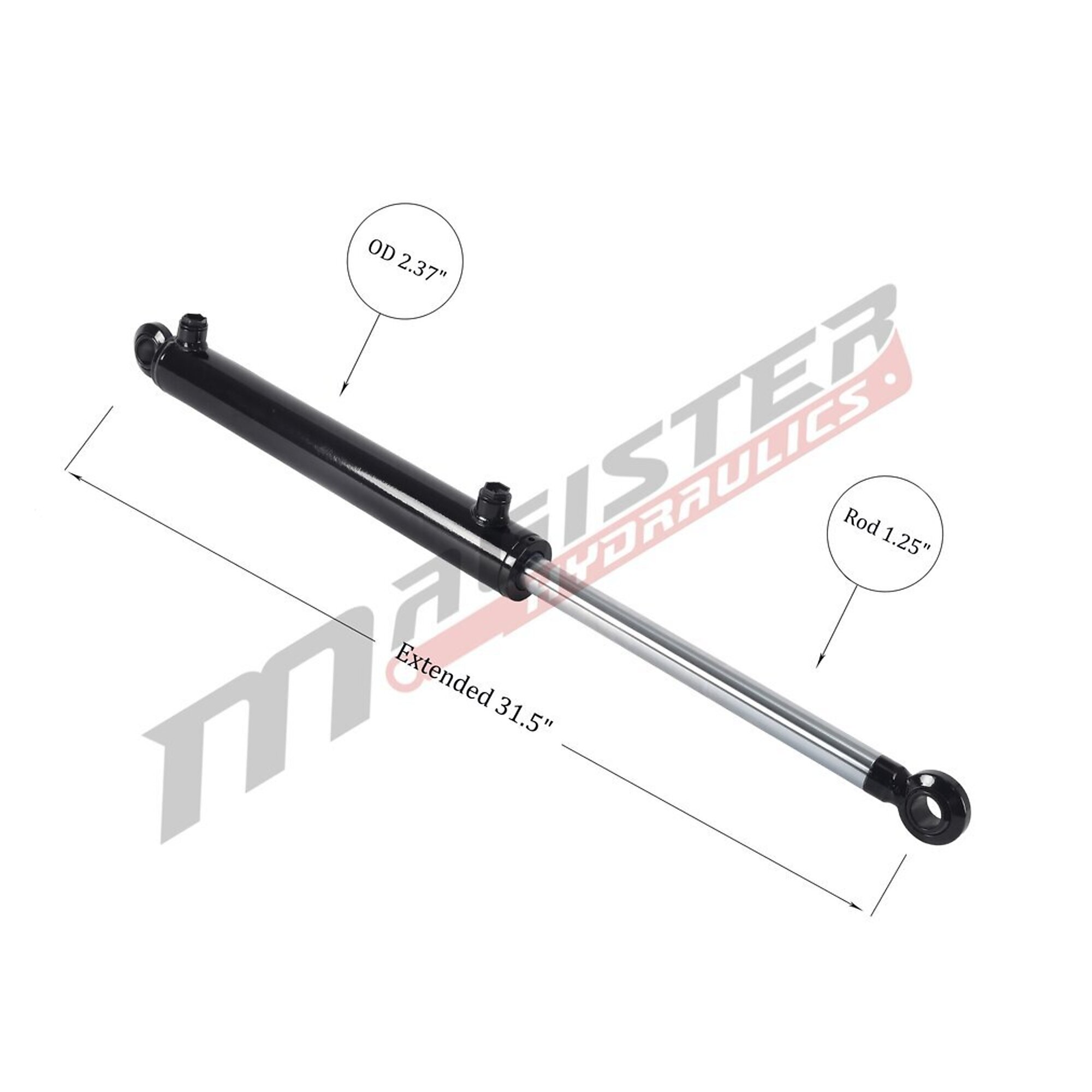

- Extreme load capacity: Welded steel mounts with bearings base end, ? 2.375" honed cold-drawn tubing, ? 1.25" chrome-plated rod (steel 1045).

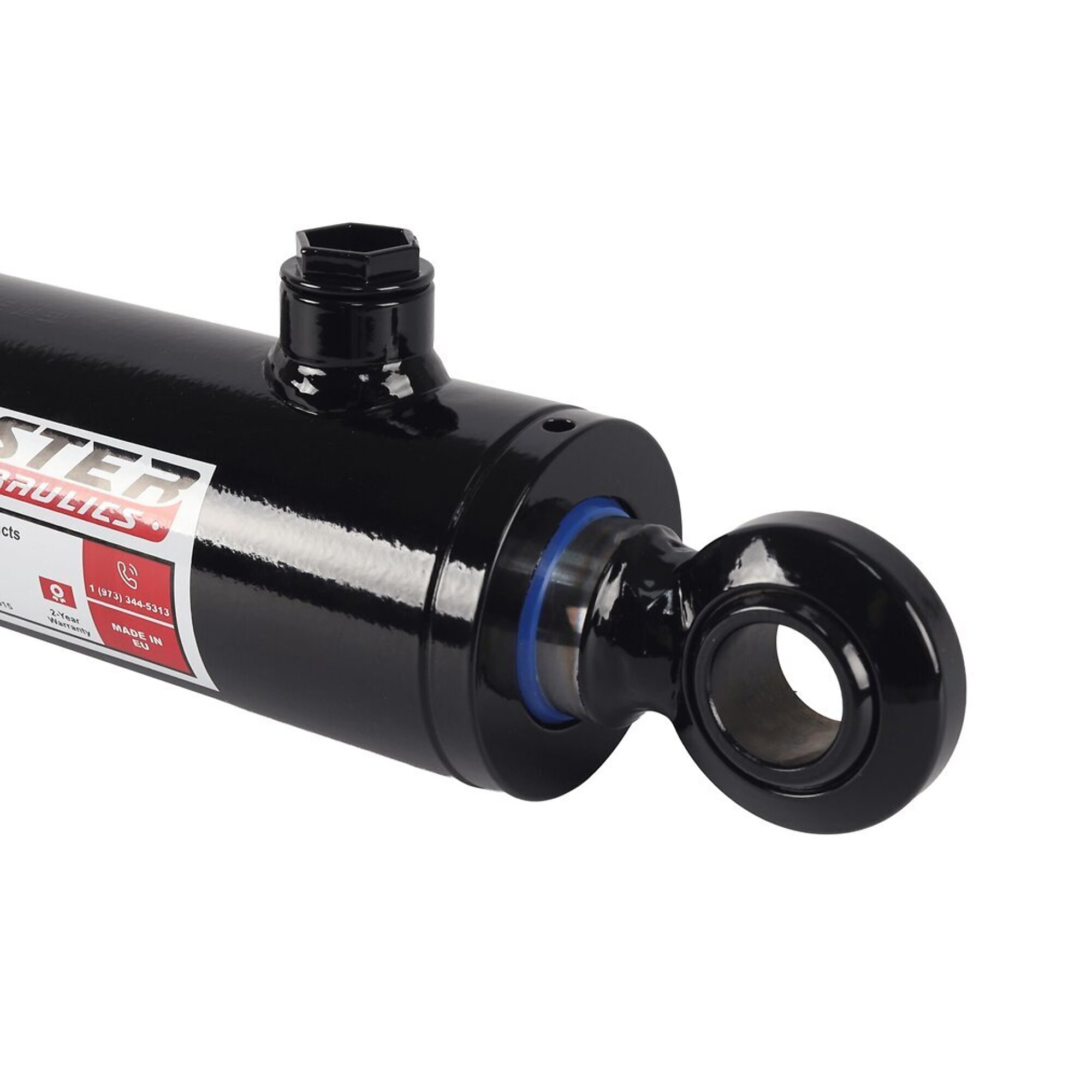

- Swivel Mount Mobility: Integrated swivel ball mounts allow for up to ±19° horizontal and ±10° vertical movement, ensuring optimal alignment under misaligned or dynamic load conditions.
- Wide Range Hydraulic Applications: Perfect for installations that require angular compensation — commonly used in agriculture, recycling, trailers, loaders, compact machinery such as skid steers and mini-loaders, and
- Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications
See full description
See All Cross Tube Welded Cylinders
See All Cross Tube Welded Cylinders
Currently Viewing This Product
Specifications
3,000
3,500
3,500
3,500
2 in
2.5 in
3 in
2.5 in
12 in
32 in
8 in
12 in
1.25 in
1.5 in
1.5 in
1.5 in
9,400 lb
10,600 lb
21,000 lb
14,700 lb
19.5 in
40 in
16 in
21 in
19.5 in
40 in
16 in
21 in
31.5 in
72 in
24 in
33 in
1 in
1 in
1 in
1 in
0.5 in
0.5 in
0.5 in
0.5 in
0.66 lb
2.72 lb
0.98 lb
1.02 lb
16.0000 lb
42.0000 lb
22.0000 lb
24.0000 lb
23.0 x 3.0 x 4.0 in
43.0 x 5.0 x 5.0 in
20.0 x 5.0 x 5.0 in
26.0 x 5.0 x 5.0 in
