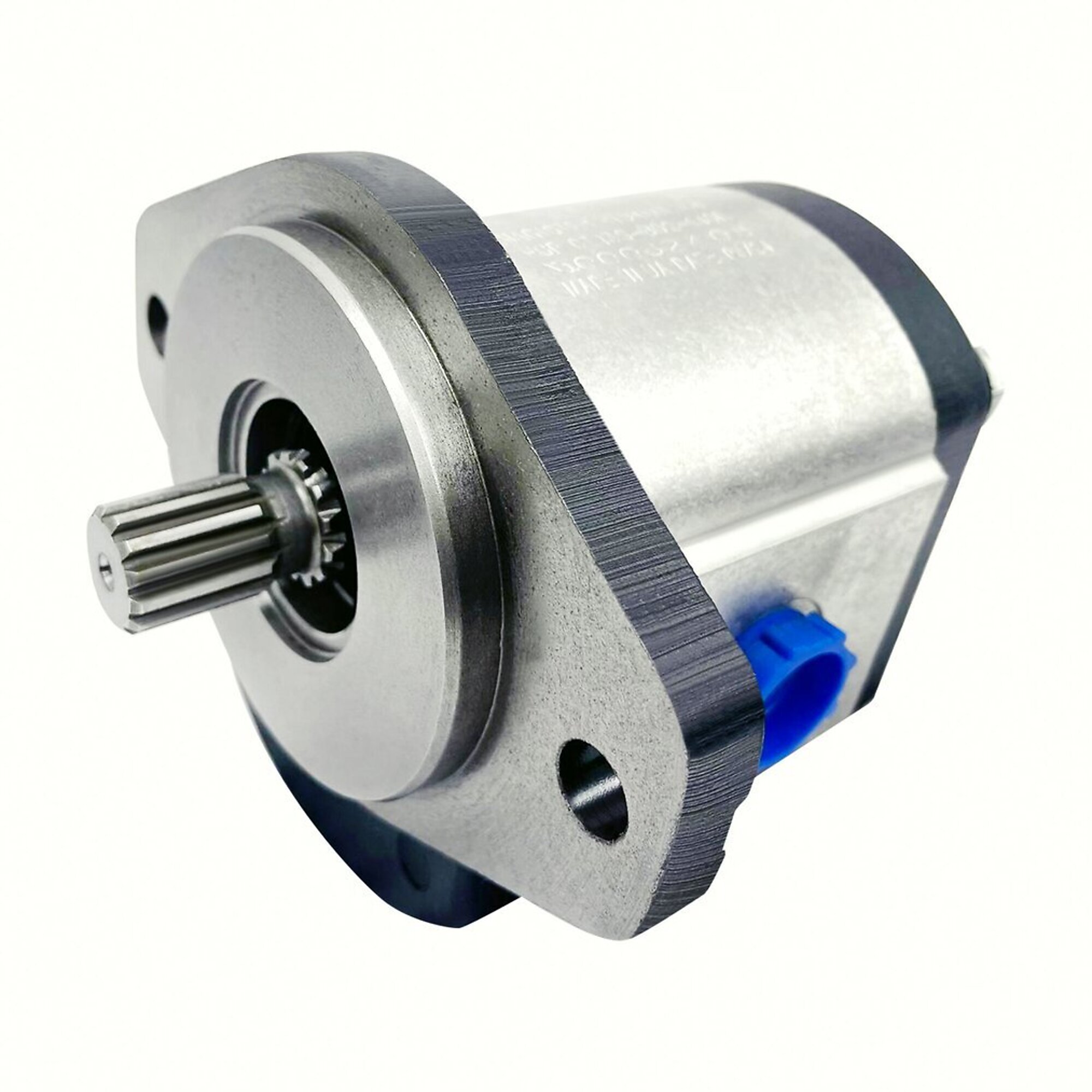

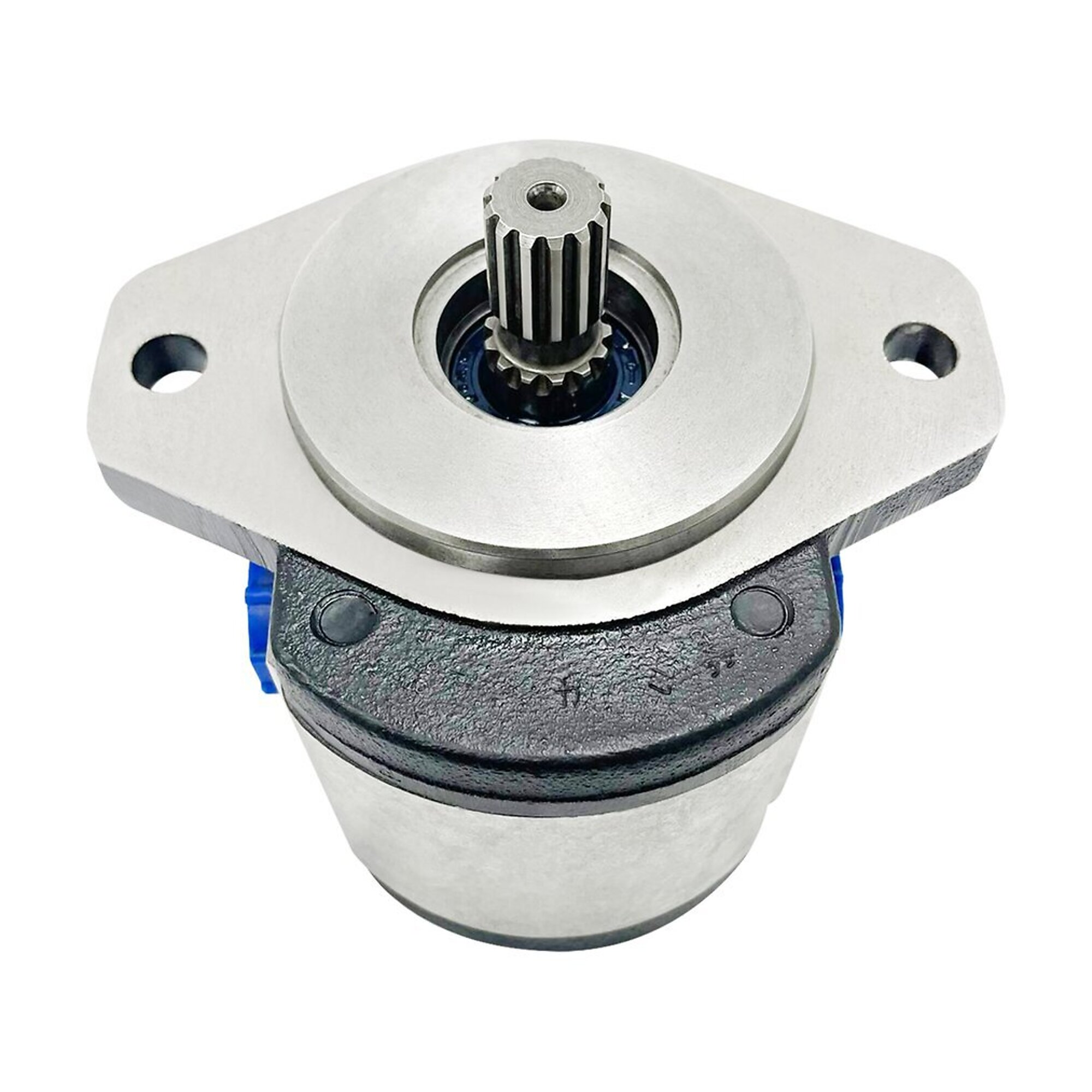

Magister 2.32 CID hydraulic gear pump 13 tooth spline shaft CW

Item# 7452237
New
Magister 2.32 CID hydraulic gear pump 13 tooth spline shaft CW

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Magister 2.32 CID hydraulic gear pump 13 tooth spline shaft CW

Click or Tap image to Zoom

$265.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Made in Europe, American Standards
  • Built to Last: Precision-machined cast iron construction ensures longevity and resistance to wear in tough environments
  • High-Pressure Performance: Handles up to 2500 PSI for powerful, consistent hydraulic operation
  • Easy Direct Replacement: Features a standard 13-tooth spline shaft and an SAE-B 2-bolt mounting flange for a straightforward swap with no modifications needed
  • Precise Rotation: Designed for systems requiring Clockwise (CW / Right-Hand) rotation

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Magister 2.32 CID cast iron pump is engineered for reliable performance in demanding agricultural and material handling applications. Featuring a robust 13-tooth spline shaft, CW rotation, a high-pressure rating of 2500 PSI, and a standard SAE-B mounting flange, this pump delivers the power and durability needed to keep your equipment running.

What's Included

    (1) Magister 2.32 CID hydraulic gear pump 13 tooth spline shaft CW

Features + Benefits

  • Made in Europe, American Standards
  • Built to Last: Precision-machined cast iron construction ensures longevity and resistance to wear in tough environments
  • High-Pressure Performance: Handles up to 2500 PSI for powerful, consistent hydraulic operation
  • Easy Direct Replacement: Features a standard 13-tooth spline shaft and an SAE-B 2-bolt mounting flange for a straightforward swap with no modifications needed
  • Precise Rotation: Designed for systems requiring Clockwise (CW / Right-Hand) rotation

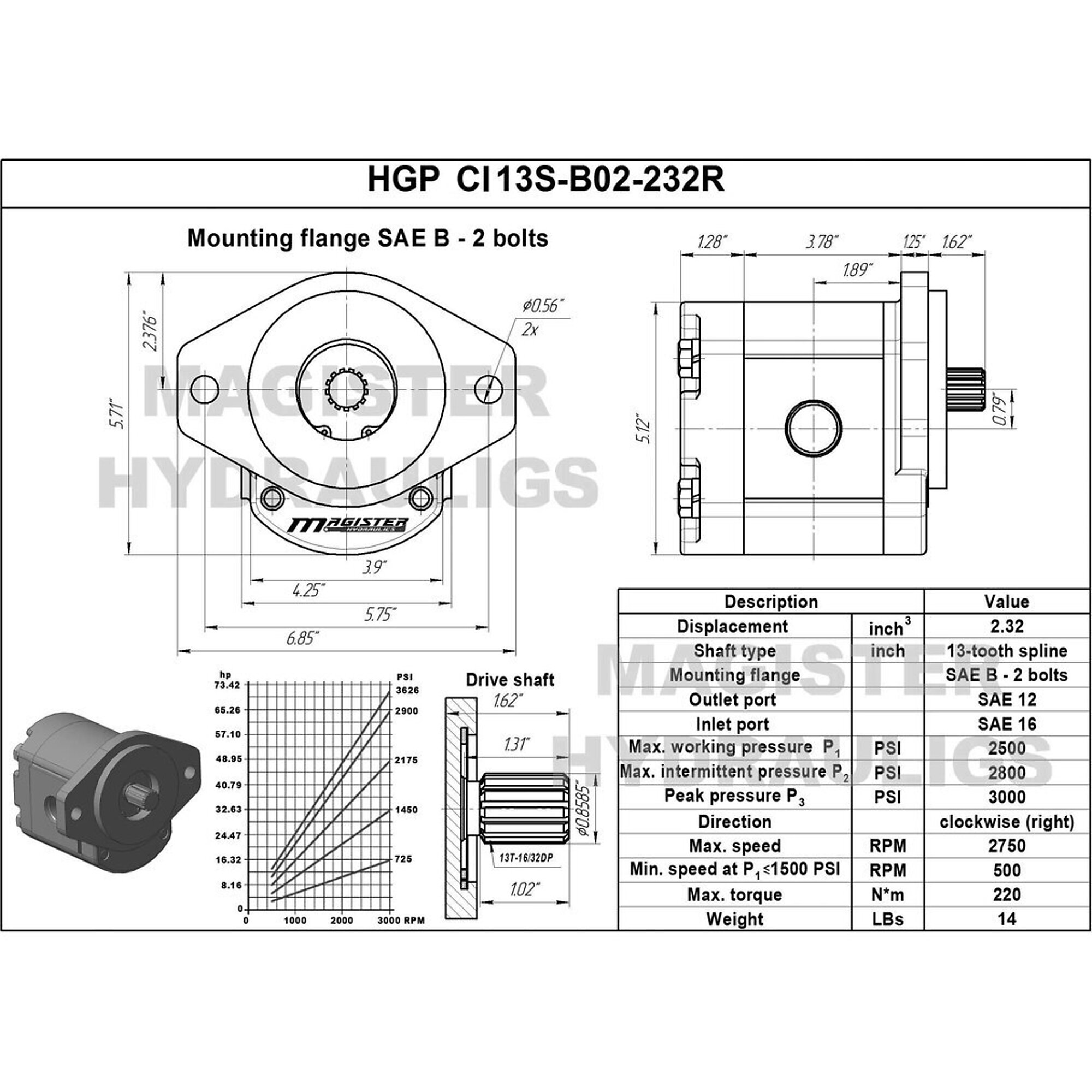

Key Specs

AttributeSpecification

item#

7452237

Brand

Magister Hydraulics

Manufacturer's Warranty

1 year limited warranty

Ship Weight

14.0 LB

Max. PSI

2,500

Max. RPM

2,750

Max. Flow Rate

20.08 GPM

Shaft Diameter

13 in

Shaft Type

Splined
AttributeSpecification

Pump Type

Gear

Stage

Single-Stage

Material

Cast Iron

Rotation

Clockwise

Port Inlet Size

1 in

Port Outlet Size

3/4 in

Thread Type

SAE

Product Weight

14.0000 lb

Dimensions L x W x H (in.)

12.0 x 9.0 x 4.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
