Product Summary

The Magister Hydraulics 0.76 CID cast iron 3/4in. keyed gear pump is engineered for reliable performance in demanding agricultural and material handling applications. Featuring a robust 3/4in. keyed shaft, CW rotation, a high-pressure rating of 3600 PSI with 3500 max RPM, and a standard SAE-A mounting flange, this pump delivers the power and durability needed to keep your equipment running.

What's Included

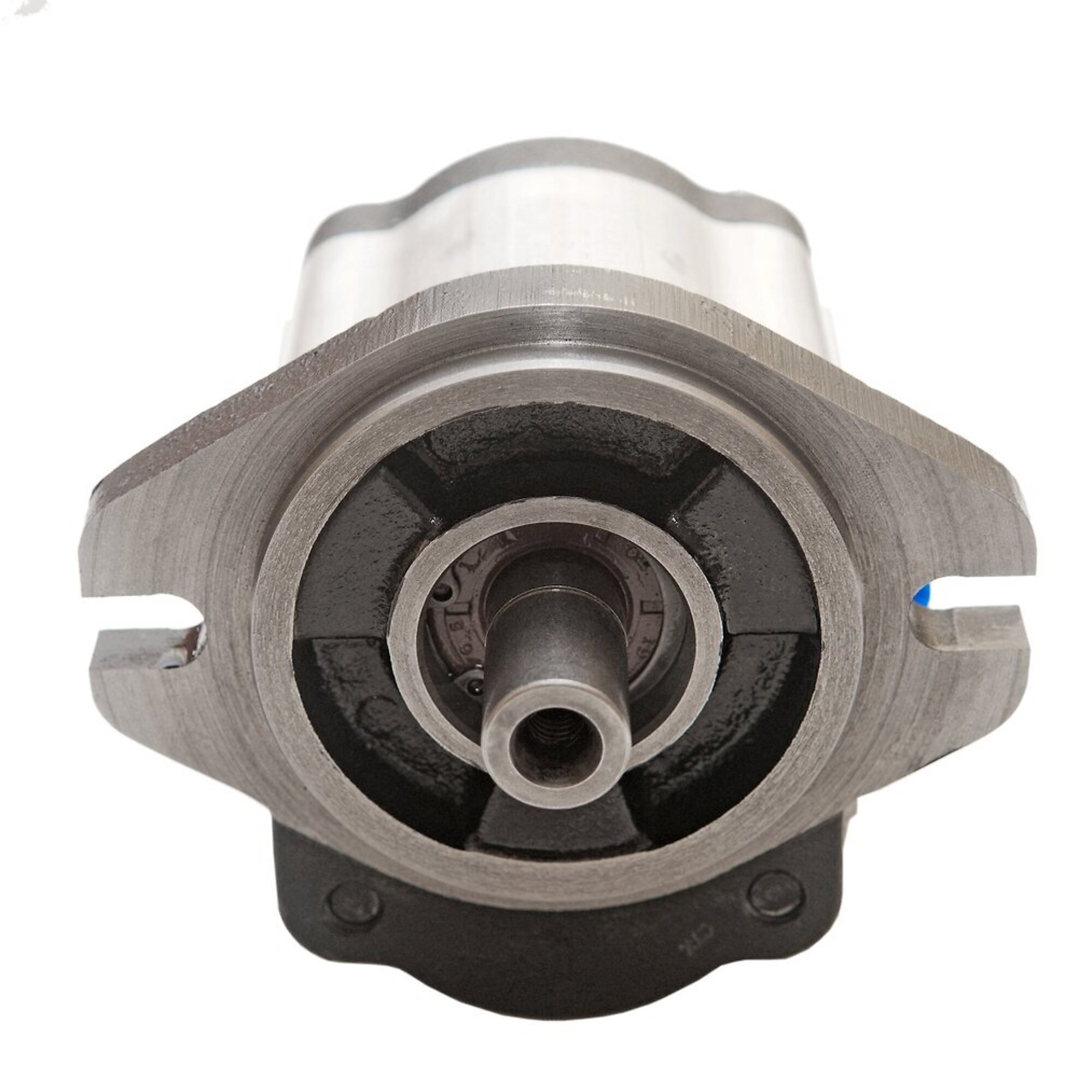

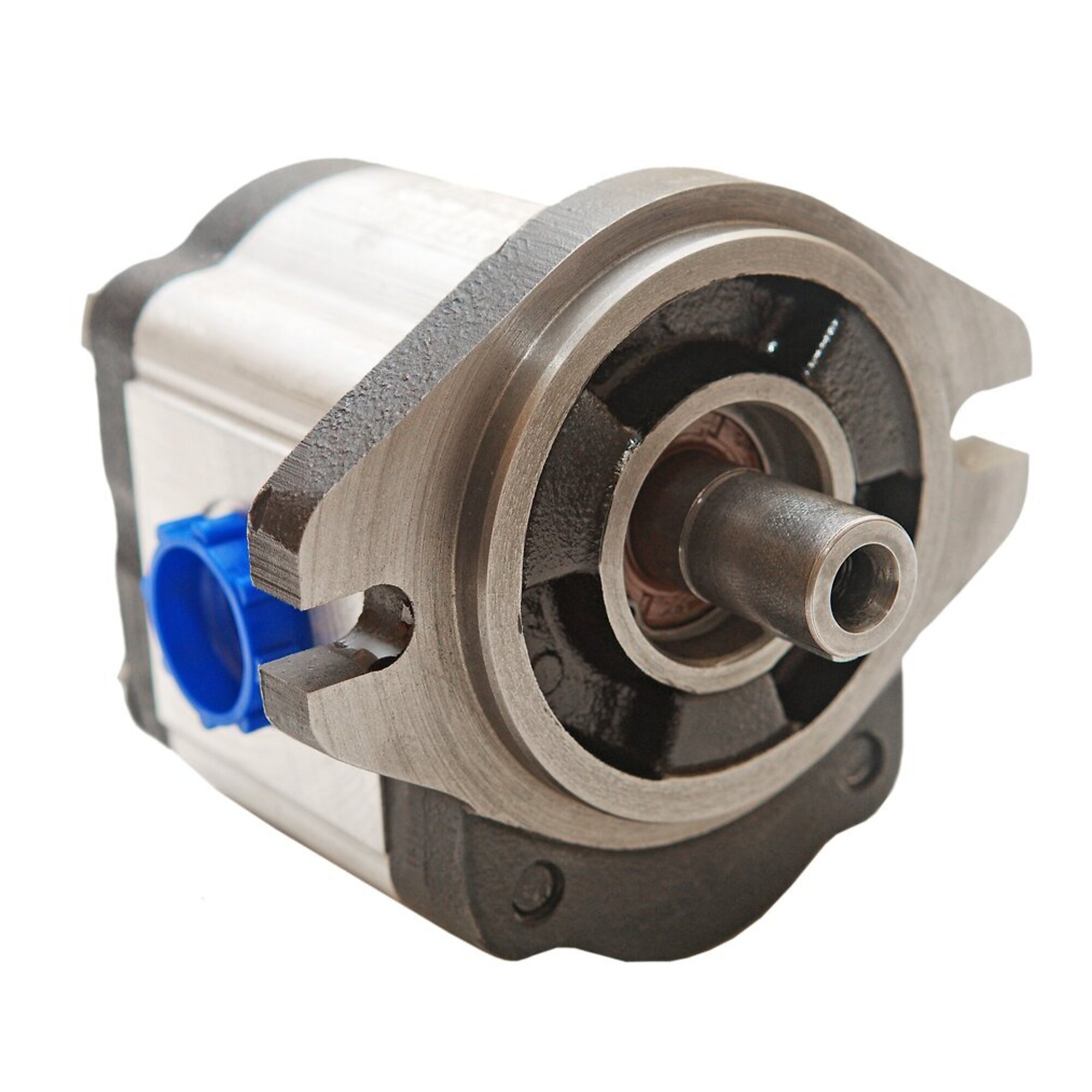

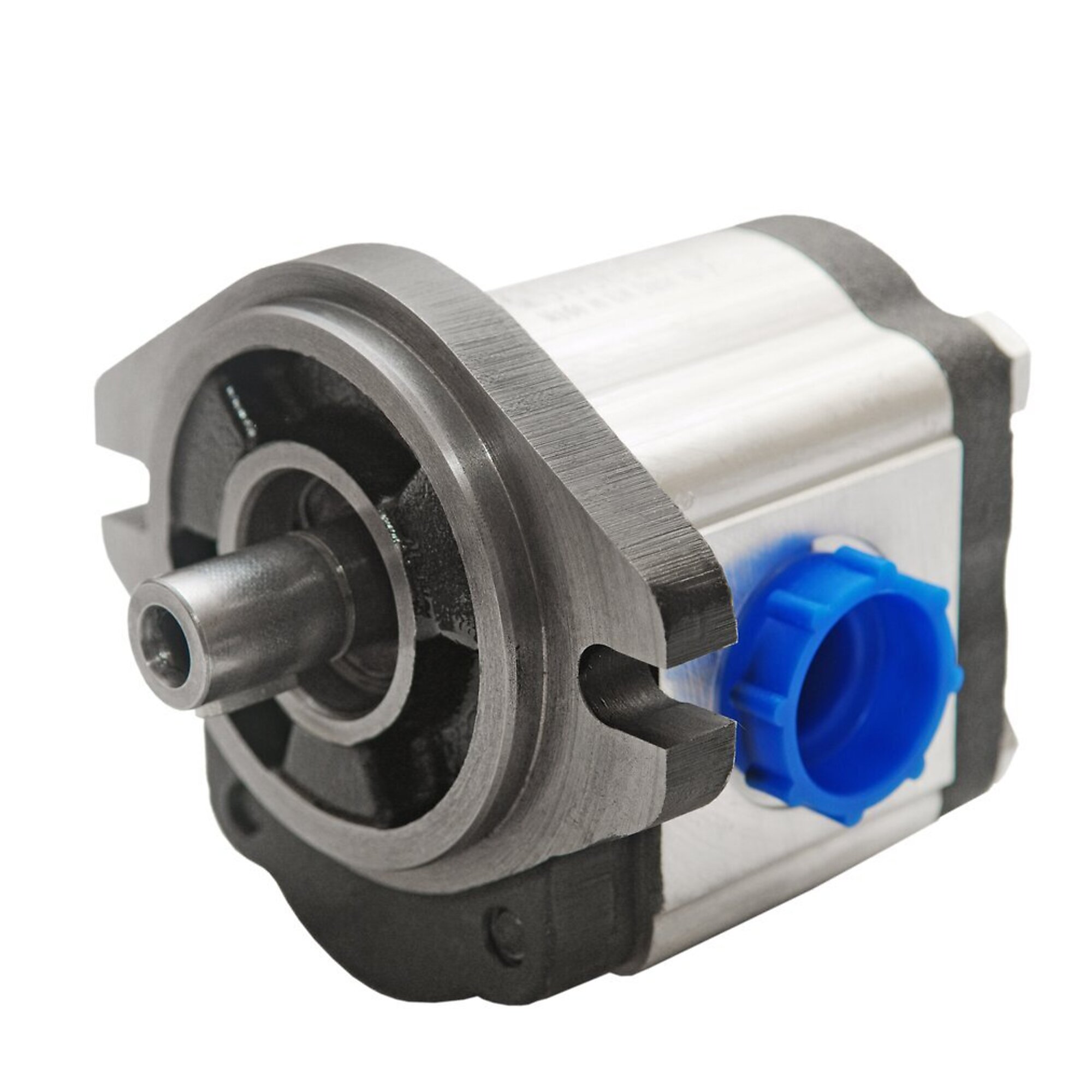

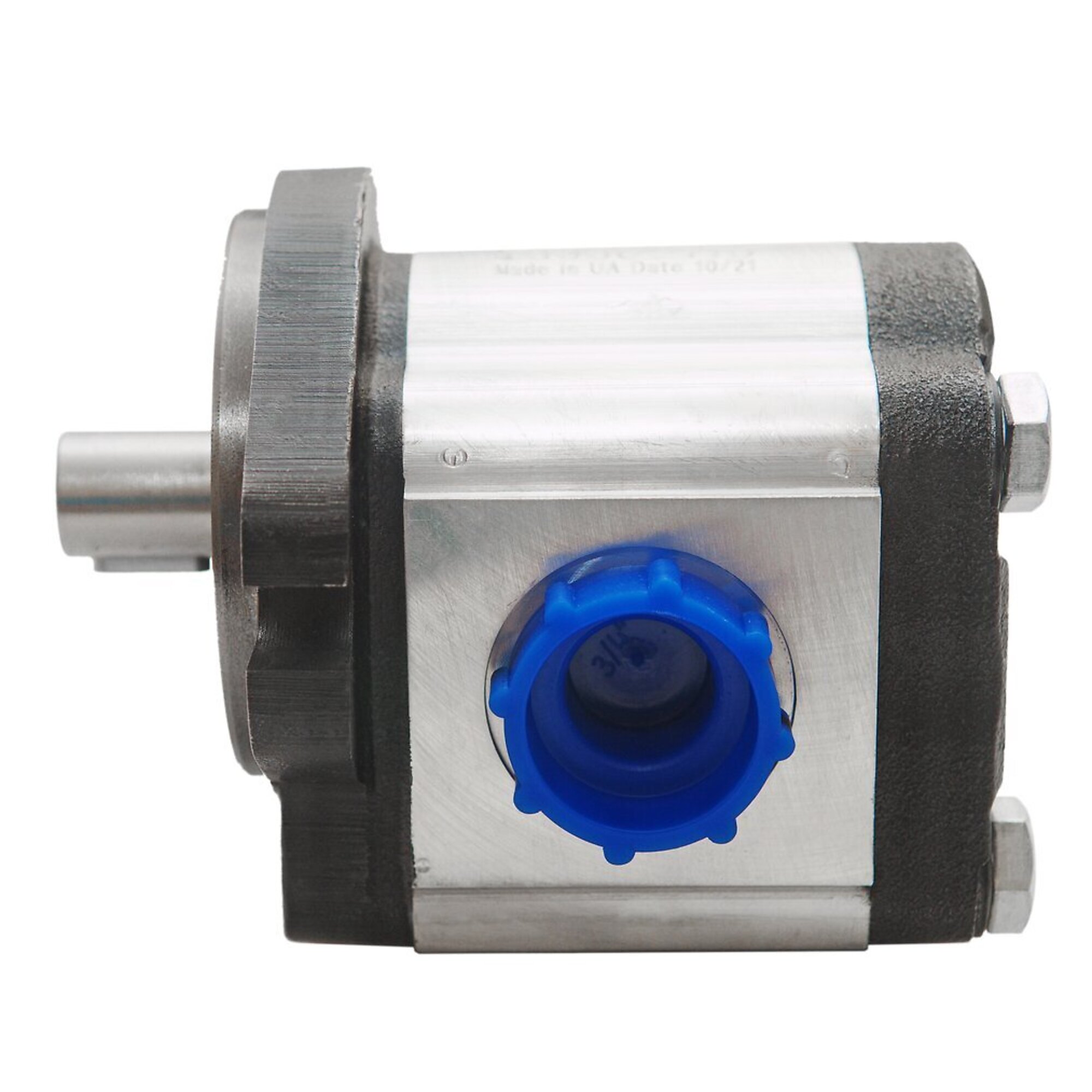

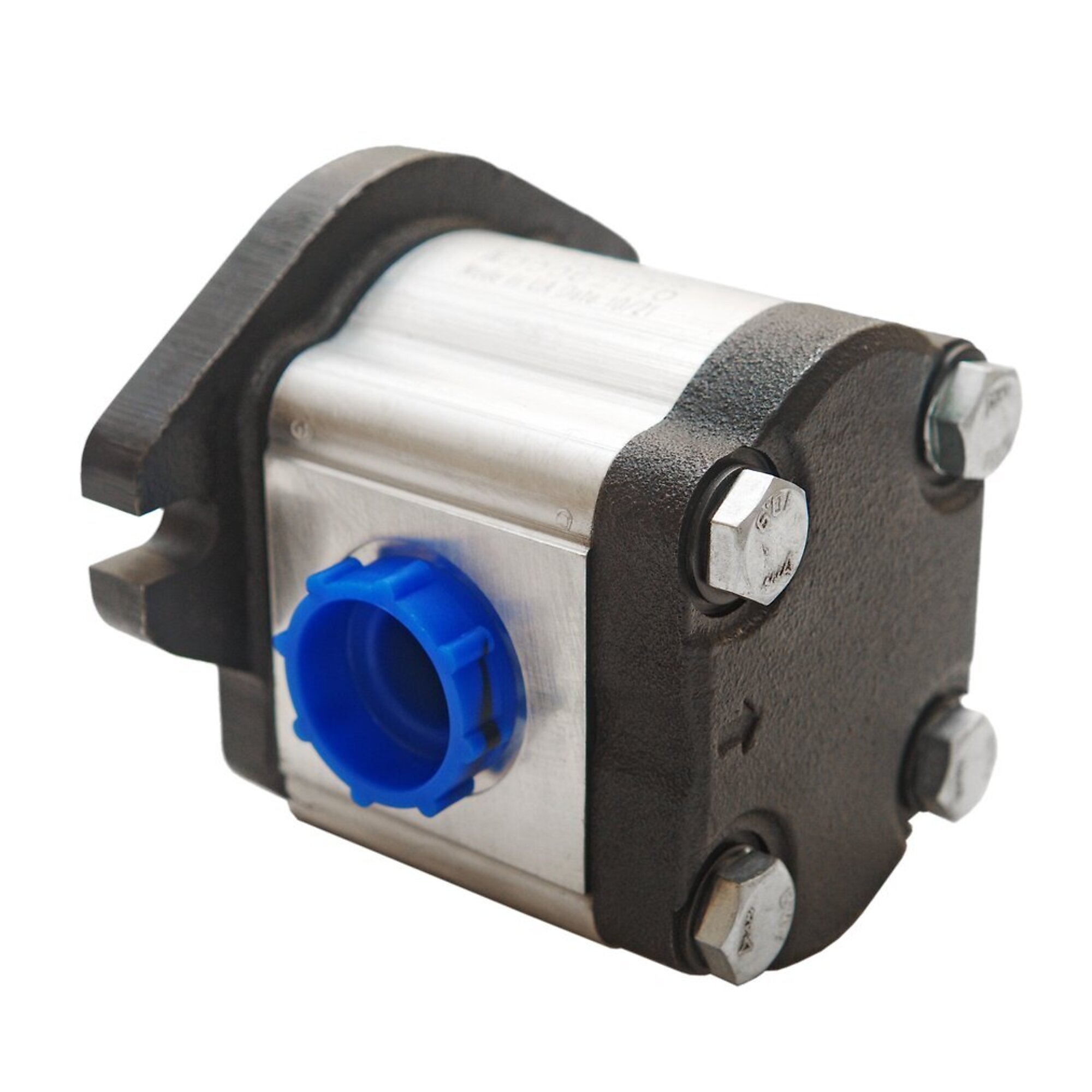

    (1) Magister 0.76 CID hydraulic gear pump 3/4" keyed shaft CW

Features + Benefits

  • Made in Europe, American Standards
  • Built to Last: Precision-machined cast iron construction ensures longevity and resistance to wear in tough environments
  • High-Pressure Performance: Handles up to 3600 PSI for powerful, consistent hydraulic operation
  • Easy Direct Replacement: Features a standard 3/4" keyed shaft and an SAE-A 2-bolt mounting flange for a straightforward swap with no modifications needed
  • Precise Rotation: Designed for systems requiring Clockwise (CW / Right-Hand) rotation

Key Specs

AttributeSpecification

item#

7451390

Brand

Magister Hydraulics

Manufacturer's Warranty

1 year limited warranty

Ship Weight

6.0 LB

Max. PSI

3,600

Max. RPM

3,500

Max. Flow Rate

6.58 GPM

Shaft Diameter

0.75 in

Shaft Type

Keyed
AttributeSpecification

Pump Type

Gear

Stage

Single-Stage

Material

Cast Iron

Rotation

Clockwise

Port Inlet Size

3/4 in

Port Outlet Size

5/8 in

Thread Type

SAE

Product Weight

6.0000 lb

Dimensions L x W x H (in.)

8.0 x 6.0 x 6.0 in

Warranty

Manufacturer's Warranty

1 year limited warranty
