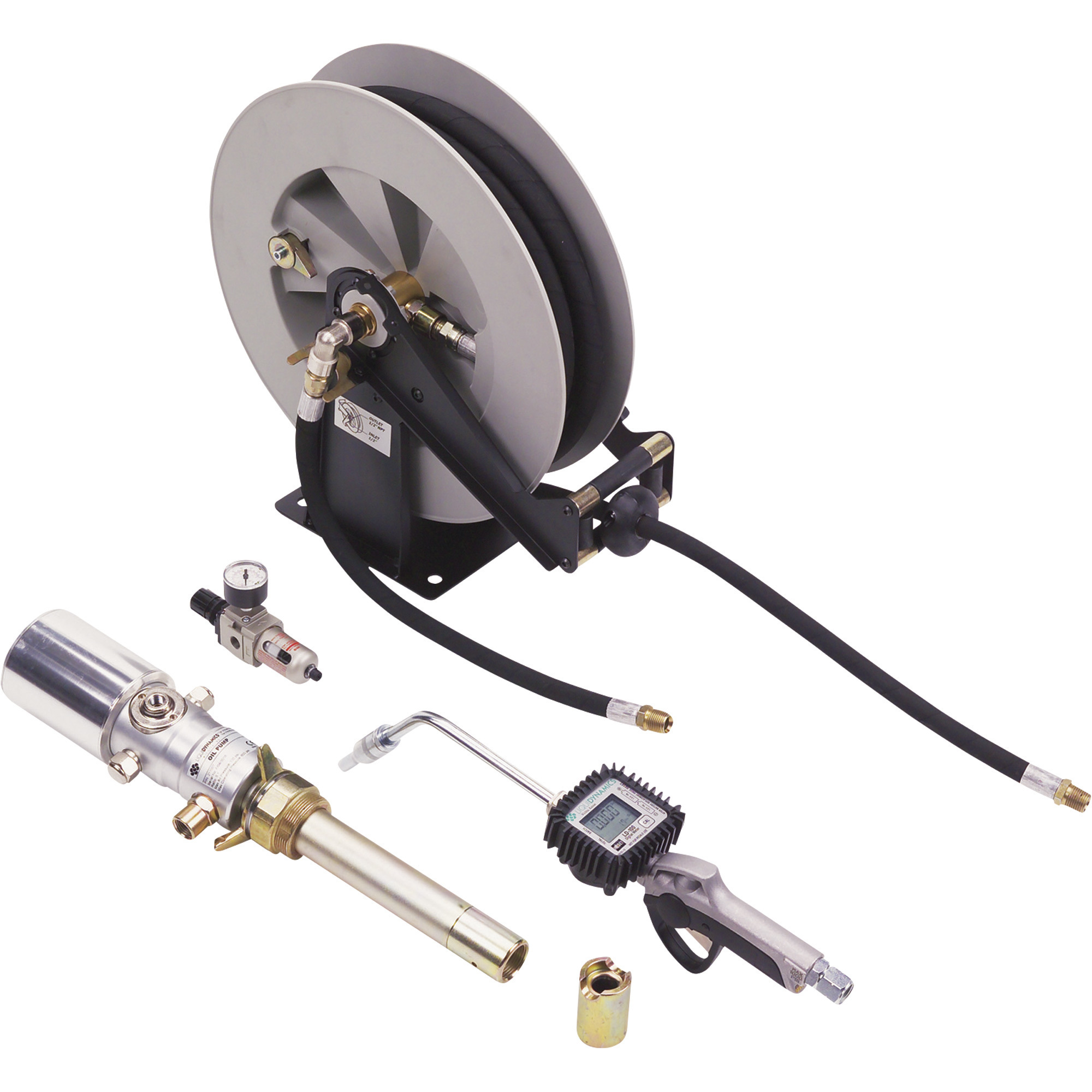

Liquidynamics Oil Lubrication System, 25ft. Pump Reel Kit, 4 GPM, Model# 21100T-S26

Item# 109065
Liquidynamics Oil Lubrication System, 25ft. Pump Reel Kit, 4 GPM, Model# 21100T-S26

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Liquidynamics Oil Lubrication System, 25ft. Pump Reel Kit, 4 GPM, Model# 21100T-S26

Click or Tap image to Zoom

$1652.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Delivers a 4 GPM flow rate
  • Stubby pump with 120-lbs. of air pressure generates 600-lbs. of fluid pressure
  • Powerful enough to pump light, medium and heavy grades of oil over long distances
  • Easily adapts to fit 16-, 30- and 55-gallon drums as well as stationary bulk tanks
  • Pumps are very forgiving of backpressure changes due to variations in oil viscosity, pumping distances and line restrictions

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Get a complete air operated oil transfer system with one easy purchase! Package lets you transfer any type of oil or 100% ethylene glycol. Includes 5:1 ratio pump, bung adapter, 1in. NPTF foot valve with inlet screen, professional grade 1/2in. x 25ft. oil hose reel, 1/2in. x 2ft. jumper hose for connection between hose reel and rigid plumbing, and electronic non-preset meter with replaceable electronic module. (Suction tube not included.)

What's Included

    (1) Oil lube system including: (1) 5:1 ratio oil stub pump (1) 2in. bung adapter allows up/down adjustment of pump location (1) 1/2in. x 25ft. professional quality oil reel, double arm and double pedestal construction (1) 1/2in. x 2ft. jumper hose (1) Ele

Downloads

Product Manual

Features + Benefits

  • Delivers a 4 GPM flow rate
  • Stubby pump with 120-lbs. of air pressure generates 600-lbs. of fluid pressure
  • Powerful enough to pump light, medium and heavy grades of oil over long distances
  • Easily adapts to fit 16-, 30- and 55-gallon drums as well as stationary bulk tanks
  • Pumps are very forgiving of backpressure changes due to variations in oil viscosity, pumping distances and line restrictions
  • Foot valve has an integral screen to prevent foreign objects from entering the pump
  • Compact 1/4in. air/filter regulator with embedded pressure gauge allows control of pumping speed
  • Electronic digital meter has a rigid spout and auto tip
  • Industrial-grade hose reel with 25ft. hose rated to 3,000 PSI
  • Hose reel features a double pedestal and double arm steel construction to ensure rigidity and long swivel life
  • Powder-coated for durability
  • Hose reel arm easily adjusts to allow for either top or bottom feed

Key Specs

AttributeSpecification

item#

109065

Brand

LiquiDynamics

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

55.8 LB
AttributeSpecification

Flow Rate

4 GPM

Inlet Port

1 in

Outlet Port

0.5 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Do you allow for custom changes to the kits like a 50ft reel instead of 25ft?

    1 answer

    1. We do not offer this oil lubrication system with a 50 ft reel and would be unable to customize it with a 50 ft reel.

      Helpful?

  2. How loud is this pump? I want to use it to fill gallon jugs from a 330 gallon tote inside my shop. Is the sound going to drive everyone nuts?

    1 answer

    1. This is rated at 79 decibels.

      Helpful?

  3. What is the lenght in inches?

    From the front of the reel where the hose comes out to the back of the reel what is the exact measurement?

    1 answer

    1. On this reel when the arm is extended out it will be 17 inches from the hose to the back plate of the unit. So there is an inch between the back plate and wheel. The wheel is 14 inches in diameter and the arm for the hose extends out 2 more inches.

      Helpful?

Warranty

Manufacturer's Warranty

24 months parts/24months labor
